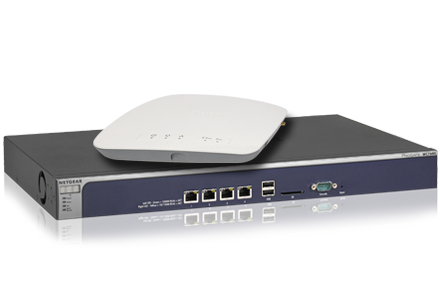

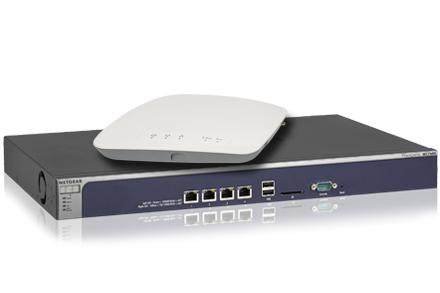

The WB7620 Business Controller Bundle is the perfect offer for mid sized businesses delivering wireless with high performance 802.11 access points. The package contains one (1) WC7600 Business Wireless Controller, ten (10) WAC720 802.11ac Wireless Access Points, and one (1) WC10APL license for 10 Access Point management. WB7620 WB7620-100NAS WB7620-100NAS

Business Wireless Controller Bundle (WB7620) armor

Business Wireless Controller Bundle with ten 802.11ac (2x2) WAC720 Access Points armor

Business Wireless Controller Bundle (WB7620)

Business Wireless Controller Bundle with ten 802.11ac (2x2) WAC720 Access Points armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

The WB7620 Business Controller Bundle is the perfect offer for mid sized businesses delivering wireless with high performance 802.11 access points. The package contains one (1) WC7600 Business Wireless Controller, ten (10) WAC720 802.11ac Wireless Access Points, and one (1) WC10APL license for 10 Access Point management.

Features

Performance

Centralized management of WC7600 Business Wireless Controller with redundancy as option.

Premium performance of the WAC720 AP with 2 streams of data for 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) of reliable data delivery 802.11ac beamforming to improve range, minimizes interference while maximizing data rates Internal antennas for maximum RF performance.

Scalability

Each WB7620 wireless bundle includes one (1) WC7600 Premium Wireless Controller, ten (10) WAC720 Business Dual Band 802.11ac (2x2) Wireless Access Points and ten (10) AP licenses.

Scalable to add additional Access Points as needed (up to 50 in total).

Business Value

Best value-for-price offering for businesses who want to benefit from the speed and features of managed 11ac wireless.

Significant bundle discount. All the benefits of a managed infrastructure at low total cost of ownership.

Ease of Use

The WB7620 Wireless Controller Bundle is designed for ease of ordering and simplified deployment with ten (10) 2x2 802.11ac Access Points.

Simplified logistic and deployment with single ordering SKU Controller-GUI and configuration optimized for SMB.

Technical Specifications

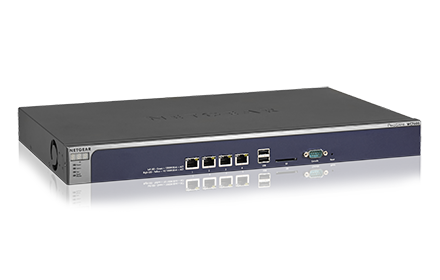

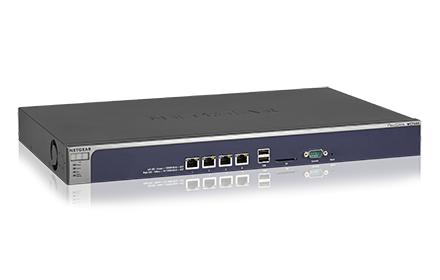

WC7600_2Feb16_hero
  • Electrical Specifications : 100-240V, AC/50-60Hz, Universal Input, DC 5V/8A (internal power supply)
  • Dimensions (W x H x D) cm : 44.0 x 26.2 x 4.3
  • Dimensions (W x H x D) in : 17.3 x 10.3 x 1.7
  • Weight kg/lb : 3.6/7.9
  • Supported AP Models : WAC730 802.11ac 3x3 (1.7 Gbps) Wireless Access Point
  • WAC720 802.11ac 2x2 (1.3 Gbps) Wireless Access Point
  • WNDAP660 802.11n 3x3 (900 Mbps) Wireless Access Point
  • WND930 Outdoor Dual Band 802.11n (600 Mbps) Wireless Access Point
  • WNDAP360 Dual Band 802.11n (600 Mbps) Wireless Access Point
  • WNDAP350 Dual Band 802.11n (600 Mbps) Wireless Access Point
  • WN370 802.11n (300 Mbps) Wall Mount Wireless Access Point
  • WNAP320 802.11n (300 Mbps) Wireless Access Point
  • WNAP210 802.11n (300 Mbps) Wireless Access Point
  • Supported Modes : Wireless-A/B/G/N/AC
  • Main Functionality : Wireless Controller
  • Number of Access Points : 50 per controller (Default support of 2 with optional license to support up to 50 AP’s)
  • Maximum AP Supported per Controller : 2 (default)
  • 50 with Incremental 10-AP License Upgrades (WC10APL-10000S)
  • Redundancy Support of Wireless Controller : Stackable up to 3 controllers for a total support of 150 Access Points
  • Supporting N + 1 redundancy with a maximum configuration of 3 active controller and 1 standby
  • Maximum Profile Groups per Controller : 8
  • Each access point belongs to only one profile group
  • Maximum Security Profiles (SSID) per Profile Group : 8 per radio (2.4 GHz; 5 GHz)
  • Maximum Security Profiles (SSID) per Controller : 128
  • Maximum Rogue APs Detectable per Controller : 512
  • Maximum Floorplans per Controller : 3 (default)
  • Additional floorplans possible with USB local storage (up to a maximum of 18 floorplans)
  • Number of Captive Portals per Controller : 1
  • Maximum Clients per AP : WNAP210 support up to 32 clients
  • WNAP320 support up to 64 clients
  • WN370 support up to 64 clients
  • All other AP’s support up to 128 clients
  • Maximum Clients per Controller : None other than maximum clients per AP
  • L2 Mobility : L2 fast roaming support between the APs
  • L3 Mobility : L3 fast roaming support with encrypted tunnelling between the APs and the controller
  • Maximum VLANs per Controller : 64 VLANs for SSIDs
  • 1 configurable management VLAN
  • IP AND VLANS CONFIGURATION : test
  • Quality of Service : test
  • WMM Quality of Service : WMM (802.11e) prioritizes traffic for both upstream traffic from the stations to the access points (station EDCA parameters) and downstream traffic from the access points to the client stations (AP EDCA parameters)
  • WMM Queues in Decreasing Order of Priority : Voice: The highest priority queue with minimum delay, which makes it ideal for applications like VoIP and streaming media
  • Video: The second highest priority queue with low delay is given to this queue. Video applications are routed to this queue
  • Best effort: The medium priority queue with medium delay is given to this queue. Most standard IP application will use this queue
  • Background: Low priority queue with high throughput. Applications, such as FTP, which are not time-sensitive but require high throughput can use this queue
  • WMM Power Save Option : WMM power save helps conserve battery power in small devices such as phones, laptops, PDAs, and audio players using IEEE® 802.11e mechanisms
  • Rate Limiting : Rate limit per SSID set as a percentage of total available bandwidth
  • WIRELESS SECURITY : test
  • Client Authentication Protocols : Open, WEP, WPA/WPA2-PSK
  • 802.11i/WPA/WPA2 Enterprise with standard interface to external AAA/RADIUS Server
  • Local ACLs (512 MAC)
  • MAC ACLs based on local AAA Server or external Radius Server
  • Distinct AAA Server per SSID : Yes
  • RADIUS Accounting Protocol : Per Client tracking for Bytes Tx/Rx and
  • Connect/disconnect time
  • LDAP-based Authentication : Standard interface to external LDAP server/Microsoft® Active Directory Server
  • Integrated AAA Server : Local database authentication based on WC7520 internal AAA Server
  • Guest Access : Integrated captive portal available for client authentication in a security profile
  • Password based authentication mode: Local user store available, receptionist assigned user name/password
  • External Radius server mode: External RADIUS authentication for the captive portal clients
  • Open authentication mode: Guest auto registration with email address
  • Extraction of logs of guest activity
  • Captive Portal : Configurable portal page, including image files
  • Rogue Access Points : Rogue AP definition: AP with radio SSID observed by any of the managed APs and seen transmitting on same L2 wired network
  • Detection and mapping of up to 512 rogue APs
  • WIRELESS SECURITY : test
  • Monitoring Summary : Summary of managed access points status, rogue access points detected, wireless stations connected, Wireless Controller information and wireless network usage
  • Managed Access Points : AP status for the managed access points and details that includes configuration settings, current wireless settings, current clients and detailed traffic statistics
  • Rogue Access Points : Rogue access points reported
  • Rogue access points in same channel
  • Rogue access points in interfering channels
  • Wireless Clients : Clients statistics and details per AP, per SSID, per floor, per location
  • Blacklisted clients, roaming clients
  • Wireless Network Usage : Network usage statistics display plots of average received/transmitted network traffic per managed access point.
  • Heat Maps : Live coverage and visualization heat maps
  • Location visualization and device tracking
  • DHCP Leases : DHCP details for wireless clients
  • MANAGEMENT : test
  • Management Interface : HTTP, SNMP v1/v2c, telnet, Secure Shell (SSH)
  • Logging and Reporting : If available syslog server on the network, the Wireless Controller can send all logs. Logs are also available on the GUI and ready to download (log export file)
  • Email alerts for events as per configuration to multiple email addresses
  • Diagnostics : Managed access points ping
  • Maintenance : Save/restore configuration, restore to factory defaults, admin password change, add user (read-only), firmware upgrade via Web browser for the Wireless Controller and the managed access points
  • Dual Boot Image : Supported
  • SNMP : SNMP v1/v2c
  • IEEE AND IETF RFC STANDARDS : test
  • Wired IEEE Standards : IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  • IEEE 802.1Q VLAN tagging
  • Wired IEEE Standards : IEEE 802.11a, 802.11b, 802.11g, 802.11n
  • WMM (from 802.11e)
  • RFC - System Facilities : RFC 1001 Protocol standard for a NetBIOS service on a TCP/UDP transport: Concepts and methods'
  • RFC 1002 Protocol standard for a NetBIOS service on a TCP/UDP transport: Detailed specifications
  • RFC 1155 Management information for TCP/IP networks
  • RFC 1305 Network Time Protocol (Version 3) Specification, Implementation and Analysis
  • RFC 2131 DHCP
  • RFC 3768 Virtual Router Redundancy Protocol (VRRP)
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC - Security and AAA : WPA-PSK, WPA2-PSK
  • RFC 1321 MD5 Message – Digest Algorithm
  • RFC 1851 Triple DES Algorithm
  • RFC 2246 TLS Protocol Version 1.0
  • RFC 2404 HMAC-SHA-1-96
  • RFC 3280 Internet X.509 PKI Certificate and CRL certificate
  • RFC 3377 Lightweight Directory Access Protocol (v3): Technical Specification
  • RFC 3565 Use of the Advanced Encryption Standard (AES) Encryption Algorithm in Cryptographic Message Syntax
  • RFC 4346 TLS Protocol version 1.1
  • IEEE AND IETF RFC STANDARDS : test
  • RFC - Management : SNMP v1, v2c
  • RFC 364 syslog
  • RFC 854 telnet
  • RFC 1156 MIB
  • RFC 1157 SNMP
  • RFC 1213 MIB II
  • RFC 1350 TFTP
  • RFC 2616 HTTP
  • RFC 3164 The BSD Syslog Protocol
  • Enterprise private MIBs
  • HARDWARE : test
  • Gigabit RJ45 Ports LAN : Switch 4-port 10/100/1000
  • USB Port : 1 port for USB storage
  • More floor heat maps
  • Extended statistics history
  • Major Regulatory Compliance : FCC Class A, CE, WEEE, RoHS
  • Storage and Operating Temperatures : Operating temperature 0°-45° C (32°-113° F)
  • Storage temperature -20°-70° C (-4°-158° F)
  • Humidity : Operation 90% Maximum Relative, Storage 95% Maximum Relative
  • Ordering Information - Controller : Global (outside of China and India): WC7600-20000S
  • China: WC7600-200PRS
  • India: WC7600-200INS
  • DHCP Server/Relay : Integrated DHCP server
  • Multiple DHCP server/pool can be added for different VLANs (up to 64)
  • VLANs for the Wireless Controller : One management VLAN (configurable VLAN ID)
  • VLANs Access Points / Multiple SSIDs : 64 VLANs
  • VLANs Deployment : The Wireless Controller must have IP connectivity with the access points through the management VLAN. If the Controller and the APs are on different management VLANs, external VLAN routing must allow IP connectivity between the Controller and the APs.
  • RF PLANNING AND MONITORING : test
  • Integrated Deployment Planning : Hierarchical view of the network: Floor maps upload and floor maps dimensions input
  • Automated RF planning algorithm: Computed number of APs required to cover a floor plan
  • Theoretical cloud coverage indicated for each AP for positioning assistance on the floor plan
  • RF Monitoring : Coverage computing per floor plan
  • Alert for any detected coverage holes with mitigation options with neighboring APs
  • Rogue AP/blacklisted clients triangulation
  • RF MANAGEMENT : test
  • Automatic Channel Allocation : Channel automatic distribution to reduce interference
  • Auto-channel allocation takes into consideration the AP location, interferences, and neighborhood maps for each AP
  • Modifiable list of corporate channels to be used
  • Scheduled mode for auto-channel allocation
  • Automatic mode available in case of high level of interference
  • Automatic Power Control : Optimum transmit power determination based on coverage requirements
  • Automatic power control mode available
  • Neighborhood scan of RF environment to minimize neighboring AP interference and leakage across floors
  • Coverage Hole Detection : Automatic mode
  • Down APs or compromised RF environment detection with alerts
  • Self healing: Automatic neighboring AP power increase to fill in for coverage losses
  • Load Balancing : AP load monitoring and overload prevention
  • Client redirection to lightly loaded neighboring APs
  • Fast Roaming : Seamless rapid mobility across VLAN and subnets
  • Includes 802.11i pre-auth and fast roaming
  • Fast roaming support across L2, and L3 for video, audio and voice over wireless client
  • Package Contents : WC7600 Wireless Controller, Ethernet cable, power cords, installation guide

    • Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support

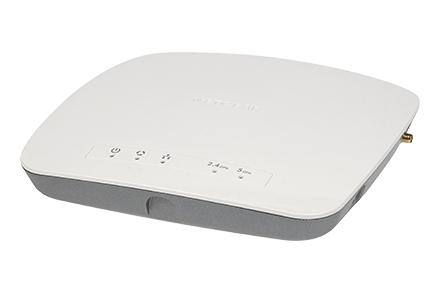

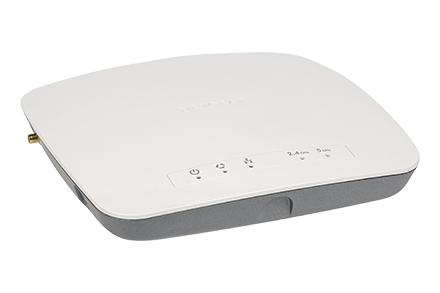

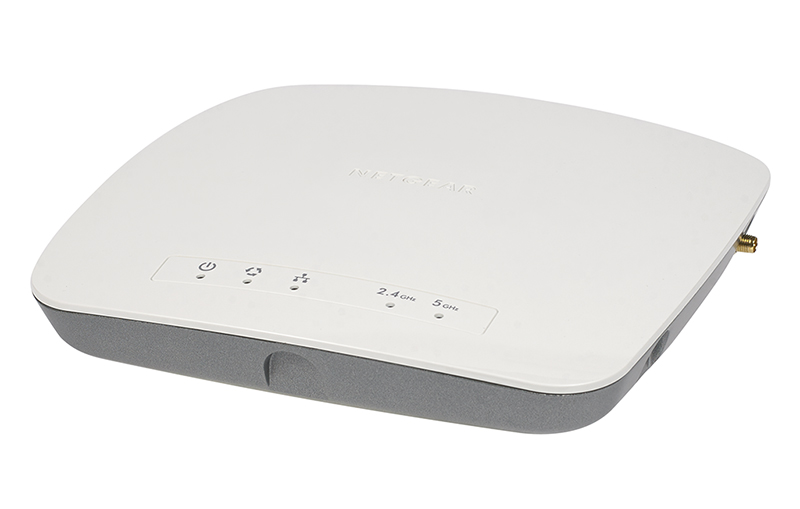

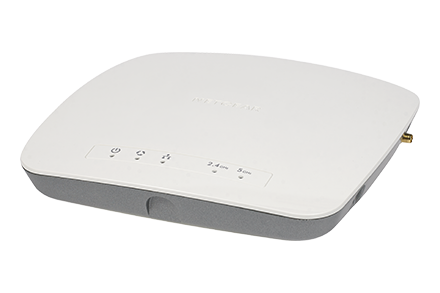

header-WAC720-left-photo-large

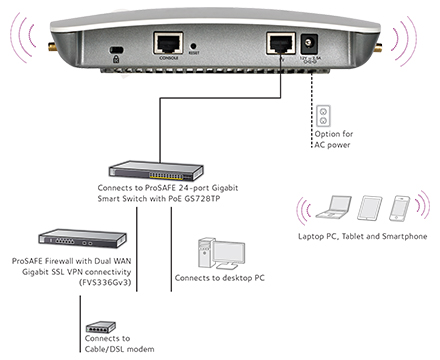

techspecs-WAC720-diagram
  • Physical Specifications : Physical Dimensions (W x D x H): 197 x 197 x 40mm (7.76 x 7.76 x 1.57in)
  • Weight: 726g (1.6lb)
  • Standards : IEEE 802.11ac Wave 1 standard
  • WMM Wireless Multimedia Prioritization
  • WDS Wireless Distribution System
  • Power over Ethernet (PoE) IEEE 802.3af/802.3at
  • Physical Interfaces : One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af or 802.3at Power over Ethernet (PoE) support
  • Power adapter (not included): 12V DC, 2.5A; plug is localized to country of sale
  • One (1) console port with RJ45 Interface
  • Two (2) reverse SMA antenna connectors for dual band 2.4 and 5GHz external antennas (not included)
  • Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz
  • Security : WiFi Protected Access (WPA, WPA2)
  • Wired Equivalent Privacy (WEP) 64-bit, 128-bit, and 152-bit encryption
  • IEEE 802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
  • Wireless access control to identify authorized wireless network devices
  • MAC address authentication
  • VPN pass-through support
  • Secure SSH telnet
  • Security Sockets Layer (SSL) remote management login
  • Management : Ensemble Management for support of up to 10 Access Points in a single cluster
  • Remote configuration and management through Web browser, SNMP or telnet with command line interface (CLI)
  • SNMP management supports SNMP MIB II, 802.11 MIB and proprietary configuration MIB
  • Advanced Wireless Features : Bridge mode: Point-to-point wireless WDS mode
  • Bridge mode: Point-to-multipoint wireless WDS mode
  • Repeater mode
  • Adjustable Transmit Power Control (TPC)
  • Accessories : Power Adapters with plug localized to country of sales
  • PAV12V-100AUS (for Australia)
  • PAV12V-100EUS (for Europe, outside of UK)
  • PAV12V-100NAS (for North America)
  • PAV12V-100PRS (for China)
  • PAV12V-100UKS (for UK)

    • Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

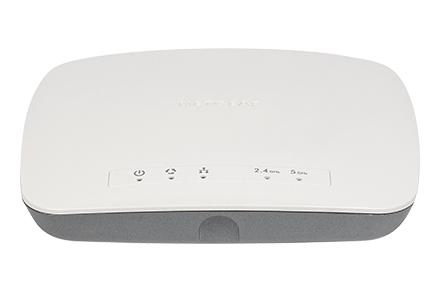

  • Package Contents : Business Dual Band Wireless- AC Access Point (WAC720)
  • Ethernet cable
  • Ceiling and wall mount kit
  • Installation guide
