NETGEAR Say goodbye to dead zones and dropped connections. The NETGEAR® Nighthawk® 8-Stream WiFi 6 Mesh Extender extends the best WiFi performance and fastest speeds to every part of your home, even hard-to-reach places. EAX80 EAX80-100NAS EAX80-100NAS

AX6000 WiFi Mesh Extender (EAX80) armor

Nighthawk® AX8 WiFi Mesh Extender, 6Gbpsarmor

Say goodbye to dead zones and dropped connections. The NETGEAR® Nighthawk® 8-Stream WiFi 6 Mesh Extender extends the best WiFi performance and fastest speeds to every part of your home, even hard-to-reach places.

AX6000 WiFi Mesh Extender (EAX80)

Nighthawk® AX8 WiFi Mesh Extender, 6Gbpsarmor

Say goodbye to dead zones and dropped connections. The NETGEAR® Nighthawk® 8-Stream WiFi 6 Mesh Extender extends the best WiFi performance and fastest speeds to every part of your home, even hard-to-reach places.

AX6000 WiFi Mesh Extender (EAX80)

Easily Create a Mesh WiFi 6 System with your Existing Router


Expand coverage of your Existing Router using your current WiFi name and password. This desktop design has two powerful internal antennas that extend WiFi signals to where your router WiFi cannot reach. This AX1800 Mesh Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

Nighthawk App

Easy Setup and Use with the Nighthawk App

With the Nighthawk app, setup takes just minutes, so you can start enjoying better WiFi sooner. You can also see your connected devices, run an internet speed test, manage your NETGEAR service subscriptions, and more from the palm of your hand.


App Store google play

Features

Latest-Generation WiFi 6
The latest standard of WiFi delivers the very best speeds and device capacity.
Gigabit Speeds for Mobile Devices
Combined WiFi 6 speeds of up to 6Gbps are extended throughout your home.

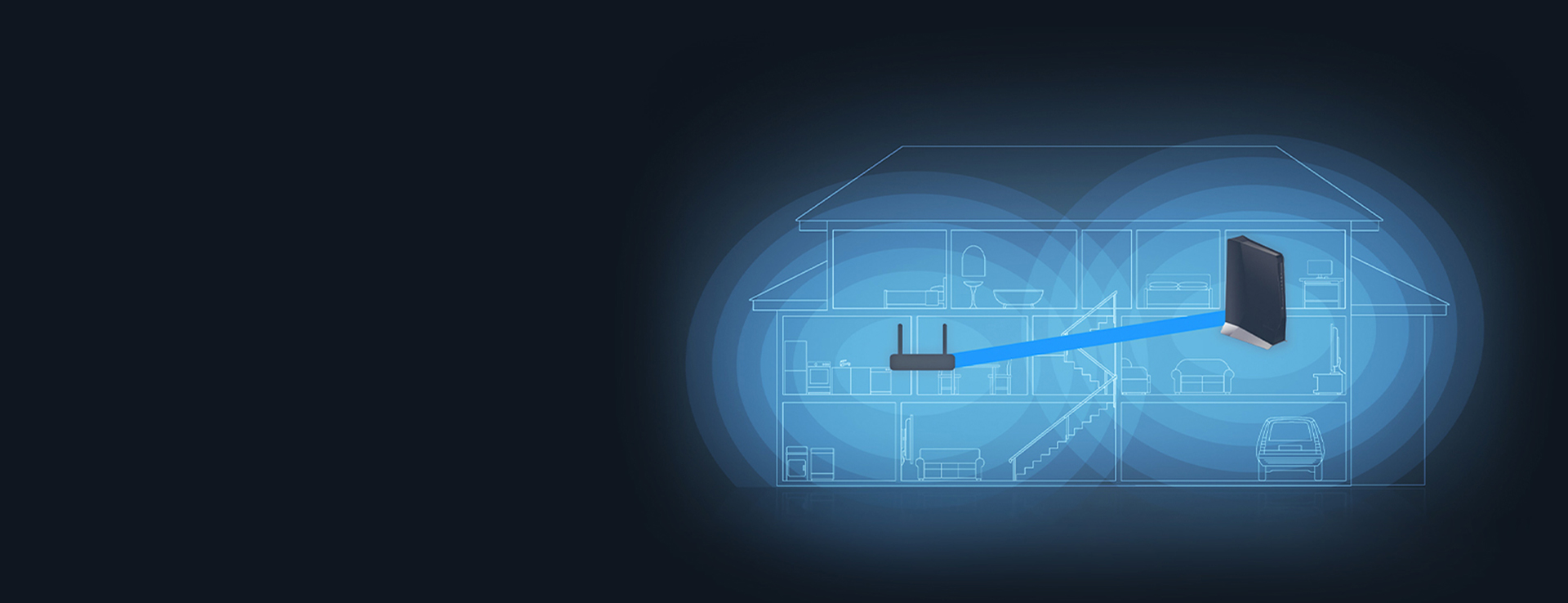

Expansive Coverage
Create a powerful mesh network and get wider range to cover every corner of your home, even in places your router can’t reach.
Compatible with Your Existing Router
Backwards compatible with non-WiFi 6 routers. Unlock the best performance when you use with a Nighthawk WiFi 6 router.
Network Efficiency
Efficient data transmission makes it possible to enjoy Gigabit WiFi speeds on more devices at once.
Smart Roaming
Automatically connect to the best WiFi signal as you move throughout your house

Technical Specifications

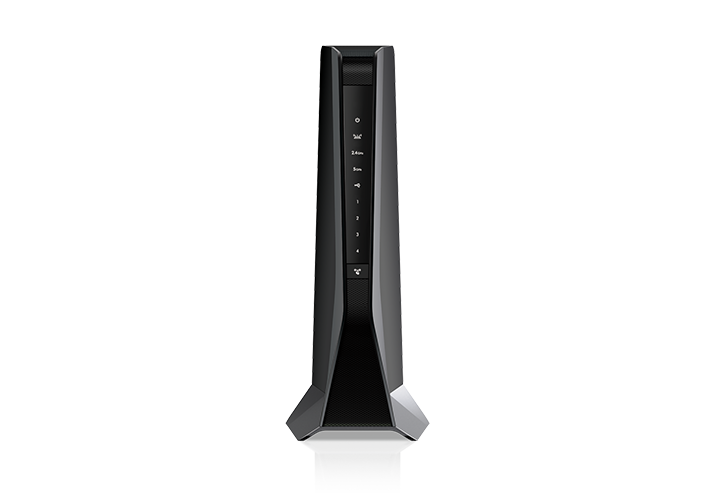

EAX80_tech_specs_image_1

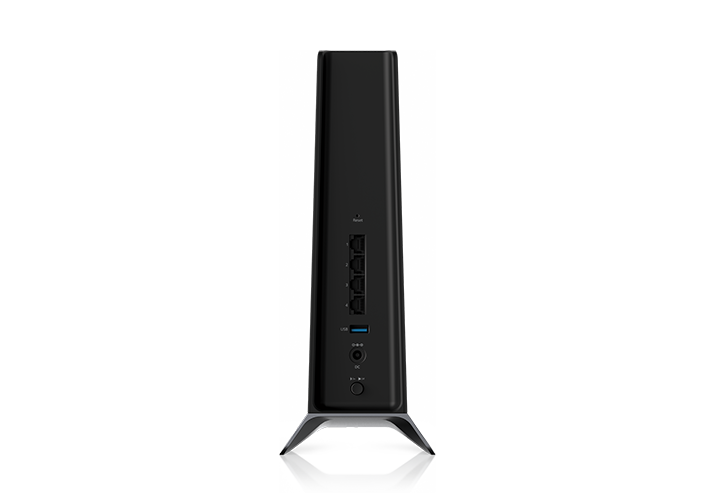

EAX80_tech_specs_image_2
  • Dimensions : 10 x 7.75 x 4.2 in (279 x 197 x 106mm)
  • Weight : 1.9lb (0.86kg)
  • WiFi Technology : 802.11ac
  • WiFi Performance : AX6000
  • WiFi Band : Band 1: 1.2Gbps @2.4GHz - 1024QAM; Band 2: 4.8Gbps @5GHz - 1024QAM

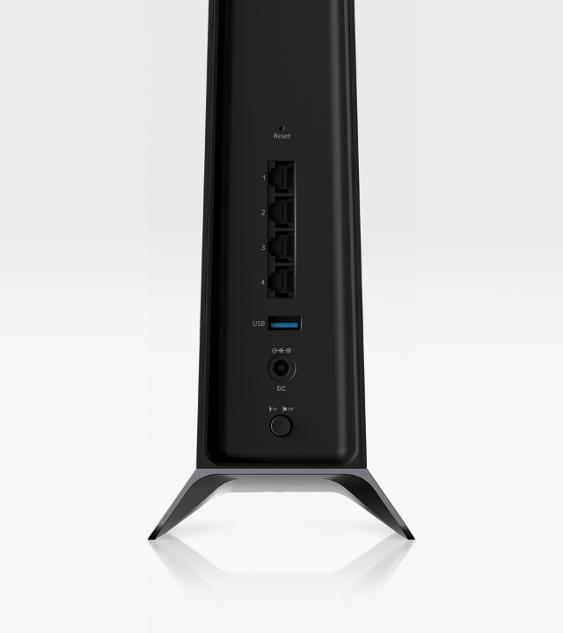

  • Ethernet Ports : Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
  • USB Ports : One (1) USB 3.0 port
  • Key Features : 4X Better Performance than an AC Extender-8 Stream WiFi with up to 1.2 + 4.8 Gbps† for ultra-fast wireless speeds
  • More WiFi for More Devices-OFDMA allows efficient data transmission up to 8 devices at the same time. Uplink OFDMA improves scheduling during high volumes of upload traffic, particularly when that traffic is created simultaneously§.
  • Powerful 64-bit 1.8GHz dual-core processor ensures smooth 4K UHD streaming & gaming
  • Security : Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK) and WEP Standards
  • Ease of Use : Nighthawk App—Easily set up your extender and get more out of your WiFi. Wi-Fi 6 Supports All Current WiFi Devices—Backward compatible with Wi-Fi 5, Wi-Fi 4 and earlier generation WiFi devices. Push & Connect using WPS.
  • Standards : IEEE® 802.11 b/g/n/ax 2.4GHz. IEEE® 802.11 a/n/ac/ax 5GHz. IEEE® 802.11 k
  • Router : 2.4 and/or 5GHz 802.11 a/b/g/n/ac/ax WiFi router or gateway
  • Browser : Microsoft® Internet Explorer® 8.0, Firefox® 20 or Safari® 5.1 or Google Chrome® 25.0 browsers or higher.
  • Nighthawk® 8-Stream WiFi 6 Mesh Extender (EAX80)
  • Quick start guide
  • Power adapter

    • Warranty: This product is backed by a NETGEAR limited 1-year Hardware Warranty .

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorised reseller.
  • Support
  • Footnotes : Maximum wireless signal rate derived from IEEE 802.11specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6,000 Mbps wireless speeds achieved when connecting to other 802.11ax 6,000 Mbps devices.
  • §Requires compatible AX clients with DL-OFDMA and UL-OFDMA support.
