Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Also benefit from advanced PoE controls and high PoE budget for any PoE deployment. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance. GS324TP GS324TP-100NAS GS324TP-100NAS

S350 Smart Switches (GS324TP) armor

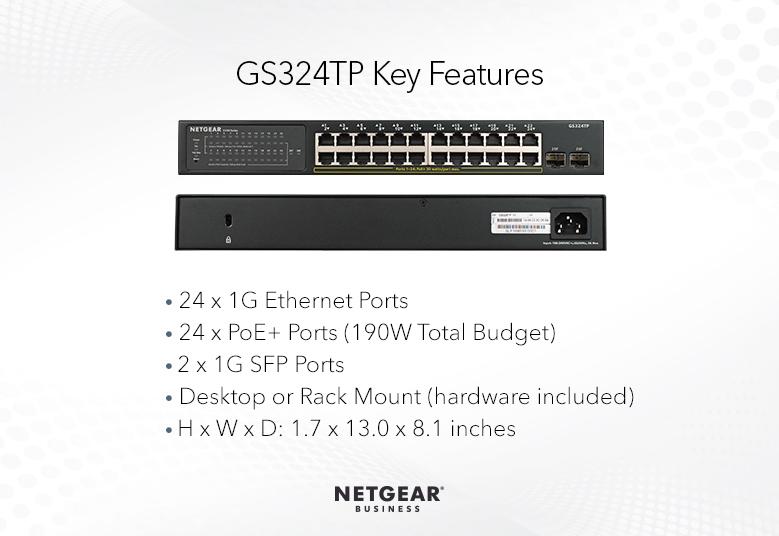

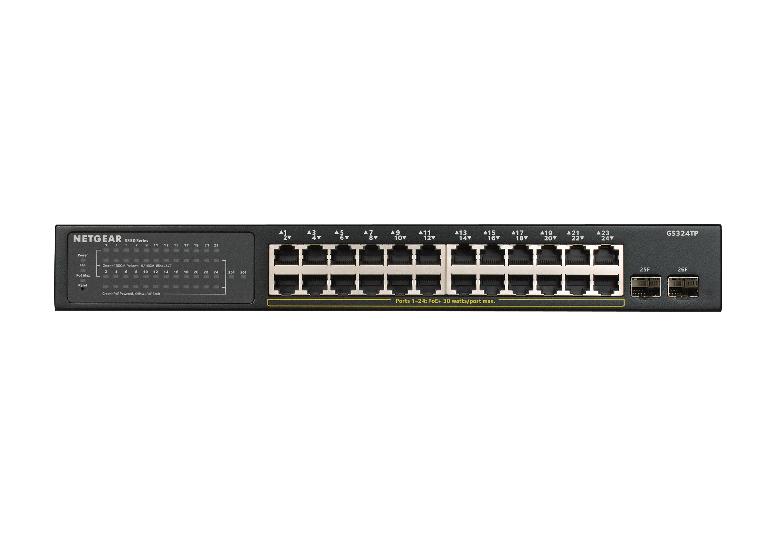

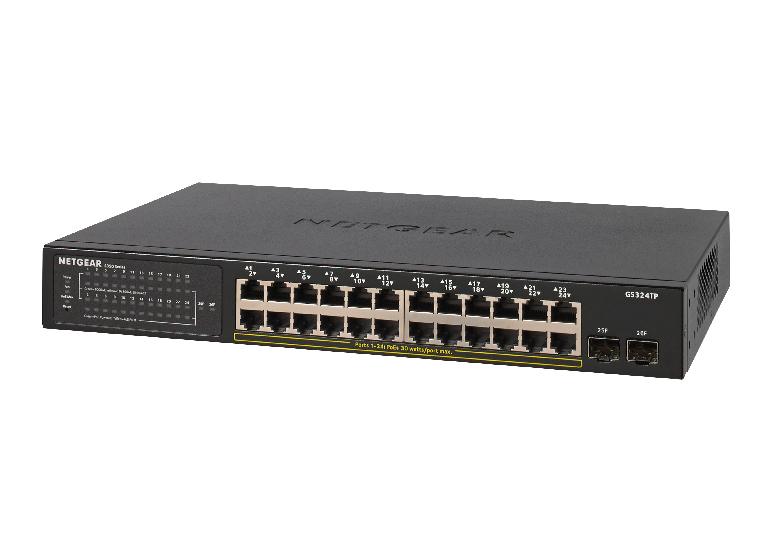

24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (190W) armor

S350 Smart Switches (GS324TP)

24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (190W) armor

Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Also benefit from advanced PoE controls and high PoE budget for any PoE deployment. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

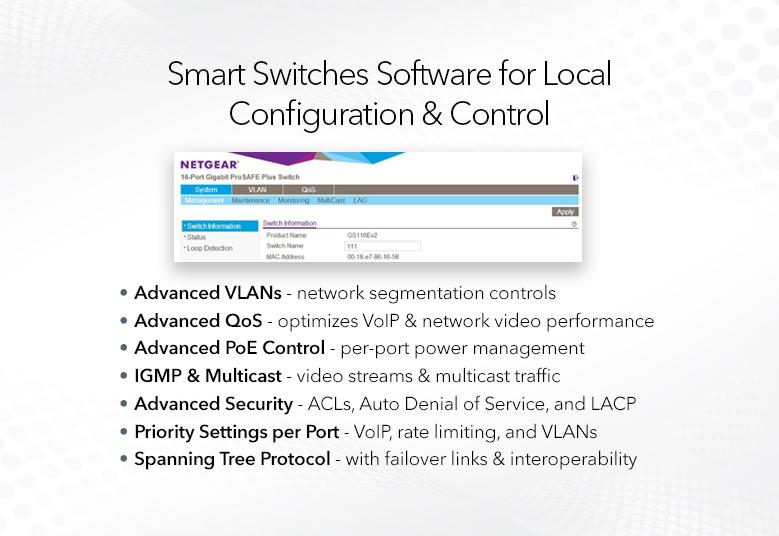

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection

Registration through NETGEAT Insight App

IGMP snooping, v1, v2 and v3

IGMP Snooping querier

Blocking of unknown multicast traffic

Spanning Tree, Routing and Stacking

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Security

MAC lockdown

MAC lockdown by number of MACs

IEEE 802.1x port authentication EAP

Dynamic VLAN Assignment

Guest VLAN

TACACS+

3 HTTPS /SSL versions (Selected models)

TLS session

Trusted MAC

IPv4, L4-based Access Control List (ACL)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP

LLDP-MED

Dual Image

SNTP

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client

DHCP clients

DHCP snooping

Ping and traceroute client

Energy Efficient Ethernet (IEEE 802.3az) compliant

Technical Specifications

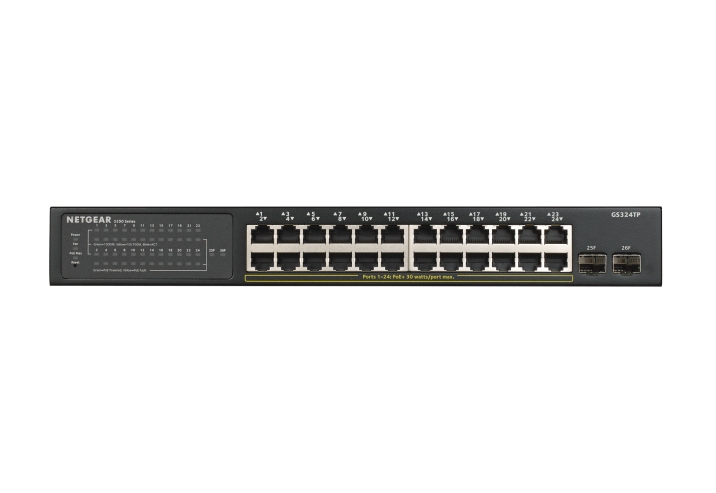

GS324TP_tech_specs_image_1

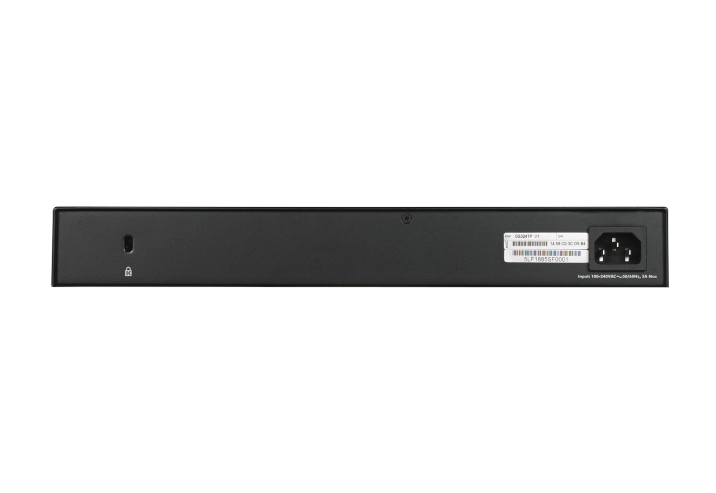

GS324TP_tech_specs_image_2
  • Weight (kg) : 2.69kg (5.93lb)
  • Dimensions (WxDxH) mm : 330 x 206 x 43mm(13.0 x 8.1 x 1.7in)
  • Model Description : NETGEAR® S350 Series 24-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports
  • Gigabit ports : 24

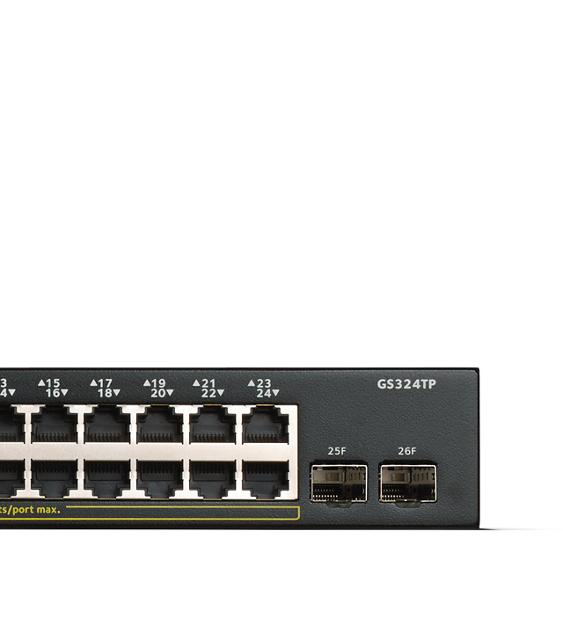

  • SFP ports : 2 (dedicated)

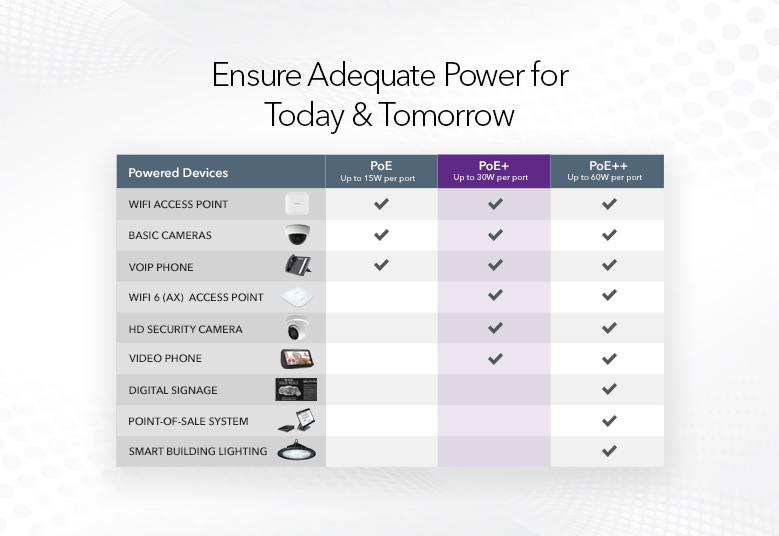

  • PoE+ (802.3at) ports : 24
  • Total PoE Power budget (Watts) : 190W
  • Max MAC entries : 16K
  • Buffer size : 512KB
  • VLAN (Number Supported) : 256
  • VLAN routing : N/A
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : N/A
  • Static route : N/A
  • Host ARP table : Yes
  • EEE : Yes
  • DoS Prevention : Yes

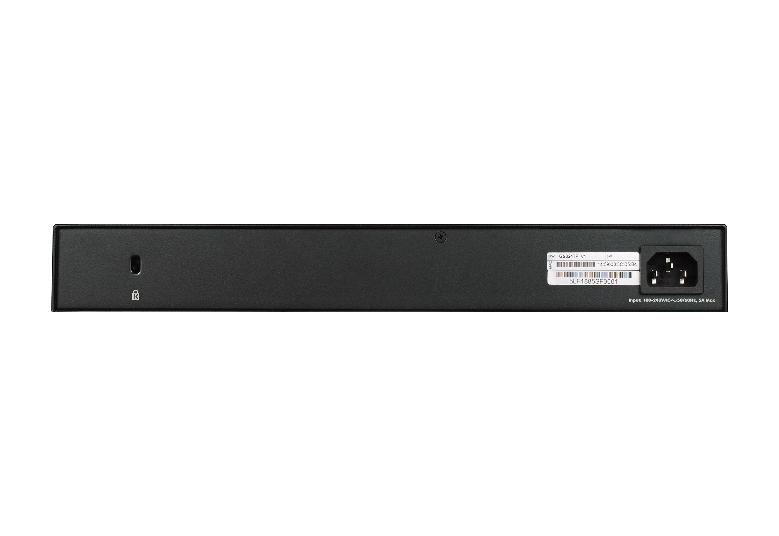

  • Internal/External Power Supply : Internal 100-240VAC ~ 50-60Hz, 5A Max
  • Max consumption (Watts) : 229.9W (full PoE)
  • FAN : 2
  • Acoustic Noise Level @25C (dBA) : 32.8 dBA
  • Operating Temperature : 0° to 45° C (32° to 113° F)
  • MTBF : 1,328,429 hrs(152 yrs)

    • Warranty: This product is backed by a NETGEAR 5-year Hardware Warranty .
    • 5-year Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone, email and chat for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
