Orbi WiFi System (RBK23W) AC2200

Fast, Strong and Reliable WiFi in Every Room

More WiFi in More Places

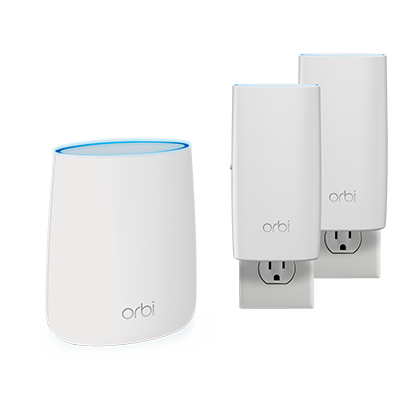

This Orbi Whole Home WiFi System (RBK23W) covers homes up to 5,000 square feet with up to 2.2Gbps combined WiFi speeds. Includes an Orbi WiFi Router and two Wall Plug Satellites and replaces your home router and extenders. Innovative Tri-band WiFi helps maximize the Internet speeds available in your home, even as more devices connect. Easily works with existing service provider equipment.

Enjoy high-speed WiFi in every corner of your home.

Plug-in Strong WiFi

In a hallway or kitchen, garage or basement, the Wall Plug Satellite only needs an electrical outlet to deliver great WiFi. Easily extend WiFi coverage to every room of your house.

Better WiFi. Everywhere.

  • Max Speeds

    Get more than 100Mbps Internet speed over 5,000 square feet range*

  • Single WiFi Name

    Enjoy a single WiFi network name for your entire home

  • Easy Setup

    Use the Orbi app or any web browser to create secure whole home WiFi in minutes.

  • Voice Control

    Works with Amazon Echo/Alexa & the Google Assistant – Control your home network using voice commands

Tech Specs

Combined WiFi speed Orbi AC2200 Router and AC2200 Satellites (866+866+400Mbps)
Coverage 5,000 sq ft
Dedicated Backhaul 2x2
WiFi Technology Tri-band
MU-MIMO Yes
Antennas Router: Four (4) high performance internal antennas
Satellites: Four (4) high performance internal antennas
Dimensions 5.6 x 2.4 x 6.6 in (Router), 3.3 x 3.0 x 6.34 in (Satellite)
Weight 1.05 lb (Router)
0.67 lb (Satellite)

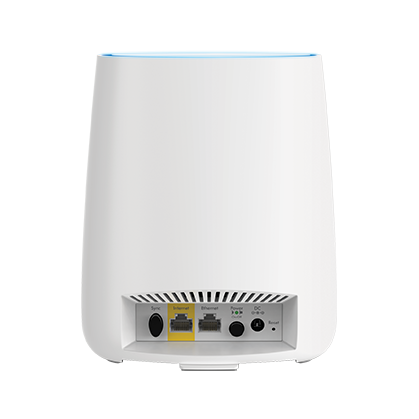

Gigabit Ethernet ports (Router) Two (2) 10/100/1000Mbps Gigabit Ethernet ports (Router)
1 WAN & 1 LAN
Memory Router: 4GB Flash and 512MB RAM
Satellites: 256MB Flash and 512MB RAM each
Beamforming Implicit/Explicit Beamforming for 2.4 & 5GHz bands
Works with Orbi OS Yes
Orbi App Yes
Guest WiFi network Yes
WPA/PSK2 support Yes
Works with Amazon Alexa & the Google Assistant Yes
Parental Controls Circle® with Disney Smart Parental Controls
Show All Tech Specs Show Less Tech Specs

What’s in the box

  • One (1) Orbi Router (RBR20)
  • Two (2) Orbi Wall Plug Satellites (RBW30)
  • One (1) 2m Ethernet cable
  • One (1) 12V/2.5A power adapter
  • Quick start guide

Orbi WiFi System (RBK23W) AC2200

Maximize the WiFi speeds you are paying for, to every inch of your home and beyond
