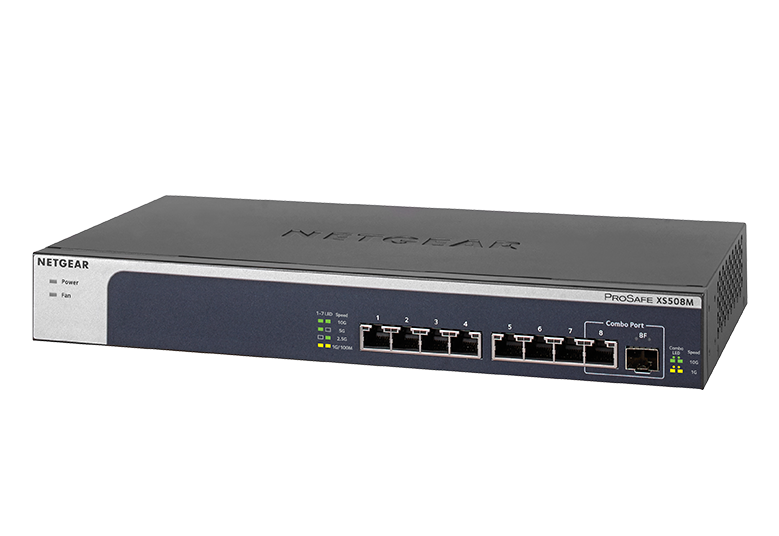

10-Gigabit/Multi-Gigabit (XS508M)
8-port, 5-speed Unmanaged Switch 10-Gigabit/Multi-Gigabit
10-Gigabit/Multi-Gigabit (XS508M)
8-port, 5-speed Unmanaged Switch 10-Gigabit/Multi-Gigabit
The XS505M and XS508M come with copper Ethernet 5-speed ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity. Each port automatically detects which speed is needed.
Realize the full potential of your Multi-Gigabit and 10-Gigabit devices with the XS505M and XS508M Multi-Gigabit Switches by NETGEAR
Features
Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automaticallyMounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environmentIndustry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expertEnergy efficient
Switches automatically adjust power consumption according to the link status and cable length.Technical Specifications
- Dimensions (W x D x H) : 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in)
- Weight : 1.49 Kg (3.28lb)
- 100M/1G/2.5G/5G/10G RJ-45 copper ports : 7
- 10G SFP+ ports : 1 x 10G/1G SFP+ and Copper (combo)
- Form Factor : Desktop/Rackmount
- Packet buffer memory : 128KB
- Bandwidth : 160Gbps
- MAC Address database size : 2 K
- Number of priority queues : 8
- Jumbo frame support : Up to 9K packet size
- Fan(s) : 1 Low-Noise Active Fan
- IEEE 802.3az (Energy Efficient Ethernet) : Yes
- Max power consumption (Watts) : 39W
- LEDs : Power, Fan, Speed, Link/Activity
- Acoustic noise level @ 25° C (dBA) : 28dB
- Operating temperature : 0° to 40° C
- MTBF (@ 25° C) : 22.5dBA
- Electromagnetic compliance (A or B) : B
- This product is backed by a 5-year Hardware Limited Warranty (Switch); 2-year warranty for external power adapters.
- Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
- Support
- XS508M 10-Gigabit/Multi-Gigabit Ethernet Unmanaged Switch
- Power cord (localized to country of sale)
- Rack-mounting kit
- Quick install guide
