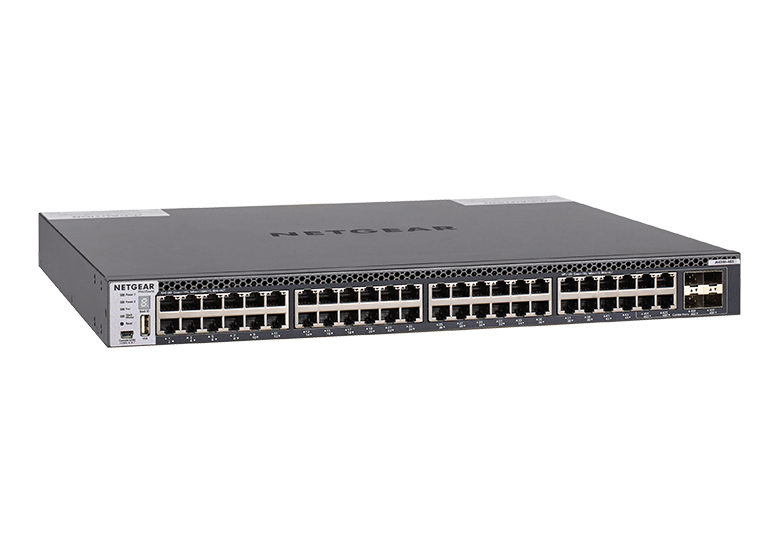

NETGEAR Stackable Managed Switch with 48X 10G Ports - IT Core & AV-over-IP XSM4348CS

M4300-48X (XSM4348CS) armor

48x10G and 4xSFP+ (shared) Managed Switcharmor

Stackable Managed Switch with 48X 10G Ports - IT Core & AV-over-IP

M4300-48X (XSM4348CS)

48x10G and 4xSFP+ (shared) Managed Switcharmor

Stackable Managed Switch with 48X 10G Ports - IT Core & AV-over-IP

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Business Continuity Management

Full-width switches offer dual redundant, modular power supplies (select m4300 models)

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Flexible Speeds

48 Copper ports have 100M/1G/10G speeds 48x10GBASE-T + 4X SFP+ Ports

Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient

Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

Mix & Match Stacking

Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow

With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to.

Industry Standard

SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)

Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

No Delay

Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

M4300-48X_tech_specs_image_1
M4300-48X_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Hardware Specifications : Model Number: XSM4348CS
  • 48 Ports RJ45 100M / 1G / 10G
  • 4x Shared SFP+ 1G / 10G
  • 2 Modular Bay with One (1) 250W Modular PSU included APS250W
  • 960 Gbps Switching Fabric
  • Fixed Fan Front-to-Back 40db
  • Management Options : Ethernet: Out-of-band 1G port (Back)
  • Console: RJ45 RS232 (Back)
  • Console: Mini-USB (Front)
  • Storage: USB (Front)
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
  • Dual firmware image and configuration file for updates with minimum service interruption
M4300-48X_tech_specs_image_1
M4300-48X_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Table Sizes : 128K MAC 8k ARP / NDP
  • Up to 960 Gbps
  • Throughput up to 714 Mpps
  • Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512
  • Latency : 2.41µs 10G RJ45
  • 1.51µs 10G SFP+
  • IP Multicast : 1,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
