NETGEAR Easily combine new or existing 10-, 100- and 1000Mbps devices within your network JGS516 JGS516AU JGS516AU

Gigabit Unmanaged Switch Series (JGS516) armor

16-Port Gigabit Ethernet Unmanaged Switcharmor

Easily combine new or existing 10-, 100- and 1000Mbps devices within your network

Gigabit Unmanaged Switch Series (JGS516)

16-Port Gigabit Ethernet Unmanaged Switcharmor

Easily combine new or existing 10-, 100- and 1000Mbps devices within your network

Each port delivers up to 2000Mbps of network speed (full duplex)

Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection

16 switched ports provide bandwidth for PCs, servers or switches

Auto Uplink™ automatically adjusts for straight-through or crossover cables

Plug and play—begins working as soon as it is powered on

Integrates 10-,100- and 1000Mbps devices into your network

Compact size for desktop or for mounting in a standard 19-inch rack

16 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port

Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X

Easily combine new or existing 10-, 100- and 1000Mbps devices within your network

802.1p QoS support for prioritizing voice and video in the network

Jumbo Frame Support up to 9KB

The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts
Unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations
Energy efficient, built to last, and rigorously tested to provide the reliability businesses need
802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks

Technical Specifications

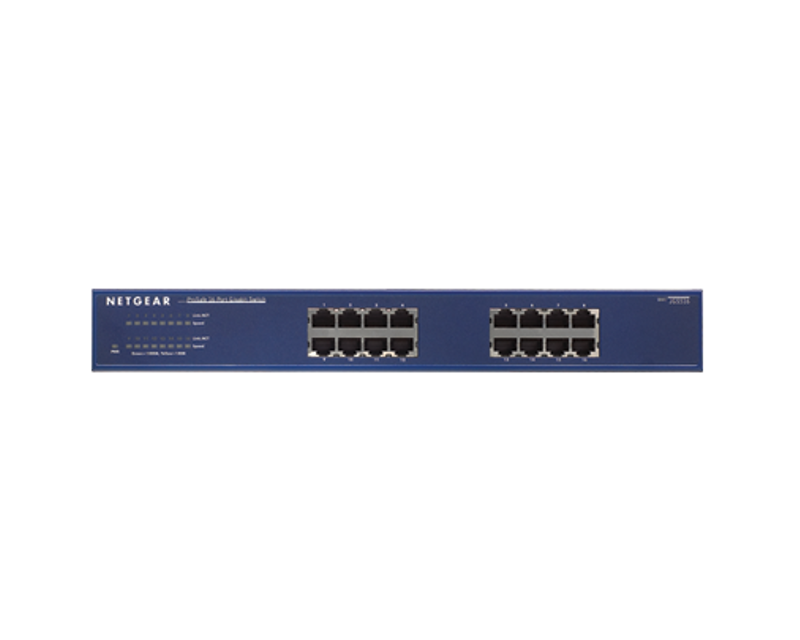

JGS516_tech_specs_image_1

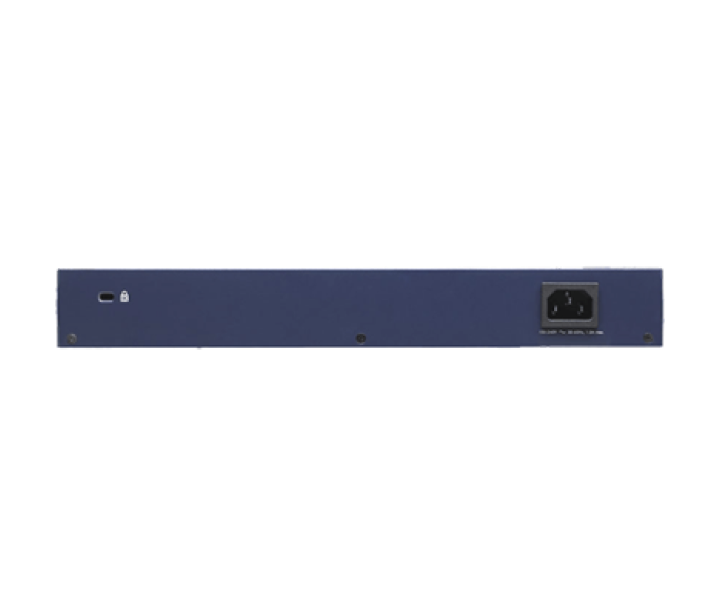

JGS516_tech_specs_image_2
  • Dimensions (WxDxH) @mm : 328 x 169 x 43 mm
  • Weight (kg) : 1.47
  • Speed : 10/100/1000Mbps Gigibit Ethernet
  • Number of Ports : 16
  • PoE ports : n/a
  • Total PoE Budget : n/a
  • Loop Detection : n/a
  • Short cable power saving : n/a
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9KB
  • Queue WRR Ratio : 1:2:4:8
  • MAC Table Size : 8K
  • Packet buffer size : 256KB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 11.8W
  • Operating Temperature : 0 to 50° C
  • MTBF (hours) : 441,123
  • FCC Class : A

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
