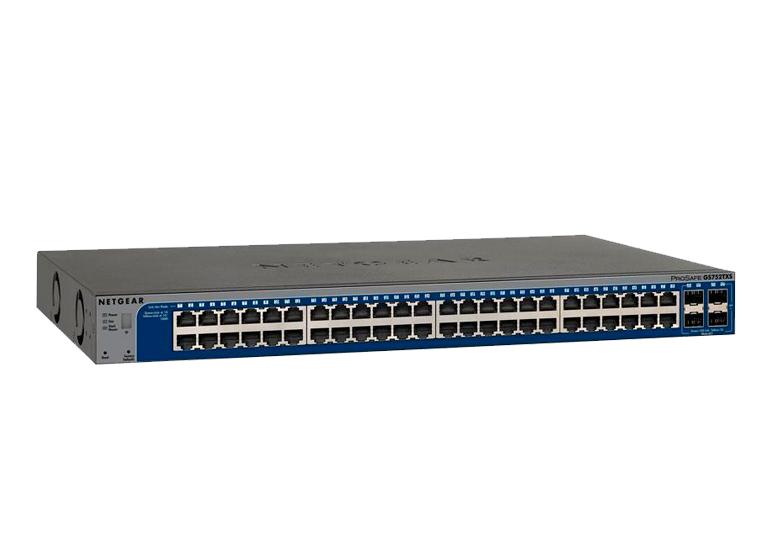

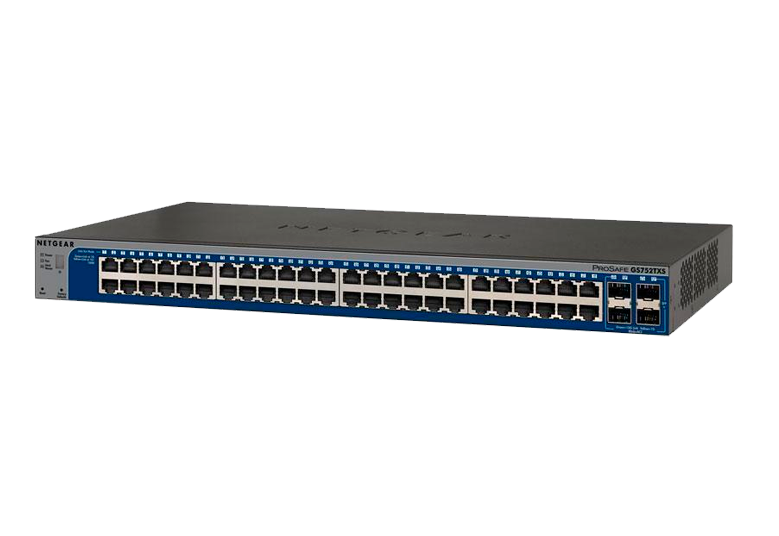

Stackable Smart Switch with 10G Uplinks Series (GS752TXS)

48-Port Gigabit Ethernet Stackable Smart Switch with 4 Dedicated SFP+ Uplink/Stacking Ports

Stackable Smart Switch with 10G Uplinks Series (GS752TXS)

48-Port Gigabit Ethernet Stackable Smart Switch with 4 Dedicated SFP+ Uplink/Stacking Ports

An ideal companion to the rapidly emerging class of 10-Gigabit servers, the NETGEAR Gigabit Stackable Smart Switches (TXS) are the industry’s first smart switches with 10-Gigabit connectivity – delivering maximum throughput in SMB networks for demanding tasks such as data replication and backup, virtualization, video on demand and high-volume transaction processing. At less than half the cost of a managed switch, this series of switches provides 24 and 48 gigabit ports for connecting devices to the network, along with four 10GE SFP+ ports for stacking or uplink to servers. The switches within this series are able to be mixed and matched in the same stack. As many as six switches can be stacked for a total of up to 300 network ports, with full redundancy for unsurpassed reliability. These switches offer a rich enterprise-class feature set, including advanced traffic management and security, yet can be easily configured and monitored through a web-based graphical user interface.

26 port | 2xSFP Ports | GS324T

52 port | 4xUplinks (10G) | GS752TXS

52 port | 6xUplinks | GS752TSB

8 port | GS308T

Features

Traffic Management

Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
DHCP Client
Dynamic MAC address management
Static MAC
IEEE 802.1Q-based VLAN
Auto Voice VLAN
VLAN routing
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS
DSCP Support (GS105E and GS105PE only)
Rate Limiting (egress only)
Link Aggregation and LACP

Multicast Efficiency

IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
1,024 maximum multicast group
MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes
Hosted ARP table size of 1,024
Router discovery (IRDP)
Stacking with up to 6 units or 300 ports in a stack
40G stacking bandwidth

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DHCP clients
DHCP snooping
Ping and traceroute
Energy Efficient Ethernet (IEEE 802.3az) compliant
Power savings with short cable detection (GS752TXS only) and auto power-down when ports are in idle mode

Switch Management

Web browser-based GUI management
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
P-BRIDGE-MIB and Q-BRIDGE-MIB
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection

Scalability and Reliability

The Stackable Smart Switch with 10G uplinks series is a scalable solution that grows with a business. Starting with a single switch, the stack can grow to six switches with a mix of 24 and 48 port stack members and a total of up to 300 network ports. Two out of the four 10-Gigabit SFP+ ports on each switch can be used to create the stack, a single logical unit with up to 40 Gbps of stacking backplane that can be configured and managed as one switch – speeding up deployment while simplifying administration and maintenance. The stacked switches can be spread across multiple physical locations, by taking advantage of SFP+ fiber-optic connectivity, making the series of switches an ideal solution for remote and branch offices. All four 10GE ports can be used for network uplinks to servers and storage devices, or split with two ports for local or distant stacking and two ports for uplinks and link aggregation. Auto failover creates a safety net so that if one switch in the stack fails, all the other switches will be intact.

Security

IEEE 802.1x (Guest VLAN, RADIUS-based VLAN assignment via .1x)
IEEE 802.1x port authentication
RADIUS accounting
MAC lockdown
MAC lockdown by number of MACs
Dynamic VLAN Assignment (600 dynamic learned entries per port, 20 static entries per port)
TACACS+
HTTPS /SSL version
TLS session
Private VLAN
Trusted MAC
IP-based, L4-based Access Control List (ACL)

10-Gigabit Connectivity

Fully exploits the power of 10GE servers Supports high-bandwidth applications such as data backup and replication, virtualization, video on demand and high-volume transaction processing

Stack Up to Six Switches

Scalable switching that grows with the enterprise Auto failover creates a safety net so that if one switch in the stack fails, all other switches will be intact

Four 10GE SFP+ Stacking/Uplink Ports

Up to 40 Gbps of stacking backplane Fiber-optic connections allow stacked switches to be placed in multiple physical locations, supporting remote or branch offices

Dynamic VLAN Assignment

Increases security by imposing consistent policy and user credentials across the network, regardless of where users connect

MLD Snooping

Increases network efficiency by forwarding multicast traffic to designated hosts only, rather than flooding multicast packets across all ports

Full Support for IPv6

Protects IT investment by future-proofing the network for the next generation of applications and extensions

DHCP Snooping

Prevent access layer attacks such as DHCP server attacks, ARP man-in-the-middle attacks and IP/MAC spoofing attacks by using IP-to-MAC binding information

Protected Ports

Increases security by isolating specific ports from communicating with other ports on the same switch Prevents an attacker from scanning a system to gain valuable services and information

Mixed Stacking Between GS728TXS and GS752TXS

Provide flexibility in network configuration. Expand your network as you need while ensuring higher usability of network resources.

GS752TXS Datasheet

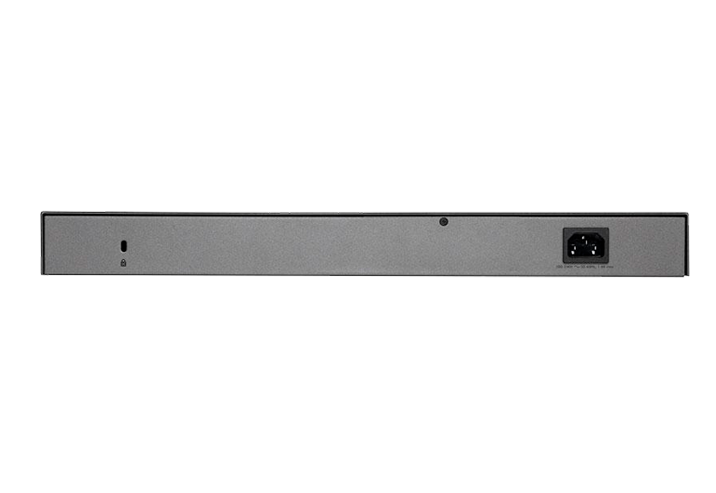

Technical Specifications
