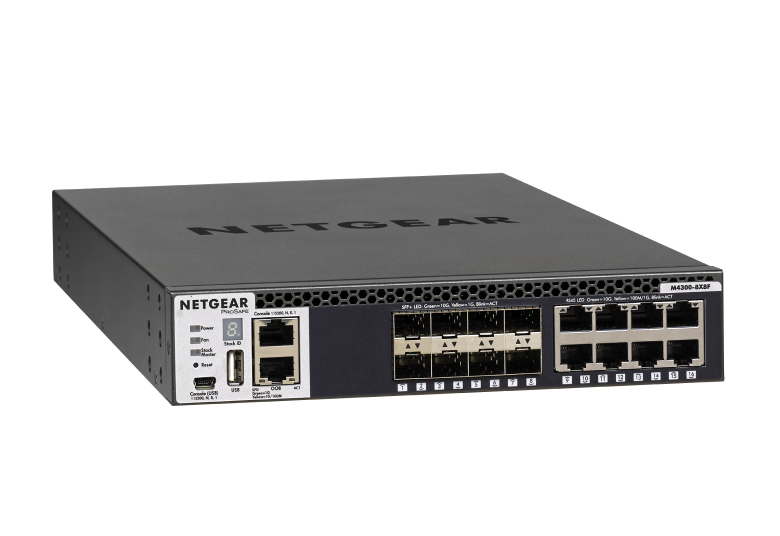

NETGEAR Stackable Half-Width 16-Port Fully Managed Switch with 8x10GBase-T and 8xSFP+ XSM4316S

M4300-8X8F (XSM4316S) armor

8X10G, 8XSFP+ Managed Switcharmor

Stackable Half-Width 16-Port Fully Managed Switch with 8x10GBase-T and 8xSFP+

M4300-8X8F (XSM4316S)

8X10G, 8XSFP+ Managed Switcharmor

Stackable Half-Width 16-Port Fully Managed Switch with 8x10GBase-T and 8xSFP+

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Half-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack (select m4300 models)
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus (TM)
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

M4300_8X8F_tech_specs_image_1
M4300_8X8F_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

    Hardware Specifications:

    Model Number: XSM4348FS

    48 Ports SFP+ 1G / 10G

    2x Shared 10Gb Copper 100M / 1G / 10G

    2 Modular Bay with One (1) 250W Modular PSU included APS250W

    960 Gbps Switching Fabric

    Fixed Fan Front-to-Back 42db


    Management Options:

    Ethernet: Out-of-band 1G port (Back)

    Console: RJ45 RS232 (Back)

    Console: Mini-USB (Front)

    Storage: USB (Front)

    Single-pane-of-glass NMS300 management platform with mass-configuration support

    Dual firmware image and configuration file for updates with minimum service interruption

M4300_8X8F_tech_specs_image_1
M4300_8X8F_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Table Sizes : 128K MAC 8k ARP / NDP. Up to 960 Gbps. Throughput up to 714 Mpps
  • Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512
  • Latency:

    <0.9µs 10G SFP+

    <1.25µs 10G RJ45

  • IP Multicast : 1,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features:

    License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM. VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools /  IPV6: 16 Pools. Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models. Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready). PoE+ Options (30W per port) with hot swap & redundant PSUs options.
