24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch
1 / 10
Ports
- 24 Ports
Port Types
- 24 x 1G PoE+
- 4 x 10G SFP+
PoE Budget
- 24 PoE+ (30W/port)
- 648W Base
- up to 720W Budget
Details
- 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
- 880W internal power supply providing 648W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 720W, when the redundant PoE budget remains 648W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch
GSM4328
GSM4328
Ports
- 24 Ports
Port Types
- 24 x 1G PoE+
- 4 x 10G SFP+
PoE Budget
- 24 PoE+ (30W/port)
- 648W Base
- up to 720W Budget
Details
- 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
- 880W internal power supply providing 648W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 720W, when the redundant PoE budget remains 648W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
POWER AND
THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

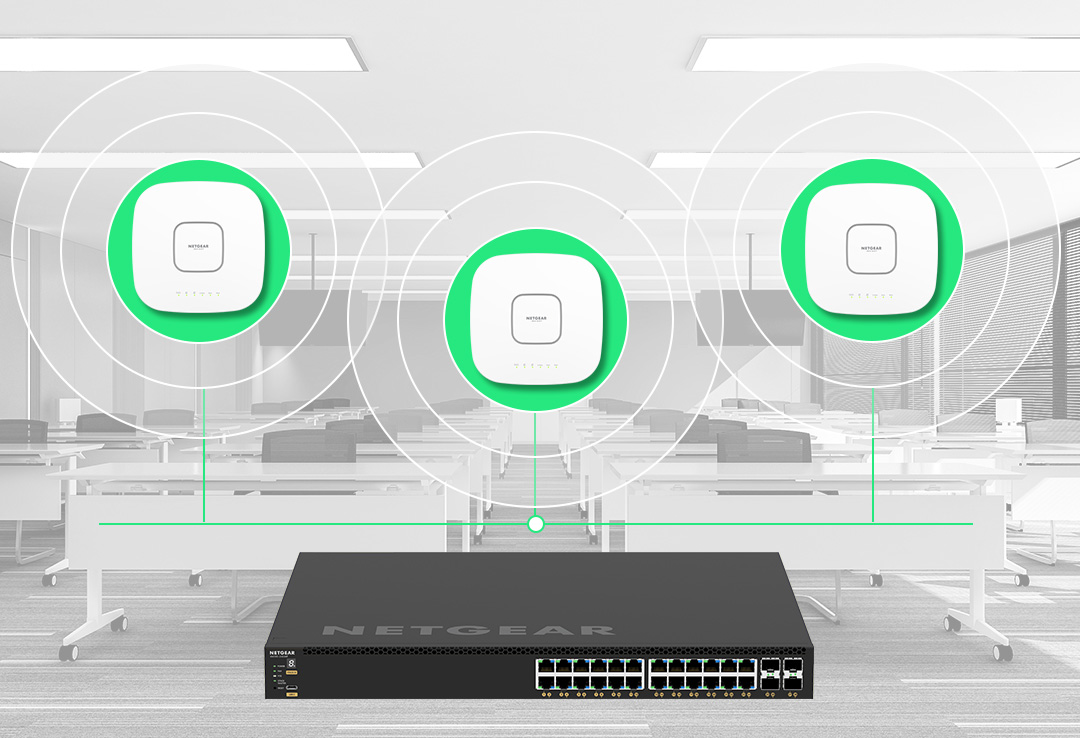

MAXIMIZE
PERFORMANCE
WITH PRO WIFI
ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)
