Shop the NETGEAR Store today
Gigabit Unmanaged Switches with PoE

NETGEAR 16-port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with PoE++ ports (GS516UP)

front_491x490-GS516UP
left_491x490-GS516UP
right_491x490-GS516UP
BACK1_491x490-GS516UP
back2_491x490-GS516UP
top_491x490-GS516UP
front_101x52-GS516UP
left_101x52-GS516UP
right_101x52-GS516UP
BACK1_101x52-GS516UP
back2_101x52-GS516UP
 top_101x52-GS516UP
Price:

In Stock

Product type: Switch
* Maximum of 4 products
Features:
  • PLUG AND PLAY: Simple setup with no software or configuration needed
  • POWER-OVER-ETHERNET: large 380W total PoE budget with 8 Ultra60 PoE++ ports and 8 PoE+ ports to power wireless AP, 4K/8K IP Cameras, LED lights, IoT devices, and much more
  • COMPACT, FLEXIBLE FORM FACTOR – Small case with internal power supply and whisper-quiet fans, perfect for desktop, wall-mount, or rackmount deployment
  • EASY-MONITORING - Per port LEDs for port activity and speed
  • GIGABIT ETHERNET – 16 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32Gb non-blocking switching
  • PoE AUTO-BALANCE - unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level.
  • Limited LIFETIME WARRANTY - Next Business Day replacement and 24/7 chat with a NETGEAR expert
tcm:11-91034,tcm:11-89604,tcm:11-89638,tcm:11-90851,tcm:11-89668,tcm:11-89639,

COMPARE PRODUCTS

image description

PoE+ Supported Unmanaged Switches (GS516PP)

Model number

  • GS516PP

Speed

  • 10/100/1000Mbps Gigabit Ethernet

Number of ports

  • 16

PoE ports

  • 16 PoE+ ports , up to 30W per port

Total PoE Budget

  • 260W
plus
image description

Gigabit Unmanaged Switches with PoE (GS516UP)

Model number

  • GS516UP

Speed

  • 10/100/1000Mbps Gigabit Ethernet

Number of ports

  • 16

PoE ports

  • 8

Total PoE Budget

  • 380W
plus
image description

16 Port Gigabit Unmanaged Switch (JGS516)

Model number

  • JGS516

Speed

  • 10/100/1000Mbps Gigibit Ethernet

Number of ports

  • 16

PoE ports

  • n/a

Total PoE Budget

  • n/a
plus
image description

24-Port Gigabit Unmanaged Switch with PoE (GS524PP)

Model number

  • GS524PP

Speed

  • 10/100/1000Mbps Gigabit Ethernet

Number of ports

  • 24

PoE ports

  • 24 PoE+ ports

Total PoE Budget

  • 300W
plus
image description

Gigabit Unmanaged Switches with PoE (GS524UP)

Model number

  • GS524UP

Speed

  • 10/100/1000Mbps Gigabit Ethernet

Number of ports

  • 24

PoE ports

  • 8

Total PoE Budget

  • 480W
plus
image description

24 Port Gigabit Unmanaged Switch (JGS524v2)

Model number

  • JGS524V2

Speed

  • 10/100/1000Mbps Gigibit Ethernet

Number of ports

  • 24

PoE ports

  • n/a

Total PoE Budget

  • n/a
plus
image description
image description

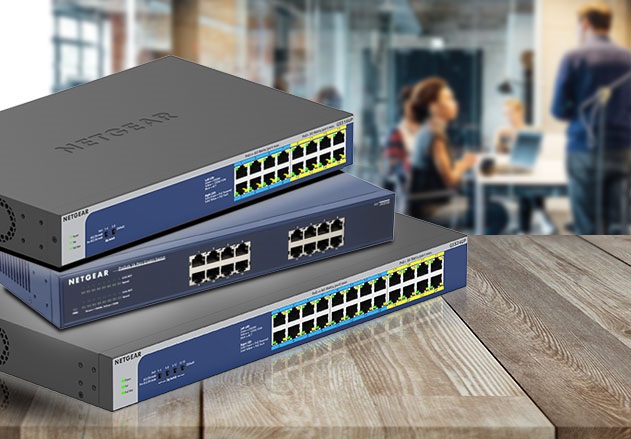

Instant Connectivity and Reliable Performance

The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516UP joins the series and offers 8 Ultra60 PoE++ ports and 8 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 380W, deploy denser PoE+ and PoE++ devices to a single switch rather than multiple.

The GS516UP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

image description
image description
Powerful Ultra60 PoE++

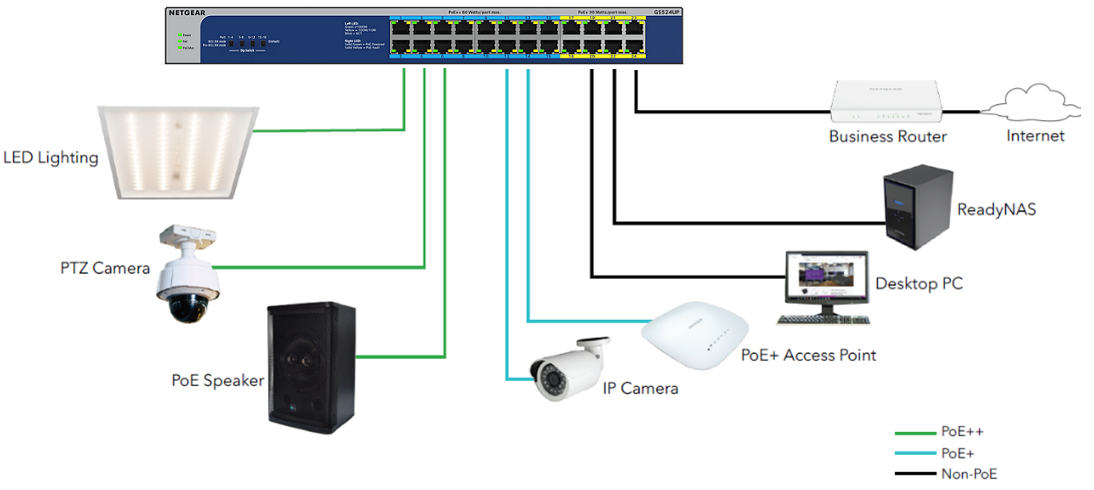

Ideal for powering and connecting 802.11AX wireless access points, 4K/8K IP surveillance cameras, PoE lighting, and high power audio speakers, the GS516UP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.

NETGEAR Ultra60 PoE++ Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3bt) standard, powerful enough to support devices that require greater power.

The GS516UP includes 8 UltraPoE++ ports that can deliver up to 60W of power per port.

image description
image description
PoE Mode

Your business is always changing and growing, but not all your devices may be 802.3bt standard compatible. PoE mode on the GS516UP solves this problem by providing power to both pre-bt and bt standard devices.

  • GS516UP by default uses 802.3bt standard, only compatible for bt standard devices
  • 802.3bt Standard Devices: to power bt standard devices, select 802.3bt mode to receive 60W of power
  • Pre-802.3bt Standard Devices: to power up pre-802.3bt standard products, select the pre-802.3bt mode to receive more than 30W of power
  • If the GS516UP is set to pre-802.3bt mode but the device is standard 802.3bt, then PoE++ power will not be delivered to the device. The switch will only deliver 802.3af (<15W)

Watch Video

TECH SPECS

  • Management Type (if applicable)
    • Unmanaged
  • Gigabit ports
    • 16
  • PoE+ ports
    • 8
  • Ultra60 PoE++ ports
    • 8
  • PoE budget
    • 380W
  • Form Factor
    • Desktop/Rack-mount
  • Auto-balance
    • Yes
  • Power Supply
    • Internal
+

Warranty

This product is backed by a NETGEAR Limited Lifetime Hardware Warranty. This product’s warranty is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies—not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details.
