Easily add 2,500 sq.ft. of powerful coverage to your Orbi 760 Series System. As your needs change, increase your coverage and break free from limitations with strong, reliable, and lightning-fast WiFi in every room of your home. RBS760 RBS760-100APS RBS760-100APS

AX5400 WiFi Mesh System (RBS760) armor

Orbi Tri-band WiFi 6 Add-on Satellite, 5.4Gbps armor

AX5400 WiFi Mesh System (RBS760)

Orbi Tri-band WiFi 6 Add-on Satellite, 5.4Gbps armor

Easily add 2,500 sq.ft. of powerful coverage to your Orbi 760 Series System. As your needs change, increase your coverage and break free from limitations with strong, reliable, and lightning-fast WiFi in every room of your home.

ORBI FAMILY
COMPARISON

760 Series
WiFi: WiFi 6
Speed: up to 5.4Gbps
Devices: up to 75
Coverage: up to 12,500 sq.ft.

850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 17,500 sq.ft.

960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 21,000 sq.ft.

ENGINEERED FOR
BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.

UNSTOPPABLE
STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.


THE BEST COVERAGE.

PERIOD.



Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

RBK763S-P4-Mobile

ADD SATELLITES TO
MEET YOUR NEEDS


Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 2,500 sq. ft. (sold separately).

YOUR PEACE OF MIND IS OUR PRIORITY


Netgear Armor

Create an automatic protective bubble around ALL your devices. Keep sensitive information from being stolen and ensure all your internet activity remains private.

nbke963-armor-8

NETGEAR Smart Parental Controls

CONNECTED KIDS ARE PROTECTED TOO


netgear-spc

Easily manage kids’ time and accessibility online across all connected devices. Promote healthy Internet habits, foster responsibility and build trust with your kids.

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.

TAP.
MANAGE.
CONTROL.

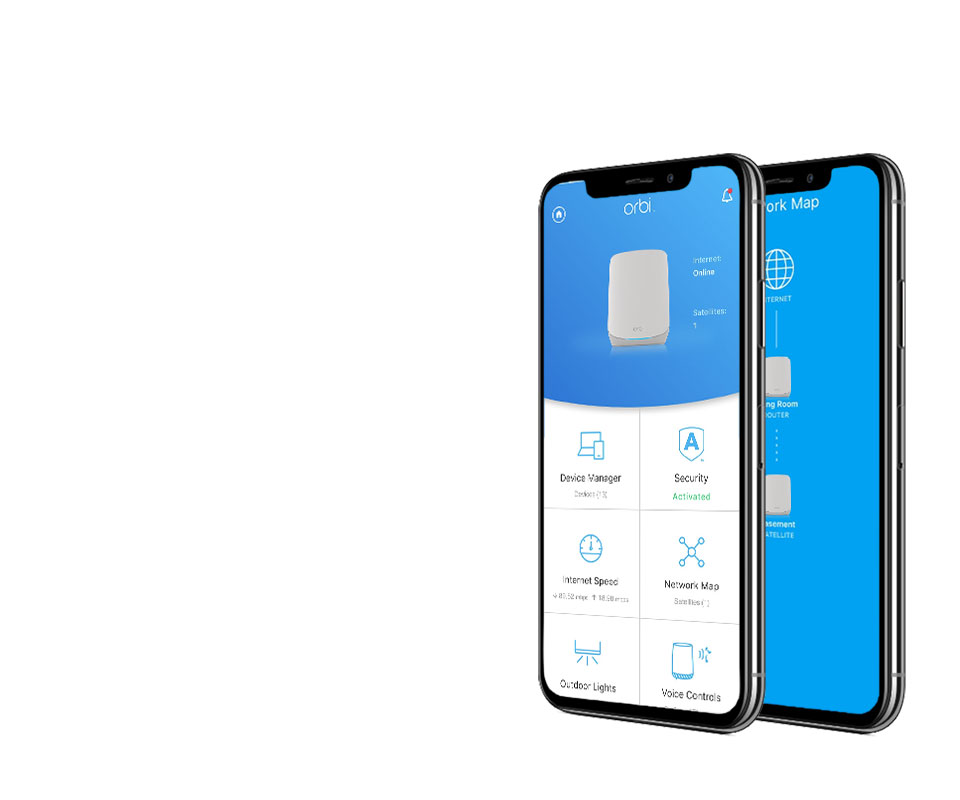

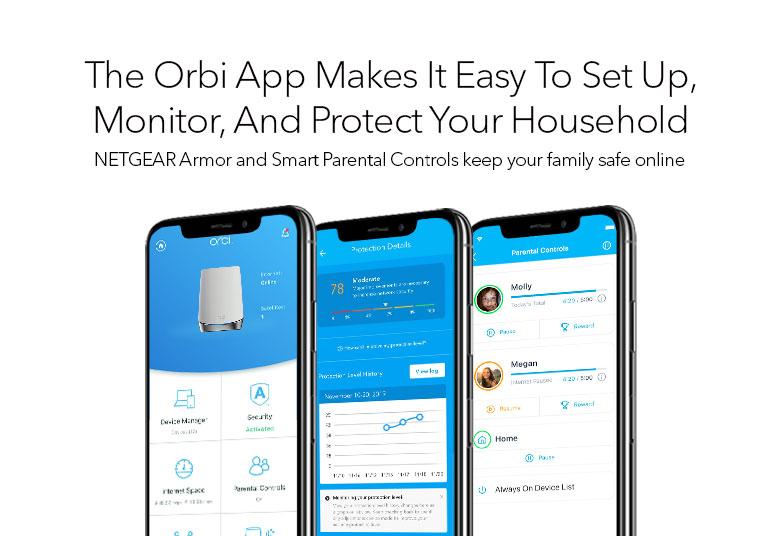

Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

Technical Specifications

orbi_rbs760_router_usa
orbi_rbs760_satellite_usa
  • Dimensions: 8.3 x 6.6 x 2.5in each
  • Weight: 1.6lb each
  • WiFi Coverage : 2,500 sq. ft.
  • Simultaneous Tri-band WiFi : Orbi AX5400 Satellite (600 + 2400 + 2400Mbps)†
  • - Radio 1: IEEE® 802.11b/g/n/ax 2.4GHz—1024QAM support
  • - Radio 2: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
  • - Radio 3: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
  • System Requirements : Orbi Router (RBR760) – SOLD SEPARATELY
  • High-speed Internet connection to existing modem or gateway
  • Connect to existing modem or gateway
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
  • MU-MIMO capable for simultaneous data streaming
  • Processor : Powerful Dual-Core 1Ghz processor
  • Antennas : Six (6) high performance internal antennas with high-powered amplifiers
  • Ports : Two (2) 1 Gigabit Ethernet LAN ports
  • Voice Control : Control your WiFi using voice commands when you have Amazon AlexaTM or the Google® Assistant
  • Each Orbi Router : Supports up to 6 Orbi Satellites
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty
  • WARRANTY
  • Find troubleshooting tips to diagnose product issues in our knowledge base
  • SUPPORT
  • Extend your warranty & technical support within 90 days of product purchase [US only].
  • GET PROSUPPORT
  • One (1) Orbi Satellite (RBS760)
  • One (1) power adapter
  • Quick start guide

Footnotes:

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty

*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.

Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.4Gbps wireless speeds achieved when connecting to other 802.11ax 5.4Gbps devices.

NETGEAR Armor is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor

NETGEAR Smart Parental Controls fees apply for a Premium Plan. Visit www.netgear.com/spc for more information.
