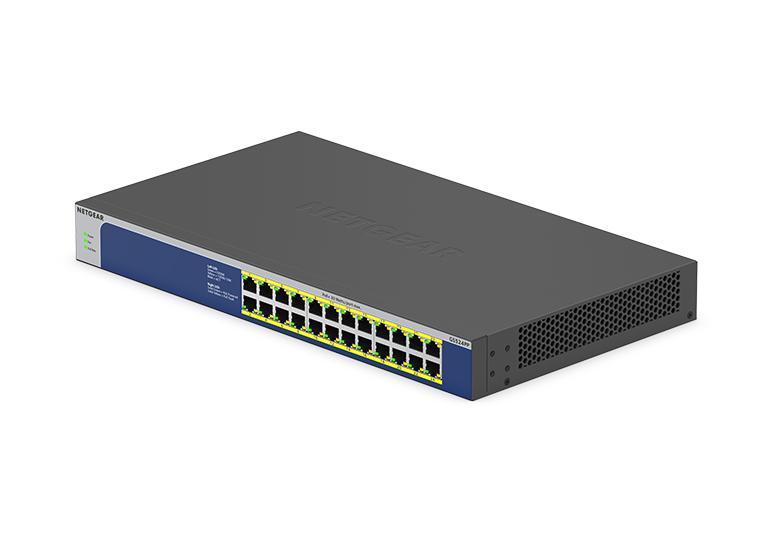

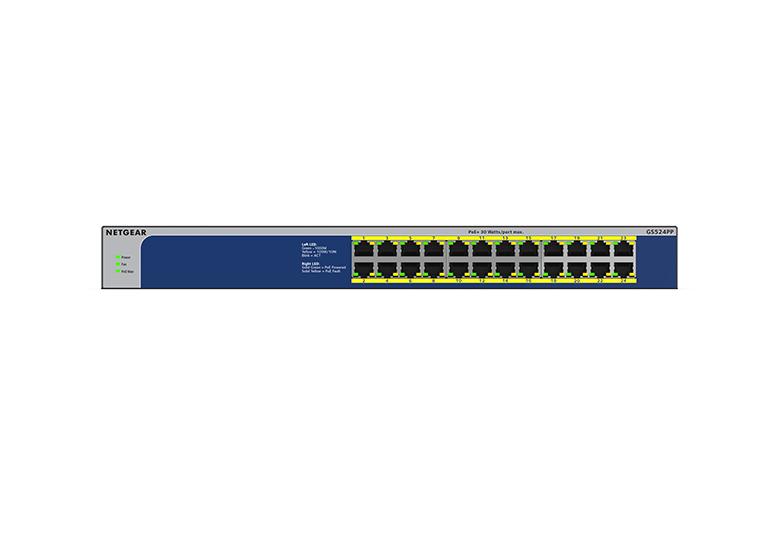

24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (300W)
24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (300W)
GS524PP
1 / 9
Ports
- 24 Ports
Port Types
- 24 x 10/100/1000Mbps Ports (Auto Uplink)
- 24 x 802.3at PoE+ Ports
PoE Budget
- 300W
Details
GS524PP
Ports
- 24 Ports
Port Types
- 24 x 10/100/1000Mbps Ports (Auto Uplink)
- 24 x 802.3at PoE+ Ports
PoE Budget
- 300W
Details
Features
ETHERNET PORT CONFIGURATION:
16 Gigabit ports
PLUG-AND-PLAY:
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:
Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET:
24 PoE+ ports with 300W total power budget to power wireless AP, IP Cameras, IP Phones and much more
POWER AUTO-BALANCE AND ALLOCATION:
NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs
SILENT OPERATION:
The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
ENERGY EFFICIENT:
Designed to optimize power usage lowering its cost to operate
RUGGED METAL CASING:
Durable desktop case for longevity
VERSATILE MOUNTING OPTIONS:
Supports desktop or rackmount placement, and includes all mounting hardware in the box
STANDARDS-BASED DESIGN:
Ensure interoperability with any standards-based PDs

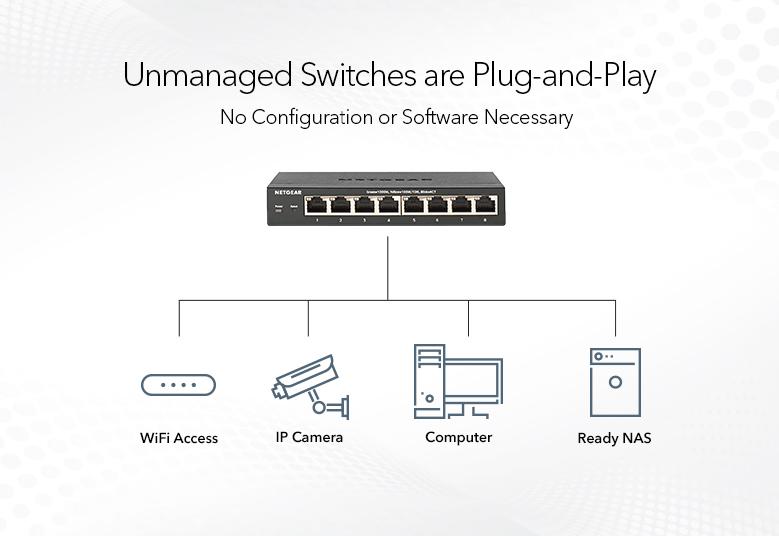

Instant Networking
Plug-and-play setup, get reliable and secure Internet connectivity immediately.
Convenient Power-over-Ethernet

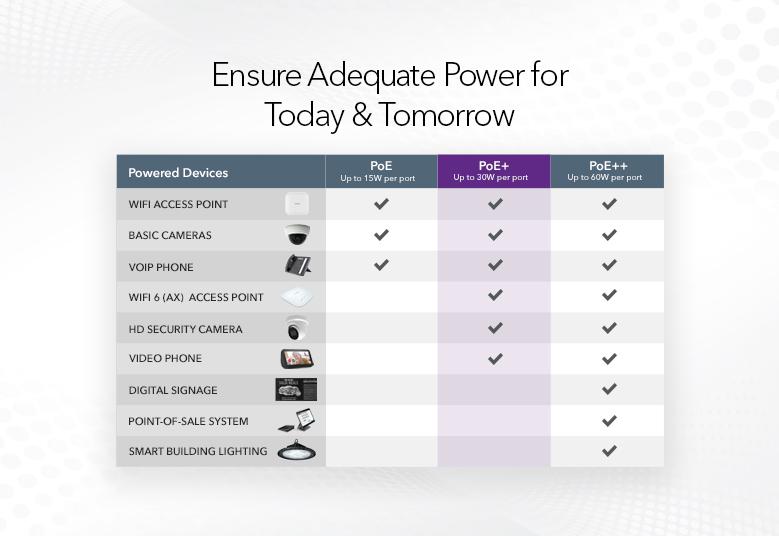

One cable for both power and connectivity. 24 PoE+ ports with 300W total power budget. 30W per port.
Power Efficient
Each port uses only the power it needs thanks to auto-balancing.
Designed for Zero-Noise Operation
Passively cooled fanless design to protect your business environment.
Technical Specifications
Dimensions | 390 x 220 x 43 mm (15.4 in. x 8.7 in. x 1.7 in.) |
Weight | 2.89kg (6.37 lb) |
| Speed: | Gigabit |
| Number of Ports: | 24 |
| Number of PoE+ Ports: | 24 PoE+ ports, up to 30W per port |
| PoE budget: | 300W |
| Energy Efficient Ethernet Support (IEEE 802.3az): | Yes |
| Jumbo Frame Support: | 9,216 bytes |
| MAC Table Size: | 8K |
| Packet buffer size: | 192 KB |
| IEEE 802.1p QoS: | Yes |
| Max Power Consumption: | 359.5W / 12.9W |
| Fans: | 2 |
| Operating Temperature: | 0° to 40°C (32° to 104°F) |
| MTBF (hours) | 1,457,063 hrs |
| FCC Class: | Class A |
