AV Line M4250-10G2XF-PoE++ (GSM4212UX)
8x1G Utra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
AV Line M4250-10G2XF-PoE++ (GSM4212UX)
8x1G Utra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
Order now and we’ll ship as soon as it’s back in stock.
Notify me when this item comes back in stock
Successfully registered.
We're always here to help
Want a custom configuration?
Need to check compatibility?
Ready for a quote?
Our experts are available via online chat, phone, or email.
Learn About the AV Line of M4250 Switches
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software.
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.
Get up and running fast with little engineering time required
Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
Features
Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installationsDedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profilesProfiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate licenseVideo profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as neededRackmount versatility

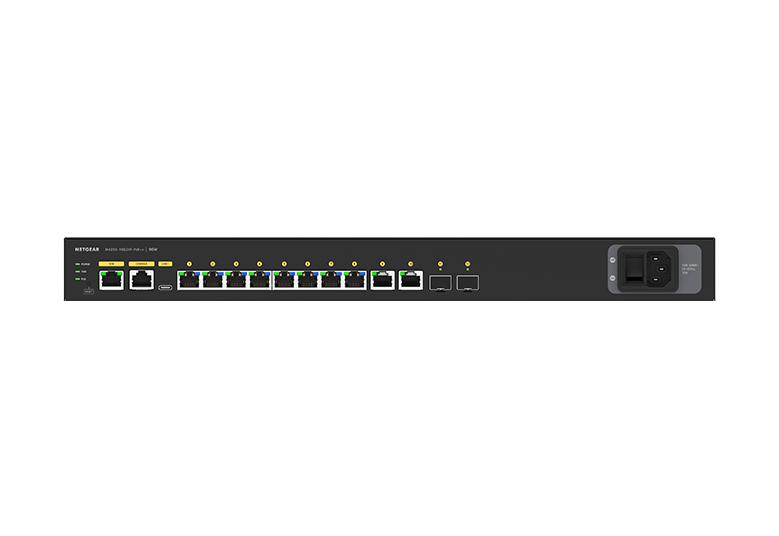

1U, 200mm deep rackmount with all power and Ethernet ports on the backReversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cablesUniversal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holesAdjustable fan functionality
Quiet mode with 50.5dB@25ºC (all ports used, 720W PoE), fanless mode with max 25ºC ambient, 35ºC internal sensor and 45W PoEMulti-switch audio or single-switch video deployments

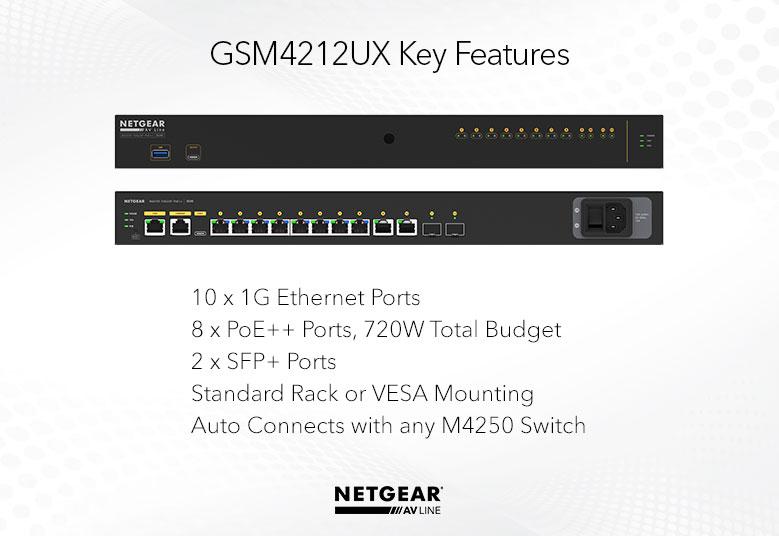

8x1G Ultra90 PoE++ 802.3bt with 720W PoE budget with 2x1G additional ports and 2xSFP+ 10G fiber uplinksLayer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 modelsControl methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx seriesStandard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2Technical Specifications
- Dimensions (WxDxH) : 440 x 200 x 43.2mm
- Weight : 3.83Kg (8.44lb)
- What's in the Box : M4250-10G2XF-PoE++ (GSM4212UX)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (10x 1G, 2x SFP)
- PoE Ports / Budget : 8 PoE++ (90W/port), 720W Budget
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 50.5dB@25ºC
- Power Consumption : With PoE: 837.7W/2859.91Btu/hr; Without PoE: 26.3W/89.79Btu/hr; Standby without any port connection: 18W/61.45Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212UX-10000S)
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
- Support : Phone and chat technical support provided for 90 days from purchase date.
