AV Line M4250 Series Switches

M4250-10G2F-PoE+ 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch (GSM4212P)

Left_491x490
Right_982x980
Tipoff_491x490
F_Left1.1039_491x490
F_Right1.1040_491x490
Left_101x52
Right_101x52
Tipoff_101x52
F_Left1.1039_101x52
F_Right1.1040_101x52
F_Tipoff.1043_101x52
Price:

In Stock

Product type: Switch
* Maximum of 4 products
Features:
  • 8 ports PoE+ for multi-switch audio or single-switch video deployments
  • 8x1G PoE+ with 125W PoE budget with 2x1G additional ports and 2xSFP 1G fiber uplinks
  • Fanless mode possible with max 25ºC ambient, 35ºC internal sensor and 80W PoE loading
  • Quiet mode acoustic noise 27.38dBA@25ºC when all ports used and 125W PoE loading
  • 1U 200mm deep rackmount with front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front including recessed mounting
  • Universal mounting options outside the rack with bottom M5 and front M10 threaded holes
  • Pre-configured for Audio and Video over IP out of the box
tcm:11-93472,tcm:11-93427,tcm:11-93421,tcm:11-92412,tcm:11-92207,

COMPARE PRODUCTS

image description

M4250-10G2F-PoE+ 8x1G PoE+ 125W 2x1G and 2xSFP Managed Switch (GSM4212P)

Model number

  • M4250-10G2F-PoE+ with 8x1G PoE+, 2x1G, and 2xSFP Managed Switch (GSM4212P)

Primary Port Speed

  • 1 Gigabit

Number of ports

  • 12 (10x 1G, 2x SFP)

PoE Ports / Budget

  • 8 PoE+ (30W/port), 150W Budget
plus
image description

M4250-10G2XF-PoE+ 8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switch (GSM4212PX)

Model number

  • M4250-10G2XF-PoE+ (GSM4212PX)

Primary Port Speed

  • 1 Gigabit

Number of ports

  • 12 (10x 1G, 2x SFP)

PoE Ports / Budget

  • 8 PoE+ (30W/port), 240W Budget
plus
image description

M4250-10G2XF-PoE++ 8x1G Utra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch (GSM4212UX)

Model number

  • GSM4212UX

Primary Port Speed

  • 1 Gigabit

Number of ports

  • 12 (10x 1G, 2x SFP)

PoE Ports / Budget

  • 8 PoE++ (90W/port), 720W Budget
plus
image description

M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X)

Model number

  • M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X)

Primary Port Speed

  • 1 Gigabit

Number of ports

  • 12 (12x 2.5G, 2x SFP+)

PoE Ports / Budget

  • None
plus
image description

M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch (XSM4216F)

Model number

  • M4250-16XF

Primary Port Speed

  • 1 Gigabit

Number of Ports

  • 16 (1G/10G Fiber SFP+)

PoE Ports / Budget

  • None
plus
image description
image description

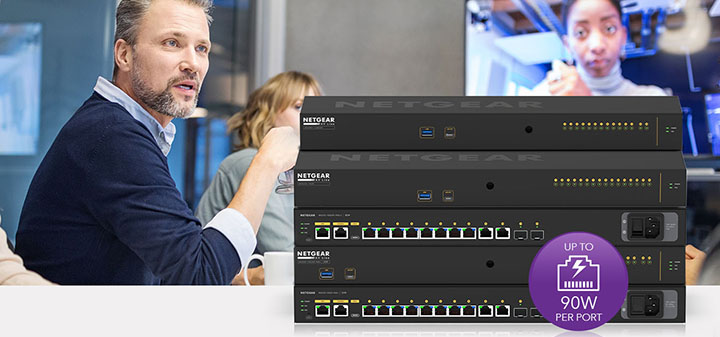

AV Line M4250 Series Managed Switches

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP PlusTM brings automation for you to just connect them together.

Extended Features

    • Dedicated AV web-based GUI interface for more specific AV installations
    • Color-based AV profiles can be applied to the different ports
    • Dante, Q-SYS, AES67 and AVB audio profiles
    • AVB requires an AVB4212P-10000S license (sold separately)
    • NVX, SVSI, Q-SYS, NDI and Dante video profiles
    • Audio / video / control mixed profiles
    • Automatic switch interconnect with NETGEAR IGMP PlusTM
    • Common Layer 2 and Layer 3 switching engine across all M4250 models
    • Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
    • Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
image description
image description
M4250 Support for Audio Video Bridging (AVB)

One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

Watch Video

TECH SPECS

  • Model description
    • M4250-10G2F-PoE+ with 8x1G PoE+, 2x1G, and 2xSFP Managed Switch (GSM4212P)
  • Primary Port Speed
    • 1 Gigabit
  • Number of Ports
    • 12 (10x 1G, 2x SFP)
  • PoE Ports / Budget
    • 8 PoE+ (30W/port), 125W Budget
  • IGMP Support
    • Enhanced (NETGEAR IGMP Plus)
  • Jumbo Frame Support
    • Yes, up to 12k
  • AVB Support
    • Yes. Electronic license required, activation key sent via email (AVB4212P-10000S).
  • Acoustics
    • Fanless or max of 30.06dBA@25ºC with 125W PoE loading
  • Power Consumption
    • With PoE: 163.9W/559.555Btu/hr
    • Without PoE: 17.32W/59.13Btu/hr
    • Standby without any port connection: 8.53W/29.121Btu/hr
  • Form Factor
    • Mounting with rear ports, or front ports
  • Dimensions
    • (WxDxH): 440 x 200 x 43.2 mm (17.3 x 7.87 x 1.7 in)
  • Weight
    • 2.85Kg (6.28lb)
+

* Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation.

Warranty

This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only

Please contact your NETGEAR® representative for more details
