Orbi 4G LTE WiFi System

Orbi 4G LTE WiFi System

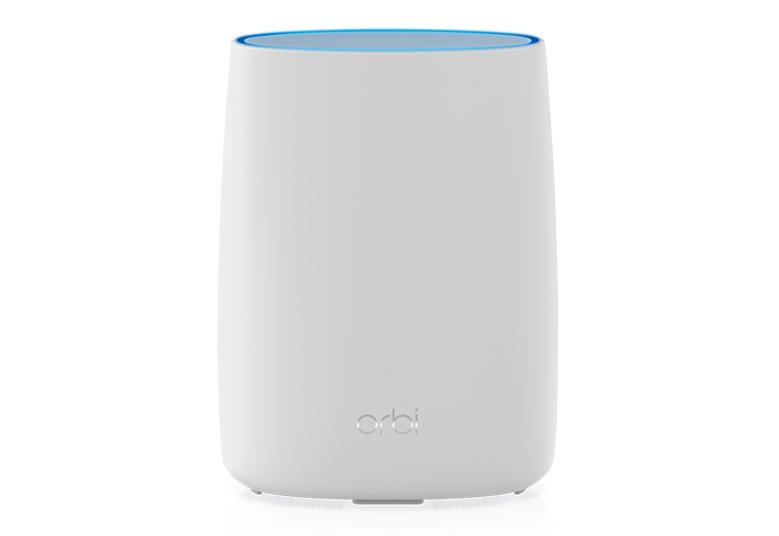

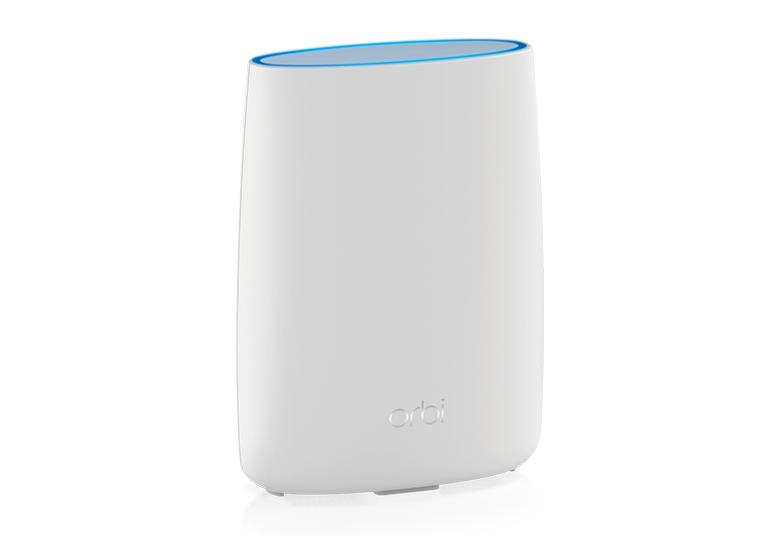

    NETGEAR The Orbi™ 4G LTE Advanced WiFi Router is compatible with select Orbi satellites to create a mesh WiFi system that covers 2,000 sq. ft. with speeds of up to 2.2 Gbps. An integrated cellular modem also lets you use 4G LTE speeds for always-on WiFi at home. Certified for AT&T and T-Mobile networks, and works with other major 4G LTE Service Providers excluding Verizon and Sprint legacy network††. LBR20 LBR20-100NAS

    AC2200 LTE Mesh Router (LBR20) armor

    Orbi 4G LTE Advanced Modem + Tri-Band Mesh WiFi Routerarmor

    The Orbi™ 4G LTE Advanced WiFi Router is compatible with select Orbi satellites to create a mesh WiFi system that covers 2,000 sq. ft. with speeds of up to 2.2 Gbps. An integrated cellular modem also lets you use 4G LTE speeds for always-on WiFi at home. Certified for AT&T and T-Mobile networks, and works with other major 4G LTE Service Providers excluding Verizon and Sprint legacy network††.

    AC2200 LTE Mesh Router (LBR20)

    Orbi 4G LTE Advanced Modem + Tri-Band Mesh WiFi Routerarmor

    The Orbi™ 4G LTE Advanced WiFi Router is compatible with select Orbi satellites to create a mesh WiFi system that covers 2,000 sq. ft. with speeds of up to 2.2 Gbps. An integrated cellular modem also lets you use 4G LTE speeds for always-on WiFi at home. Certified for AT&T and T-Mobile networks, and works with other major 4G LTE Service Providers excluding Verizon and Sprint legacy network††.

    Temporarily Out of Stock

    Order now and we’ll ship as soon as it’s back in stock.

    Temporarily Out of Stock

    Notify me when this item comes back in stock

    Please enter a valid e-mail address.

    You are already on the list. We’ll notify you shortly.

    Successfully registered.

    Get it by icon
    Ships by icon

    Get It By: Ships By:

    Free Shipping & Returns

    Award-Winning, Unmatched Performance

    Tri-band mesh technology creates the ultimate WiFi experience. It uses a third dedicated WiFi connection between your router and satellites to deliver maximum speeds throughout every square inch of your home, even hard-to-reach places. Stay constantly connected on all your devices, even as you move through the house.

    NETGEAR Armor

    NETGEAR Armor cybersecurity keeps your network and private data safe from online threats, at home and on the go. One subscription protects an unlimited number of connected devices, from phones and laptops to thermostats and security cameras.

    Features

    Performance
    • Super-Fast WiFi Award-winning tri-band technology lets you enjoy speeds of 2.2 Gbps for uninterrupted ultra HD streaming and gaming.

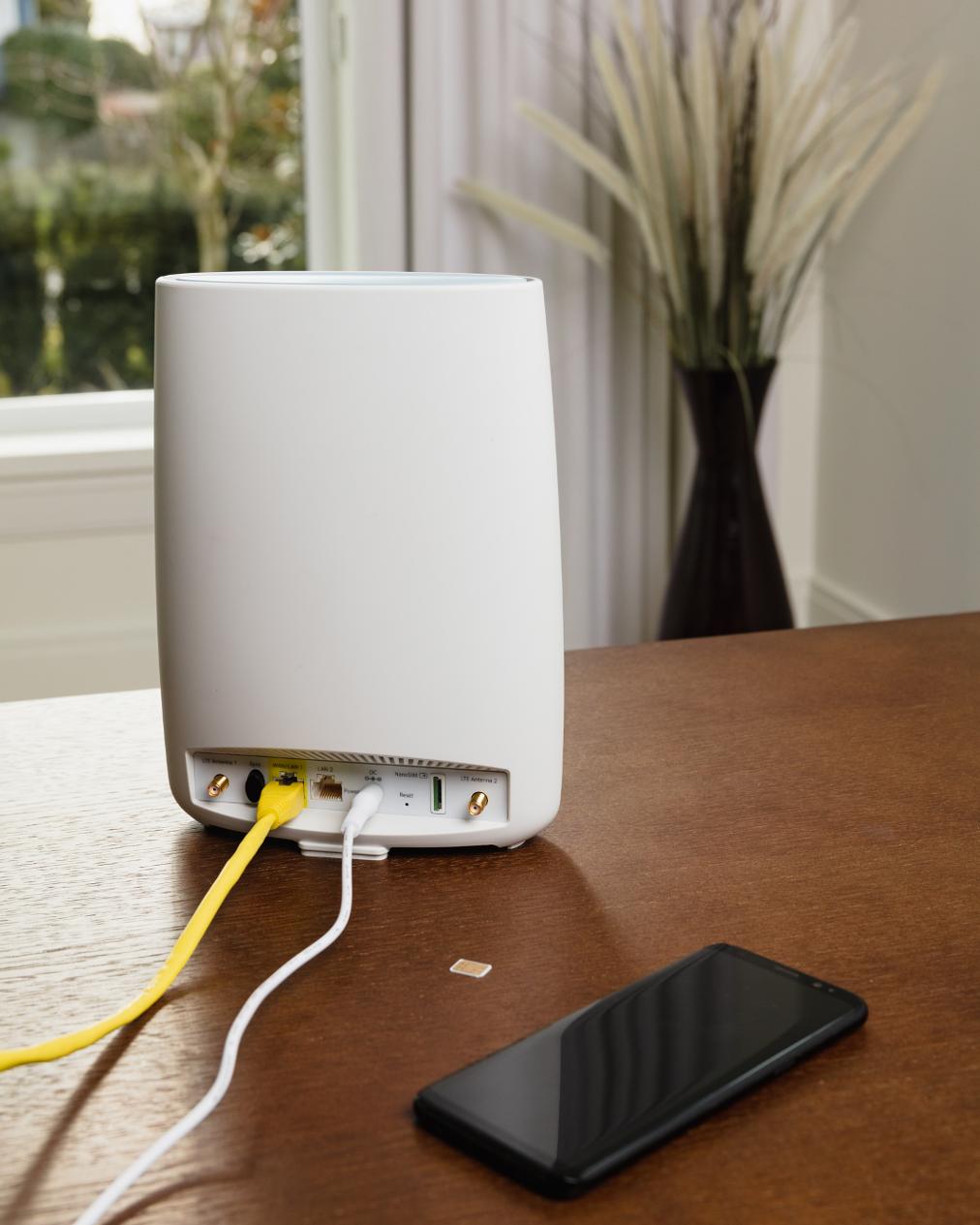

    • Integrated Cellular Modem Use fast internet speeds from the 4G LTE mobile network. Simply insert a Nano SIM card from AT&T, T-Mobile or another major 4G LTE service provider, excluding Verizon or Sprint legacy network.

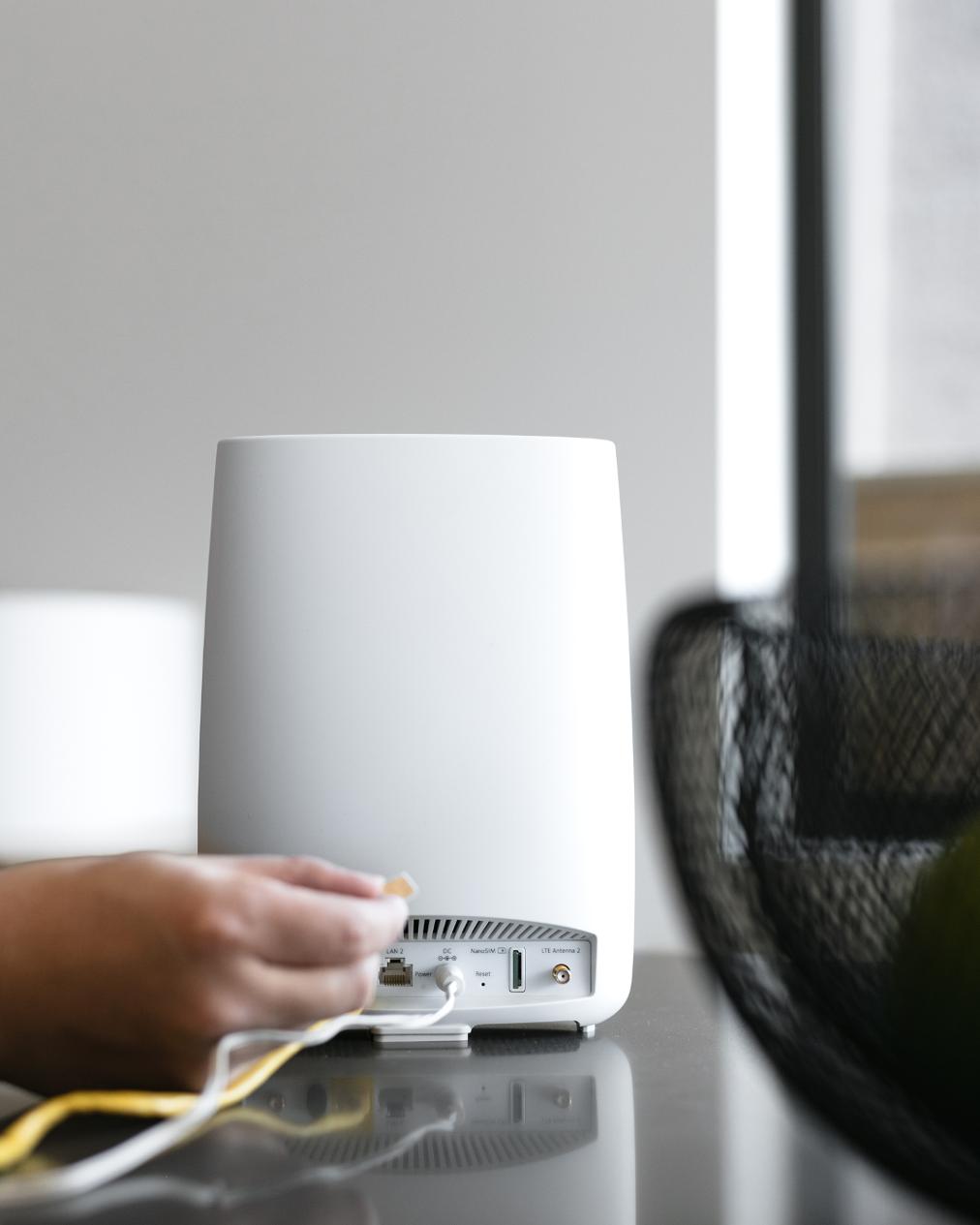

    • Ethernet Ports Two Gigabit Ethernet ports (1 WAN, 1 LAN) keep your wired devices connected.
    Protection
    • NETGEAR Armor Cybersecurity Protect an unlimited number of connected devices from internet threats, both at home and on the go.
    • Smart Parental Controls Manage and monitor your kids’ screen time. Pause internet when it’s homework time, create profiles for each child, and more.
    Security
    • Guest WiFi Have visitors? Set up a separate, secure guest network with its own name and password.
    • Encryption Rest assured your WiFi is encrypted in accordance with WiFi security standards.

    Technical Specifications

    LRB20_tech_specs_image_1
    LRB20_tech_specs_image_2

    Physical Specification

    • Orbi 4G LTE Router (LBR20) : Dimensions: 6.7 x 3.1 x 8.9in, Weight: 1.72lb

    What's in the box

    • One (1) Orbi LTE Router (LBR20)
    • One (1) 2m Ethernet cable
    • One (1) 12V/2.5A power adapter
    • Quick start guide
    • Third party SIM card & activation instructions

    Technical Specs

    • WiFi Coverage : 2,000 sq.ft.
    • Orbi 4G LTE Advanced Router (AC2200) : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands, MU-MIMO capable for simultaneous data streaming to multiple devices, Powerful Quad-Core 710MHz processor
    • AC2200 Tri-Band WiFi : 2.4GHz (400Mbps†) + 5GHz (866Mbps†) for WiFi devices to connect to the Internet
    • Dedicated Backhaul : 2X2 (866Mbps), 5GHz (866Mbps†) dedicated WiFi link for faster data connections between Orbi Router and (additional) Orbi Satellite
    • LTE Support : Built in 4G LTE Modem. LTE Category 18, capable of up to 1.2 Gbps. 4G LTE Band (LTE FDD): B2,4,5,7,12,13,14,17,25,26,29,30,66,71. 4G Band (LTE-TDD): B41. 3G Band: B1,4,5

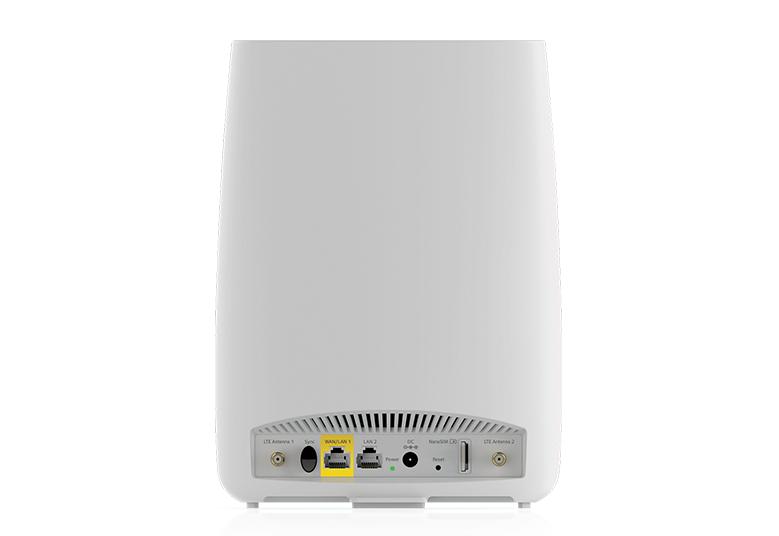

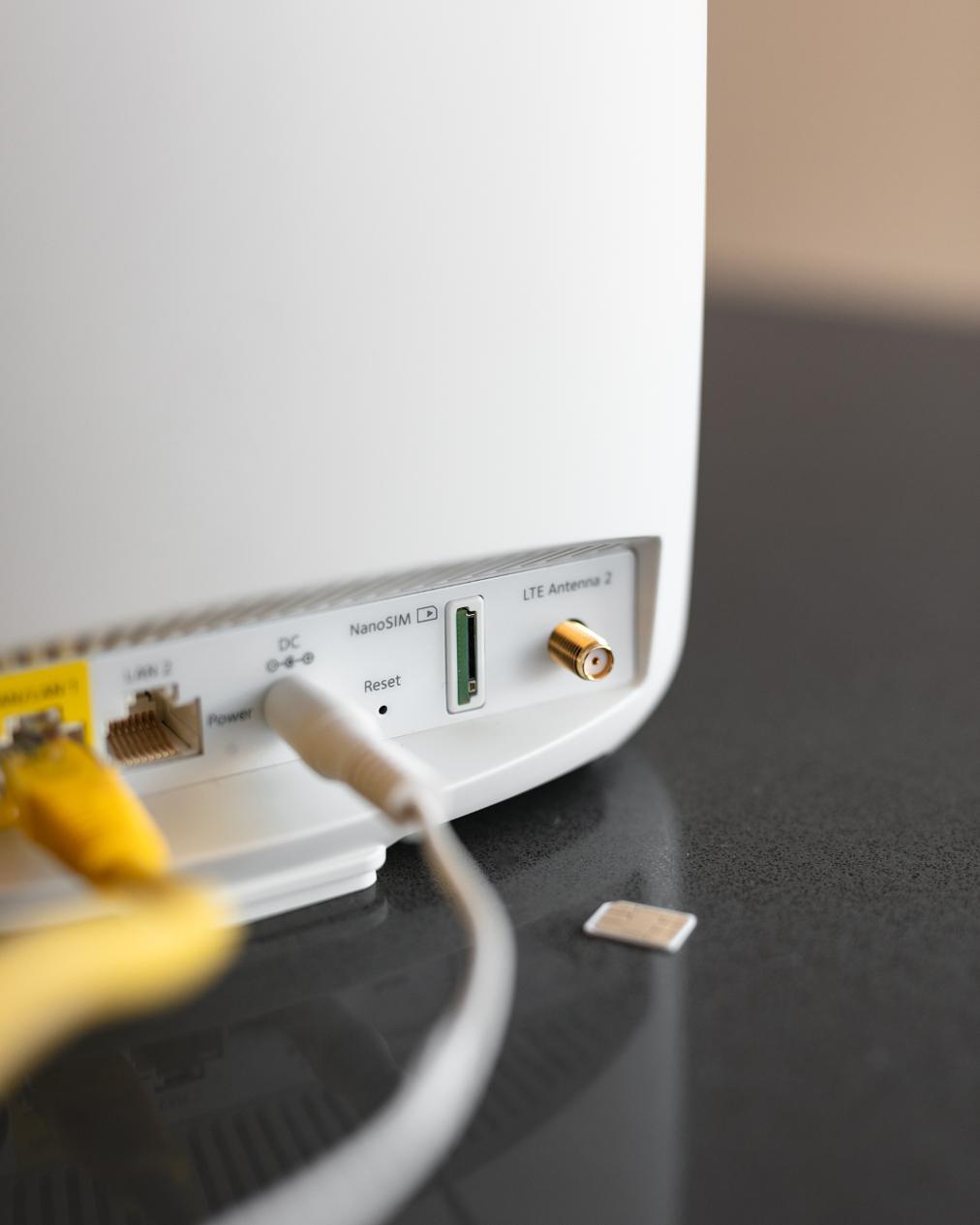

    • Ports : Two (2) external SMA type antenna ports (antenna not included), Two (2) 10/100/1000Mbps Gigabit Ethernet ports (1 WAN + 1 LAN)
    • Security : Advanced cyber threat protection for your PC, Mac® and mobile devices with NETGEAR Armor™ Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK), Guest WiFi Network is easy to setup separate & secure Internet access for guests, Circle® Smart Parental Controls to manage content and time online for all your devices.
    • Works with Amazon Alexa and the Google Assistant : Yes

    Support & Warranty

    • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
    • †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 2,200Mbps wireless speeds achieved when connecting to other 802.11ac 2,200Mbps devices.
    • †† Network must support subset of the 4G LTE bands listed under the Technical Specifications.
    • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
