  • 48 x Gigabit Ethernet ports with 24 ports of PoE+
  • Plug and play switch, no management required
  • Energy Efficient Ethernet for maximum power savings
  • Dynamic fans for quiet operation
  • Rackmount or desktop
GS748PP GS748PP-100NAS GS748PP-100NAS

Unmanaged PoE+ Switch (GS748PP) armor

48-Port Gigabit Ethernet Unmanaged PoE+ Switch (380W) armor

Unmanaged PoE+ Switch (GS748PP)

48-Port Gigabit Ethernet Unmanaged PoE+ Switch (380W) armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • 48 x Gigabit Ethernet ports with 24 ports of PoE+
  • Plug and play switch, no management required
  • Energy Efficient Ethernet for maximum power savings
  • Dynamic fans for quiet operation
  • Rackmount or desktop

Features

POWER-OVER-ETHERNET
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Technical Specifications

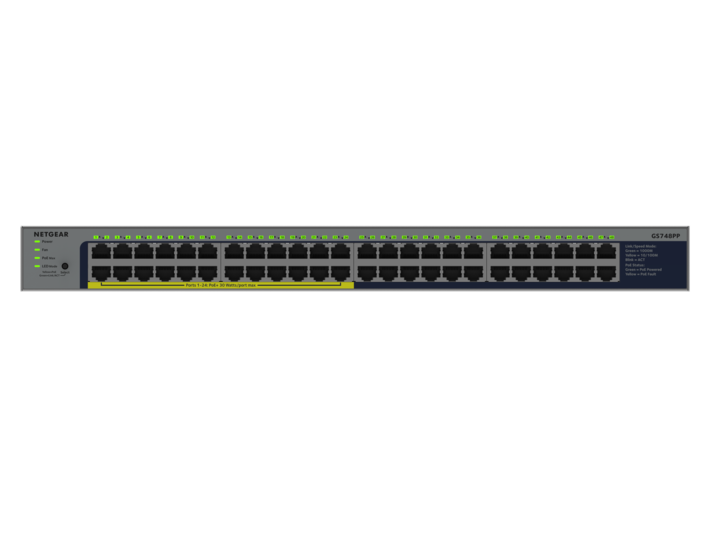

gs748pp_tech_specs_image_frt

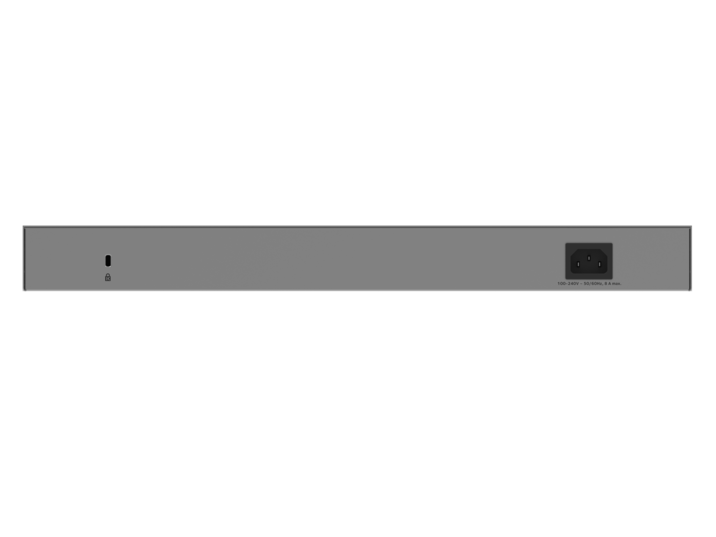

gs748pp_tech_specs_image_rear
  • Dimensions (W x D x H) : 440 x 310 x 43 mm (17.9 x 12.2 x 1.7 in)
  • Weight : 4.6 kg (10.1 lb)
  • Speed : 1G
  • Number of Ports : 48
  • Number of PoE+ Ports : 24
  • PoE Power per Port : Up to 30W
  • PoE Budget : 380W
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 12,288 bytes
  • MAC Table Size : 8K
  • Packet buffer size : 1.5MB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 410W
  • Fans : 2
  • Operating Temperature : 0-40°C (32°F - 104°F)
  • MTBF (hours) : 570,972 hours (65 years)
  • FCC Class : Class A

    • Warranty : This product is backed by a NETGEAR limited lifetime hardware  warranty  (depending on region). Click here  for coverage, availability and terms and conditions.
    • Next Business Day Hardware Replacement for duration of warranty (depending on region). Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
