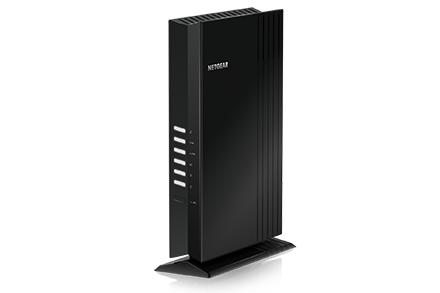

AX1800 WiFi Mesh Extender (EAX20)
NETGEAR® Dual-band WiFi 6 Mesh Extender, 1.8Gbps

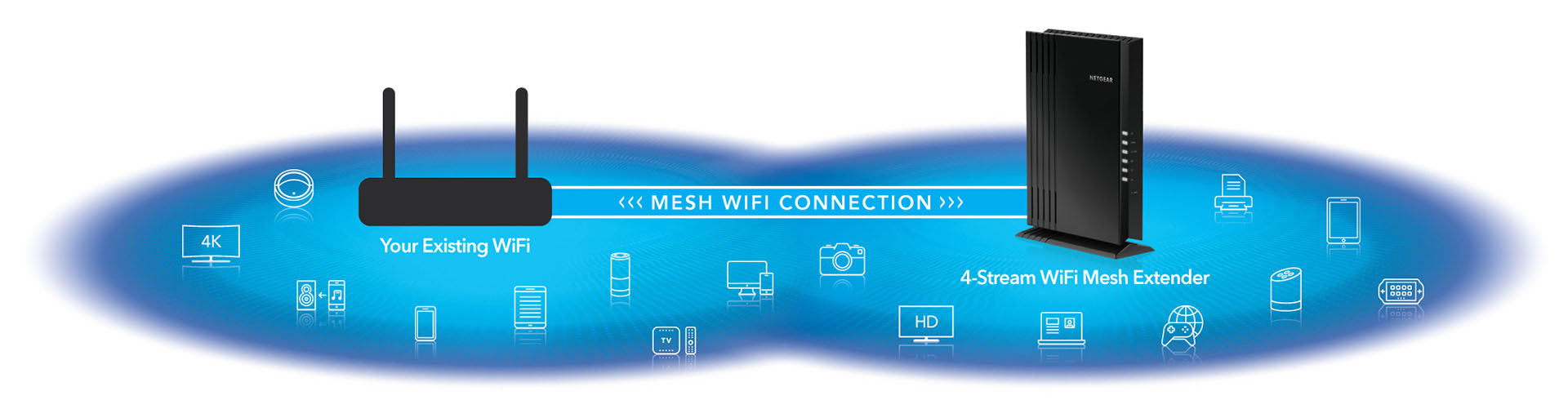

NETGEAR® AX1800 4-Stream Mesh Extender is built for the future of WiFi delivering great capacity, fast speed and more coverage. Enjoy a better connected home experience and extend faster WiFi to the farthest corner of your home with speeds up to 1.8Gbps.
AX1800 WiFi Mesh Extender (EAX20)
NETGEAR® Dual-band WiFi 6 Mesh Extender, 1.8Gbps
NETGEAR® AX1800 4-Stream Mesh Extender is built for the future of WiFi delivering great capacity, fast speed and more coverage. Enjoy a better connected home experience and extend faster WiFi to the farthest corner of your home with speeds up to 1.8Gbps.

WiFi 6: The Fastest WiFi Ever
With WiFi 6, you get the fastest speeds available, and up to 4X more device capacity than WiFi 5. Stream in ultra HD 4K/8K, video call, and more without getting interrupted or slowed down, even as you connect more devices to your network. It’s like upgrading your WiFi to first class.
Technical Specifications


- Dimensions : 9.5 x 6.7 x 2.5in (241.7 × 169.5 ×63.4mm)
- Weight : 1.1lb (504.4g)
- WiFi Technology : 802.11ax
- WiFi Performance : AX1800
- WiFi Band : Band 1: 0.6Gbps @2.4GHz - 1024QAM
- Band 2: 1.2Gbps @5GHz - 1024QAM

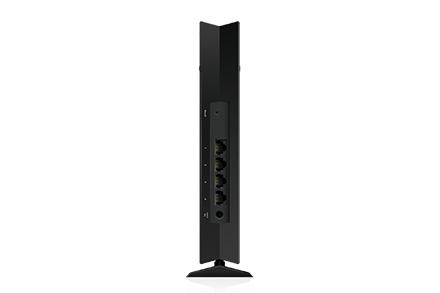

- Number of Ethernet Ports : Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
- Key Features : Gigabit Internet speeds throughout the home*
- 1.5 X Better Performance than a Wi-Fi 5 (802.11ac) Extender—4 Stream WiFi with up to 0.6+1.2 Gbps† for fast wireless speeds**
- More WiFi for More Devices— OFDMA allows efficient data transmission up to 4 devices at the same time. Uplink OFDMA improves scheduling during high volumes of upload traffic.§
- Up to 4 Simultaneous WiFi Streams—4-stream MU-MIMO‡ enables up to four (4) 1x1 devices to stream content at the same time
- 160MHz Channel Support***—Gigabit speeds for compatible mobile devices & laptops
- Powerful Processor—64bit 1.5GHz dual-core processor ensures smooth 4K UHD streaming & gaming
- Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
- Security : Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
- EASE OF USE : Nighthawk App—Easily set up your extender and get more out of your WiFi
- Wi-Fi 6 Supports All Current WiFi Devices—Backward compatible with Wi-Fi 5, Wi-Fi 4 and earlier generation WiFi devices
- Push & Connect using WPS
- Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
- Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorised reseller.
