First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity. WAX630E WAX630E-100EUS WAX630E-100EUS
1-Year NETGEAR Insight Subscription Included

Cloud Managed WiFi 6E Access Point (WAX630E) armor

AXE7800 Tri-Band WiFi 6E Access Point armor

1-Year NETGEAR Insight Subscription Included

Cloud Managed WiFi 6E Access Point (WAX630E)

AXE7800 Tri-Band WiFi 6E Access Point armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

×
addcartADDED TO CART

AXE7800 Tri-Band WiFi 6E Access Point

Select Additional Software/Service

NETGEAR ArmoritemSelect

Essential all-in-one internet security

Learn More

1 year

NETGEAR ProSupportitemSelect

Extended warranty

Learn More

1 year

NETGEAR ProSupport + 24/7itemSelect

All-in-one extended warranty and support from NETGEAR certified experts

Learn More

1 year

NETGEAR ProSupportitemSelect

Extended warranty

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

All-in-one extended warranty and support from NETGEAR certified experts

Learn More

2 years

NETGEAR ProSupportitemSelect

Extended warranty

Learn More

3 years

NETGEAR ProSupport + 24/7itemSelect

All-in-one extended warranty and support from NETGEAR certified experts

Learn More

3 years

Armor/ProSupport bundleitemSelect

NETGEAR Smart Parental ControlsitemSelect

Promote a balance between online and offline time

Learn More

1 year

Meural Membership - AnnualitemSelect

Save 35%. Get exclusive access to 30,000 curated artworks, plus exclusive savings and support

Learn More

1 year

Meural Membership - MonthlyitemSelect

Get exclusive access to 30,000 curated artworks, plus exclusive savings and support

Learn More

1 month

Error Occurred. Please try again later.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity.

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

wax630e_01_mobile wax630e_01_desktop
wax630e_02_mobile wax630e_02_desktop

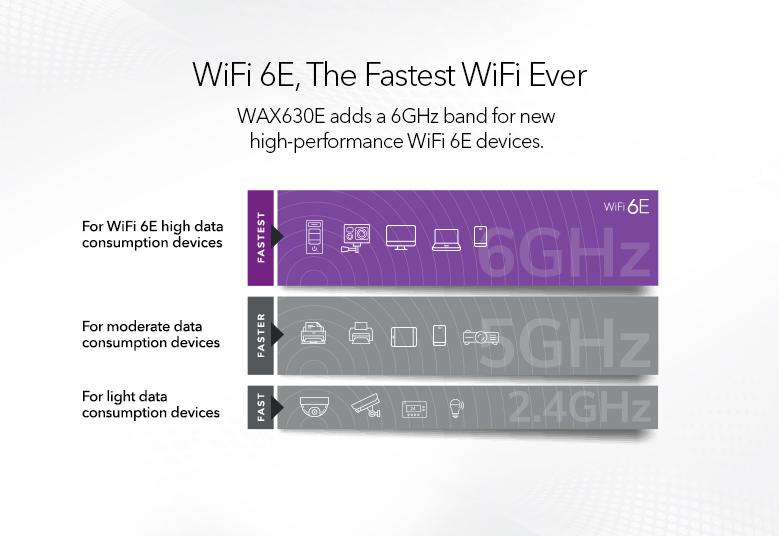

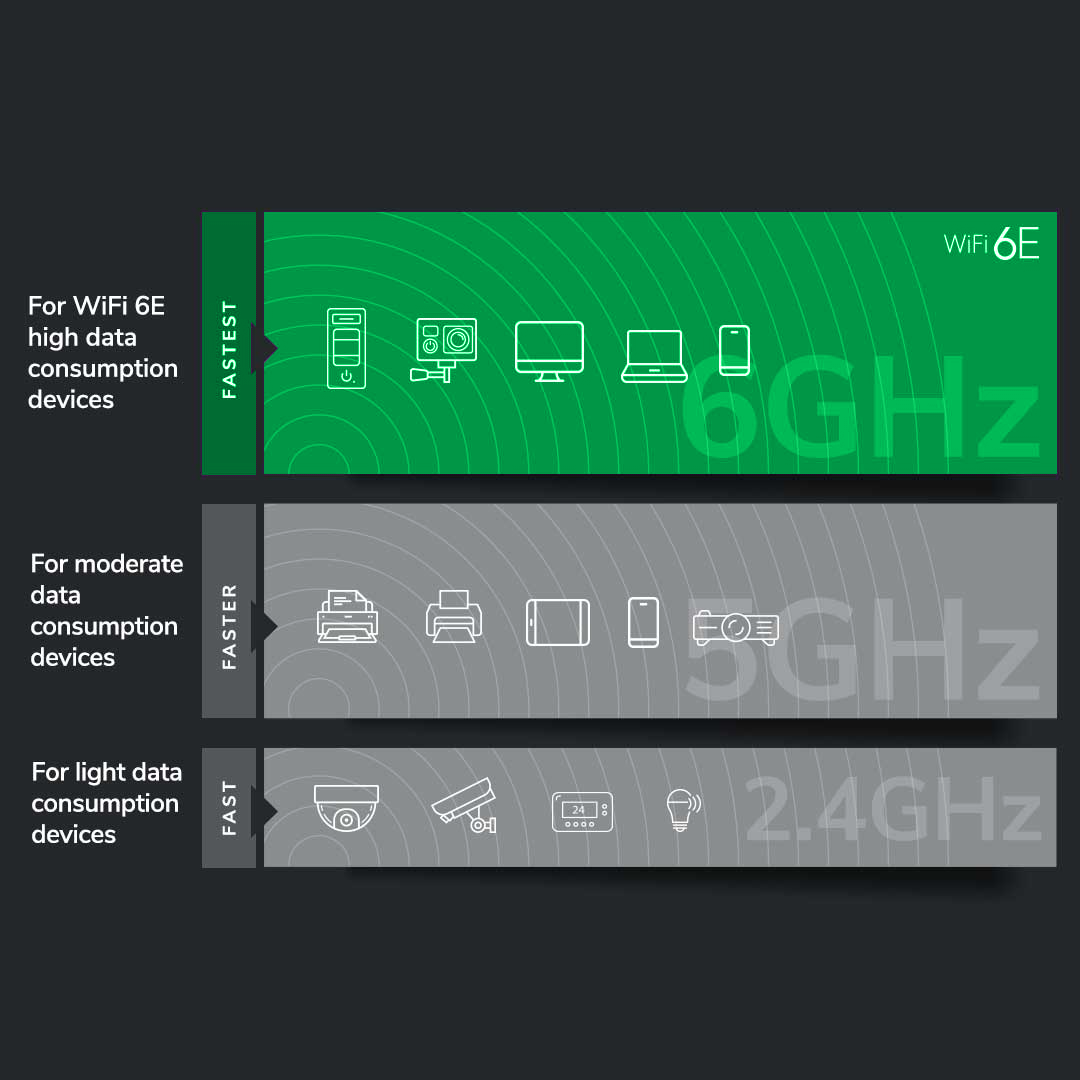

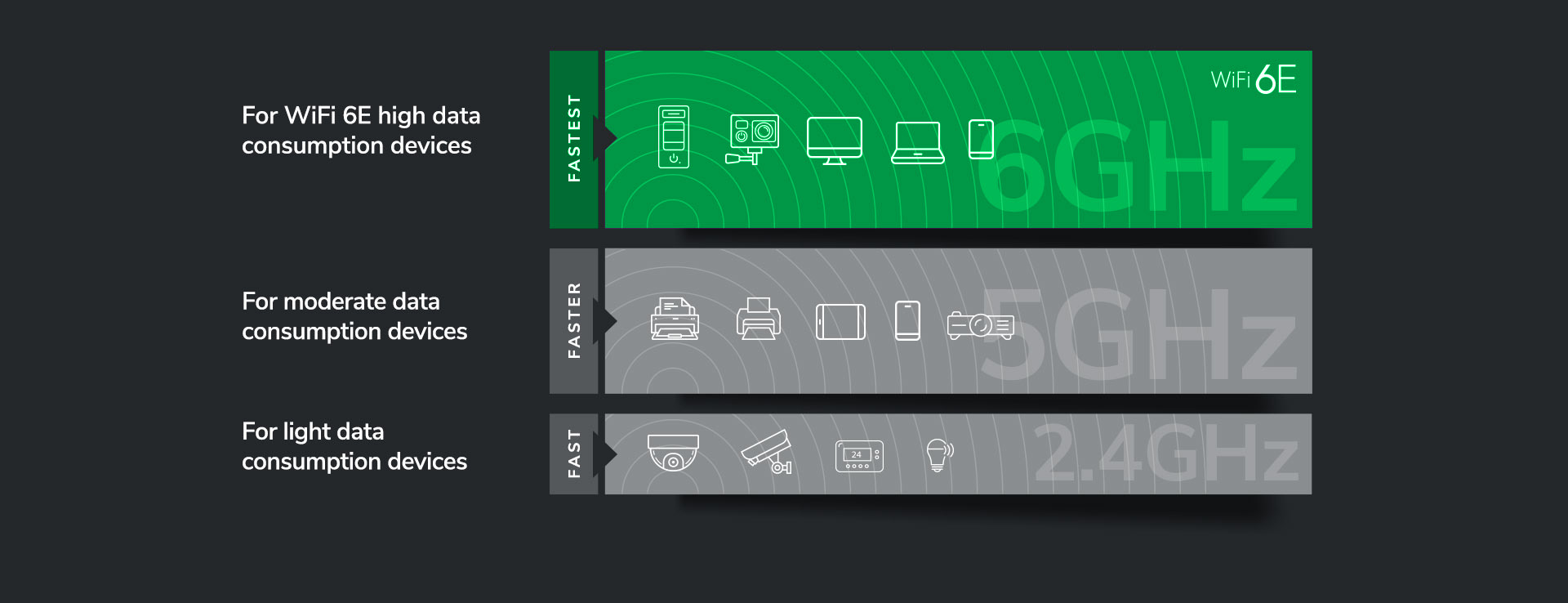

WIFI 6E, THE FASTEST WIFI EVER


WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point.

wax630e_03_mobile wax630e_03_desktop
wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. Includes 1-year subscription.



Netgear Insight App Store   Netgear Insight Google Play
wax630e_05_mobile wax630e_05_desktop

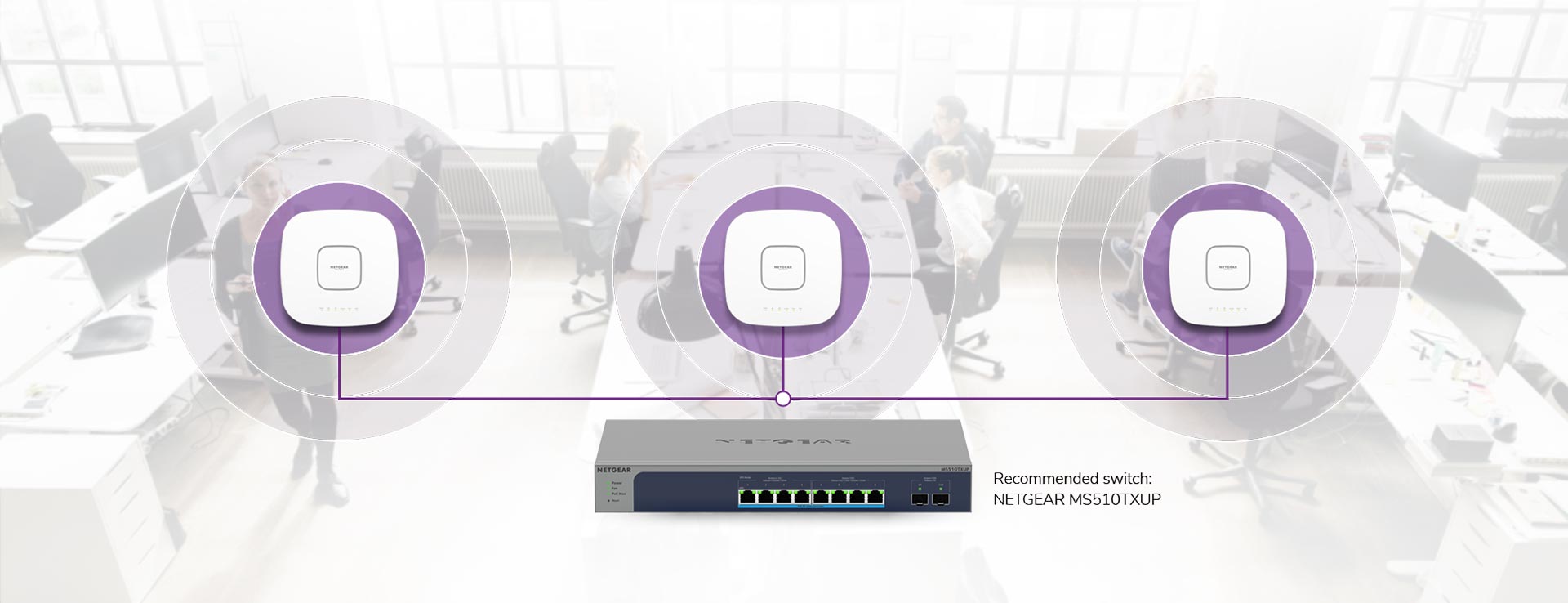

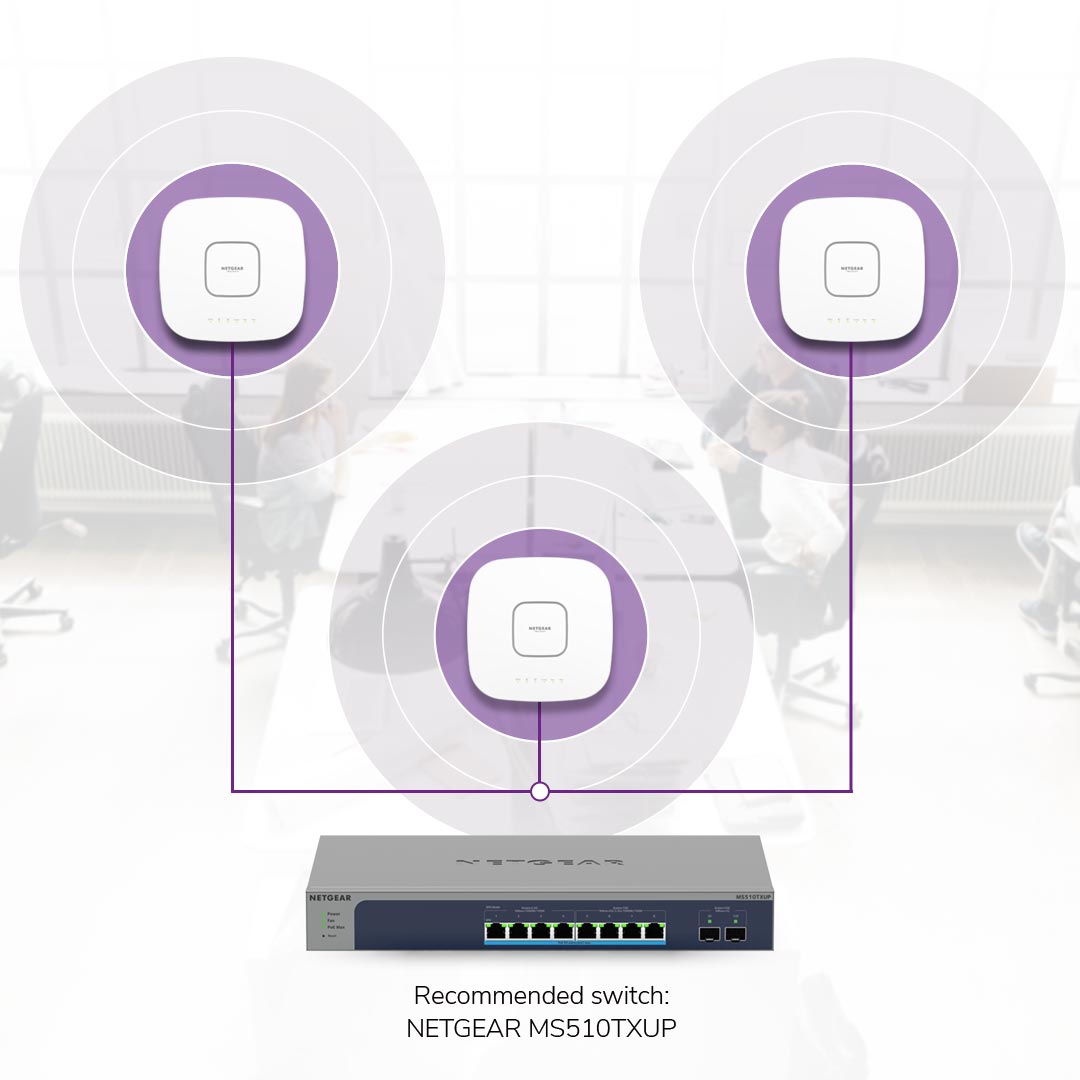

MAXIMISE PERFORMANCE
WITH A NETGEAR POE++ SWITCH

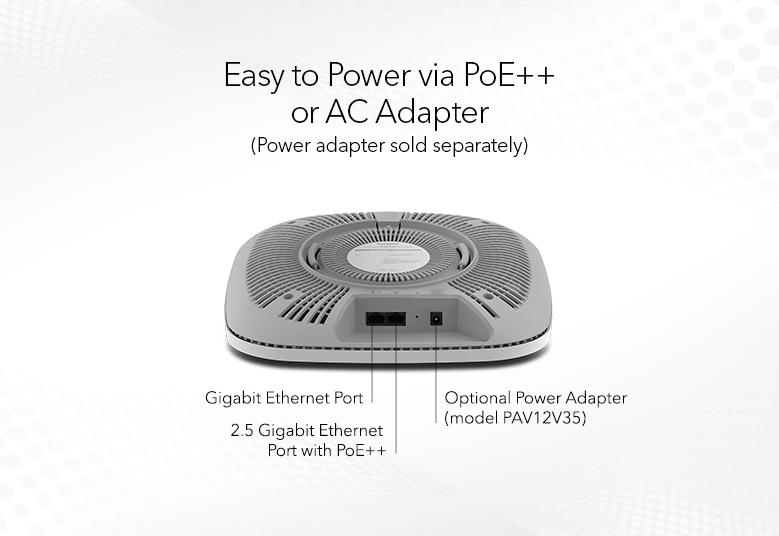

2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch

wax630e_06b_mobile wax630e_06_desktop
wax630e_07_mobile wax630e_07_desktop


MARKET LEADING SUPPORT
FROM TRAINED EXPERTS


NETGEAR Access Points
include a market-leading
5-year warranty with
24/7 support from our
highly trained experts.

Technical Specifications

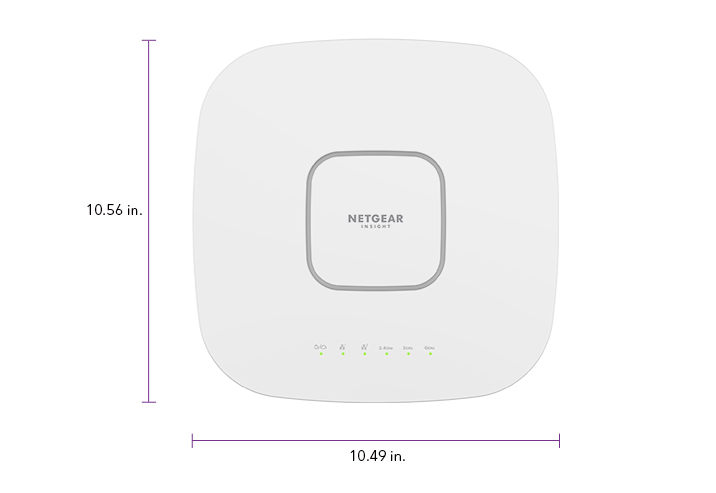

wax630e_techspecs_front

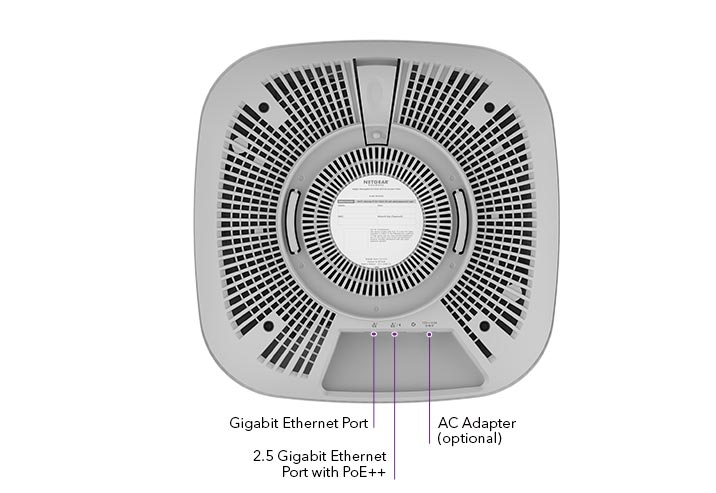

wax630e_techspecs_back
  • Dimensions : 10.49 x 10.56 x 2.18 in (266.6 x 268.3 x 55.5 mm)
  • Weight : 2.31 lbs (1050g)
  • WiFi Technology : WiFi 6E (IEEE® 802.11ax) Tri-Band WiFi (AXE7800) 8-Streams
  • 2.4GHz AX: 600 Mbps
  • 5GHz AX: 4800 Mbps
  • 6GHz AX: 2400 Mbps
  • Backwards compatible with IEEE 802.11 a/b/g/n/ac WiFi
  • WiFi Speed : AXE7800 (6+4.8+2.4Gbps)
  • WiFi Bands : Tri-Band 6GHz + 5GHz + 2.4GHz
  • WiFi Range : 3,000 square feet
  • Ethernet Ports : 1 x 2.5GbE Ethernet port, 1 x 1GbE Ethernet port
  • Security : NETGEAR Insight — Secure cloud and local network management. 1-Year NETGEAR Insight included with purchase
  • 8 SSID wireless networks
  • Guest network access—Separate & secure
  • Flexible VLAN configuration on all 8 SSID WiFi networks
  • Supports WPA3, the latest and cutting-edge WiFi security protocol
  • Third party support : Domotz

  • Broadband Internet service (DSL/cable/fiber)
  • Android® phones, iPhones®, or computers (with a Chrome® or Safari® browser) with Ethernet or WiFi connection
  • WAX630E Insight Managed Wireless Access Point

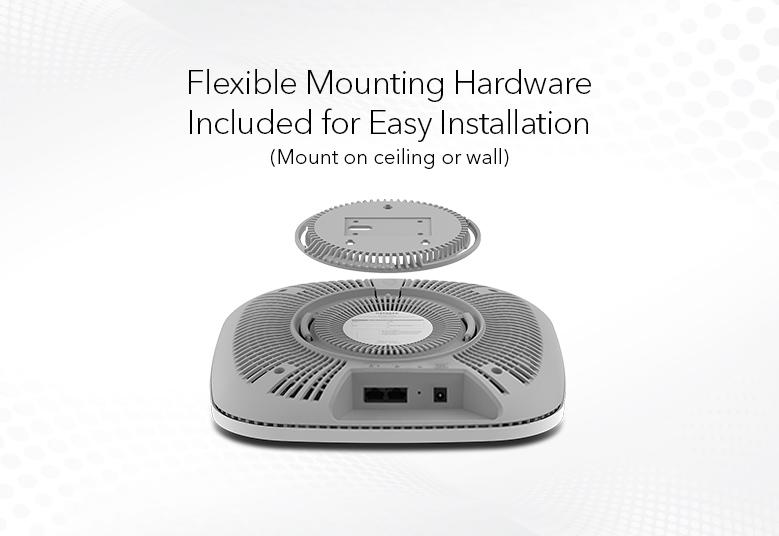

  • Wall/ceiling mount kit
  • Installation guide

    • This product is backed by a NETGEAR limited 5-year Hardware Warranty

  • Warranty : Extend your warranty & technical support within 90 days of product purchase
  • Support : Find troubleshooting tips to diagnose product issues in our knowledge base
