NETGEAR 16 PoE+ ports with 76W total power budget, and includes NETGEAR FlexPoE making it expandable to 115W or even 183W (w/separately purchased power supply modules) GS116LP GS116LP-100EUS GS116LP-100EUS

PoE/PoE+ Gigabit Unmanaged Switches (GS116LP) armor

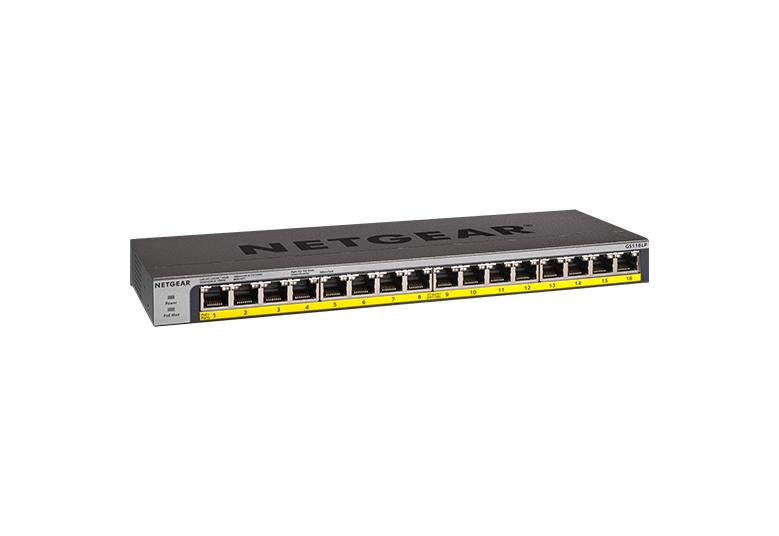

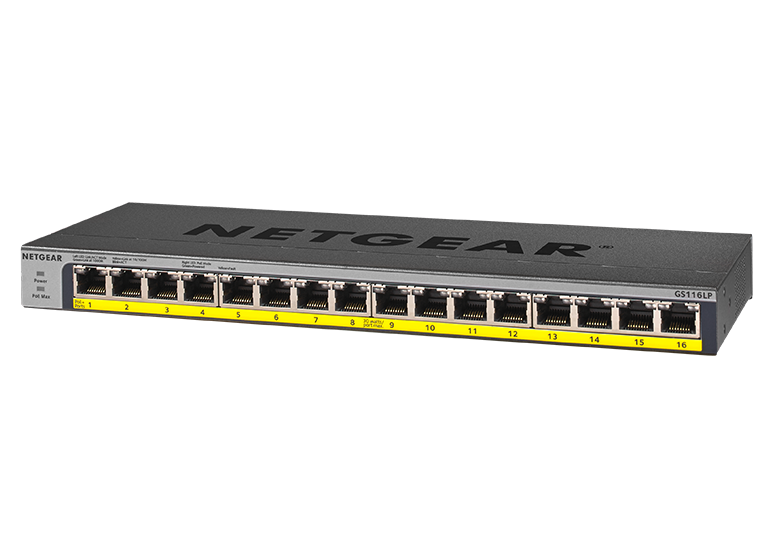

16-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE (76W)armor

16 PoE+ ports with 76W total power budget, and includes NETGEAR FlexPoE making it expandable to 115W or even 183W (w/separately purchased power supply modules)

PLUG AND PLAY: Simple setup with no software or configuration needed.

POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules)

FLEXIBLE MOUNTING: Mount on rack, desktop, or wall.

SMALL SIZE, METAL CASE AND SILENT OPERATION: Durable quality, space saver, and quietness for peace of mind.

LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT: NETGEAR has your back to ensure your network is up and running.

STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS: Can be placed on desk or on mounted rack and will operate quietly with assured durability.

Choice of Fast Ethernet and Gigabit Ethernet connectivity

Energy-efficient technology for power savings

PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level.

Auto-MDI/MDIX eliminates the need for crossover cables

Non-blocking switching architecture for maximum throughput at wire speed

Auto-negotiation for automatic connection at the highest common speed between switch and an end device

Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices

Desktop or rackmountable

Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices

These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power

Built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch

The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included)

Technical Specifications

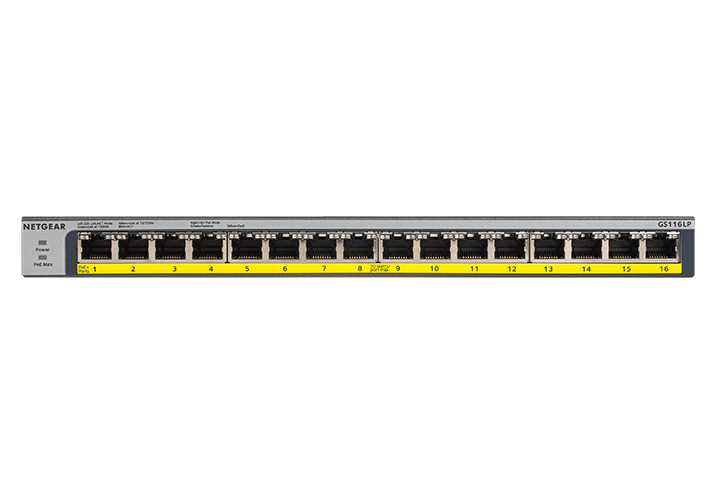

GS116lp_tech_specs_image_1

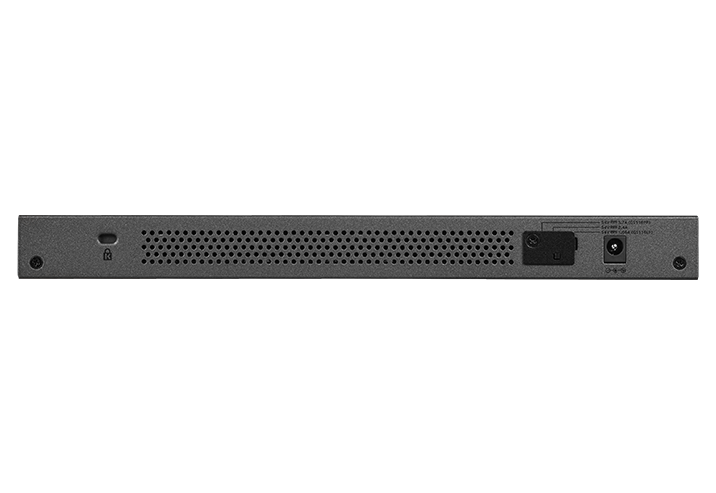

GS116lp_tech_specs_image_2
  • Dimensions (WxDxH) @mm : 286 x 102 x 27 mm
  • Weight (kg) : 0.88 kg
  • MTBF (hours) : 2,088,514 hours
  • Speed : 10/100/1000Mbps Gigabit Ethernet
  • Number of Ports : 16
  • PoE ports : 16 PoE+ ports , up to 30W per port
  • Total PoE Budget : 76W
  • Loop Detection : n/a
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : Yes
  • Queue WRR Ratio : 1:3:5:7:8:10:12:15
  • MAC Table Size : 4K
  • Packet buffer size : 1MB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 90W
  • FCC Class : B
  • Operating Temperature : 0 to 40ºC

    • Warranty: This product is backed by a NETGEAR Limited Lifetime Hardware Warranty . Phone and chat technical support provided for 90 days from purchase date. This product’s warranty is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies—not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details.
