Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades. GS105 GS105AU GS105AU

Gigabit Unmanaged Switch Series (GS105) armor

5-Port Gigabit Ethernet Unmanaged Switch armor

Gigabit Unmanaged Switch Series (GS105)

5-Port Gigabit Ethernet Unmanaged Switch armor

Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

NETGEAR PoE Switches
ETHERNET PORT CONFIGURATION

5 Gigabit ports

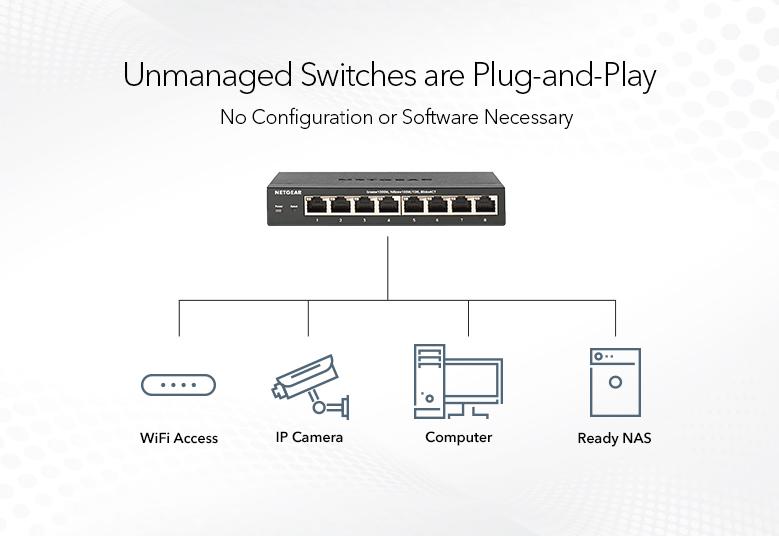

PLUG-AND-PLAY

Simple set up with no software to install or configuration needed and zero maintenance

FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
Reliable Performance

Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise

High Quality
Durable metal case and long product life
Energy Efficient
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

ENERGY EFFICIENT

Designed to optimize power usage lowering its cost to operate

Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop or wall placement, and includes wall mounting kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs

Technical Specifications

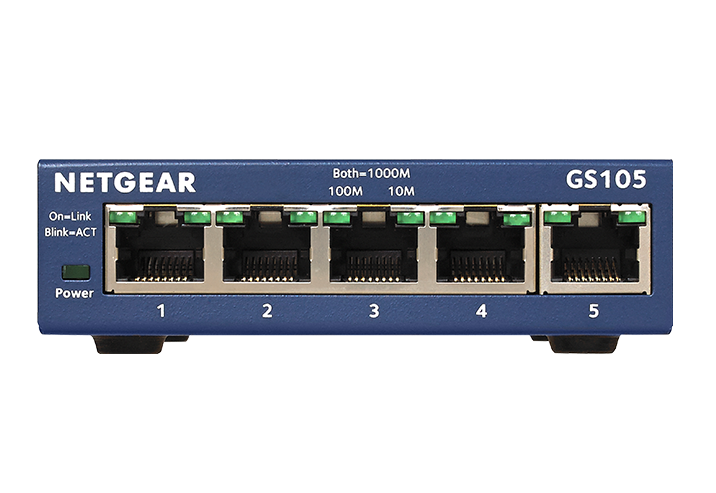

GS105_tech_specs_image_1

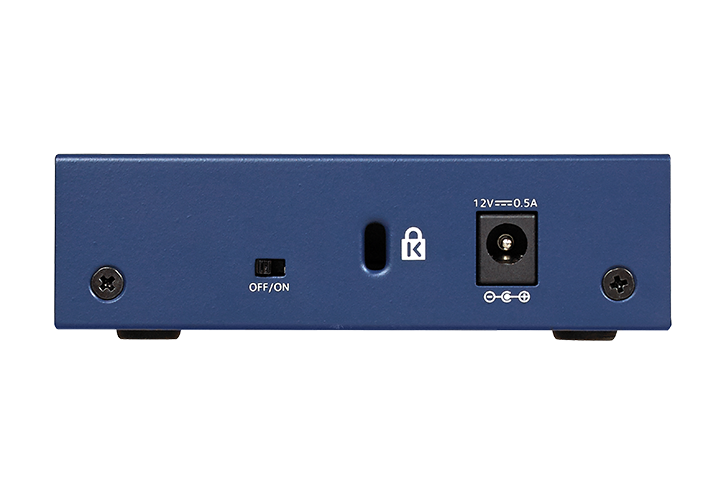

GS105_tech_specs_image_2
  • Dimensions (WxDxH) @mm : 94 mm x 100 mm x 27 mm
  • Weight (kg) : 0.261 kg
  • Speed : 10/100/1000Mbps Gigibit Ethernet
  • Number of Ports : 5
  • PoE ports : n/a
  • Total PoE Budget : n/a
  • Loop Detection : n/a
  • Short cable power saving : n/a
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : Yes
  • Queue WRR Ratio : 1:2:4:8
  • MAC Table Size : 2K
  • Packet buffer size : 128KB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 2.7W
  • Operating Temperature : 50°C
  • MTBF (hours) : 3,197,945 hours
  • FCC Class : B
  • Warranty : This product is backed by a NETGEAR Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
