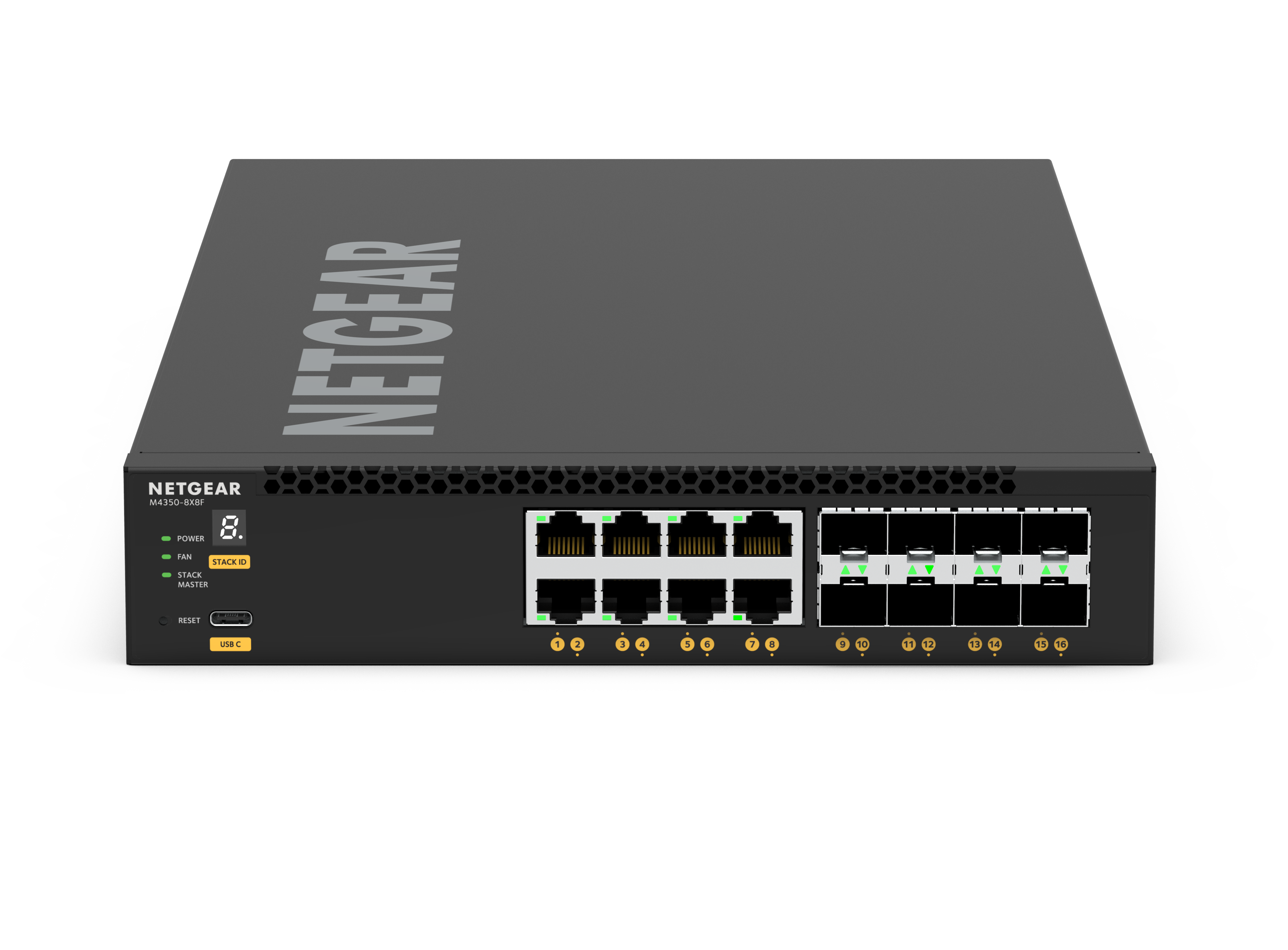

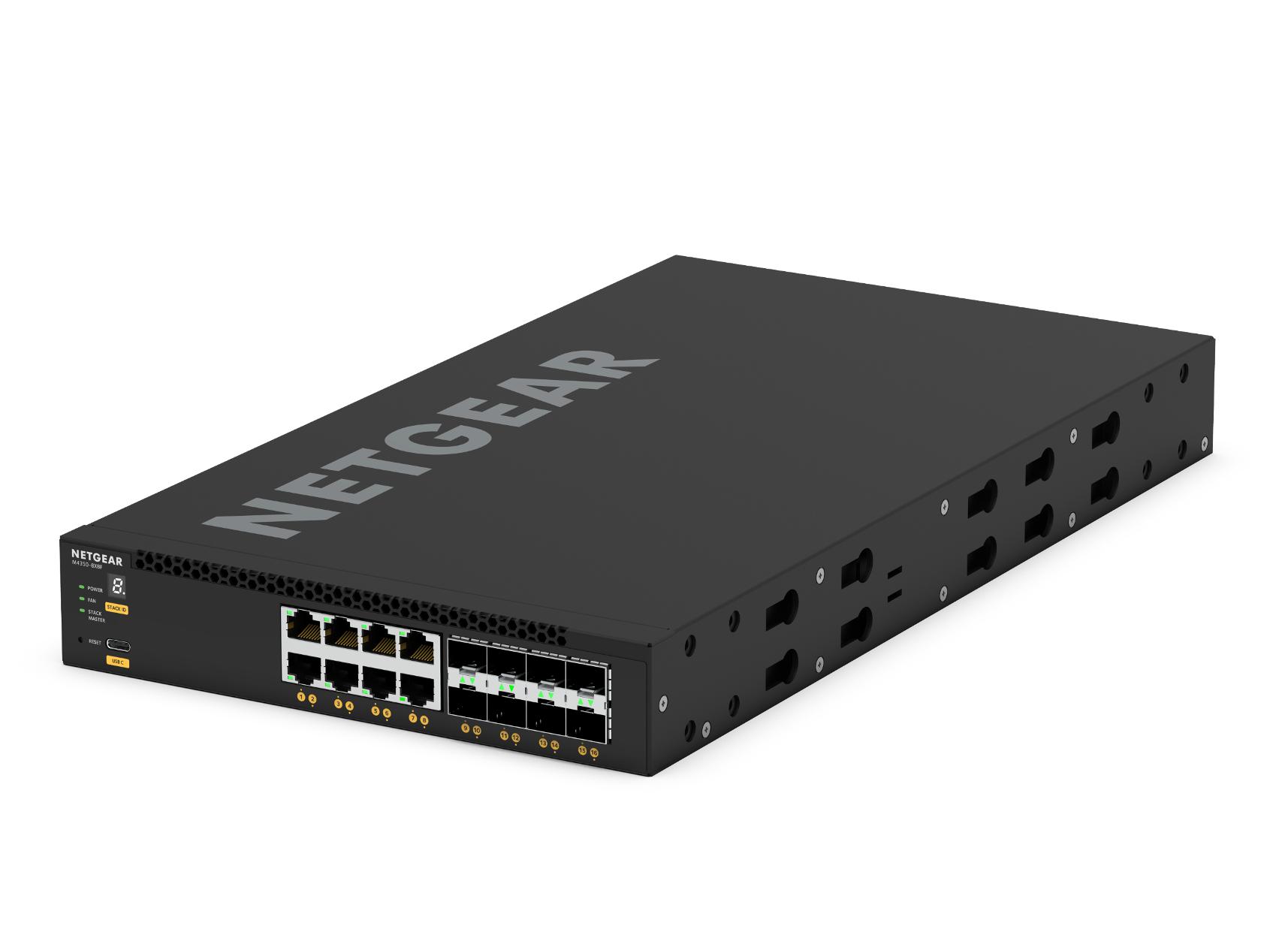

8x10G/Multi-Gig and 8xSFP+ (XSM4316) Managed Switch
8x10G/Multi-Gig and 8xSFP+ (XSM4316) Managed Switch
XSM4316
1 / 13
Ports
- 16 Ports
Port Types
- 8 x 10G/Multi-Gig
- 8 x 10G SFP+
PoE Budget
- N/A
Details

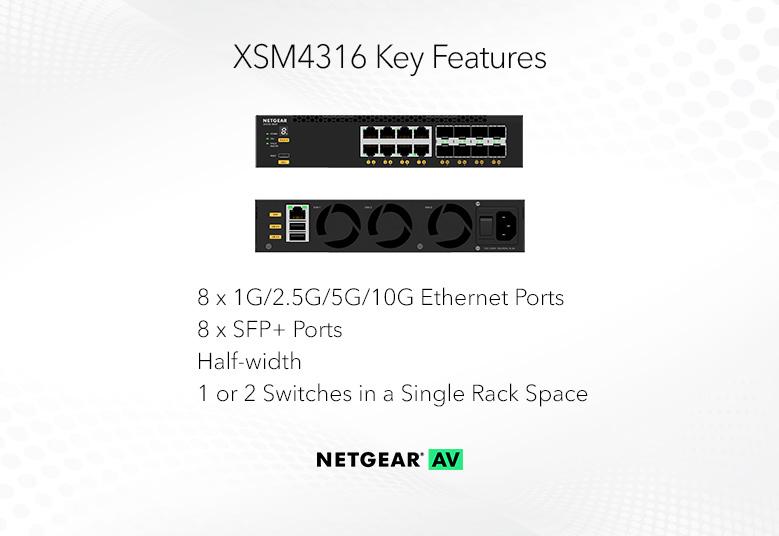

- 8 10G/Multi-Gig ports and 8 10GBASE-X SFP+ ports
- 240W internal power supply

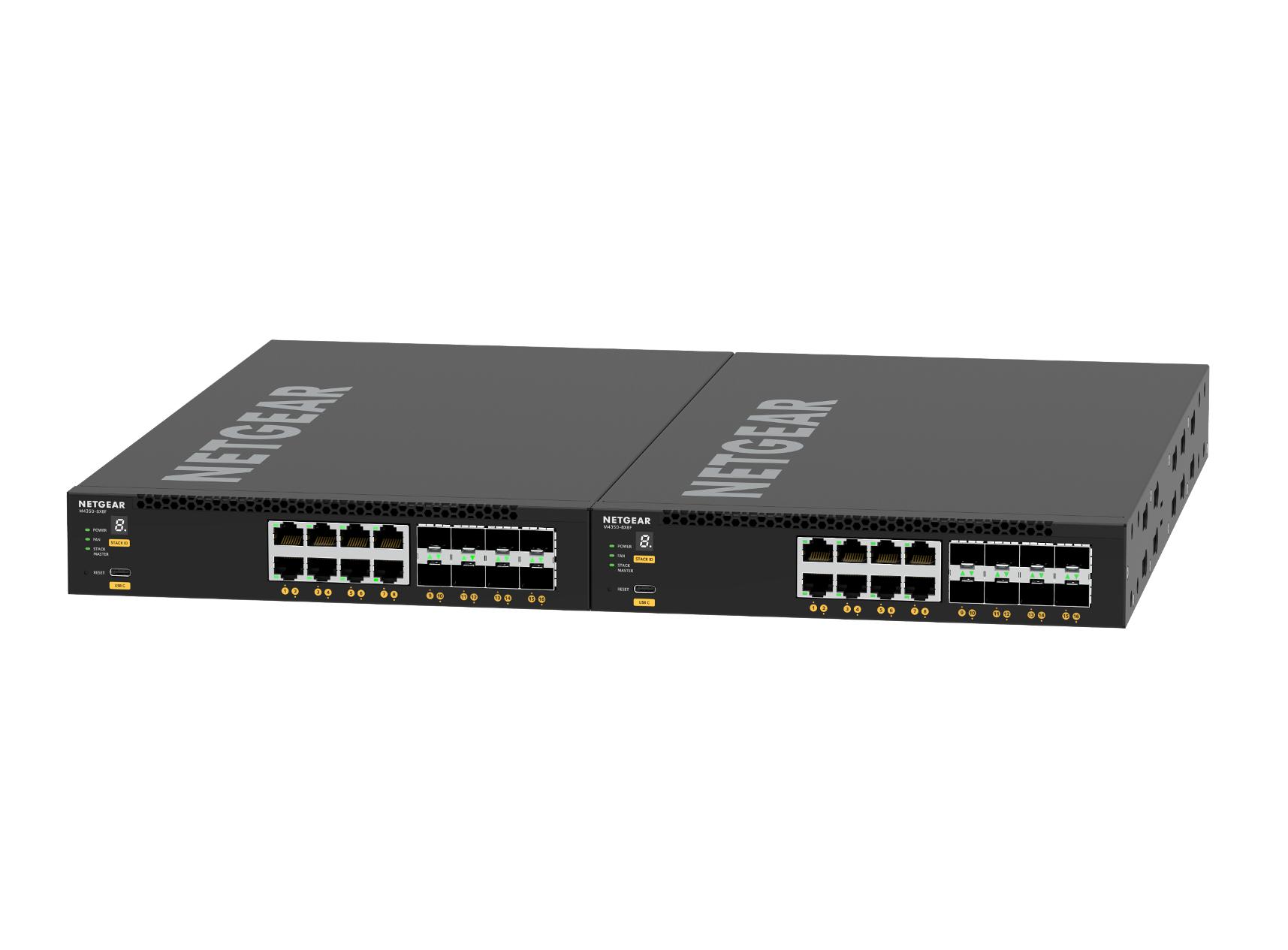

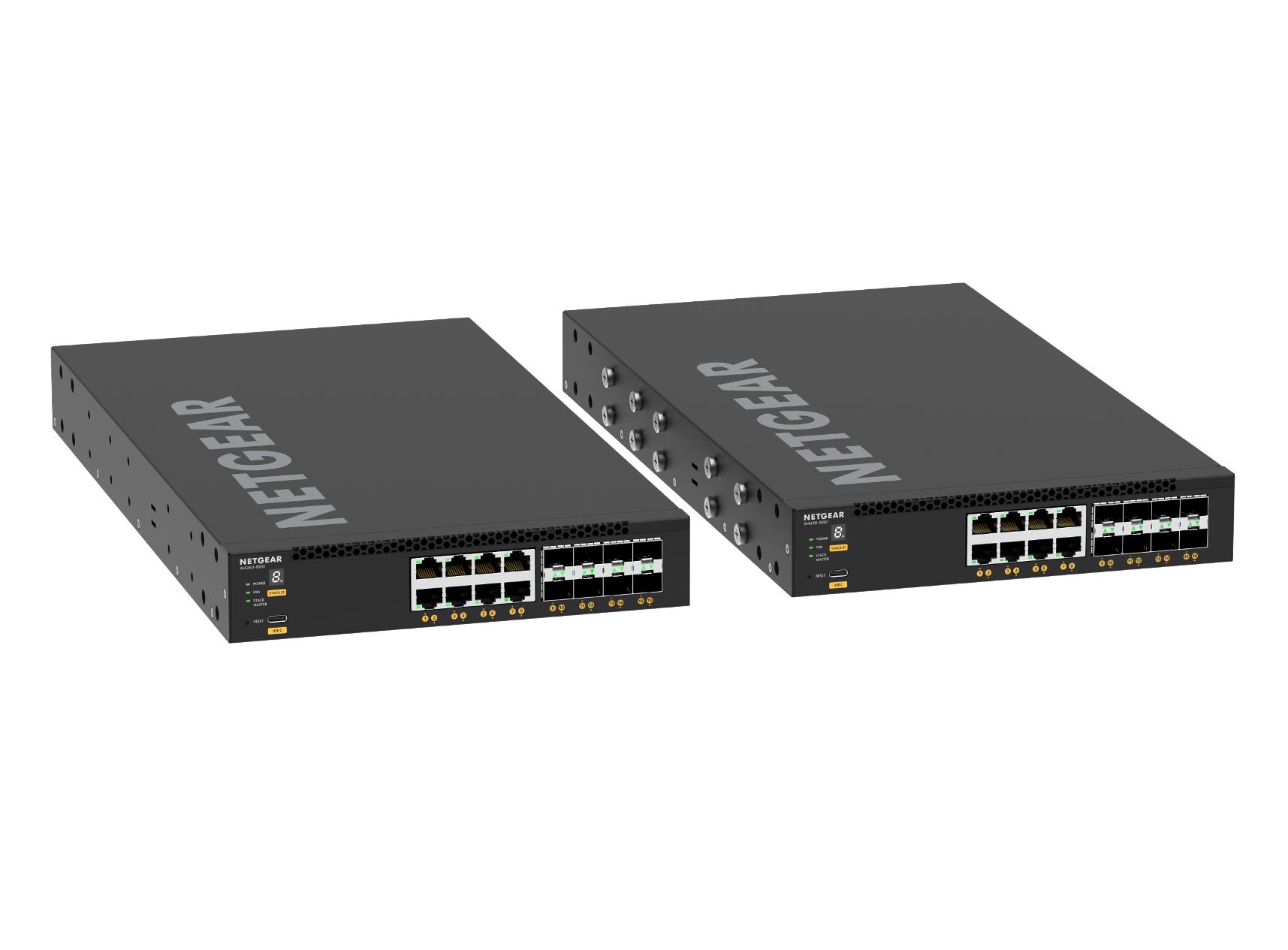

- Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
XSM4316
Ports
- 16 Ports
Port Types
- 8 x 10G/Multi-Gig
- 8 x 10G SFP+
PoE Budget
- N/A
Details
- 8 10G/Multi-Gig ports and 8 10GBASE-X SFP+ ports
- 240W internal power supply
- Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
POWER AND
THROUGHPUT

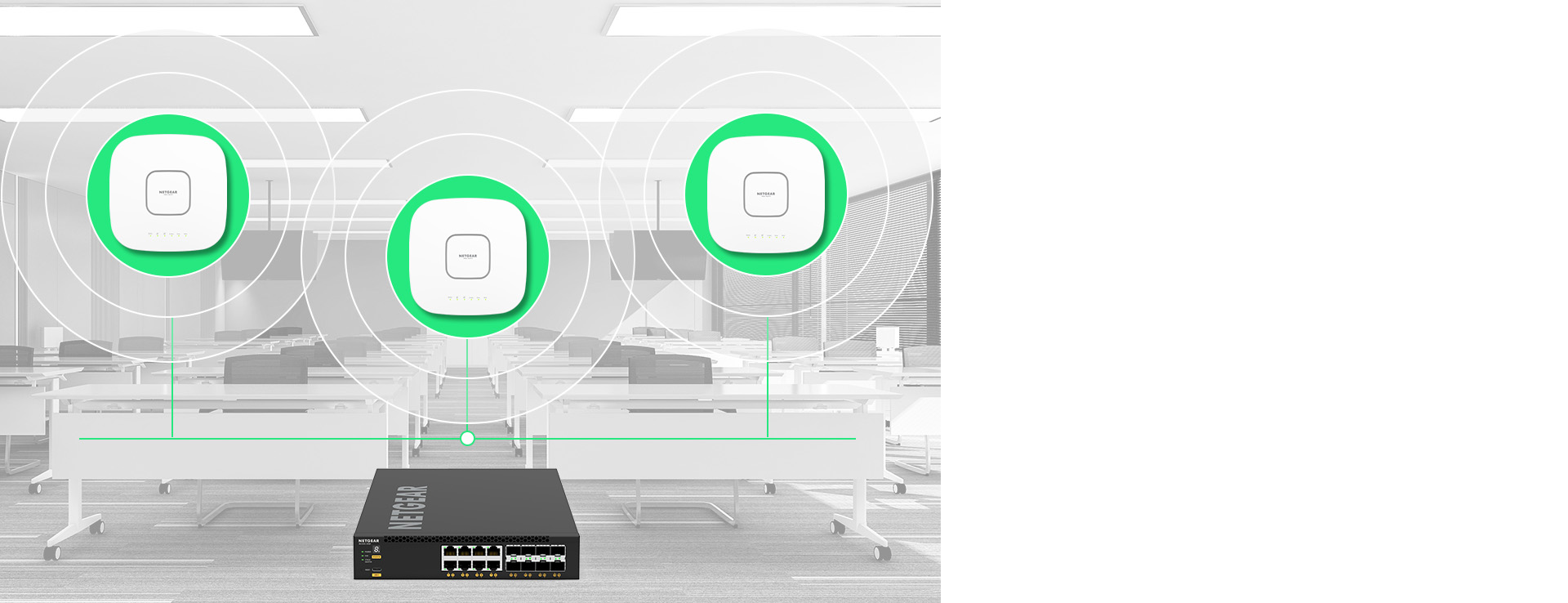

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

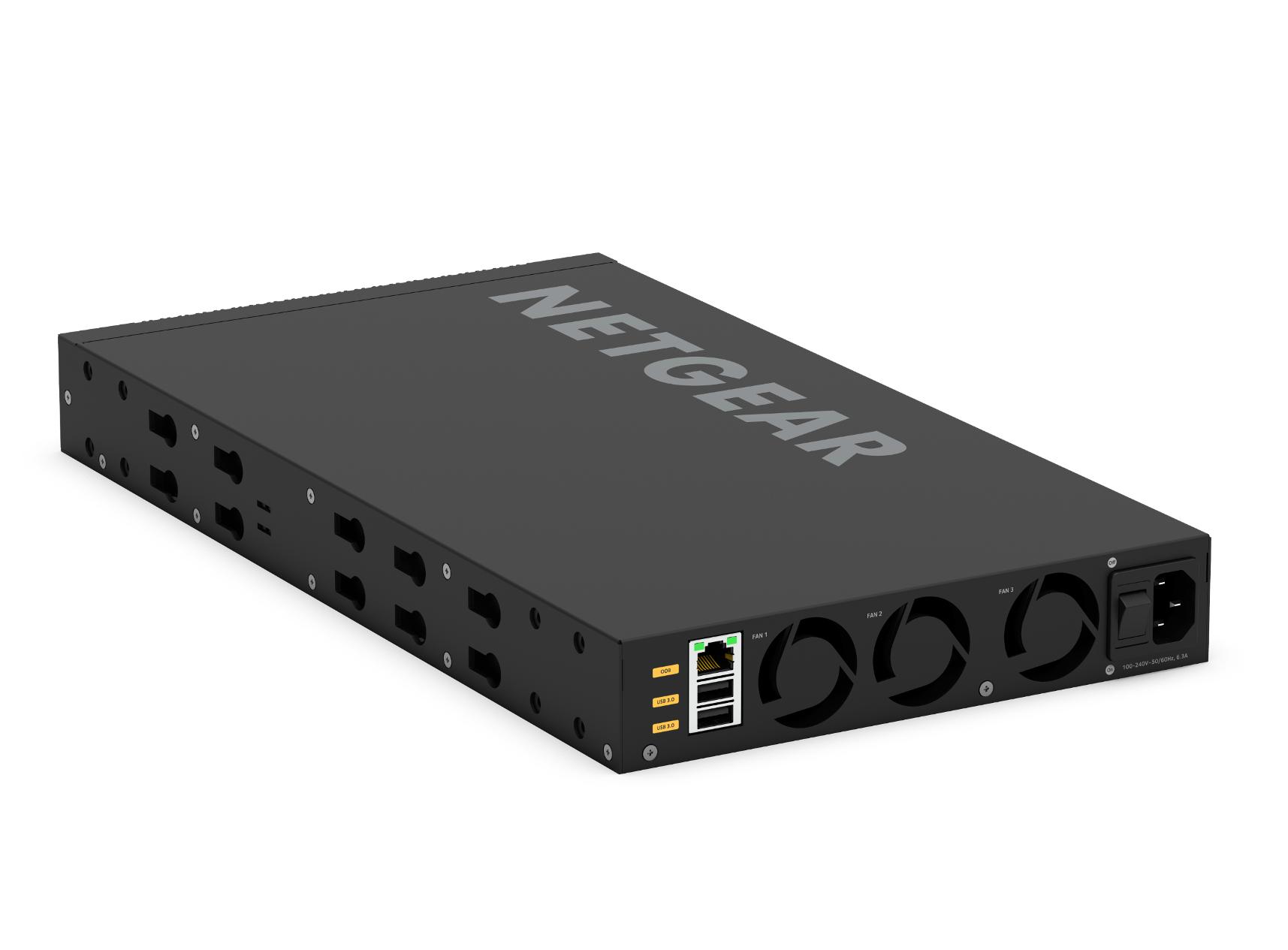

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN

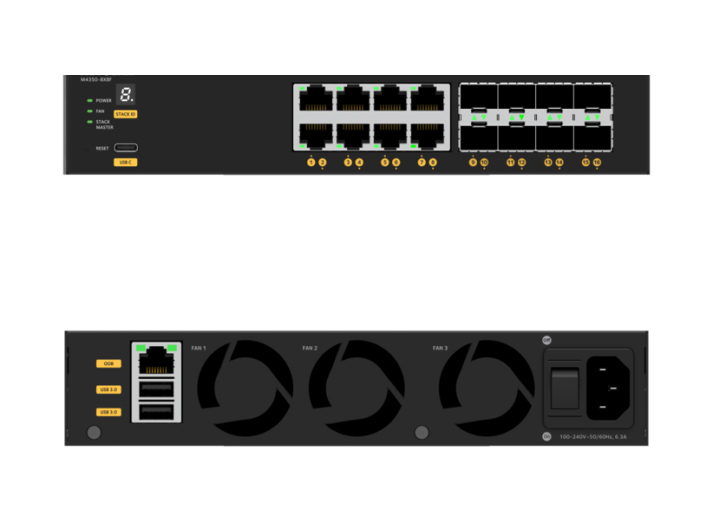

(FRONT LED'S & REAR CABLING)

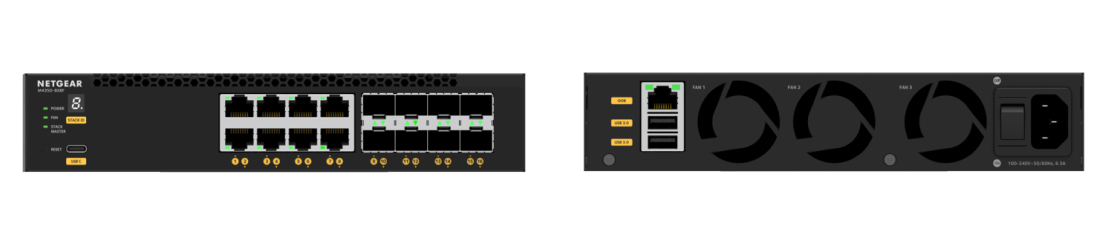

Product Specifications
| M4350-8X8F (XSM4316) | 1 |
| Power cord(s) | 1 |
| Console USB Type-C cable | 1 |
| Switch rack-mounting standard bracket set | 1 |
| Switch set of longer brackets for recessed mounting | 1 |

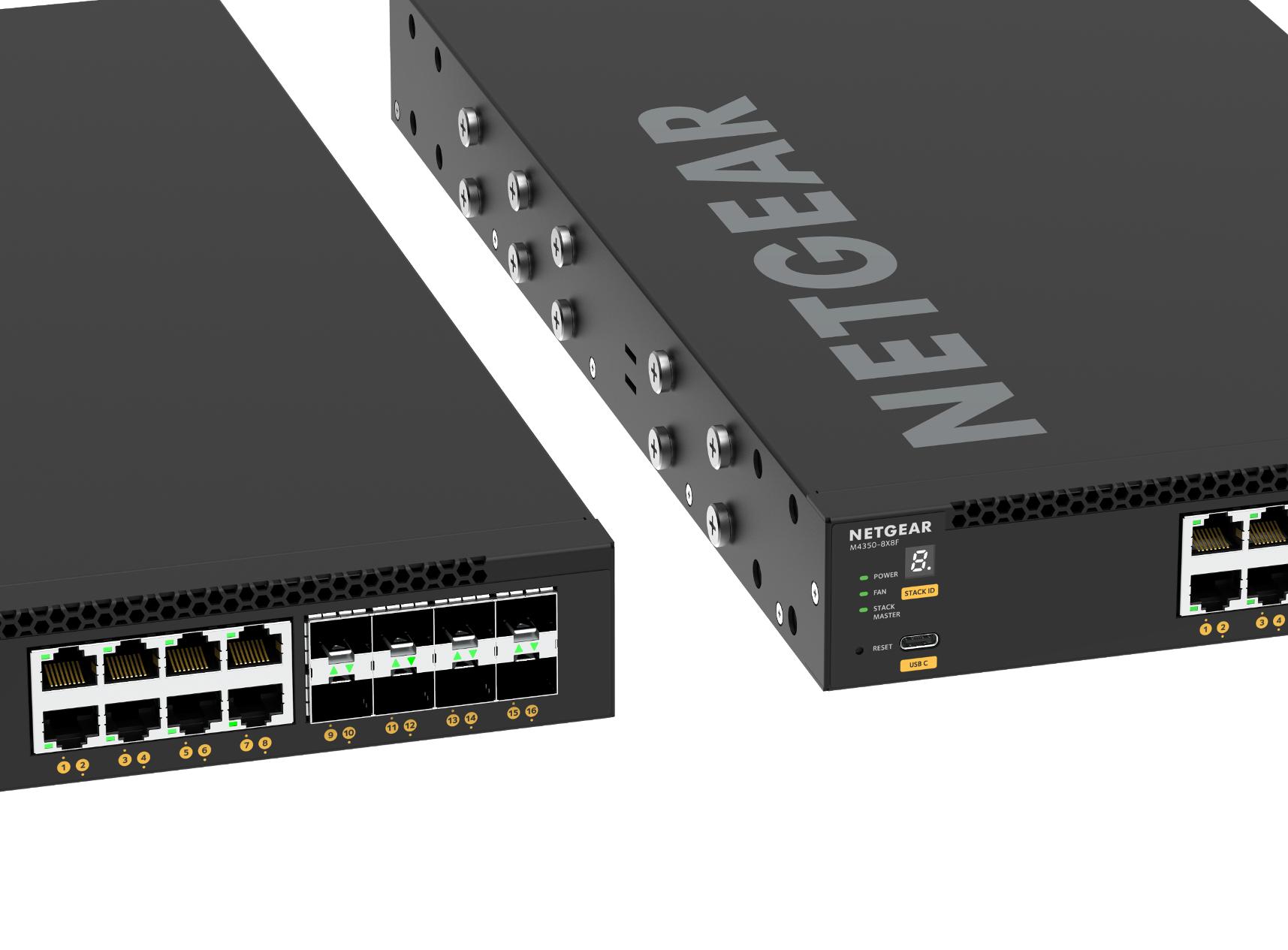

| Switch pairing kit for two half-width M4350 switches in a single rack space | 2 |
| Rubber footpads for tabletop installation | 4 |
| Installation guide | 1 |
| Width | 220mm |
| Depth | 400mm |
| Height | 43.2mm |
| Weight | 4.05kg (8.93lb) |
| Primary Port Speed | 10 Gigabit / Multi-Gig |
| Number of Ports | 16 (8 x 10G/Multi-Gig, 8 x 10G SFP+) |
| PoE Ports / Budget | N/A |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes, included |
| Acoustics | Quiet Mode 34.4dB@25ºC |
| Power Consumption | 81.1W/254.65Btu/hr Standby without any port connection: 30.5W/95.77Btu/hr |
| NETGEAR Engage Controller | Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive. |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
| Support coverage in one, three, or five year contracts |
