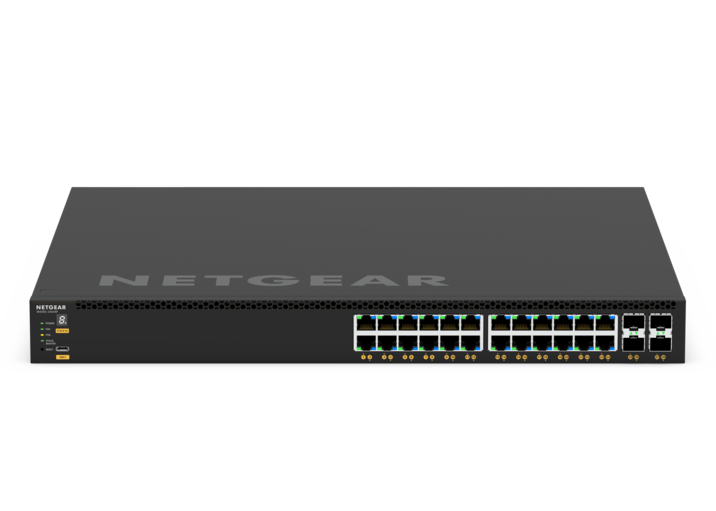

24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch
24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch
GSM4328
1 / 10
Ports
- 24 Ports
Port Types
- 24 x 1G PoE+
- 4 x 10G SFP+
PoE Budget
- 24 PoE+ (30 W/port)
- 648 W base
- up to 720 W budget
Details

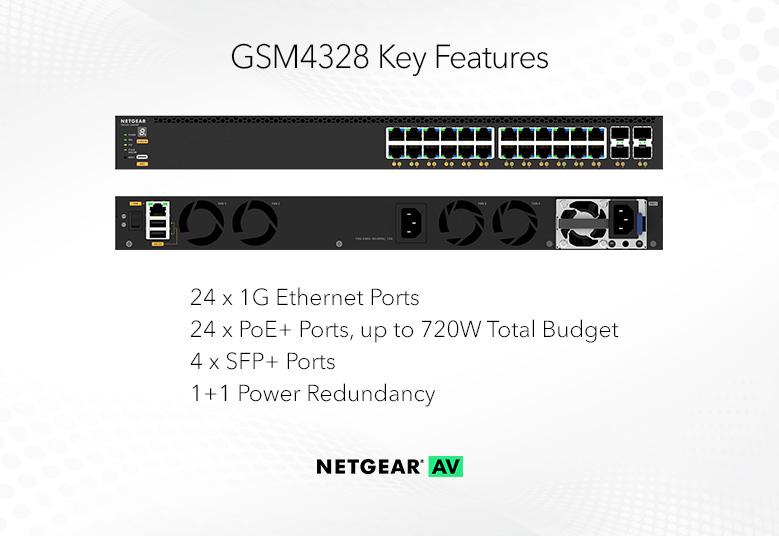

- 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
- 880W internal power supply providing 648W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 720W, when the redundant PoE budget remains 648W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
GSM4328
Ports
- 24 Ports
Port Types
- 24 x 1G PoE+
- 4 x 10G SFP+
PoE Budget
- 24 PoE+ (30 W/port)
- 648 W base
- up to 720 W budget
Details
- 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
- 880W internal power supply providing 648W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 720W, when the redundant PoE budget remains 648W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
POWER AND
THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Fast, Easy Configuration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
PRO AV FAMILY COMPARISON
USE CASE
SWITCH STACKING
PoE CAPABLE
PORT SPEEDS
AVB SUPPORT
AV WEB UI / AV TEMPLATES
AV DESIGN
(FRONT LED'S & REAR CABLING)
Product Specifications
M4350-24G4XF (GSM4328): | 1 |
Power cord(s): | 1 |
Console USB Type-C: | 1 |
Rack-mounting standard bracket set: | 1 |
Set of longer brackets for recessed mounting: | 1 |
Rubber footpads for tabletop installation: | 4 |
Installation guide: | 1 |
Width: | 440mm |
Depth: | 400mm |
Height: | 43.2mm |
Weight: | 6.41kg (14.13lb) |
Primary Port Speed: | 1 Gigabit |
Number of Ports: | 24 x 1G PoE+, 4 x 10G SFP+ |
PoE Ports / Budget: | 24 PoE+ (30W/port), 648W Base, up to 720W Budget |
IGMP Support: | Enhanced (NETGEAR IGMP Plus™) |
Jumbo Frame Support: | Yes, up to 12kb |
AVB Support: | Yes, included |
Acoustics: | Quiet Mode 33dB@25ºC |
Power Consumption: | With PoE: 792.1W/2701.06Btu/hr Without PoE: 80W/251.2Btu/hr Standby without any port connection: 32W/100.48Btu/hr |
PSU Compatible Models: | APS350Wv1 APS600Wv2 APS920Wv1 APS2000Wv1 |
NETGEAR Engage Controller: | Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive. |
Warranty : | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support : | NETGEAR Support offers a customizable support experience based on your operational needs: |
| Sprint support option with 24/5 Technical Support (phone, online) and Advance RMA Replacement |
| Overdrive support option with 24/7 Technical Support (phone, online, 2h SLA) and Next Business Day RMA Replacement |
| Support coverage in one, three, or five year contracts |
