NETGEAR The NETGEAR Home/Office Ethernet Unmanaged Switches provide easy and affordable network connectivity to home and small/home offices. GS605v5 GS605NA GS605NA

Home/Office Ethernet Switch Series (GS605v5) armor

5-Port Gigabit Ethernet Home/Office Switcharmor

The NETGEAR Home/Office Ethernet Unmanaged Switches provide easy and affordable network connectivity to home and small/home offices.

Home/Office Ethernet Switch Series (GS605v5)

5-Port Gigabit Ethernet Home/Office Switcharmor

The NETGEAR Home/Office Ethernet Unmanaged Switches provide easy and affordable network connectivity to home and small/home offices.

Features

Connectivity

Auto-negotiation for automatic connection at the highest common speed between switch and an end device.

Plug-n-Play

You can expand your network connections to multiple devices instantly.

Energy Saving

Energy-efficient technology for power and cost savings.

Speed

Non-blocking switching architecture for maximum throughput at wire speed.

Design

Fanless design for silent operation.

Cables

Auto-MDI/MDIX eliminates the need for crossover cables.

Technical Specifications

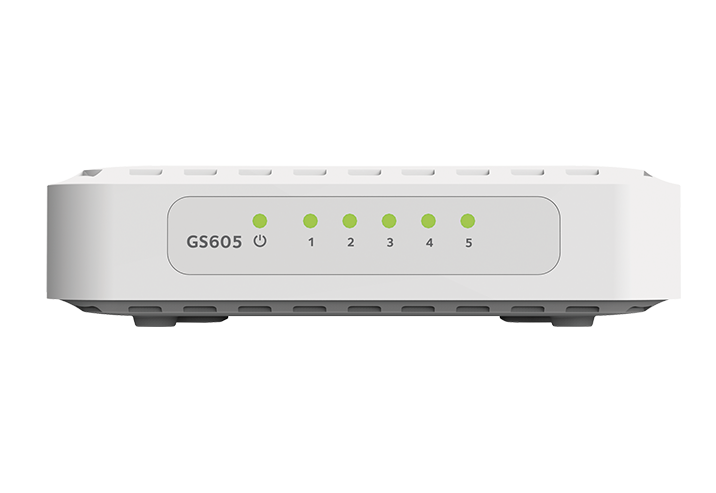

GS605v5_tech_specs_image_1

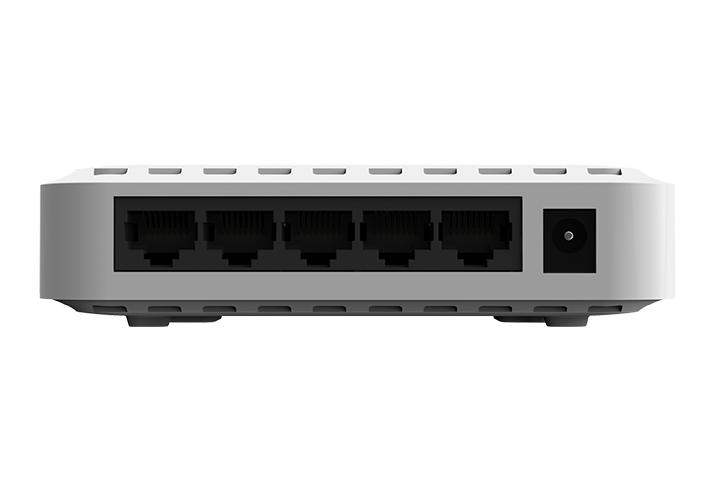

GS605v5_tech_specs_image_2
  • Dimensions (W x D x H) : 118 x 73 x 30 mm (4.6 x 2.9 x 1.2 in)
  • Weight : 0.10 kg (0.22 lb)
  • Model Description : 5-Port Gigabit Ethernet Switch
  • Speed : 10/100/1000Mbps Gigibit Ethernet
  • Number of Ports : 5
  • Connector Type : Plastic
  • Switch Housing : Plastic
  • LEDs : Power, Link/Activity
  • Short Cable Power Saving : No
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9,216 bytes
  • MAC Table Size : 2K
  • Packet Buffer Size : 1 Mbit
  • DC Power Adapter : 5V / 0.7A
  • Max Power Consumption (Watts) : 2.34W
  • Acoustic Noise Level @ 25° C (dBA) : 0 dBA (Fanless)
  • MTBF (@ 25° C) : 1,386,257 hours
  • Electromagnetic compliance (A or B) : Class B
  • Form Factor : Desktop or wall-mountable
  • Operating Temperature : 0° to 40°C (32° to 104°F)

    • Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 2 years (depending on model and region).
    • 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
