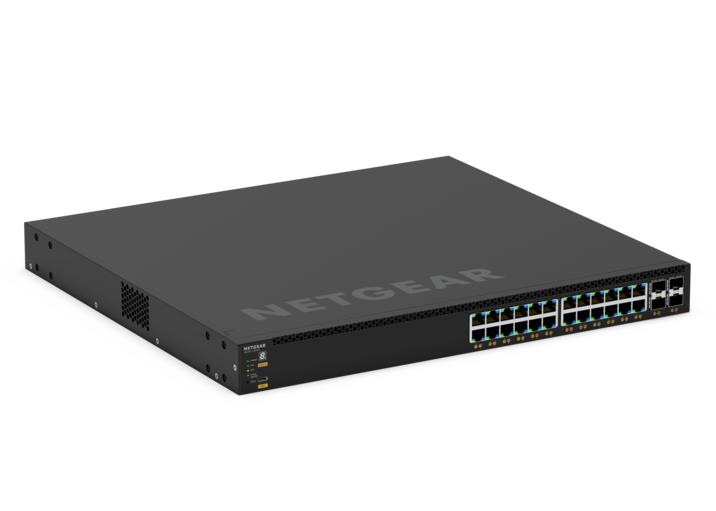

M4350-24G4XF Fully Managed Switch (GSM4328)
24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch
M4350-24G4XF Fully Managed Switch (GSM4328)
24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch

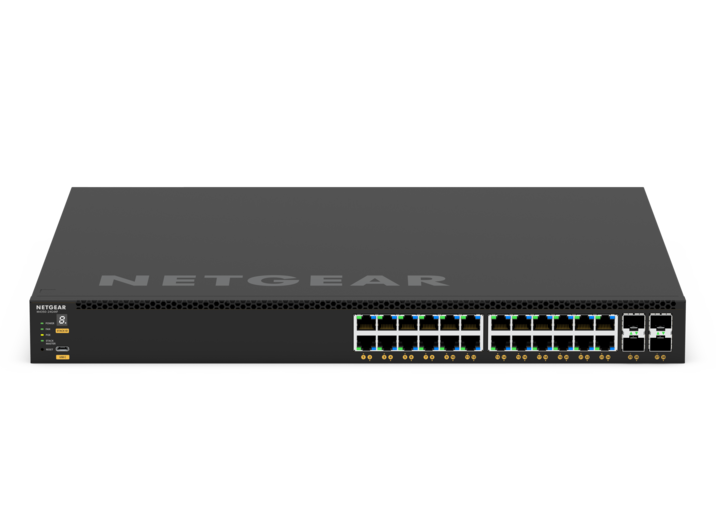

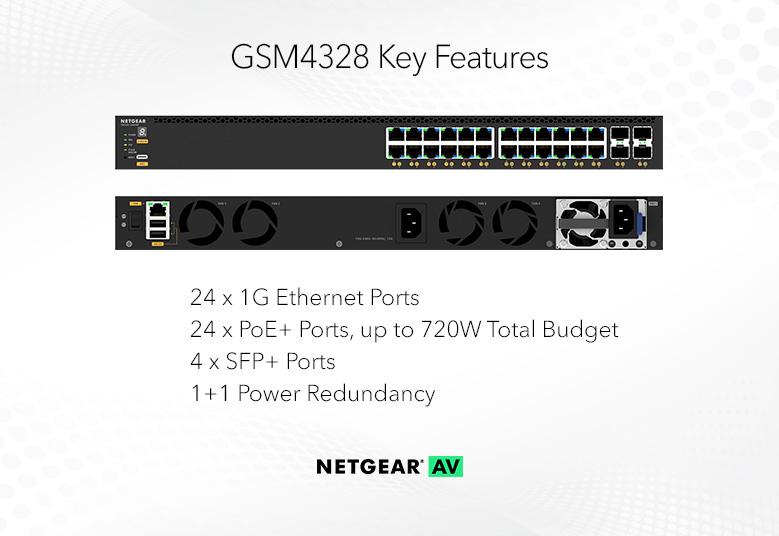

- 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
- 880W internal power supply providing 648W of PoE budget

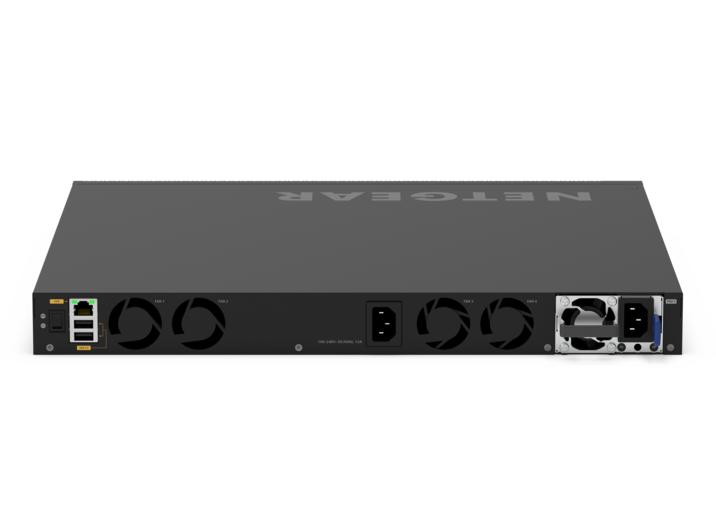

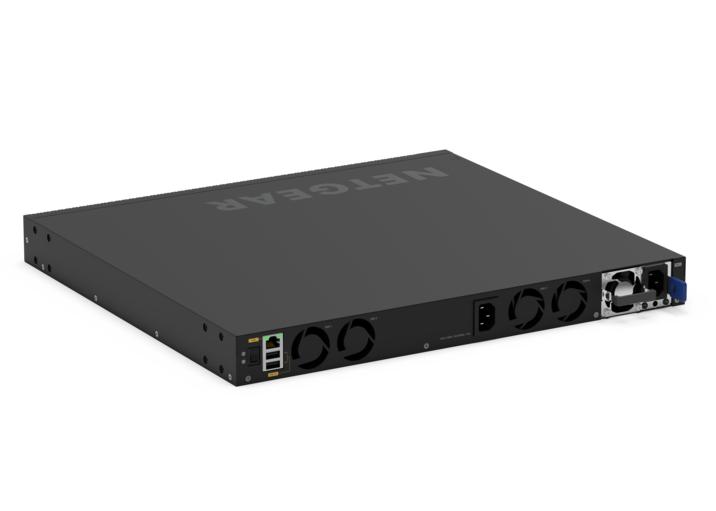

- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 720W, when the redundant PoE budget remains 648W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
POWER AND
THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
-
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
-
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
-
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
-
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
COMPARE M4350 SERIES SWITCHES
GSM4328 |
GSM4352 |
MSM4352 |
XSM4316 |
XSM4324 |
XSM4328CV |
XSM4328FV |
XSM4340CV |
XSM4340V |
XSM4340FV |
VSM4320C |
XSM4344C |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
# Total Ports |
# Total Ports 28 |
# Total Ports 52 |
# Total Ports 52 |
# Total Ports 16 |
# Total Ports 24 |
# Total Ports 28 |
# Total Ports 28 |
# Total Ports 40 |
# Total Ports 40 |
# Total Ports 40 |
# Total Ports 20 |
# Total Ports 44 |
Port Types |
Port Types 24x 1G, 4x SFP+ |
Port Types 48x 1G, 4x SFP+ |
Port Types 44x 1G/2.5G, 4x 1G/2.5G/5G/10G, 4x SFP28 (25G) |
Port Types 8x 1G/2.5G/5G/10G, 8x SFP+ |
Port Types 12x 1G/2.5G/5G/10G, 12x SFP+ |
Port Types 24x 1G/2.5G/5G/10G, 4x SFP28 (25G) |
Port Types 24x SFP+, 4x SFP28 (25G) |
Port Types 36x 1G/2.5G/5G/10G, 4x SFP28 (25G) |
Port Types 24x 1G/2.5G/5G/10G, 8xSFP+, 8x SFP28 (25G) |
Port Types 32x SFP+, 8x SFP28 (25G) |
Port Types 16x SFP28 (25G), 4x QSFP28 (100G) |
Port Types 40x 1G/2.5G/5G/10G, 4x QSFP28 (100G) |
Total PoE Budget |
Total PoE Budget 648W –> 720W |
Total PoE Budget 236W -> 1,440W |
Total PoE Budget 194W -> 3,314W |
Total PoE Budget - |
Total PoE Budget - |
Total PoE Budget 576W -> 720W |
Total PoE Budget - |
Total PoE Budget 280W -> 1,760W |
Total PoE Budget 290W -> 1,770W |
Total PoE Budget - |
Total PoE Budget - |
Total PoE Budget 196W -> 1,676W |
# PoE+ Ports |
# PoE+ Ports 24 |
# PoE+ Ports 48 |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports 24 |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE++ Ports |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports 48 |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports 36 |
# PoE++ Ports 24 |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports 40 |
Rack Mount |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
FORM FACTOR W X H x D (MM) |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 220 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 220 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |
FORM FACTOR W X H x D (MM) 440 x 400 x 43.2 |

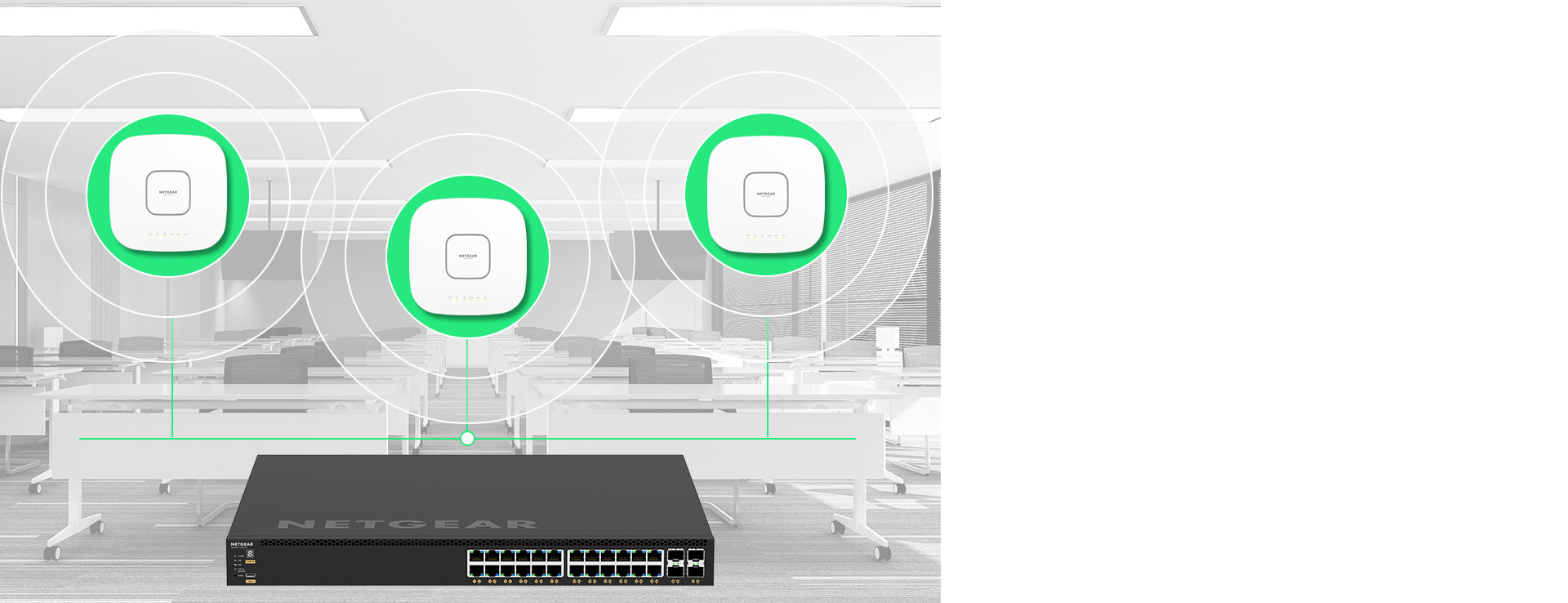

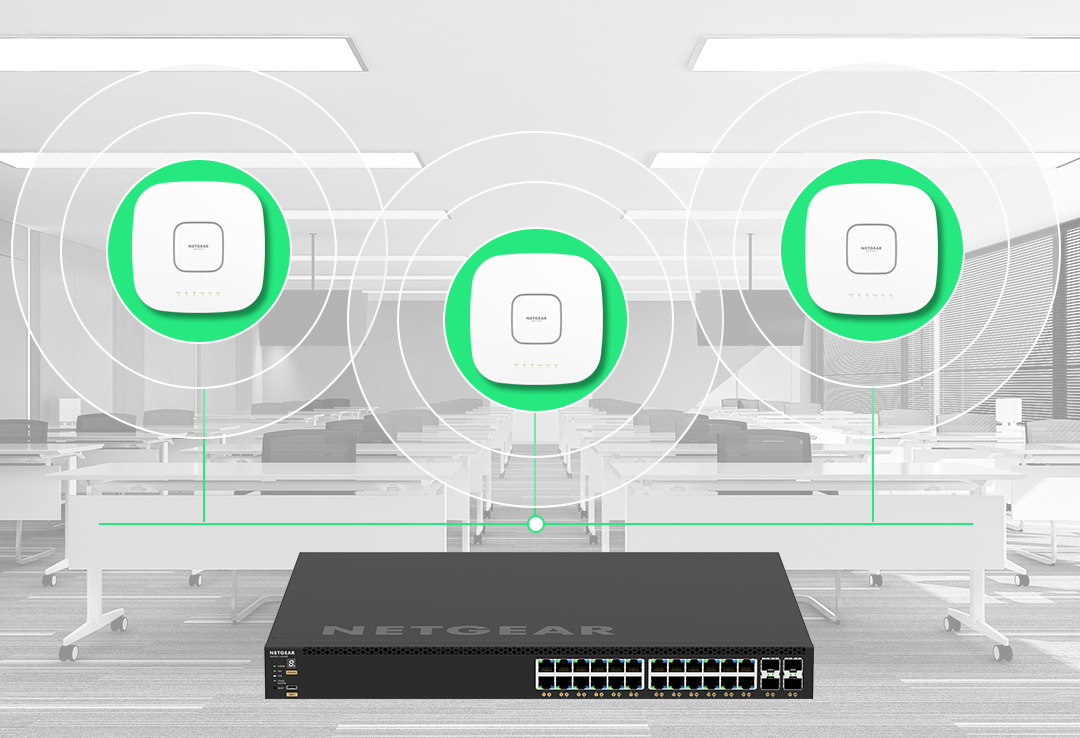

MAXIMIZE
PERFORMANCE
WITH PRO WIFI
ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV
RESOURCES
All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.
PRO AV FAMILY COMPARISON
M4250 SWITCH SERIES |
M4350 SWITCH SERIES |
M4500 SWITCH SERIES |
|
---|---|---|---|
USE CASE |
USE CASE Access/Edge |
USE CASE Core/Access/Edge |
USE CASE Core/Access/Edge |
SWITCH STACKING |
SWITCH STACKING No |
SWITCH STACKING Yes |
SWITCH STACKING No (MLAG) |
PoE CAPABLE |
PoE CAPABLE Yes |
PoE CAPABLE Yes |
PoE CAPABLE No |
PORT SPEEDS |
PORT SPEEDS 1, 2.5, 10Gbps |
PORT SPEEDS 1, 2.5, 10, 25, 100Gbps |
PORT SPEEDS 1, 10, 25, 100Gbps |
AVB SUPPORT |
AVB SUPPORT Yes* |
AVB SUPPORT Yes |
AVB SUPPORT No |
AV WEB UI / AV TEMPLATES |
AV WEB UI / AV TEMPLATES Yes |
AV WEB UI / AV TEMPLATES Yes |
AV WEB UI / AV TEMPLATES No |
AV DESIGN
|
AV DESIGN
|
AV DESIGN
|
AV DESIGN
|

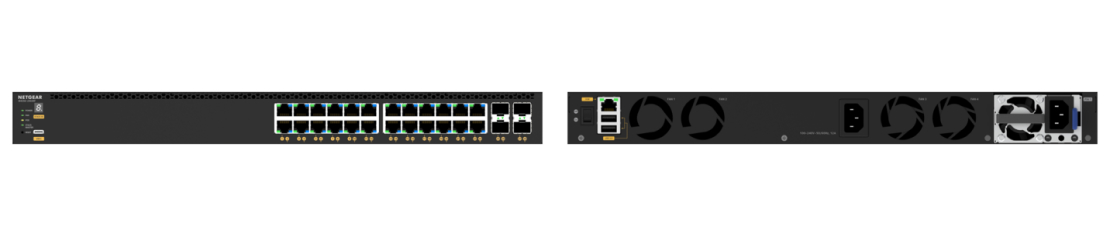

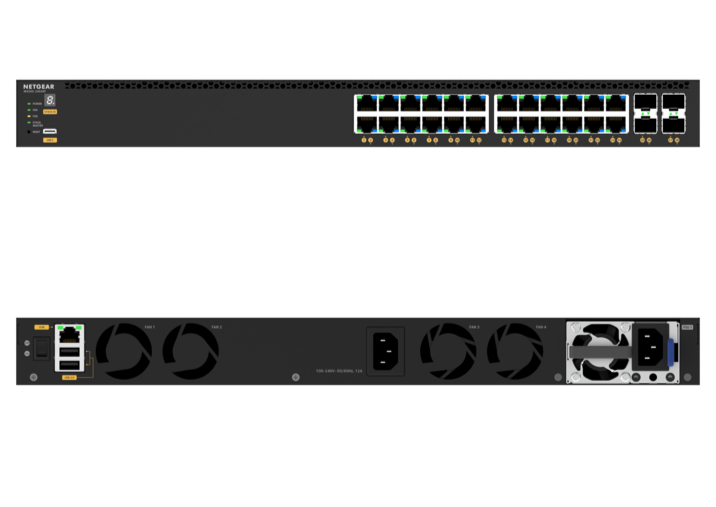

M4350-GSM4328 Technical Specifications
Product Specifications
-
M4350-24G4XF (GSM4328)1
-
Power cord(s)1
-
Console USB Type-C1
-
Rack-mounting standard bracket set1
-
Set of longer brackets for recessed mounting1
-
Rubber footpads for tabletop installation4
-
Installation guide1
-
Width440mm
-
Depth400mm
-
Height43.2mm
-
Weight6.41kg (14.13lb)
-
Primary Port Speed1 Gigabit
-
Number of Ports24 x 1G PoE+, 4 x 10G SFP+
-
PoE Ports / Budget24 PoE+ (30W/port), 648W Base, up to 720W Budget
-
IGMP SupportEnhanced (NETGEAR IGMP Plus™)
-
Jumbo Frame SupportYes, up to 12kb
-
AVB SupportYes, included
-
AcousticsQuiet Mode 33dB@25ºC
-
Power Consumption
With PoE: 792.1W/2701.06Btu/hr
Without PoE: 80W/251.2Btu/hr
Standby without any port connection: 32W/100.48Btu/hr
-
PSU Compatible Models
APS350Wv1
APS600Wv2
APS920Wv1
APS2000Wv1
-
NETGEAR Engage Controller
Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
Learn More
-
This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
-
