NETGEAR Simple plug-and-play, with more than enough to power the entire network. 16 high-power Ultra60 PoE++, and 8 PoE+ ports with a large budget to keep your devices always-ready. GS524UP GS524UP-100EUS GS524UP-100EUS

Gigabit Unmanaged Switch Series (GS524UP) armor

24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with 16-Ports PoE++ (480W)armor

Simple plug-and-play, with more than enough to power the entire network. 16 high-power Ultra60 PoE++, and 8 PoE+ ports with a large budget to keep your devices always-ready.

Gigabit Unmanaged Switch Series (GS524UP)

24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch with 16-Ports PoE++ (480W)armor

Simple plug-and-play, with more than enough to power the entire network. 16 high-power Ultra60 PoE++, and 8 PoE+ ports with a large budget to keep your devices always-ready.

ETHERNET PORT CONFIGURATION:

24 Gigabit ports

PLUG-AND-PLAY:

Simple set up with no software to install or configuration needed and zero maintenance

FULL PERFORMANCE:

Non-blocking switching architecture for maximum throughput at wire speed

POWER-OVER-ETHERNET:

16 Ultra60 PoE++, and 8 PoE+ ports with 480W total power budget to power wireless AP, 4K IP Cameras, IP Phones and much more

POWER AUTO-BALANCE AND ALLOCATION:

NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs

SILENT OPERATION:

The fanless design means zero added noise wherever its located, making it ideal for your home or business environment

ENERGY EFFICIENT:

Designed to optimize power usage lowering its cost to operate

RUGGED METAL CASING:

Durable desktop case for longevity

VERSATILE MOUNTING OPTIONS:

Supports desktop or rackmount placement, and includes all mounting hardware in the box

STANDARDS-BASED DESIGN:

Ensure interoperability with any standards-based PDs

Technical Specifications

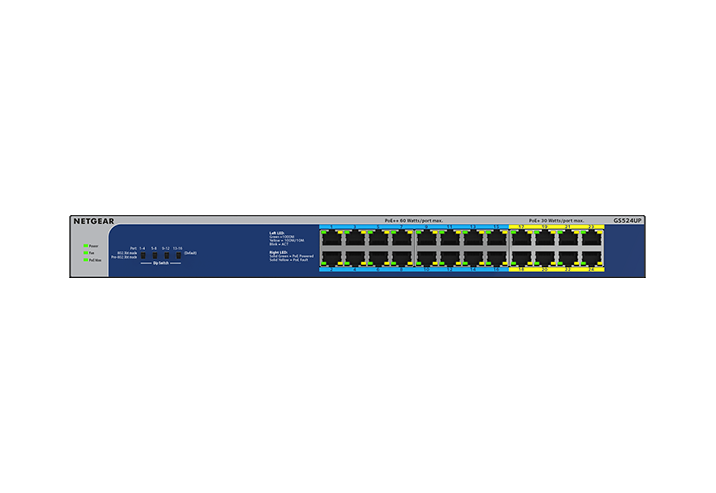

GS524UP_tech_specs_image_1

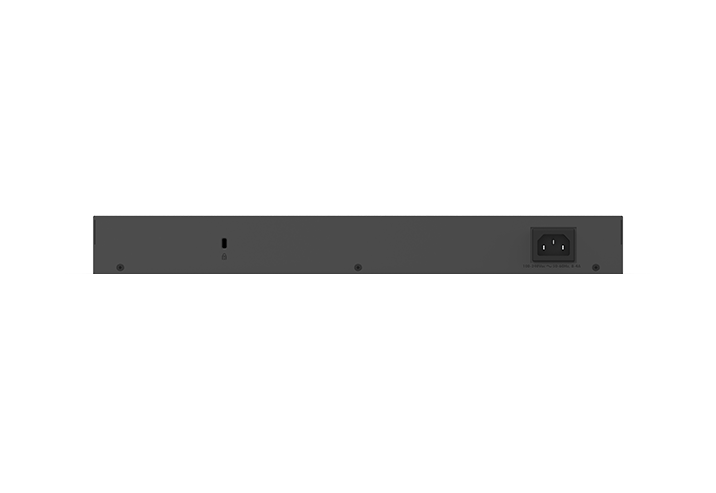

GS524UP_tech_specs_image_2
  • Dimensions : 330 x 207 x 43 mm (12.99 in. x 8.15 in. x 1.7 in.)
  • Weight: : 3.10kg (6.83 lb)
  • Management Type (if applicable) : Unmanaged
  • Gigabit ports : 24
  • PoE+ ports : 8
  • Ultra60 PoE++ ports : 16
  • PoE budget : 480W
  • Form Factor : Desktop/Rackmount
  • Auto-balance : Yes
  • Power Supply : Internal
