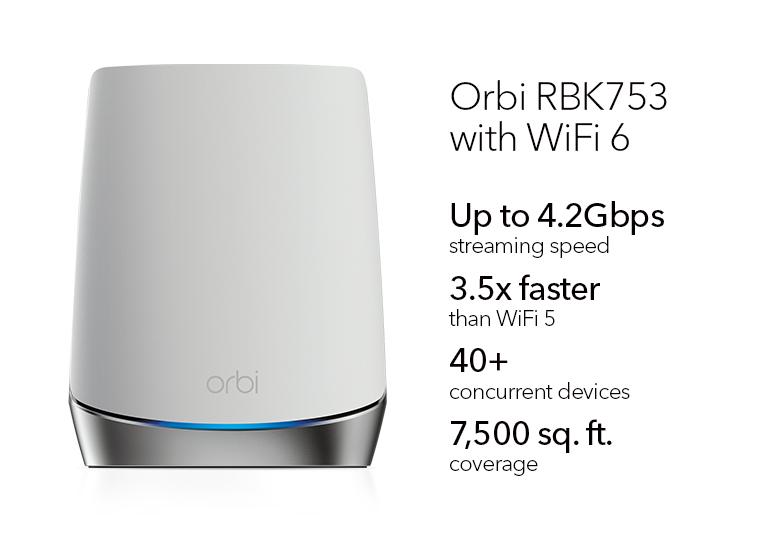

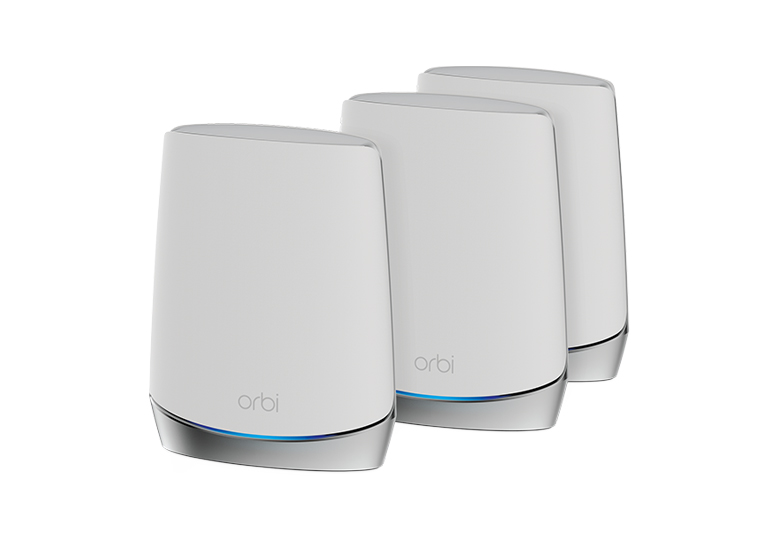

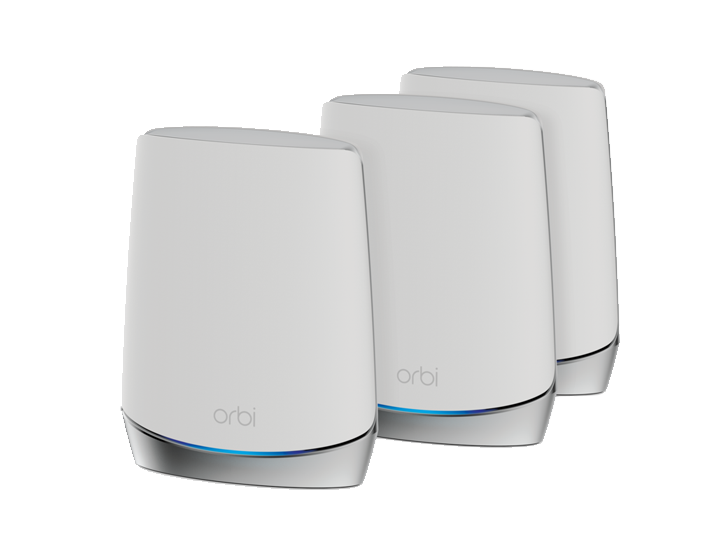

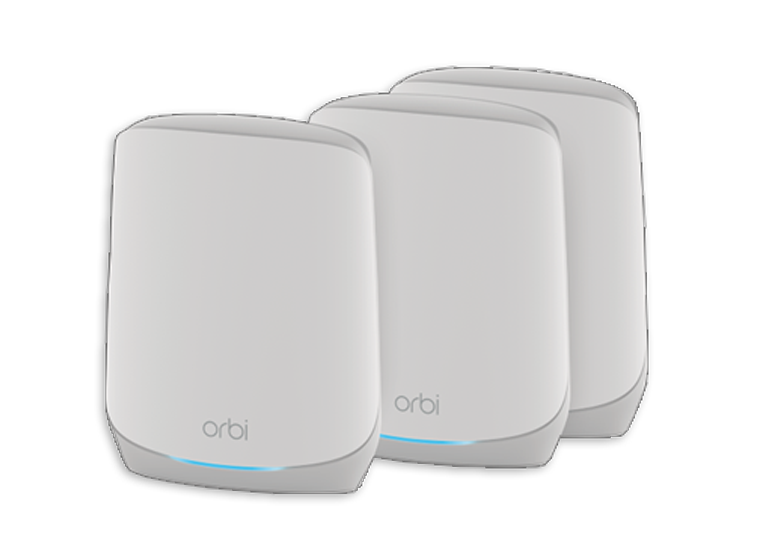

AX4200 WiFi Mesh System (RBK753)
Orbi 750 Series Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 2 Satellites
AX4200 WiFi Mesh System (RBK753)
Orbi 750 Series Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 2 Satellites
The complete mesh WiFi solution for your smart home. Cover up to 7,500 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 4.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home.
UNSTOPPABLE STREAMING
Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
ENGINEERED FOR BLAZING FAST WIFI
Orbi is engineered for more efficient data transmission through our exclusive Tri-Band Mesh technology. The result is faster WiFi performance that doesn't degrade across the house.

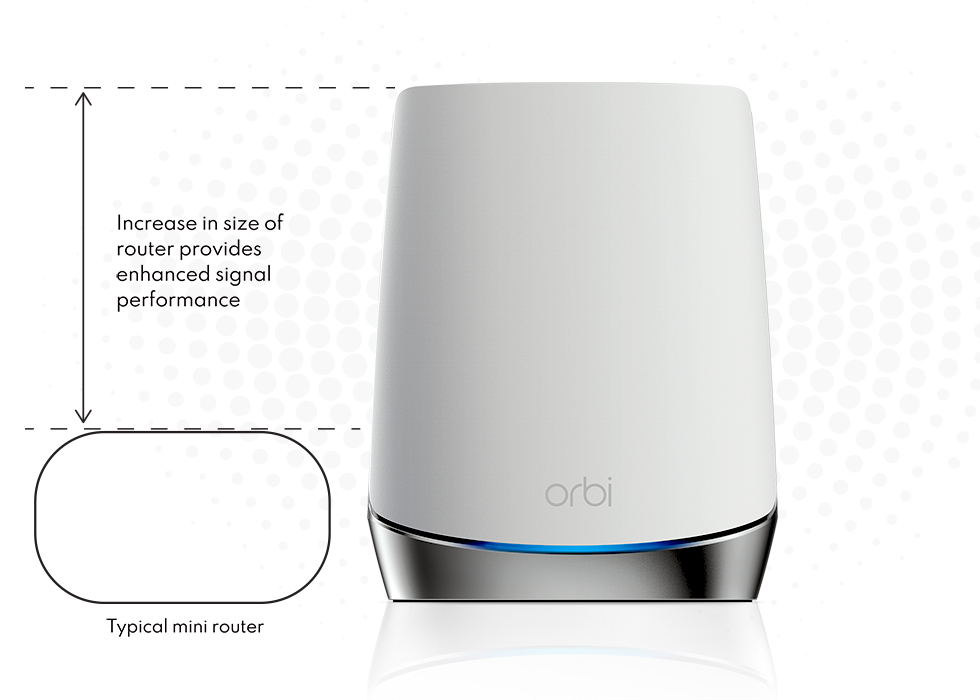

THE BEST COVERAGE.
PERIOD.

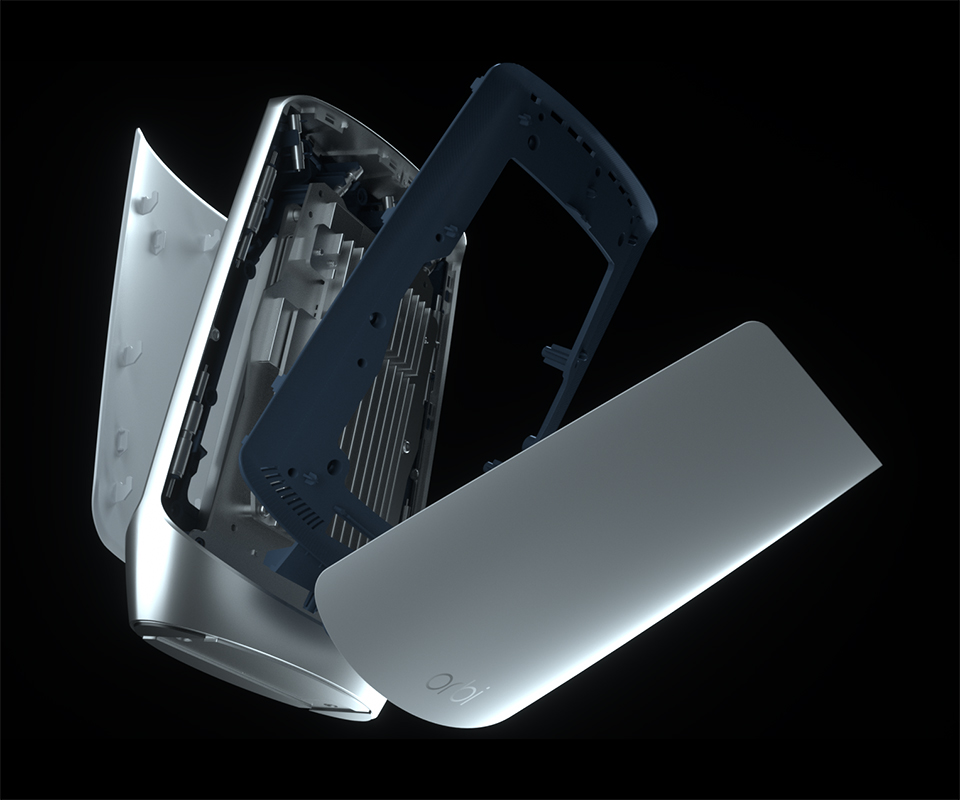

Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
Which Orbi is right for you?
Answer a few questions and we'll find the perfect solution for your home
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

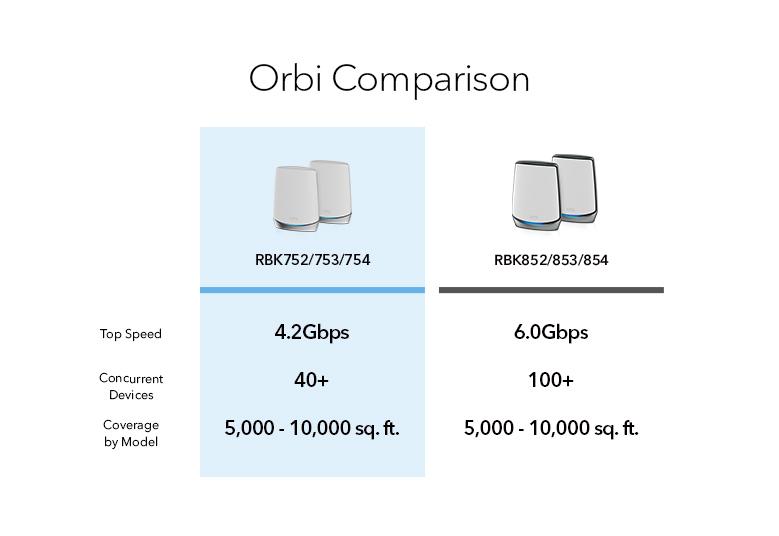

Compare Similar Products
RBK753 |
RBK763S |
RBK863SB |
|
---|---|---|---|
|
|
|
|
WiFi 6 / 6E |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6 |
WiFi Bands |
WiFi Bands Tri-Band |
WiFi Bands Tri-Band |
WiFi Bands Tri-Band |
Max WiFi Speed |
Max WiFi Speed 4.2 Gbps |
Max WiFi Speed 5.4Gbps |
Max WiFi Speed 6 Gbps |
Coverage |
Coverage 7,500 sq. ft. |
Coverage 7,500 sq. ft. |
Coverage 8,000 sq. ft. |
# of Devices |
# of Devices 40 |
# of Devices 75 |
# of Devices 100 |
Internet Port Speed |
Internet Port Speed up to 4.2Gbps |
Internet Port Speed up to 5.4Gbps |
Internet Port Speed up to 10 Gig |
Dedicated WiFi Backhaul |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 2x2 (160MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Fronthaul WiFi |
Fronthaul WiFi 5GHz: 2x2 (80MHz); 2.4GHz: 2x2 |
Fronthaul WiFi 5GHz: 2x2 (160MHz); 2.4GHz: 2x2 |
Fronthaul WiFi 5GHz: 4x4 (80MHz); 2.4GHz: 4x4 |
Total Wired Ethernet Ports (Router) |
Total Wired Ethernet Ports (Router) One (1) 1Gbps Gigabit Ethernet WAN port - Orbi Satellite (each) Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) |
Total Wired Ethernet Ports (Each Satellite) Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) Three (3) Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) Four (4) 1Gbps Gigabit Ethernet LAN ports |

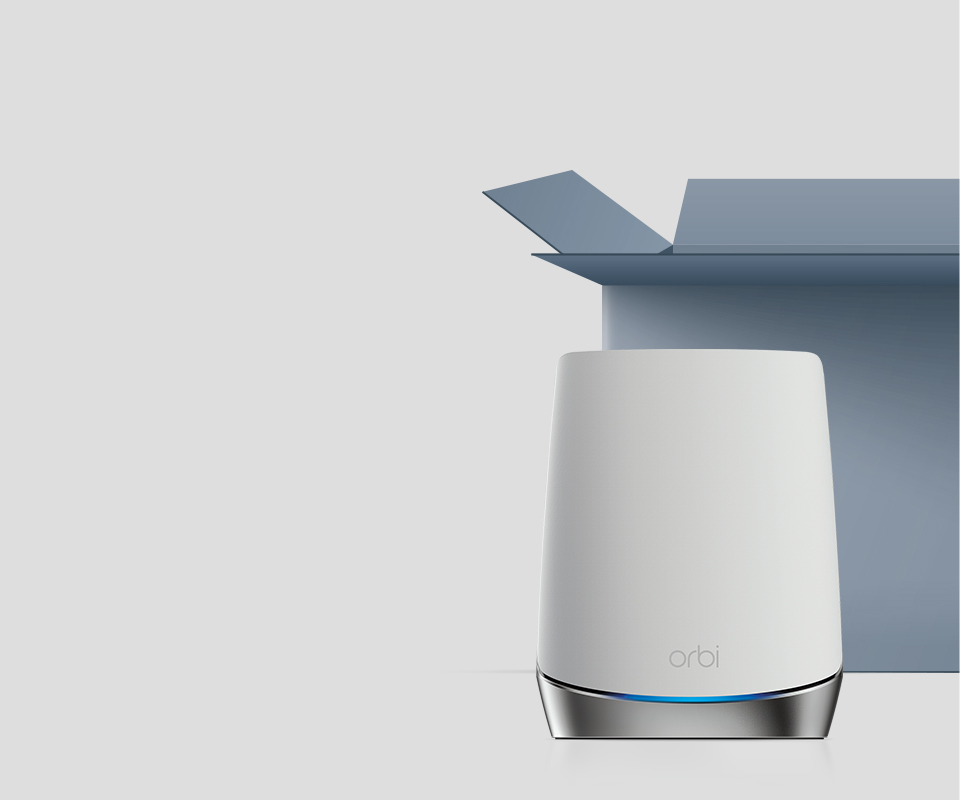

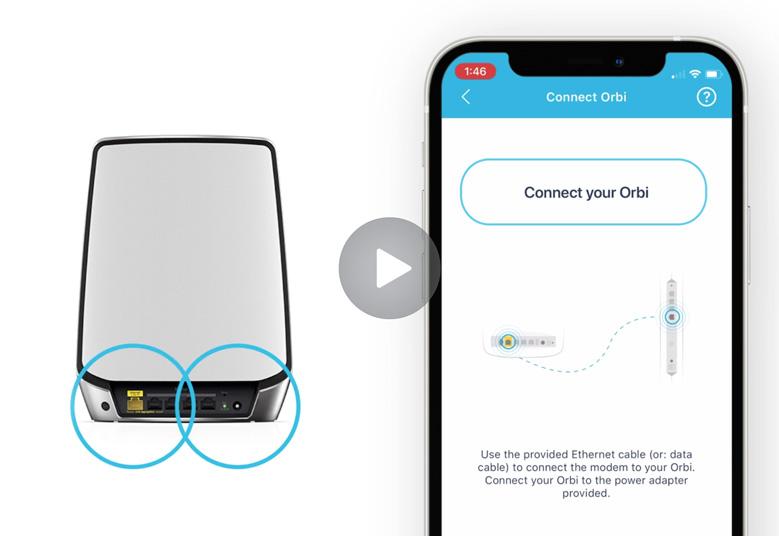

EASY SETUP
- Download the Orbi app
and follow instructions. - Connect Orbi Router to
your modem and power. - Place and power Orbi Satellite
in another part of your home.
Technical Specifications
- Orbi Router (AX4200) : Dimensions: 9.1 x 7.2 x 2.8in, Weight: 1.9lb
- Orbi Satellite (AX4200) : Dimensions 9.1 x 7.2 x 2.8in each, Weight 1.9lb each
- WiFi Coverage : 7,500 sq. ft.
- Orbi Router (AX4200) : Six (6) high performance internal antennas with high-powered amplifiers
- Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands. MU-MIMO capable for simultaneous data streaming to multiple devices.
- Processor : Powerful Quad-Core 1.4GHz processor
- AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite

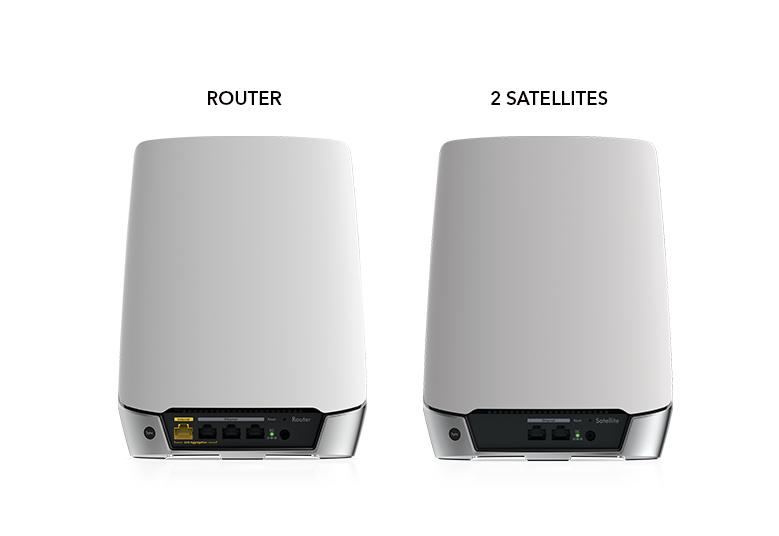

- Ports : One (1) Gigabit WAN port and three (3) LAN Gigabit Ethernet ports
- Memory : Router: 512MB NAND Flash and 1GB RAM
- Works with Amazon Alex and the Google Assistant : Yes
- Security : Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK). Guest WiFi Network is easy to setup separate & secure Internet access for guests
- Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
- †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
- Support
- One (1) Orbi Router (RBR750)
- Two (2) Orbi Satellites (RBS750)
- One (1) 2m Ethernet cable
- Three (3) 12V/2.5A power adapters
- Quick start guide
- Orbi Router (AX4200) : Dimensions 9.1 x 7.2 x 2.8in each, Weight 1.9lb

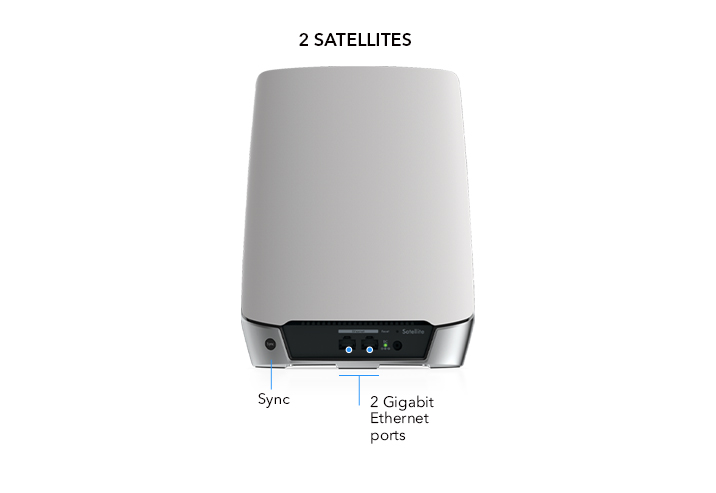

- Orbi Satellite (AX4200) : Dimensions 9.1 x 7.2 x 2.8in each, Weight 1.9lb each
- Orbi Satellite (AX4200) : Six (6) high performance internal antennas with high-powered amplifiers
- Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
- MU-MIMO : MU-MIMO capable for simultaneous data streaming to multiple devices
- AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
- Ports : Two (2) LAN Gigabit Ethernet ports (each)
- Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
- †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
- Support
- One (1) Orbi Router (RBR750)
- Two (2) Orbi Satellites (RBS750)
- One (1) 2m Ethernet cable
- Three (3) 12V/2.5A power adapters
- Quick start guide
