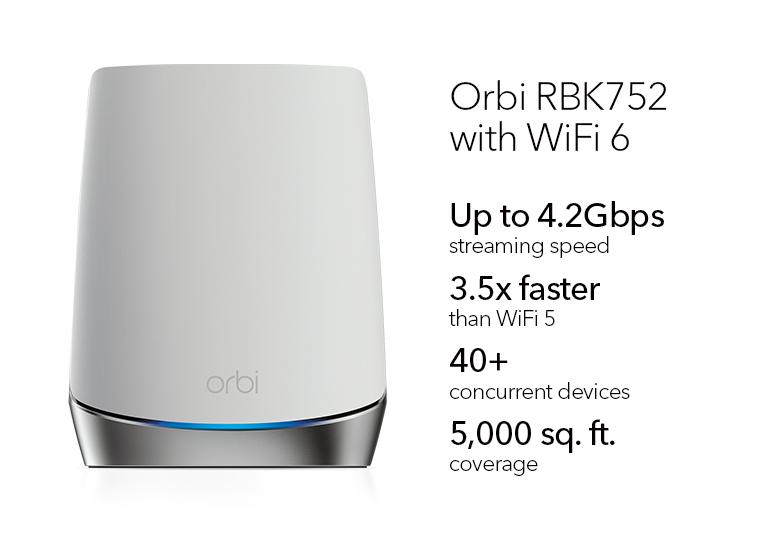

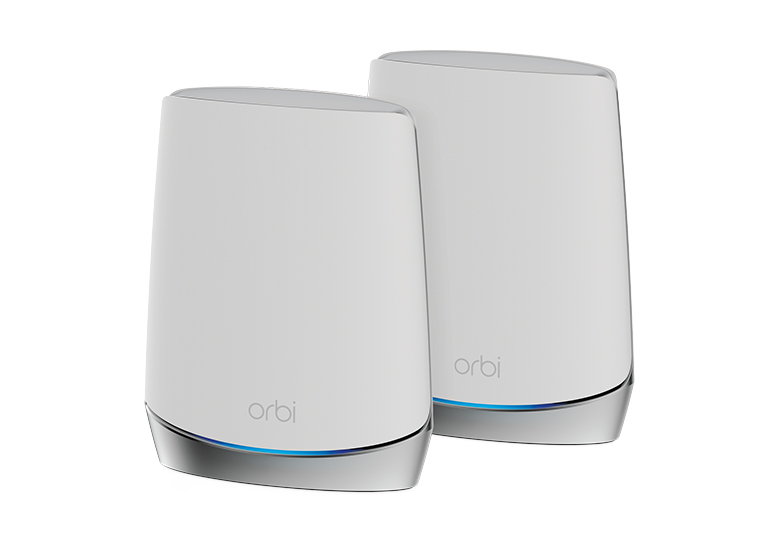

The essential whole-home mesh WiFi solution. Cover up to 5,000 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 4.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home.

RBK752 RBK752-100EUS RBK752-100EUS

AX4200 WiFi Mesh System (RBK752) armor

Orbi 750 Series Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 1 Satellite armor

AX4200 WiFi Mesh System (RBK752)

Orbi 750 Series Tri-Band WiFi 6 Mesh System, 4.2Gbps, Router + 1 Satellite armor

The essential whole-home mesh WiFi solution. Cover up to 5,000 sq. ft. with blazing-fast, reliable WiFi with speeds of up to 4.2Gbps for over 40 devices. Stream, browse, and work uninterrupted in every room of your home.

Get faster speeds, more connected devices, and an all new 10 Gig internet port with the Orbi 860 Series

RBK863SB
SHOP NOW

Buy now from Winco.
An authorised seller of NETGEAR. Learn more.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

UNSTOPPABLE STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
8k TV Premium Orbi LP

8k TV Premium Orbi LP

ENGINEERED FOR BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band Mesh technology. The result is faster WiFi performance that doesn't degrade across the house.


THE BEST COVERAGE.

PERIOD.



Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
netgear orbi configurator netgear orbi configurator

Which Orbi is right for you?


Answer a few questions and we'll find the perfect solution for your home

netgear armor netgear armor

ArmorBitedefender_NETGEAR_Primary_Blackv2


ESSENTIAL ALL-IN-ONE INTERNET SECURITY

You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

Your Home and Yard Covered
This system covers large homes up to 5,000 sq ft with fast mesh WiFi
High-speed Mesh WiFi in Every Room
That old router you have may be slowing you down. Orbi Mesh WiFi Systems give you fast, secure, and the most consistent Internet speeds available, even as more devices connect
Customized Coverage
Place the satellite where you need coverage most to create a powerful WiFi mesh system for one seamless network throughout your home
Cybersecurity with NETGEAR Armor™
Protect your connected home devices from Internet threats with best-in-class antivirus, anti-malware & data protection
Instant Alerts
Get instant alerts on your smartphone or computer when threats are detected or blocked
Guest WiFi Network
Provide internet access to friends and family without sharing your personal network password
Total Security
Protects each device connected to your WiFi, giving you protection from malware, phishing, and fraud – even when you’re on the go
Fast Internet Speeds
The dedicated WiFi connection gives you the fastest and most consistent Internet speeds available, even as more devices connect
Seamless & Consistent WiFi Coverage
From front door to backyard and in every corner of your home. The dedicated backhaul allows consistent throughput throughout your home
Orbi App
Easily set up your Orbi WiFi and monitor devices connected to your network

Compare Similar Products

RBK753_comparison

RBK753
small_orbiv2

RBK763S
Main_RBK863SB

RBK863SB

WiFi 6 / 6E

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi Bands

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

Max WiFi Speed

Max WiFi Speed

4.2 Gbps​

Max WiFi Speed

5.4Gbps

Max WiFi Speed

6 Gbps​

Coverage

Coverage

7,500 sq. ft.

Coverage

7,500 sq. ft.

Coverage

8,000 sq. ft.

# of Devices

# of Devices

40

# of Devices

75

# of Devices

100

Internet Port Speed

Internet Port Speed

up to 4.2Gbps

Internet Port Speed

up to 5.4Gbps

Internet Port Speed

up to 10 Gig

Dedicated WiFi Backhaul

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4​ (80MHz)​

Dedicated WiFi Backhaul

Dedicated 5GHz 2x2 (160MHz)

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Fronthaul WiFi

Fronthaul WiFi

5GHz: 2x2 (80MHz); ​ 2.4GHz: 2x2

Fronthaul WiFi

5GHz: 2x2 (160MHz); ​ 2.4GHz: 2x2​

Fronthaul WiFi

5GHz: 4x4 (80MHz); ​ 2.4GHz: 4x4

Total Wired Ethernet Ports (Router)

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port - Orbi Satellite (each) Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Total Wired Ethernet Ports (Each Satellite)

Three (3) 10/100/1000Mbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Four (4) 1Gbps Gigabit Ethernet LAN ports
Orbi Tri-Band WiFi 6 Mesh System, 4.2Gbps

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.
Netgear Orbi App

TAP. MANAGE.
CONTROL.



Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

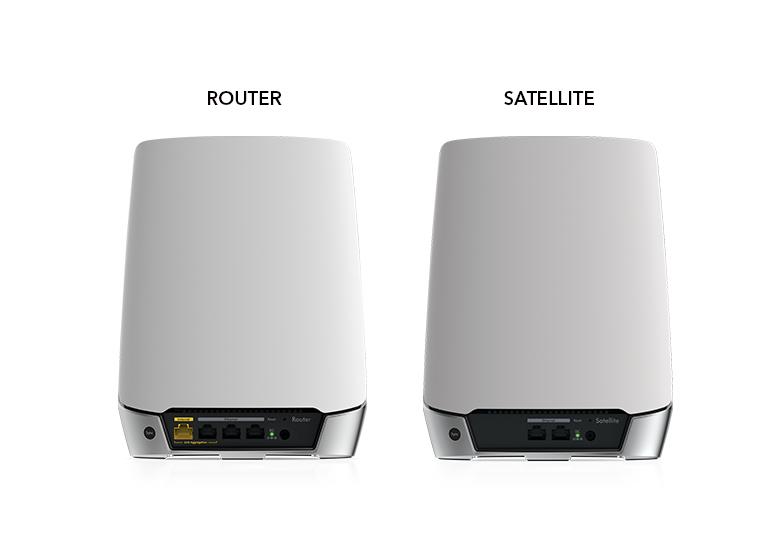

Technical Specifications

tech-specs-image-2-rbk752-router-labels
tech-specs-image-1-rbk752-satellite-labels
  • Mesh WiFi 6 Router (RBR750) : Dimensions: 9.1 x 7.2 x 2.8in, Weight: 1.9lb
  • Mesh WiFi 6 Satellite (RBS750) : Dimensions: 9.1 x 7.2 x 2.8in, Weight: 1.9lb
  • WiFi Coverage : 5,000 sq. ft
  • Orbi Router (AX4200): : Six (6) high performance internal antennas with high-powered amplifiers
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands. MU-MIMO capable for simultaneous data streaming to multiple devices
  • Processor : Powerful Quad-Core 1.4GHz processor
  • AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
  • Ports : One (1) WAN port and 3 LAN Gigabit Ethernet ports
  • Memory : 512MB NAND Flash and 1GB RAM
  • Works with Amazon Alex and the Google Assistant : Yes
  • Security : Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK). Guest WiFi Network is easy to setup separate & secure Internet access for guests
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
  • Support
  • One (1) Orbi Router (RBR750)
  • One (1) Orbi Satellite (RBS750)
  • One (1) 2m Ethernet cable
  • Two (2) 12V/2.5A power adapters
  • Quick start guide
tech-specs-image-2-rbk752-router-labels
tech-specs-image-1-rbk752-satellite-labels
  • Mesh WiFi 6 Router (RBR750) : Dimensions: 9.1 x 7.2 x 2.8in, Weight: 1.9lb
  • Mesh WiFi 6 Satellite (RBS750) : Dimensions: 9.1 x 7.2 x 2.8in, Weight: 1.9lb
  • Orbi Satellite (AX4200) : Six (6) high performance internal antennas with high-powered amplifiers
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands. MU-MIMO capable for simultaneous data streaming to multiple devices
  • Processor : Powerful Quad-Core 1.4GHz processor
  • AX4200 Tri-Band WiFi : 2.4GHz (600Mbps†) + 5GHz (1200Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
  • Ports : Two (2) LAN Gigabit Ethernet ports
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 4,200Mbps wireless speeds achieved when connecting to other 802.11ax 4,200Mbps devices.
  • Support
  • One (1) Orbi Router (RBR750)
  • One (1) Orbi Satellite (RBS750)
  • One (1) 2m Ethernet cable
  • Two (2) 12V/2.5A power adapters
  • Quick start guide
