NETGEAR NETGEAR~~®~~ AX1800 4-Stream Mesh Extender is built for the future of WiFi delivering great capacity, fast speed and more coverage. Enjoy a better connected home experience and extend faster WiFi to the farthest corner of your home with speeds up to 1.8Gbps. EAX20 EAX20-100CNS EAX20-100CNS

AX1800 WiFi Mesh Extender (EAX20) armor

NETGEAR® Dual-band WiFi 6 Mesh Extender, 1.8Gbpsarmor

NETGEAR® AX1800 4-Stream Mesh Extender is built for the future of WiFi delivering great capacity, fast speed and more coverage. Enjoy a better connected home experience and extend faster WiFi to the farthest corner of your home with speeds up to 1.8Gbps.

AX1800 WiFi Mesh Extender (EAX20)

NETGEAR® Dual-band WiFi 6 Mesh Extender, 1.8Gbpsarmor

NETGEAR® AX1800 4-Stream Mesh Extender is built for the future of WiFi delivering great capacity, fast speed and more coverage. Enjoy a better connected home experience and extend faster WiFi to the farthest corner of your home with speeds up to 1.8Gbps.

WiFi 6: The Fastest WiFi Ever

With WiFi 6, you get the fastest speeds available, and up to 4X more device capacity than WiFi 5. Stream in ultra HD 4K/8K, video call, and more without getting interrupted or slowed down, even as you connect more devices to your network. It’s like upgrading your WiFi to first class.

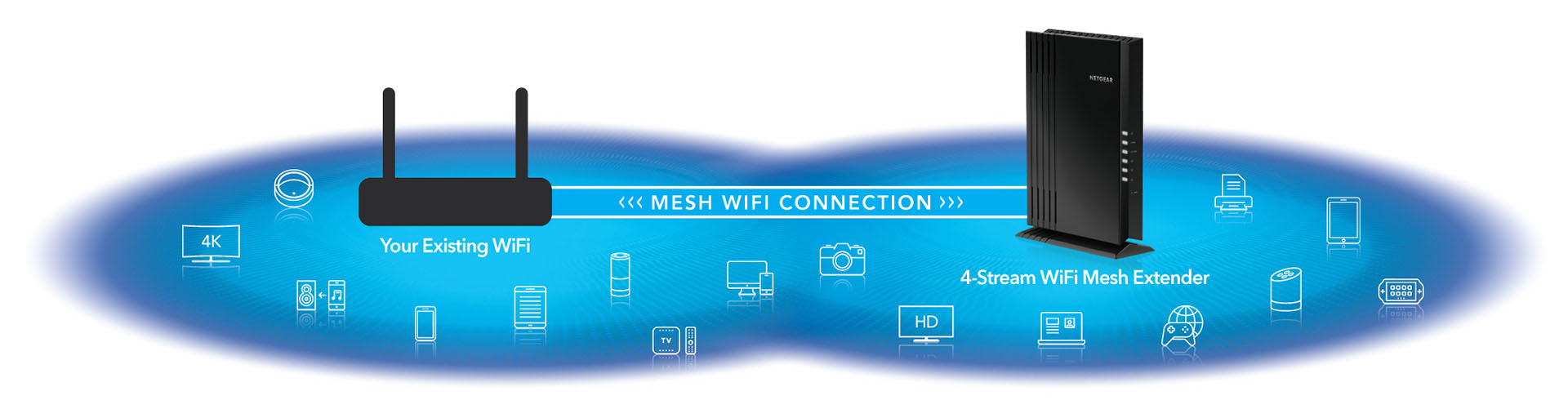

Easily Create a Mesh WiFi 6 System with your Existing Router

Expand coverage of your Existing Router using your current WiFi name and password. This desktop design has two powerful internal antennas that extend WiFi signals to where your router WiFi cannot reach. This AX1800 Mesh Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

EAX20 WiFi Range Extender
Nighthawk App

Easy Setup and Use with the Nighthawk App

With the Nighthawk app, setup takes just minutes, so you can start enjoying better WiFi sooner. You can also see your connected devices, run an internet speed test, manage your NETGEAR service subscriptions, and more from the palm of your hand.


App Store google play

Technical Specifications

EAX20_tech_specs_image_1

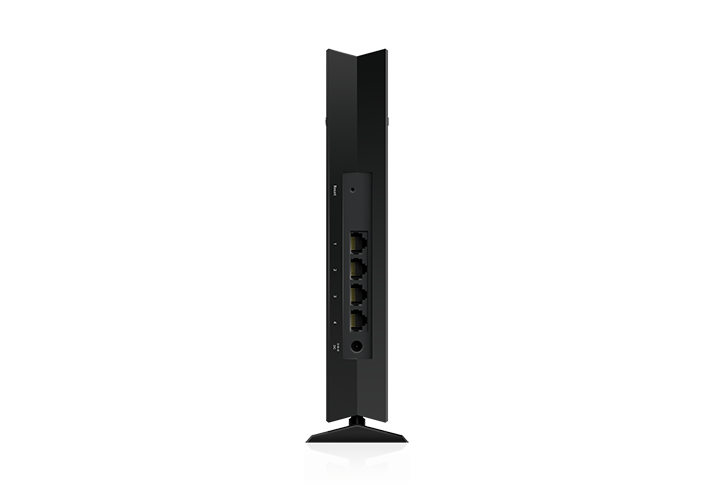

EAX20_tech_specs_image_2
  • Dimensions : 9.5 x 6.7 x 2.5in (241.7 × 169.5 ×63.4mm)
  • Weight : 1.1lb (504.4g)
  • WiFi Technology : 802.11ax
  • WiFi Performance : AX1800
  • WiFi Band : Band 1: 0.6Gbps @2.4GHz - 1024QAM
  • Band 2: 1.2Gbps @5GHz - 1024QAM
  • Number of Ethernet Ports : Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
  • Key Features : Gigabit Internet speeds throughout the home*
  • 1.5 X Better Performance than a Wi-Fi 5 (802.11ac) Extender—4 Stream WiFi with up to 0.6+1.2 Gbps† for fast wireless speeds**
  • More WiFi for More Devices— OFDMA allows efficient data transmission up to 4 devices at the same time. Uplink OFDMA improves scheduling during high volumes of upload traffic.§
  • Up to 4 Simultaneous WiFi Streams—4-stream MU-MIMO‡ enables up to four (4) 1x1 devices to stream content at the same time
  • 160MHz Channel Support***—Gigabit speeds for compatible mobile devices & laptops
  • Powerful Processor—64bit 1.5GHz dual-core processor ensures smooth 4K UHD streaming & gaming
  • Four (4) 10/100/1000 Ethernet ports with auto-sensing technology
  • Security : Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
  • EASE OF USE : Nighthawk App—Easily set up your extender and get more out of your WiFi
  • Wi-Fi 6 Supports All Current WiFi Devices—Backward compatible with Wi-Fi 5, Wi-Fi 4 and earlier generation WiFi devices
  • Push & Connect using WPS
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support
  • WiFi Range Extender (EAX20)
  • Installation guide
