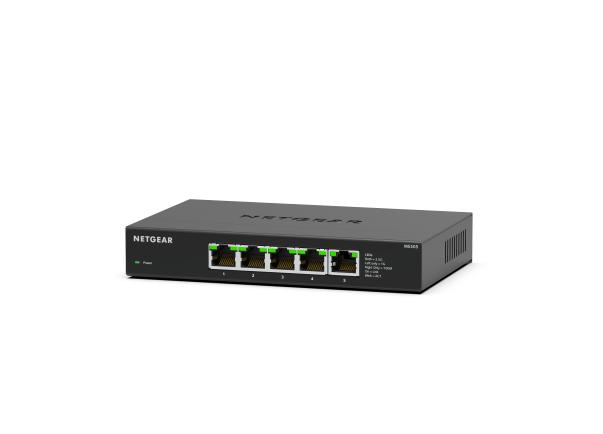

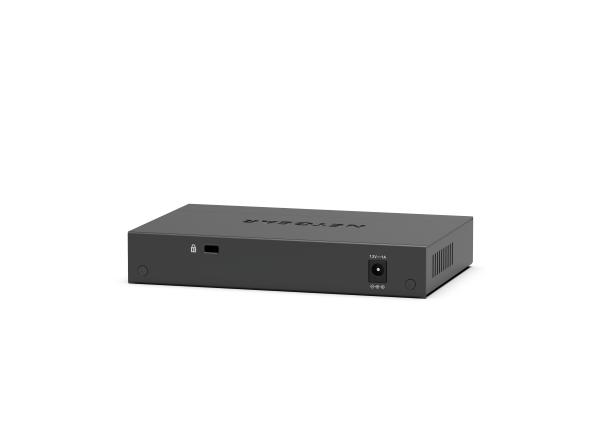

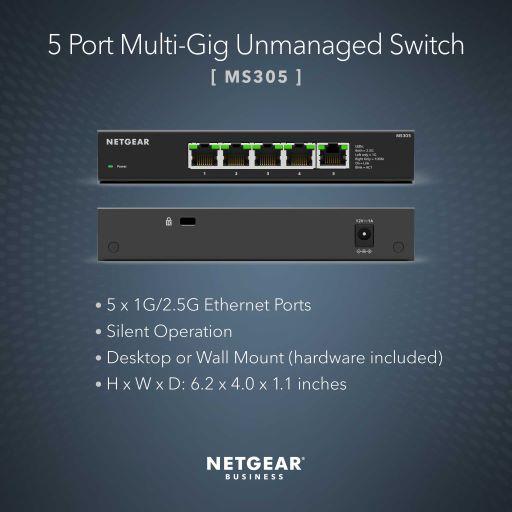

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks. MS305 MS305-10000S MS305-10000S

Multi-Gigabit Ethernet Switch (MS305) armor

NETGEAR 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch armor

Multi-Gigabit Ethernet Switch (MS305)

NETGEAR 5-Port Multi-Gigabit (2.5G) Ethernet Unmanaged Switch armor

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

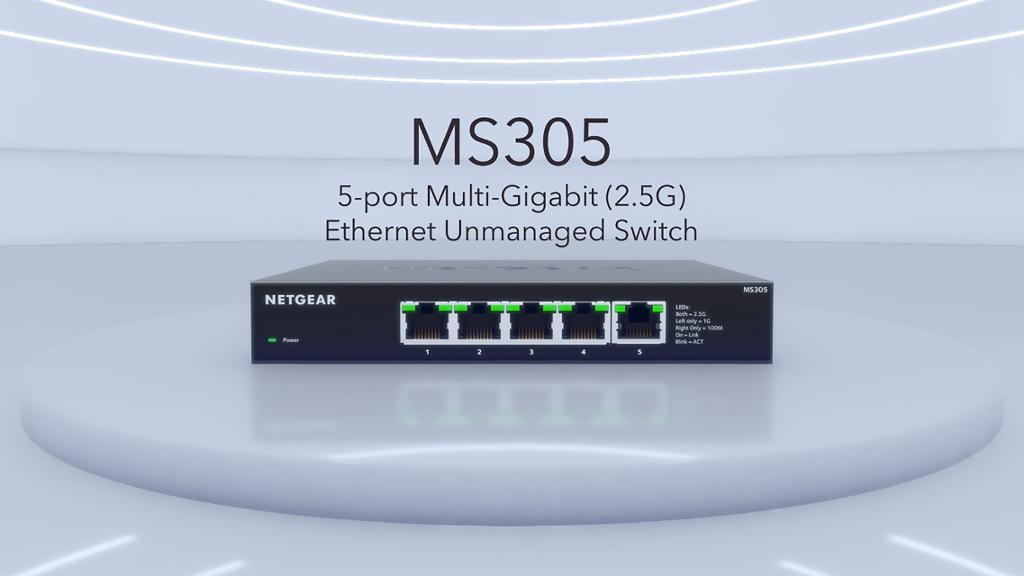

5-port Multi-Gig | MS305

5-Port Multi-Gig | MS105

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

lp-remote-cloud-management lp-remote-cloud-management

Simply Better Together

Combine your Multi-Gig switch with a WiFi Access Point to optimize your network for power and speed.

LEARN MORE

Features

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

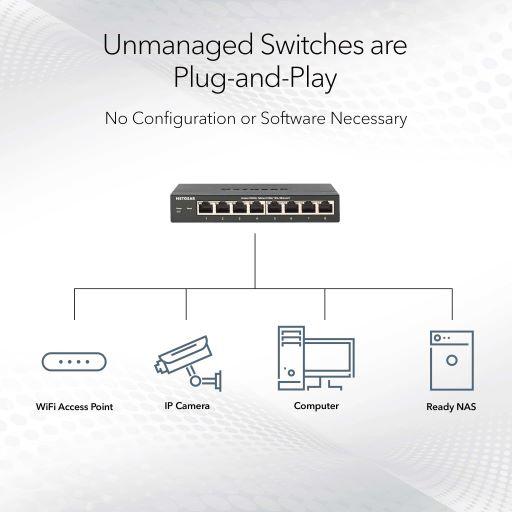

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Product Datasheet

Technical Specifications

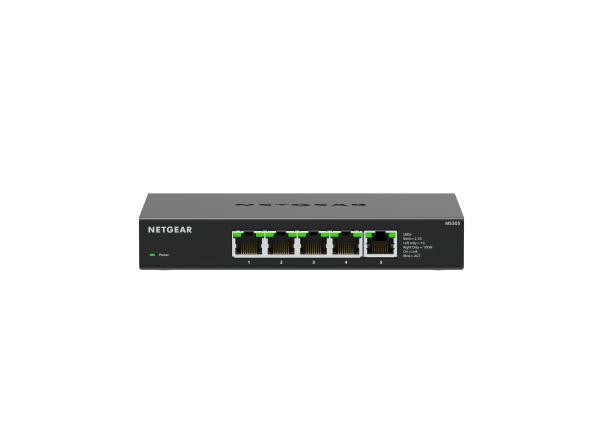

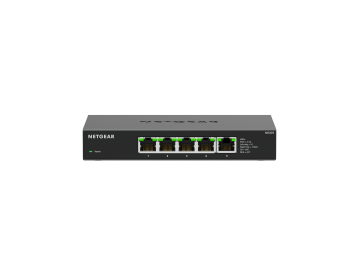

MS305_woShadow_TopFront_TechSpecs

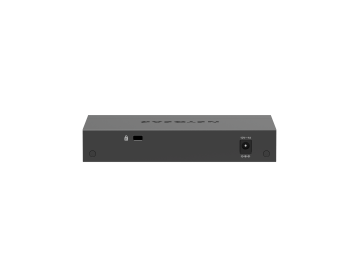

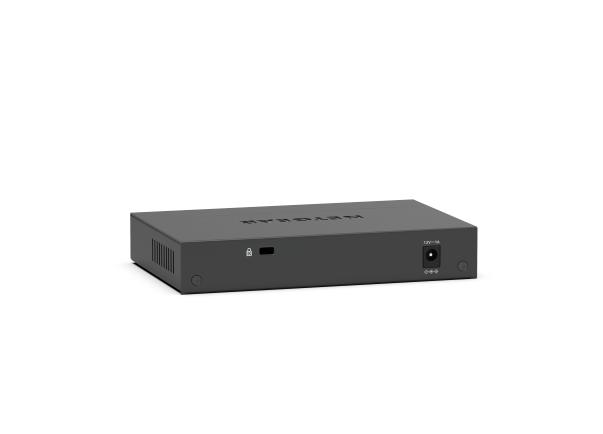

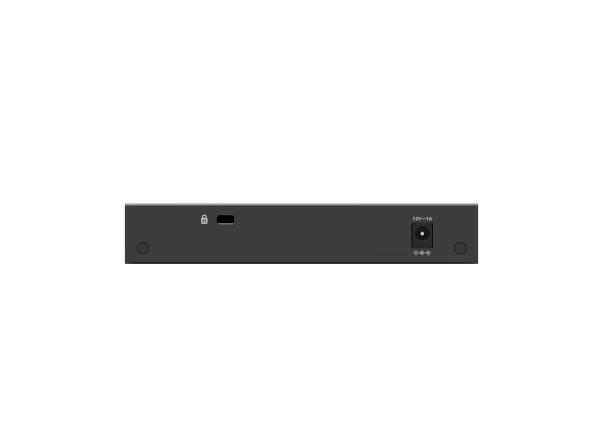

MS305_woShadow_TopBack_TechSpecs
  • Dimensions (W x D x H) : 158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in)
  • Weight : 0.48 kg (1.06 lb)
  • Speed : 100Mbps/1G/2.5G
  • Number of Ports : 5
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9,720 bytes
  • Queue WRR Ratio : 1:3:5:7:8:10:12:15
  • MAC Table Size : 16K
  • Packet buffer size : 1 MB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 9.24W
  • Operating Temperature : 0-40°C (32°F - 104°F)
  • MTBF (hours) : 1,401,743 hrs (159.91 years)
  • FCC Class : Class B
  • Fans : 0
  • Acoustic Noise Level @25C : Fanless

    • Warranty: This product is backed by a 3-year Hardware Warranty.
    • Click here for coverage, availability and terms and conditions.
    • Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
    • ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts.
