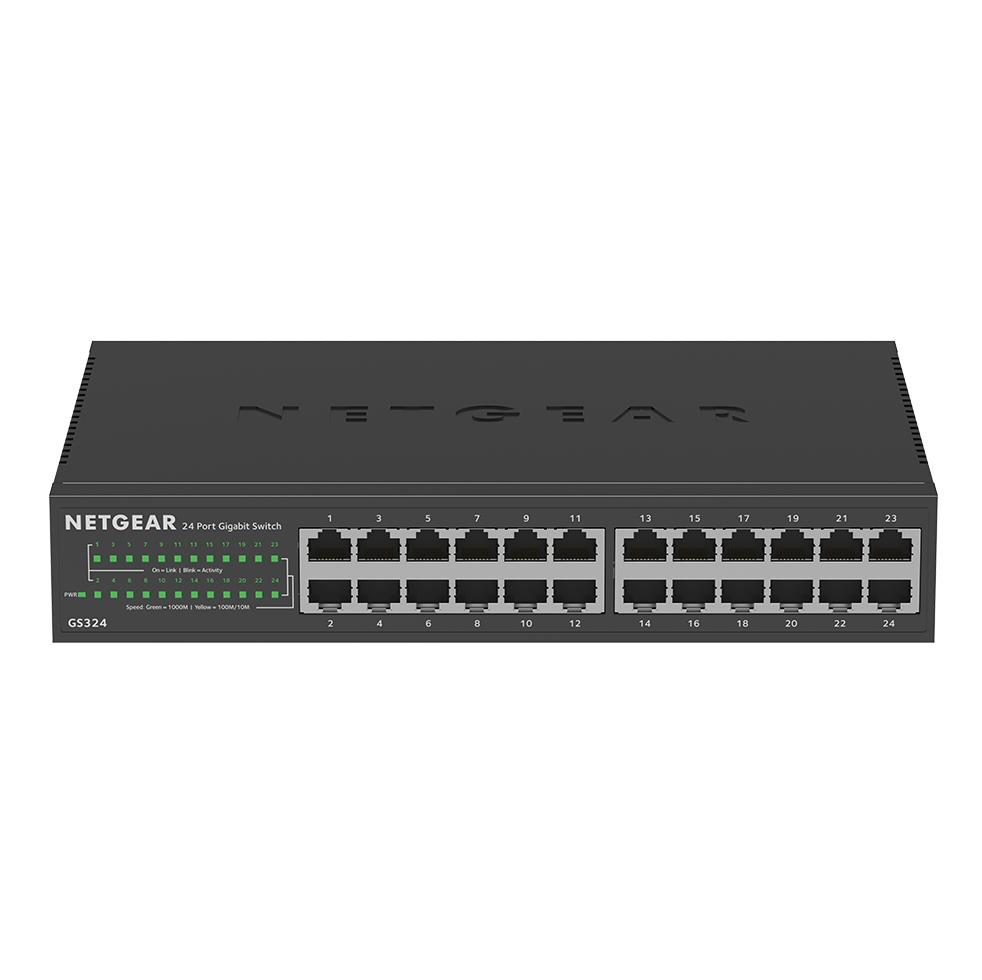

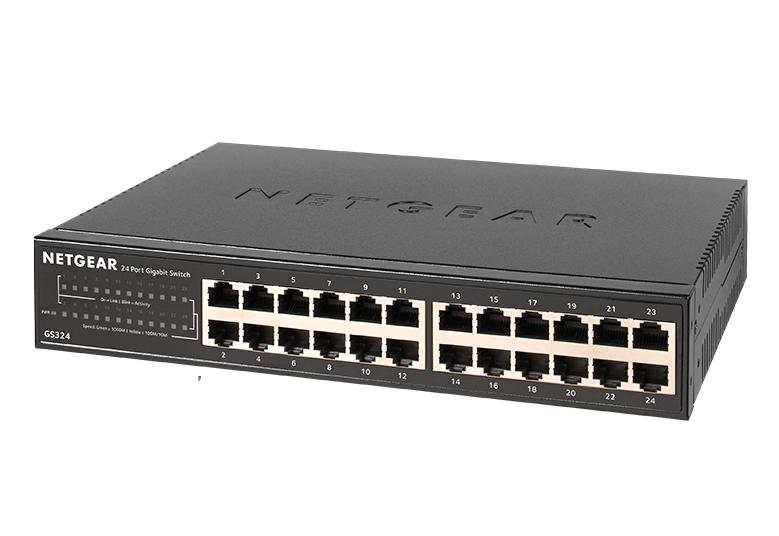

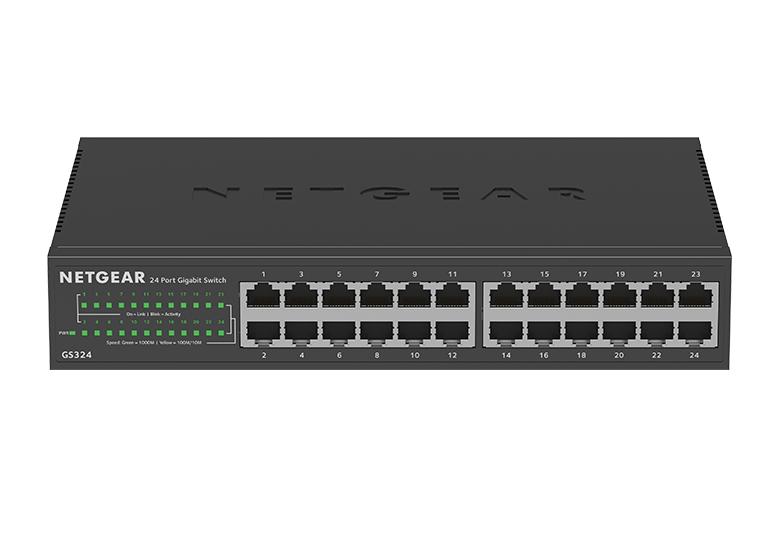

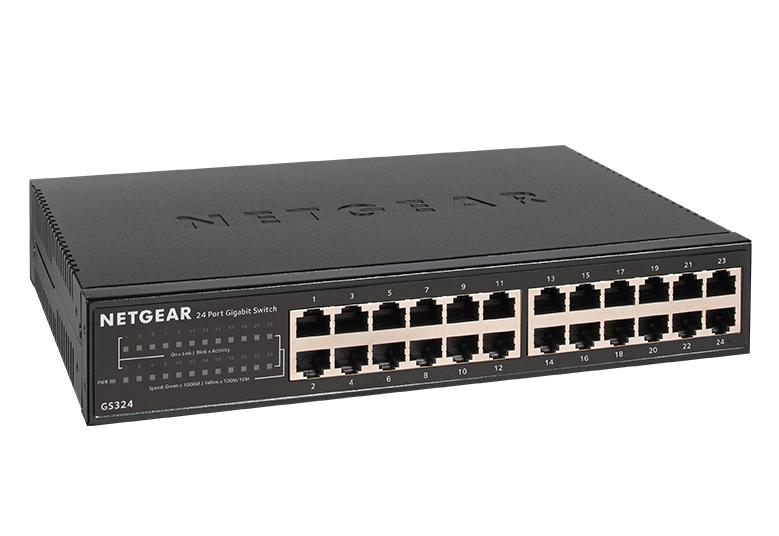

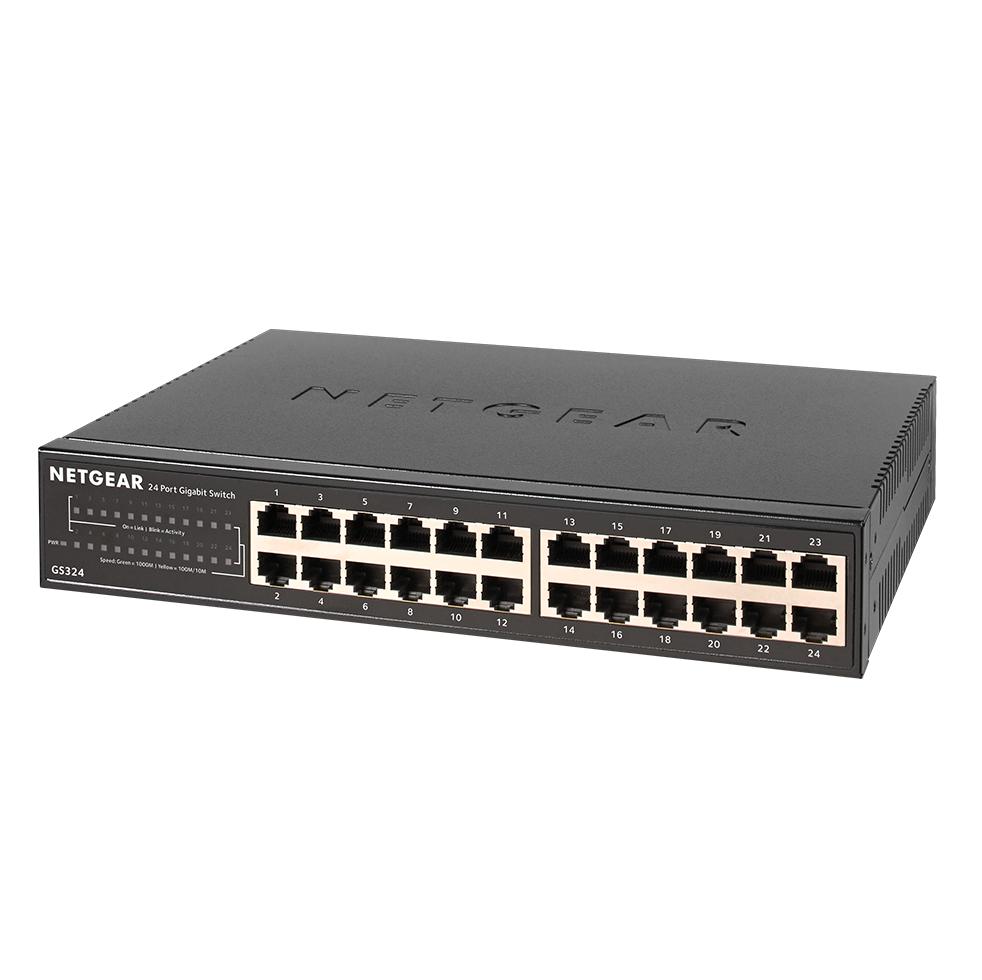

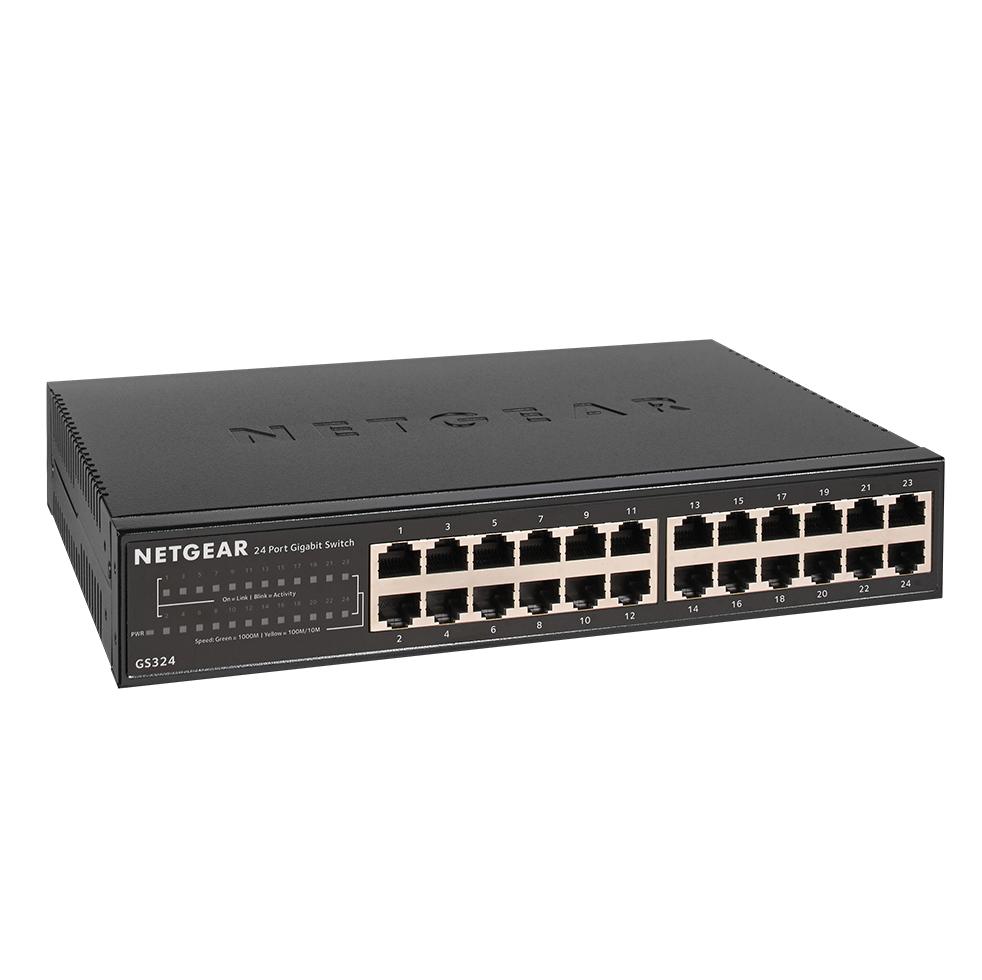

24-Port Gigabit Ethernet Unmanaged Essentials Switch
24-Port Gigabit Ethernet Unmanaged Essentials Switch
GS324v2
1 / 11
Ports
- 24 Ports
Port Types
- 24 x 10/100/1000Mbps Ports (Auto Uplink)
Details
GS324v2
Ports
- 24 Ports
Port Types
- 24 x 10/100/1000Mbps Ports (Auto Uplink)
Details
Features
ETHERNET PORT CONFIGURATION
24 Gigabit metal ports
PLUG & PLAY
Simple setup with no software or configuration needed.
FLEXIBLE MOUNTING
Mount on rack, desktop, or wall.
SMALL SIZE, METAL CASE, AND SILENT OPERATION
Durable quality, space saver, and quietness for peace of mind.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability.
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Auto-MDI/MDIX eliminates the need for crossover cables
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Energy-efficient technology for power savings
Non-blocking switching architecture for maximum throughput at wire speed
Desktop, wall or rackmountable
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement. Includes wall mount kit in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs

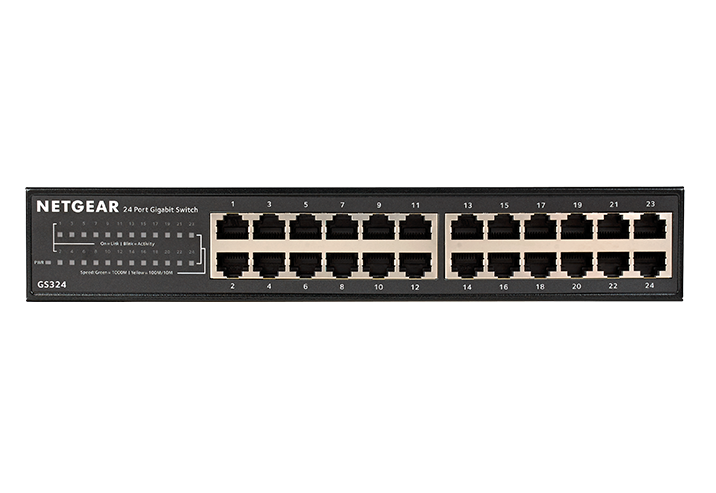

Technical Specifications
Dimensions (W x D x H) | 252 x 180 x 44 mm (9.9 x 7.1 x 1.7 in) |
Weight | 1.31 kg (2.90 lb) |
Model Description | NETGEAR 24-Port Gigabit Ethernet Unmanaged Essentials Switch (GS324v2) |
Speed | Gigabit |
Number of Ports | 24 |
PoE Ports / Max Power Per Port | n/a |
PoE Max Power Supplied (All Ports) | n/a |
Connector Type | Metal |
Switch Housing | Metal |
LEDs | Power, Speed, Link/Activity |
Short cable power saving | Yes |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo Frame Support | 9,216 bytes |
MAC Table Size | 8K |
Packet buffer size | 512 KB |

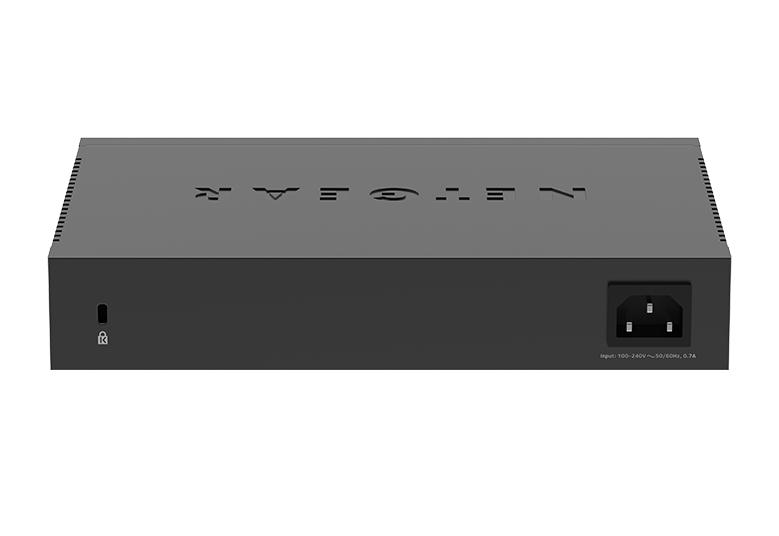

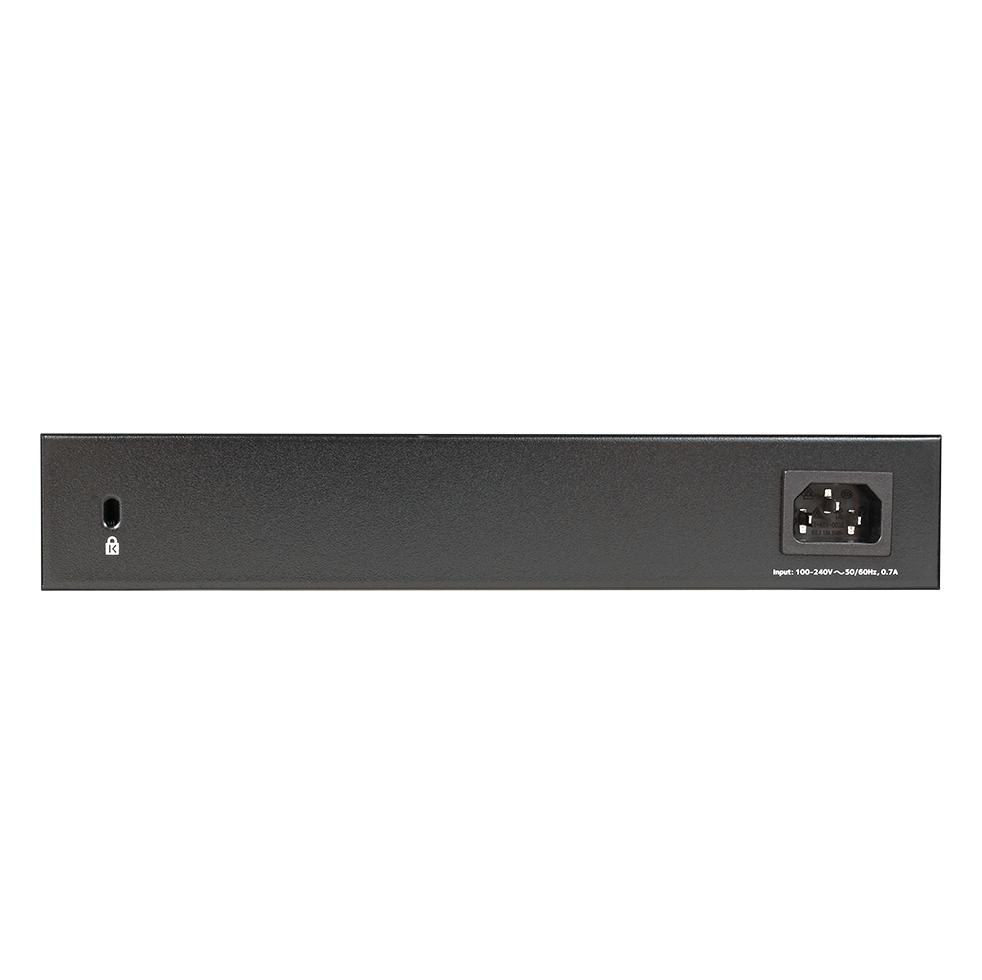

Power | Internal (AC: 110-240V, 50-60Hz, 1.0A max) |
Max Power Consumption (Watts) | 11.1W |
Acoustic Noise Level @ 25° C (dBA) | 0 dBA (Fanless) |
Operating Temperature | 0° to 40°C (32° to 104°F) |
MTBF (@ 25° C) | 620,798 hours |
Electromagnetic compliance (A or B) | Class A |
Form Factor | Desktop, wall-mountable, or rack-mountable |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
|
|
| Support coverage in one, three, or five year contracts |
