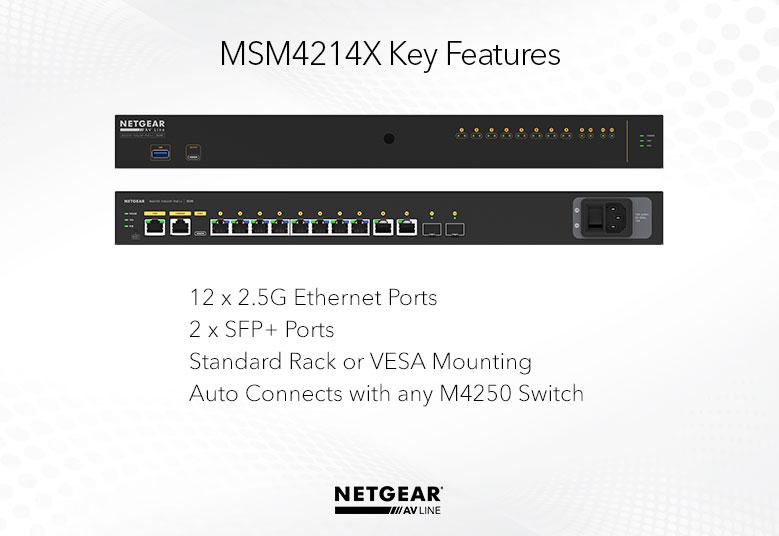

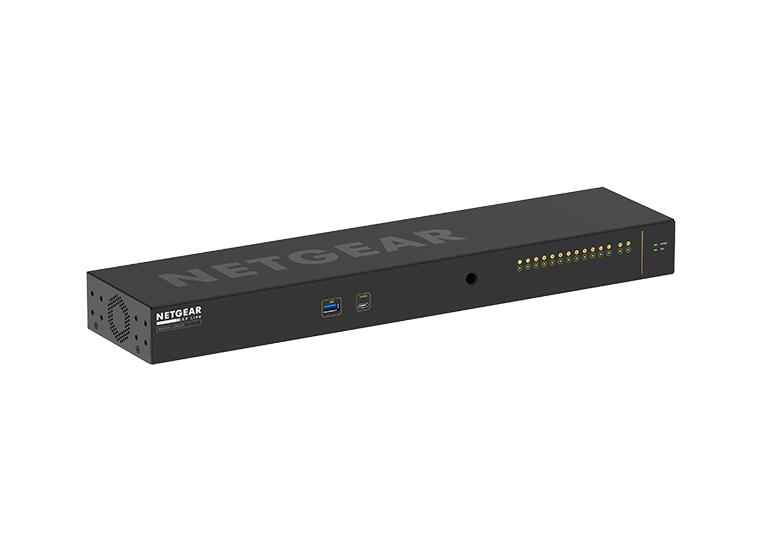

AV Line M4250-12M2XF (MSM4214X)
12x2.5G and 2xSFP+ Managed Switch
AV Line M4250-12M2XF (MSM4214X)
12x2.5G and 2xSFP+ Managed Switch
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
We're always here to help
Want a custom configuration?
Need to check compatibility?
Ready for a quote?
Our experts are available via online chat, phone, or email.
POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
-
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
-
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
-
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
-
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN
PROVIDES MOUNTING
FLEXIBILITY

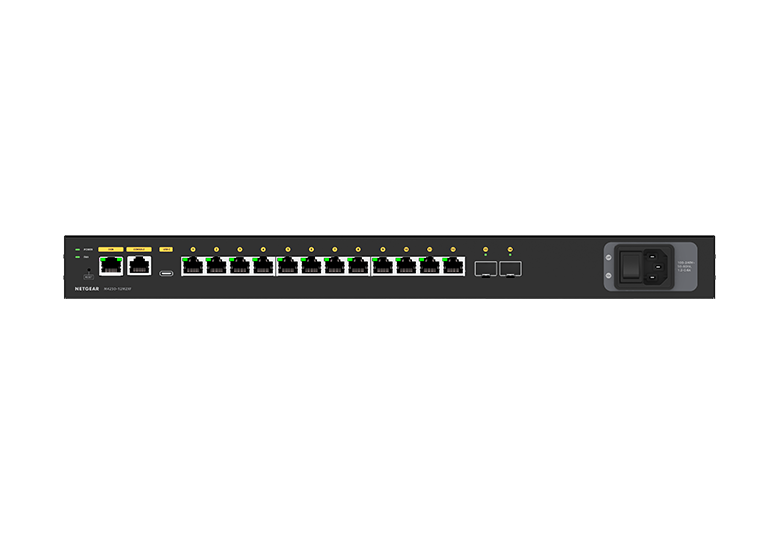

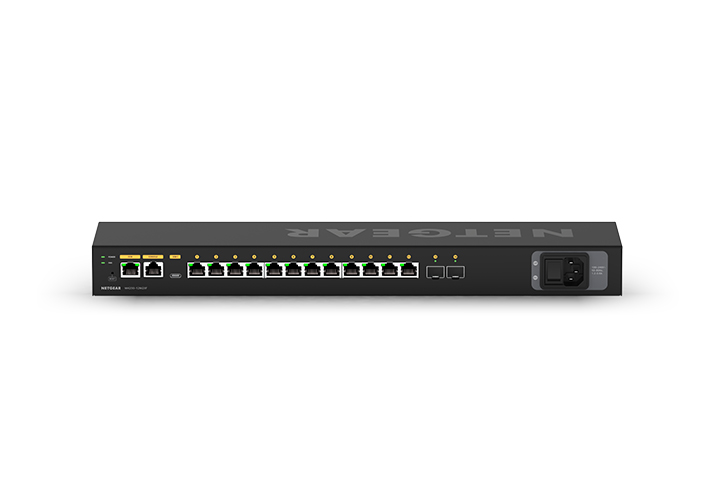

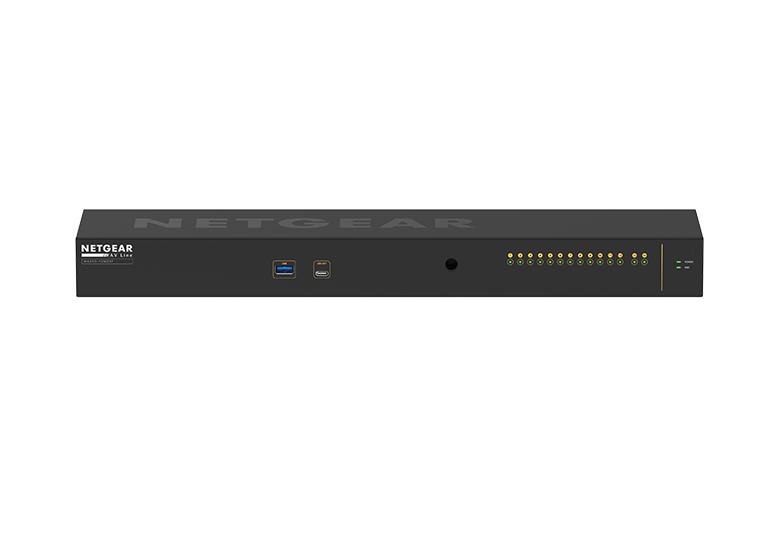

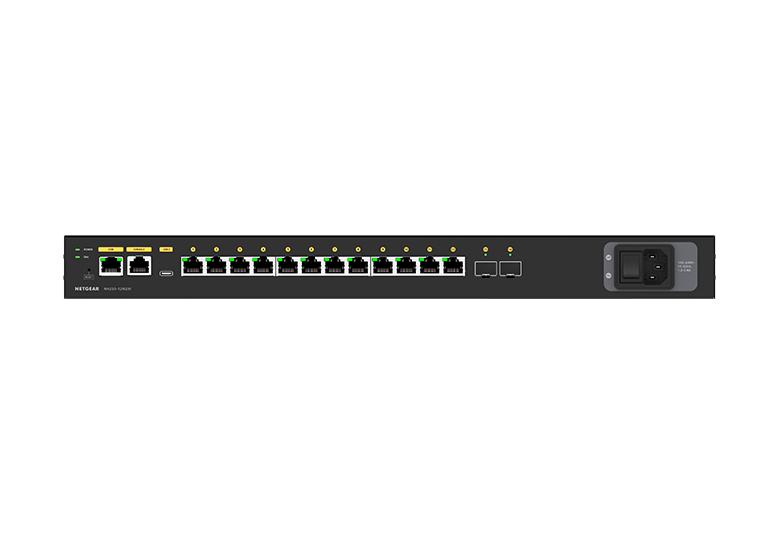

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
COMPARE M4250 SERIES SWITCHES
MSM4214X |
GSM4210PD |
GSM4210PX |
GSM4212P |
GSM4212PX |
GSM4212UX |
XSM4216F |
GSM4230P |
GSM4230PX |
GSM4230UP |
GSM4248P |
GSM4248PX |
GSM4248UX |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
# Total Ports |
# Total Ports 14 |
# Total Ports 10 |
# Total Ports 10 |
# Total Ports 12 |
# Total Ports 12 |
# Total Ports 12 |
# Total Ports 16 |
# Total Ports 30 |
# Total Ports 30 |
# Total Ports 30 |
# Total Ports 48 |
# Total Ports 48 |
# Total Ports 48 |
|
Port Types |
Port Types 12x 2.5G, 2x SFP+ |
Port Types 9x 1G, 1x SFP |
Port Types 8x 1G, 2x SFP+ |
Port Types 10x 1G, 2x SFP |
Port Types 10x 1G, 2x SFP+ |
Port Types 10x 1G, 2x SFP+ |
Port Types 16x 1G/10G Fiber SFP+ |
Port Types 26x 1G, 4x SFP |
Port Types 26x 1G,4x SFP+ |
Port Types 26x 1G, 4x SFP |
Port Types 40x 1G, 8x SFP |
Port Types 40x 1G, 8x SFP+ |
Port Types 40x 1G, 8x SFP+ |
|
Total PoE Budget |
Total PoE Budget - |
Total PoE Budget 110W |
Total PoE Budget 220W |
Total PoE Budget 125W |
Total PoE Budget 240W |
Total PoE Budget 720W |
Total PoE Budget - |
Total PoE Budget 300W |
Total PoE Budget 480W |
Total PoE Budget 1,440W |
Total PoE Budget 480W |
Total PoE Budget 960W |
Total PoE Budget 2,880W |
|
# PoE+ Ports |
# PoE+ Ports - |
# PoE+ Ports 8 |
# PoE+ Ports 8 |
# PoE+ Ports 8 |
# PoE+ Ports 8 |
# PoE+ Ports - |
# PoE+ Ports - |
# PoE+ Ports 24 |
# PoE+ Ports 24 |
# PoE+ Ports - |
# PoE+ Ports 40 |
# PoE+ Ports 40 |
# PoE+ Ports - |
|
# PoE++ Ports |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports 8 |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports 24 |
# PoE++ Ports - |
# PoE++ Ports - |
# PoE++ Ports 40 |
|
Rack Mount |
Rack Mount 1U |
Rack Mount Desktop |
Rack Mount Desktop |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 1U |
Rack Mount 2U |
|
Form Factor WxHxD (mm) |
Form Factor WxHxD (mm) 440 x 43.2 x 100 |
Form Factor WxHxD (mm) 210 x 40 x 140 |
Form Factor WxHxD (mm) 210 x 40 x 140 |
Form Factor WxHxD (mm) 440 x 43.2 x 200 |
Form Factor WxHxD (mm) 440 x 43.2 x 200 |
Form Factor WxHxD (mm) 440 x 43.2 x 257 |
Form Factor WxHxD (mm) 440 x 43.2 x 200 |
Form Factor WxHxD (mm) 440 x 43.2 x 257 |
Form Factor WxHxD (mm) 440 x 43.2 x 400 |
Form Factor WxHxD (mm) 440 x 43.2 x 400 |
Form Factor WxHxD (mm) 440 x 43.2 x 400 |
Form Factor WxHxD (mm) 440 x 43.2 x 400 |
Form Factor WxHxD (mm) 440 x 86.4 x 350 |
MAXIMIZE
PERFORMANCE
WITH NETGEAR
ACCESS POINTS
Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.
PRO AV
RESOURCES
All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.
Technical Specifications
- Dimensions (WxDxH) : 440 x 100 x 43.2mm
- Weight : 1.745Kg (3.85lb)
- Primary Port Speed : 1 Gigabit
- Number of Ports : 12 (12x 2.5G, 2x SFP+)
- PoE Ports / Budget : None
- IGMP Support : Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support : Yes, up to 12kb
- Acoustics : Fanless or 46.4dB@25ºC
- Power Consumption : System Full Load: 37.9W/129.39Btu/hr; Standby without any port connection: 14.1W/48.14Btu/hr
- AVB Support : Yes. Electronic license required, activation key sent via email (AVB4214X-10000S)
Third party support : Domotz
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
- Support : Phone and chat technical support provided for 90 days from purchase date.
- What's in the Box : M4250-12M2XF (MSM4214X)
- Power cord(s)
- Console USB Type-C and RJ45-DB9 cables
- Rack-mounting standard brackets
- Longer brackets for recessed mounting
- Rubber footpads for tabletop installation
- Installation guide
