  • 48 x Gigabit Ethernet ports
  • Plug and play switch, no management required
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Rackmount or desktop
 GS748 GS748-100EUS GS748-100EUS

Gigabit Unmanaged Switch Series (GS748) armor

48-Port Gigabit Ethernet Unmanaged Switch armor

Gigabit Unmanaged Switch Series (GS748)

48-Port Gigabit Ethernet Unmanaged Switch armor

  • 48 x Gigabit Ethernet ports
  • Plug and play switch, no management required
  • Energy Efficient Ethernet for maximum power savings
  • Fanless and silent
  • Rackmount or desktop

48-Port Gigabit Unmanaged | GS748

48-Port Gigabit Unmanaged | PoE+ | GS748PP

24-Port | Gigabit Unmanaged | GS524

24-Port | Easy Smart | Multi-Gig/10G | XS724EM

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Features

PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
QUALITY AND RELIABILITY
Peace of mind with limited lifetime warranty, next business day replacement*, and lifetime email and chat support.
Product Datasheet

Technical Specifications

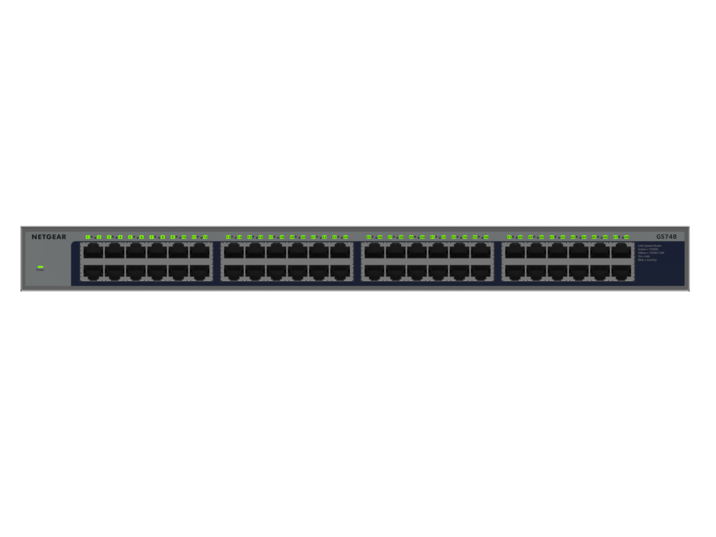

gs748_tech_specs_image_frt

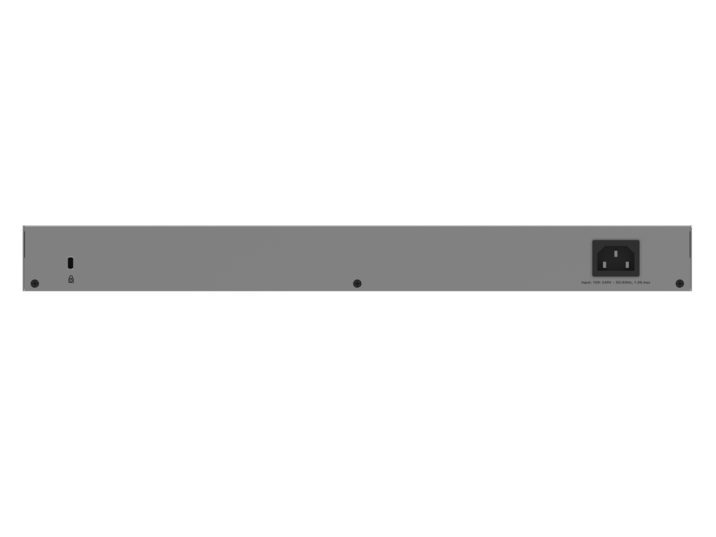

gs748_tech_specs_image_rear
  • Dimensions (W x D x H) : 440 x 202 x 43 mm (17.9 x 8.0 x 1.7 in)
  • Weight : 3.2kg (6.9 lb)
  • Speed : 1G
  • Number of Ports : 48
  • Number of PoE+ Ports : 0
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9,216 bytes
  • MAC Table Size : 8K
  • Packet buffer size : 1.5MB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 23W
  • Fans : 0
  • Operating Temperature : 0-50°C (32°F - 122°F)
  • MTBF (hours) : 1,094,297 hours (125 years)
  • FCC Class : Class A

    • Warranty : This product is backed by a NETGEAR limited lifetime hardware warranty (depending on region). Click here for coverage, availability and terms and conditions.
    • Next Business Day Hardware Replacement for duration of warranty (depending on region). Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
