Exclusively for both residential and commercial custom network installations. Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the homes and businesses. Including 4-years of both NETGEAR Insight Subscription and NETGEAR ProSupport OnCall 24x7 Service Pack WAX628

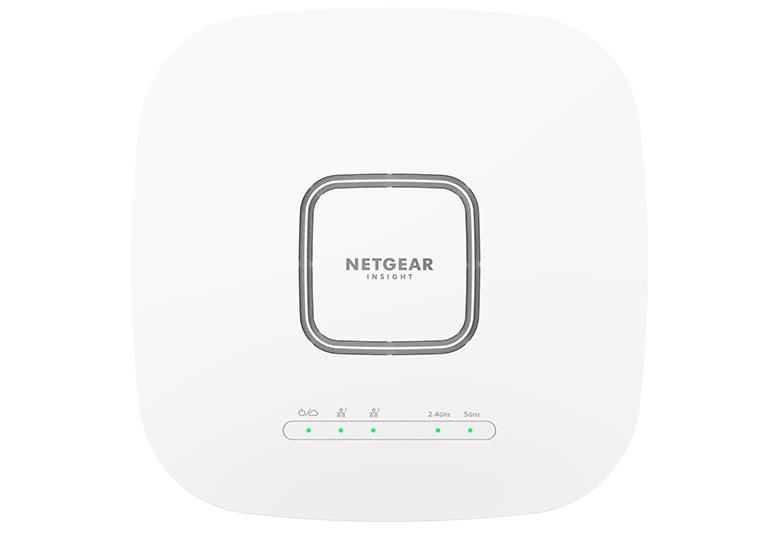

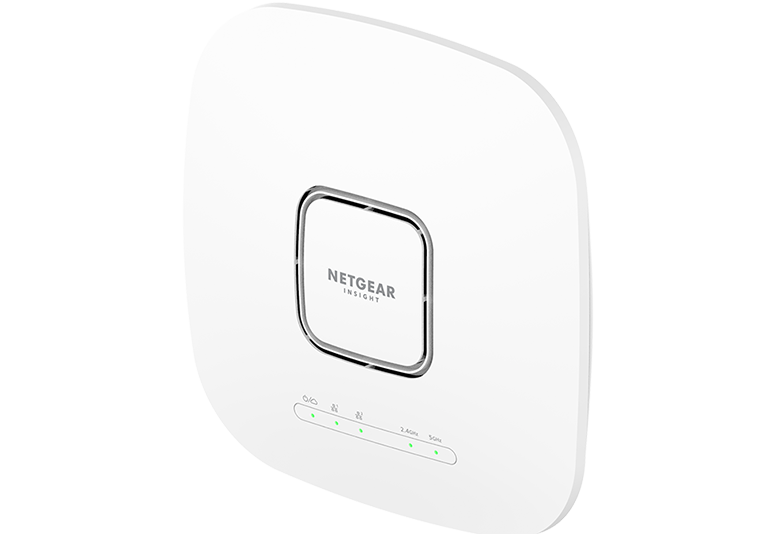

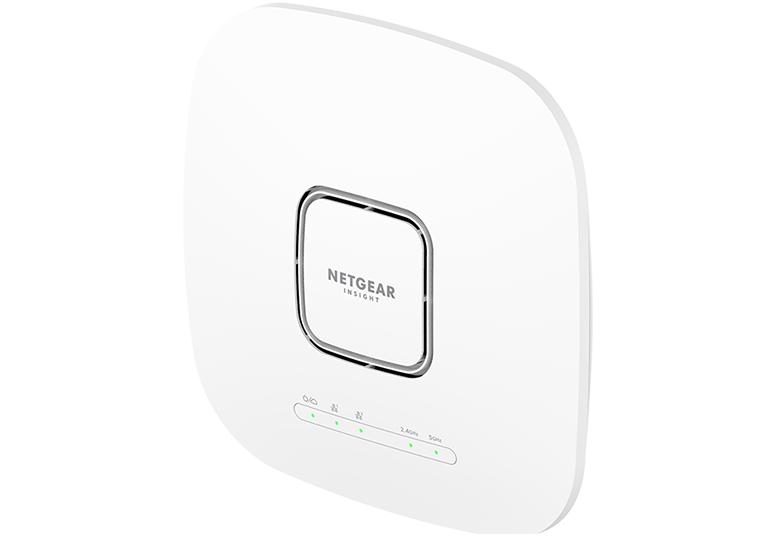

Cloud Managed WiFi 6 (WAX628) armor

NETGEAR® Insight Managed WiFi 6 AX5400 Dual-band Access Point with Multi-Gig PoE armor

Cloud Managed WiFi 6 (WAX628)

NETGEAR® Insight Managed WiFi 6 AX5400 Dual-band Access Point with Multi-Gig PoE armor

Exclusively for both residential and commercial custom network installations. Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the homes and businesses. Including 4-years of both NETGEAR Insight Subscription and NETGEAR ProSupport OnCall 24x7 Service Pack

INCLUDED:

4-Year Insight Premium or Insight Pro Subscription


4-Year NETGEAR ProSupport OnCall 24x7 Service Pack

  • Unlimited, 24/7 access to our tech experts
  • Limited, 5-year hardware warranty
  • Next business day device replacement
We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

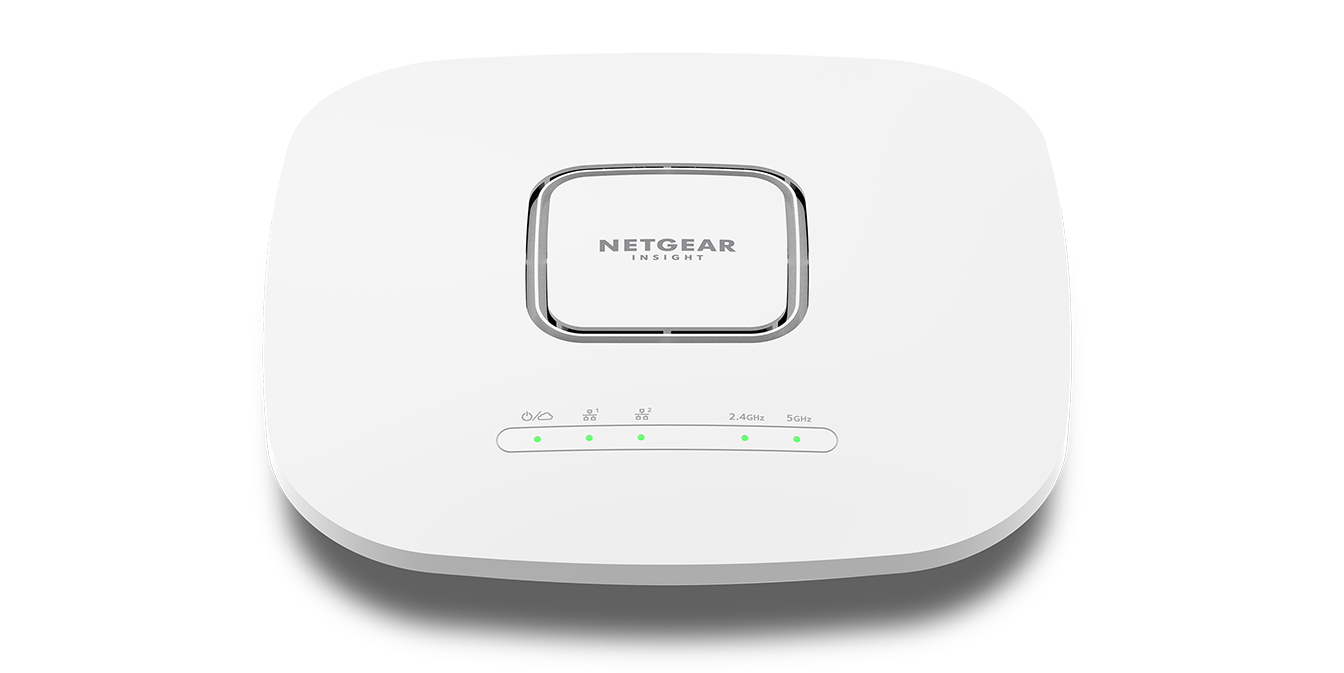

wax628_powerful_business_wifi

A Powerful WiFi Solution


  • Ultimate speed and capacity with WiFi 6

  • Enterprise level security with WPA3 and 8 separate wireless networks (SSIDs)

  • High speed and easy wiring with a 2.5GbE port with PoE

  • Mesh capabilities for seamless roaming and highly scalable coverage areas

  • Monitor and manage your network from anywhere with NETGEAR Insight, a user-friendly cloud monitoring and management cloud portal and app

lp-remote-cloud-management lp-remote-cloud-management

Simply Better Together

Combine your WiFi Access Points with a Multi-Gig Switch to optimize your network for power and speed.

wax628-638e_banner_mobile wax628-638e_banner_desktop_left

Behind every smart home is a network genius

Discover new ways to bring professional-grade technology to your residential installations

Enterprise Level Security

icon_wifi

Up to 8 WiFi SSIDs

icon_system

Control VLAN separately for each SSID

icon_WAP3_1

WPA3 the latest WiFi security standard

wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 4-year subscription is included.



Netgear Insight App Store   Netgear Insight Google Play

Technical Specifications

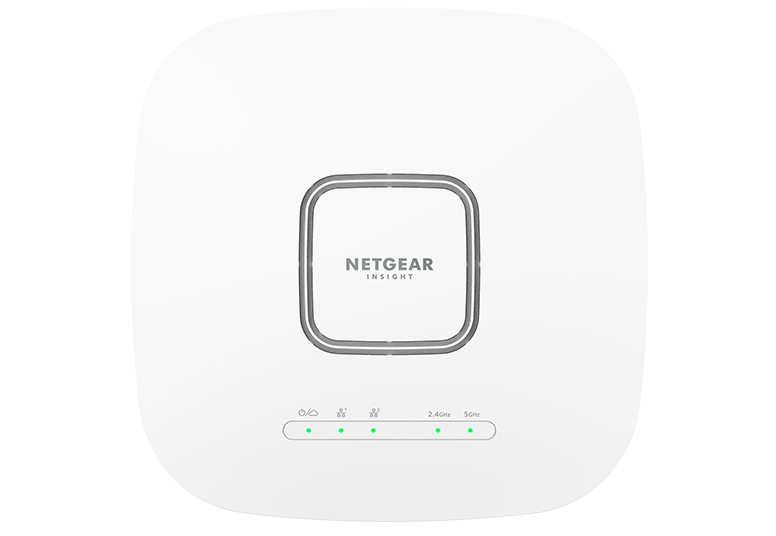

WAX628_woShadow_TopFront_techspecs

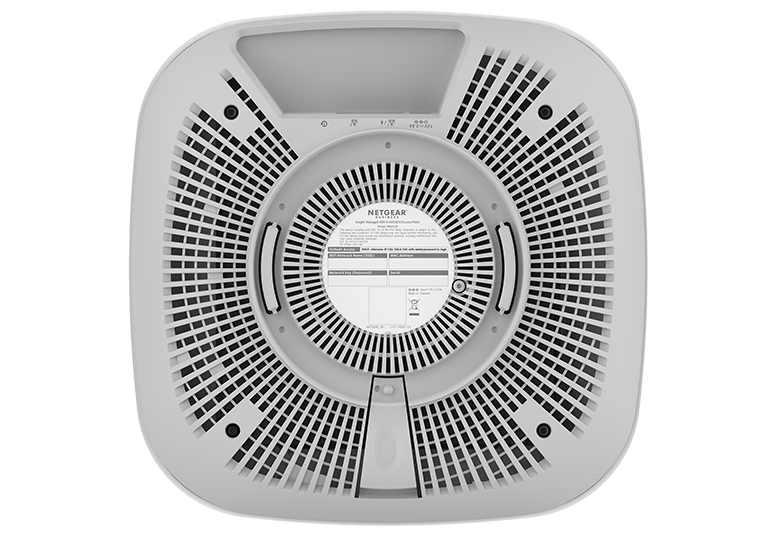

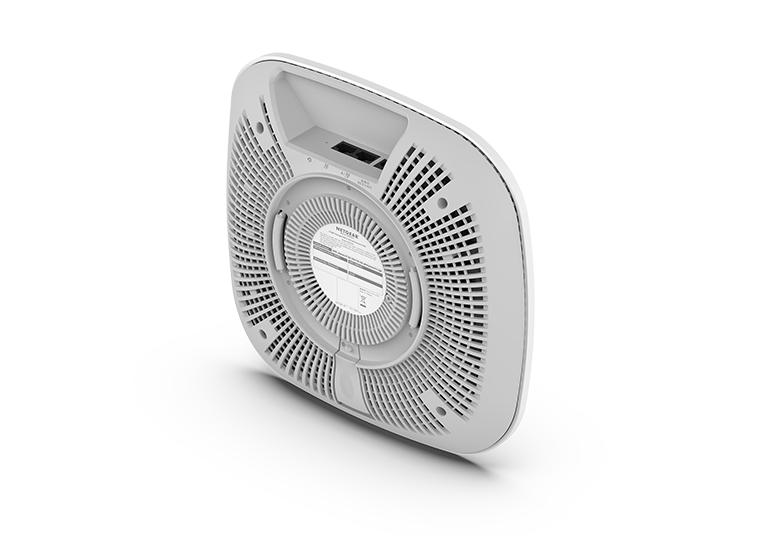

WAX628_woShadow_Back_techspecs
  • Dimensions : 241.15 x 239.6 x 51.38 mm (9.49 x 9.43 x 2.02 in)
  • Weight : 819 g (1.80 lb)
  • Speed : AX5400
  • Radio : 5GHz: 4x4 20/40/80/160MHz
  • 2.4GHz: 2x2 20/40MHz
  • Theoretical Throughput : 5GHz: 4.8Gbps
  • 2.4GHz: 0.6Gbps
  • Antenna Gain : 5GHz: 2.9dBi
  • 2.4GHz: 2.4dBi
  • # of Max Users : 275
  • # of Concurrent Users : 75
  • Ideal Use : Residential and Commercial Integrator
  • Ethernet port : 1 x 2.5G port and 1 x 1G port
  • PoE : Yes
  • PoE Power Consumption : 21.2W
  • Remote management : Insight or Standalone
  • Third party support : Domotz

  • ProSUPPORT OnCall 24x7 Service Packs 4-years of ProSUPPORT and Insight contracts included, available to both Insight Premium and Insight Pro account holders. The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.
  • Hardware Limited Warranty 5 years
  • Next-Business-Day (NBD) Replacement 5 years
  • WAX628 Support
  • WAX628 Insight Managed Wireless Access Point

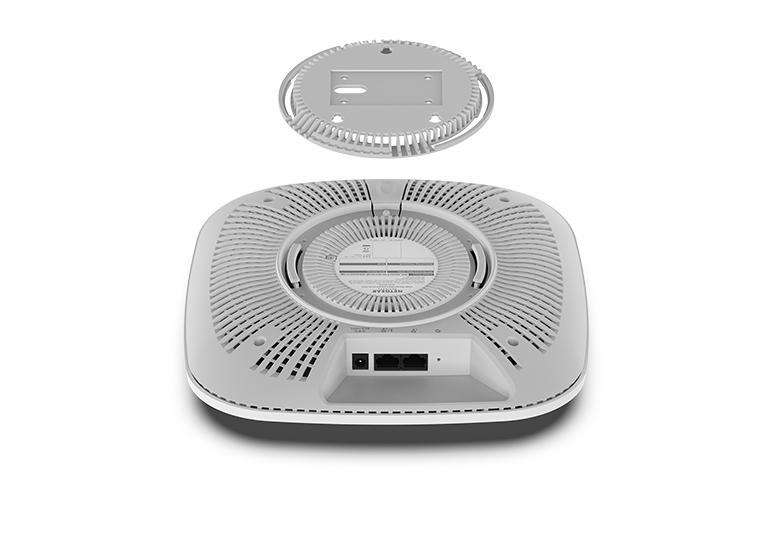

  • Wall/ceiling mount kit
  • Installation guide
