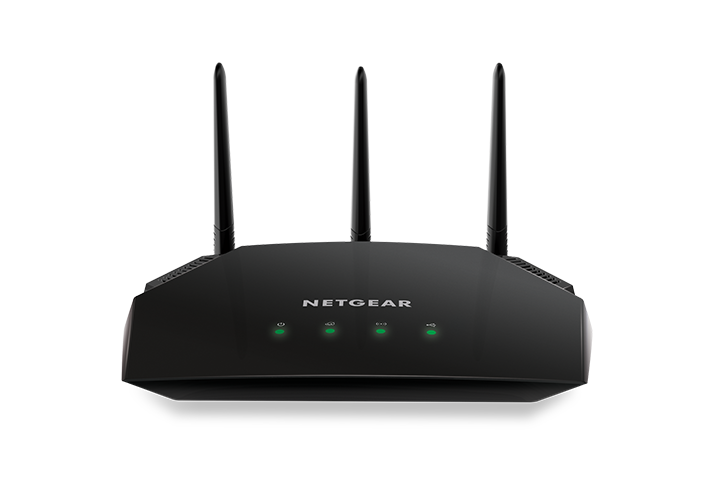

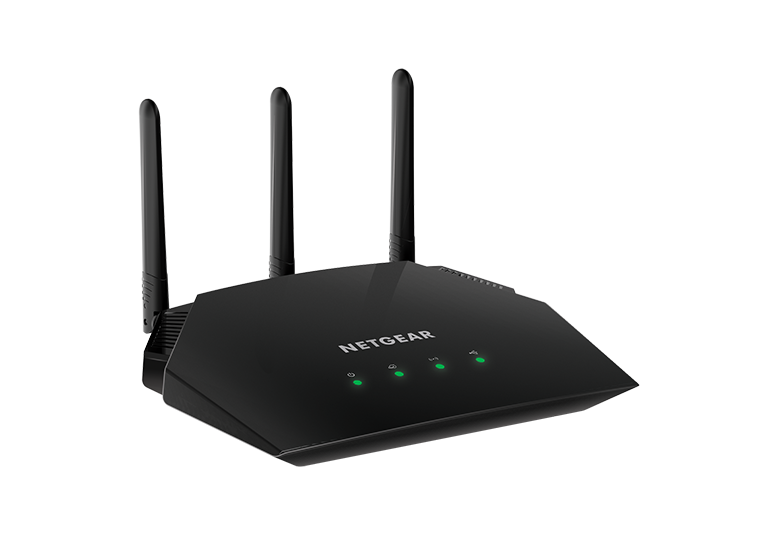

AC2000 Dual Band 4x4 Wireless Access Point
AC2000 Dual Band 4x4 Wireless Access Point
1 / 6
Features
WIRELESS
Dual band 802.11ac WiFi 2.4 GHz + 5 GHz
Aggregate speed of 2Gbps
External Antennas
110V/220V 12V External Power Adaptor
MU-MIMO for strong Multi-User support
Up to 3 SSIDs ideal for Admin, Employees and Guest access
MULTI-CONFIGURATION
Access Point, and WDS point-to-point or Point-to-Multipoint wireless bridge
COMPATIBLE
Works with WiFi 4,5,6 devices (802.11n/ac/ax) including IPV6 Support
EASY SETUP
WiFi Protected System WPS Button for 1-touch client setup
Connect to existing Router
CONNECTIVITY OPTIONS
Four (4) built-in Gigabit Ethernet Ports, Connect Laptop, PC, game consoles and other wired devices
USB Port for sharing data from local HD or NAS drive
Intuitive Graphical User Interface for web-based access
Work / Play / Learn from Home
Designed for SOHO Deployments
Modern Security
WPA, WPA2 and MAC based access control lists
WiFi 5
Compatible nearly all WiFi client devices WiFi 4, WiFi 5 and WiFi 6
Technical Specifications
Dimensions (L x W x H) : | 9.43 x 7.14 x 1.59in (239.65 x 181.45 x 40.6mm) |
Weight : | 0.84lb (385g) |
Standards : | IEEE 802.11ac specification, IEEE 802.11n 2.0 specification, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
Frequency Band : | 2.4GHz and 5GHz concurrent operation |
Maximum Theoretical Throughput : | 300Mbps (2.4GHz), 1733Mbps (5GHz) |
Maximum Number of Clients : | 64 (2.4g 32+5g 32) |
Deployment options : | Standalone, Web UI |
Access Point : | Antenna: 3dBi (external) |
Advanced Wireless : | WDS Point-to-point wireless bridge mode |
Security : | WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK), MAC Address filtering, 3 BSSID |
MAC ACL : | Yes |
VPN Pass-through : | Yes |
802.11e WMM : | (Wireless multimedia mode) for QoS |
Simultaneous Bridge/Client Association : | Yes |
Power : | 12V/1.5A (18W) power adapter with country-specific plug, Power consumption: 16.2W (maximum) |
Mounting : | Desktop, Wall mountable |

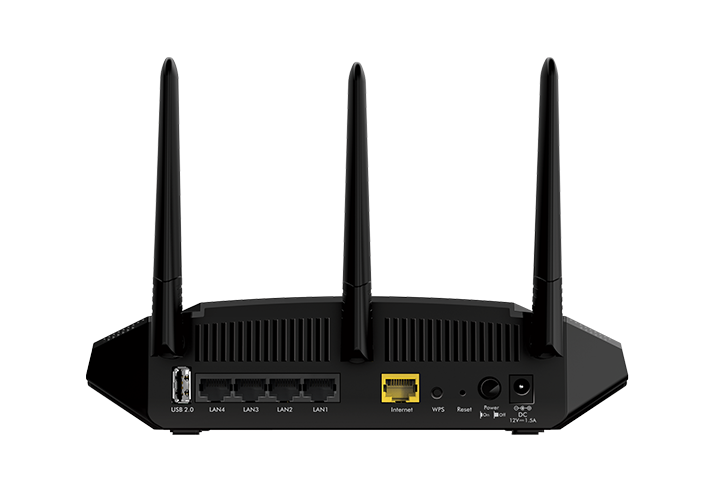

Physical Interfaces : | WAN: One (1) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X), LAN: Four (4) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X) |
LEDs : | Power, Internet, WiFi, USB |
Buttons : | Default Reset, WPS, Power On/Of |
Operating Temperature : | 32° to 104°F (0° to 40°C) |
Storage Temperature : | -4° to 158°F (-20° to 70°C) |
Operating Relative Humidity : | 10-90% |
Storage Humidity : | 5-95% |
MTBF : | @ 25°C > 500,000 hours, @ 40°C > 390,000 hours |
Warranty : | This product is backed by a NETGEAR limited 3-year Hardware Warranty . |
Support : | ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. |
| | ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). |
| | Support |
| | 802.11ac Wireless AP (WAC124), Ethernet cable, Installation guide, Power adapter, localized to country of sale, Warranty/support information card |
