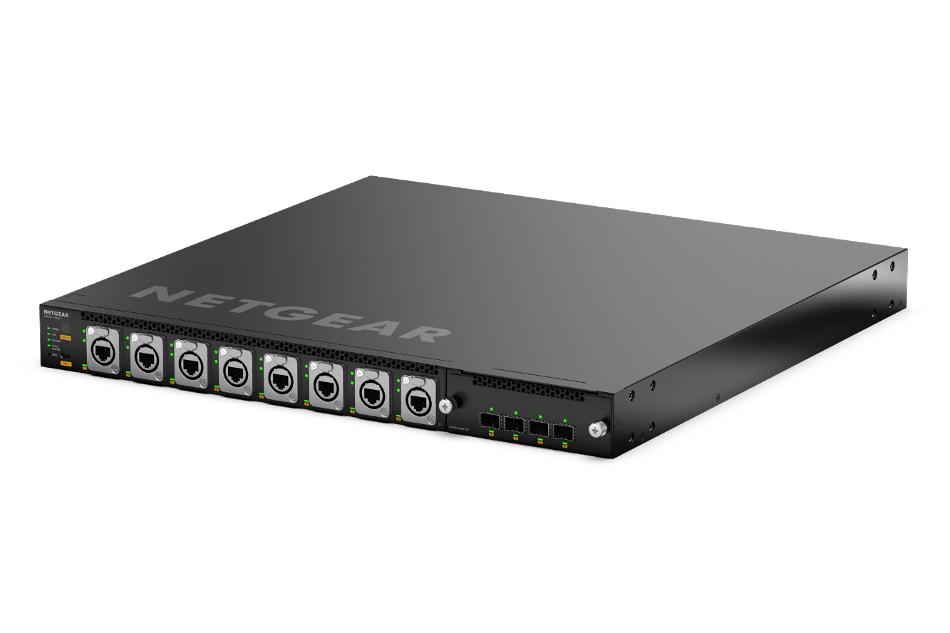

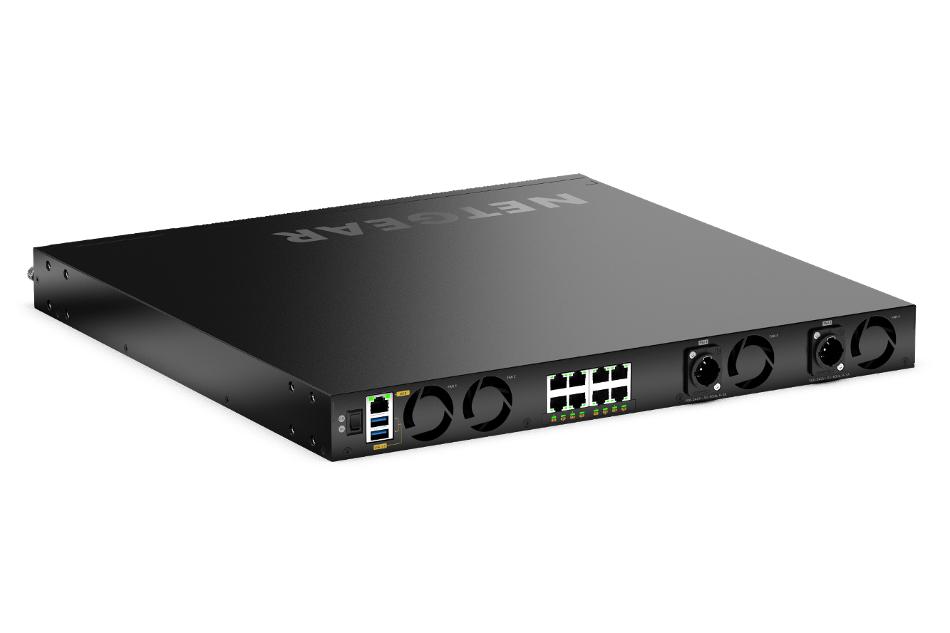

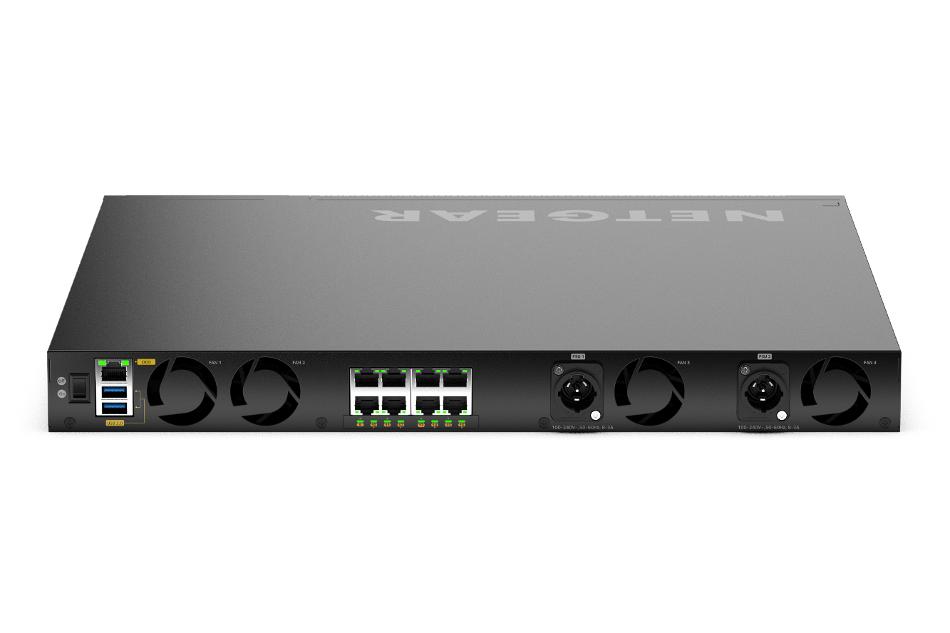

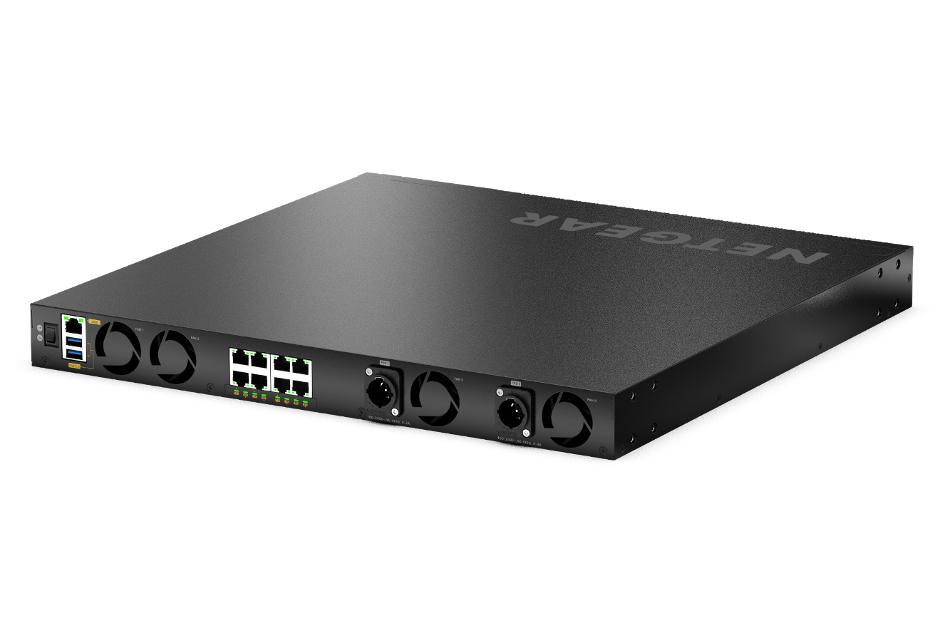

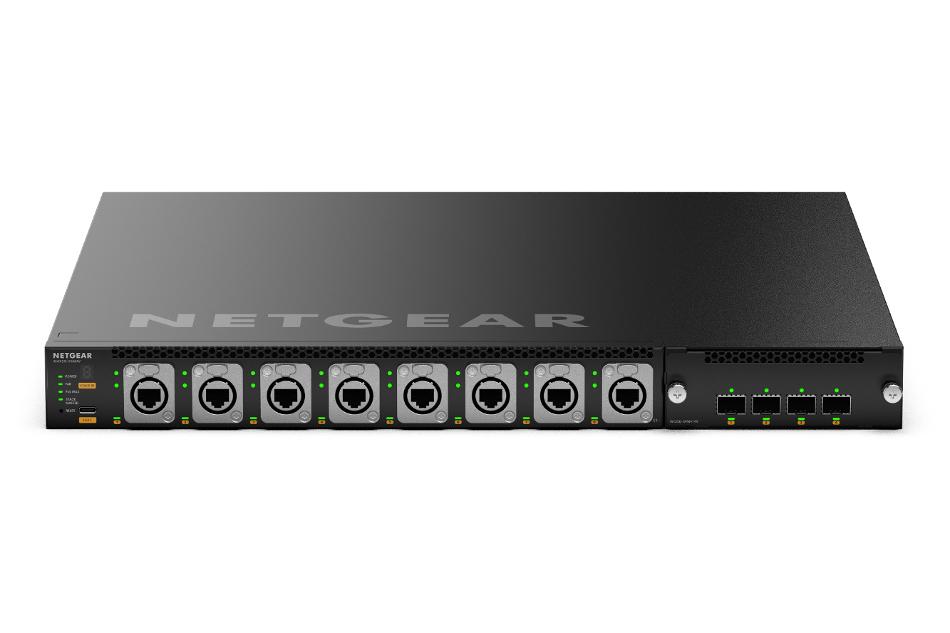

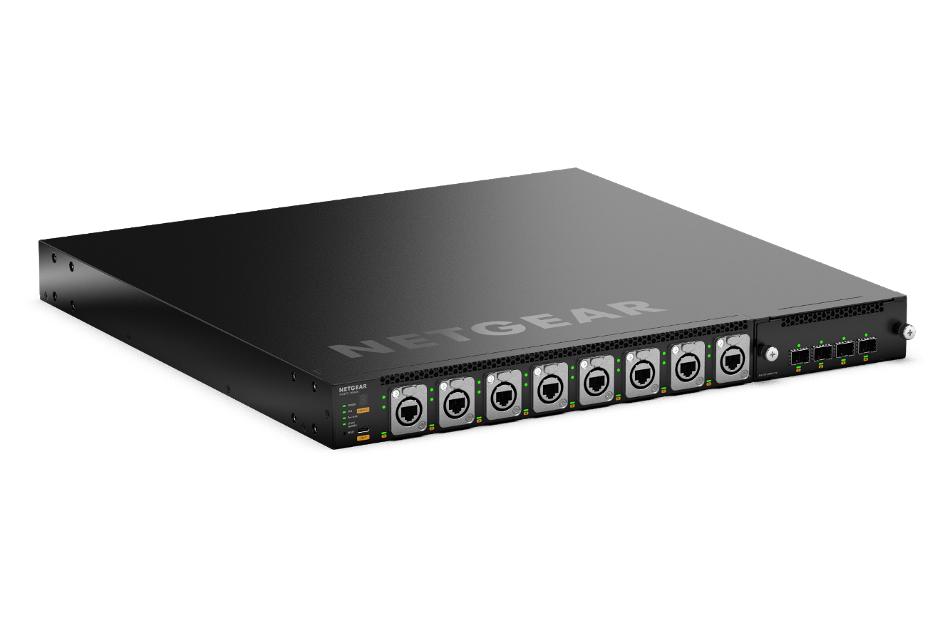

16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON e 4xSFP28 25G Managed Switch
16x 2.5G PoE++ (530W base, up to 1,130W) incl. 8x Neutrik etherCON e 4xSFP28 25G Managed Switch
MSM4320
Novità
Novità
Novità
Novità
Novità
Novità
Novità
Novità
Novità
Novità
Novità
Novità
Novità
1 / 13
Porte
- 20
Tipi di porta
- 16x 2.5G PoE++ incl. 8x Neutrik etherCON
- 4x 25G SFP28 uplinks
Budget PoE
- 1130W total when the redundant PoE budget remains 530W (1+1)
Dettagli
- Two internal 800W power supplies providing 530W of redundant base PoE budget
- Switch ships con one APM414V interface card con 4x 25G SFP28 Porte
- Optional APM414C Interface Card con 4x 10G RJ-45 Porte
- Optional APM414SD Interface Card con 2x Neutrik opticalCON DUO connectors per 4x MMF transceivers
- Optional APM414LD Interface Card con 2x Neutrik opticalCON DUO connectors per 4x SMF transceivers
- 2x Neutrik powerCON connectors e C14 male Cavo di Alimentazione adapters per standard IEC 320 C13 cords
- Virtual Chassis stacking provides non-stop forwarding (NSF) e hitless failover
- Layer 3 feature Set includes static, policy-based, e dynamic routing
- NETGEAR IGMP Plus™, NETGEAR AV OS™, e NETGEAR Engage™ Controller speed up AV installations
- SMPTE ST 2110 Grandmaster Clock e Boundary Clock per AES67 e ST2059-2 applications
- Multi-color LED on each physical Porta reflecting the profile color in the NETGEAR AV OS™ e Engage Controller
