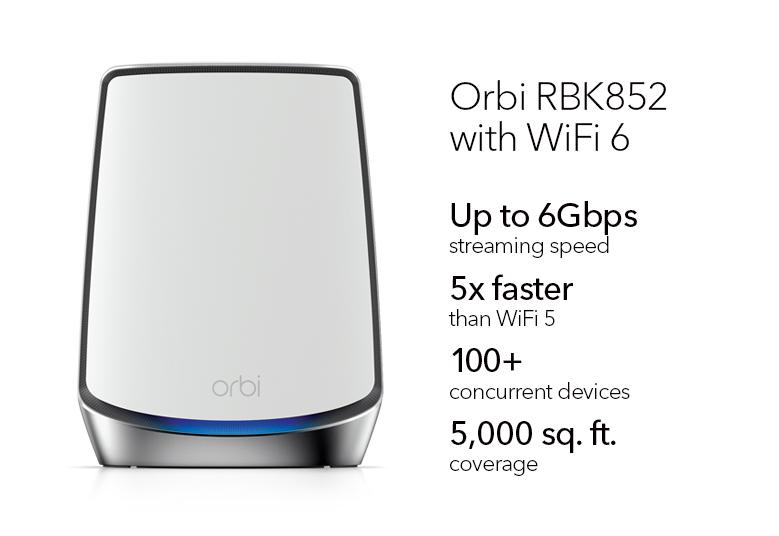

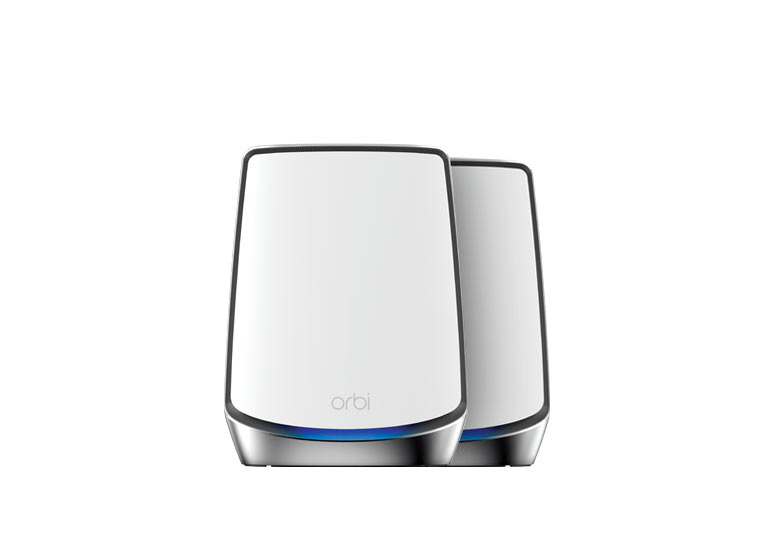

AX6000 WiFi Mesh System (RBK852)
Orbi 850 Series Tri-band WiFi 6 Mesh System, 6Gbps, Router + 1 Satellite
AX6000 WiFi Mesh System (RBK852)
Orbi 850 Series Tri-band WiFi 6 Mesh System, 6Gbps, Router + 1 Satellite
Get up to 5,000 sq. ft. of coverage and 6Gbps of blazing-fast, consistent mesh WiFi speeds. Simultaneously stream, game and video call on 100+ devices in every corner of your home.
NEW MODEL AVAILABLE
Orbi 860 series now available with upgraded antenna design and 10 Gig internet port.
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
ENGINEERED FOR BLAZING FAST WIFI
Orbi is engineered for more efficient data transmission through our exclusive Tri-Band Mesh technology. The result is faster WiFi performance that doesn't degrade across the house.
UNSTOPPABLE STREAMING
Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.
THE BEST COVERAGE.
PERIOD.
Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.
Which Orbi is right for you?
Answer a few questions and we'll find the perfect solution for your home
ESSENTIAL ALL-IN-ONE INTERNET SECURITY
You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.
EASY SETUP
- Download the Orbi app
and follow instructions. - Connect Orbi Router to
your modem and power. - Place and power Orbi Satellite
in another part of your home.
TAP. MANAGE.
CONTROL.

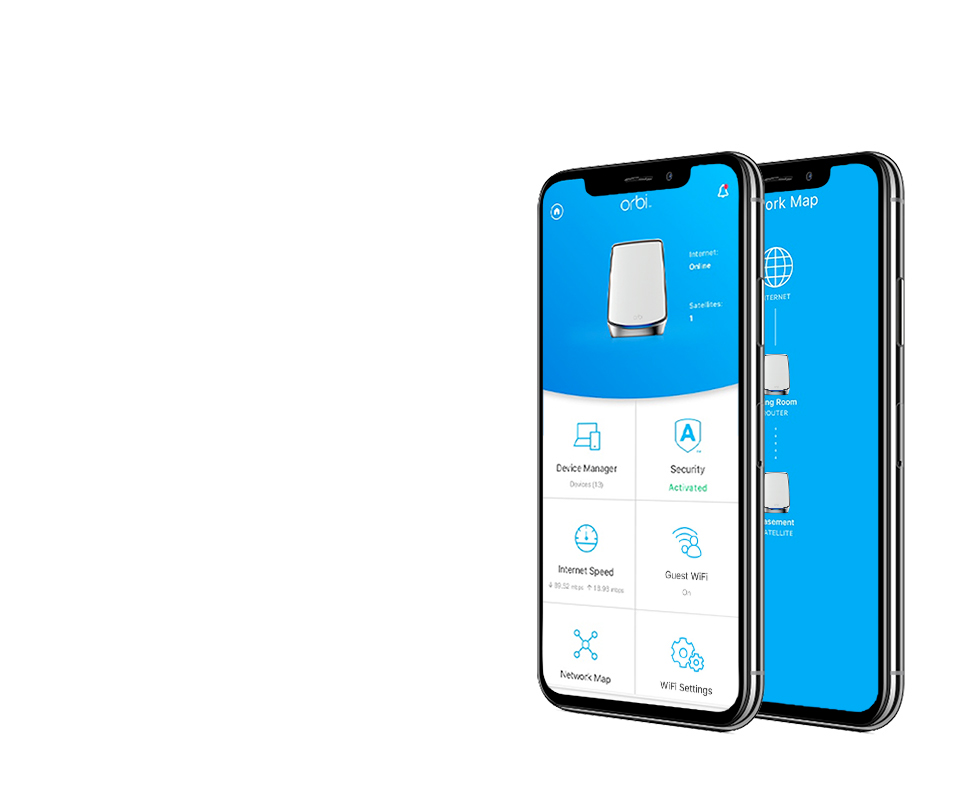

Orbi App
Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.
Technical Specifications
- Mesh WiFi 6 Router (RBR850) : Dimensions: 10 x 2.8 x 7.5in, Weight: 2.86lb
- Mesh WiFi 6 Satellite (RBS850) : Dimensions: 10 x 2.8 x 7.5in, Weight: 2.86lb
- WiFi Coverage : 5,000 sq. ft.
- Antennas : Eight (8) high performance internal antennas with high-powered amplifiers
- Beamforming : Beamforming: Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands MU-MIMO capable for simultaneous data streaming to multiple devices
- Processor : Powerful Quad-Core 2.2 GHz processor
- WiFi Performance : AX6000 Tri-Band WiFi : 2.4GHz (1200Mbps†) + 5GHz (2400Mbps†) for WiFi devices to connect to the Internet. 5GHz (2400Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite

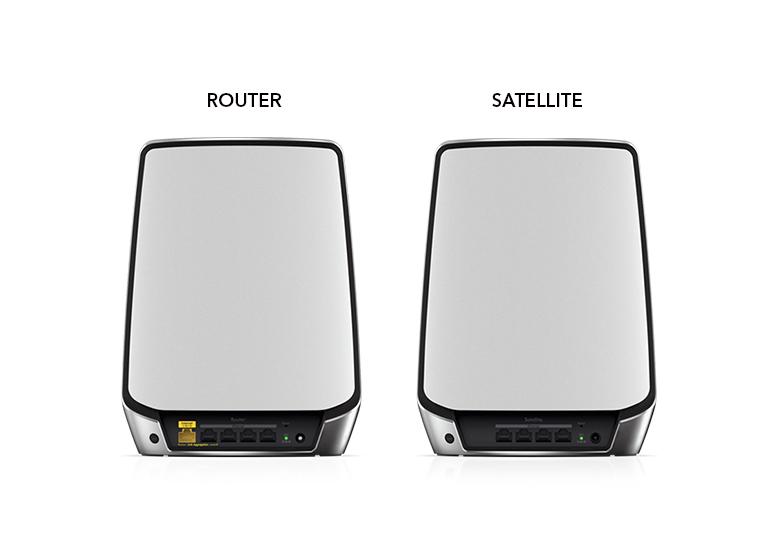

- Ports : A 2.5 Gbps WAN port and 4 LAN Gigabit Ethernet ports
- Memory : 512MB NAND Flash and 1GB RAM
- Security : Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK). Guest WiFi Network is easy to setup separate & secure Internet access for guests
- Works with Amazon Alexa and the Google Assistant : Yes
- This product is backed by a NETGEAR limited 1-year Hardware Warranty
- WARRANTY
- Find troubleshooting tips to diagnose product issues in our knowledge base
- Support
- Extend your warranty & technical support within 90 days of product purchase [US only].
- †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6,000Mbps wireless speeds achieved when connecting to other 802.11ax 6,000Mbps devices.
- One (1) Orbi Router (RBR850)
- One (1) Orbi Satellite (RBS850)
- One (1) 2m Ethernet cable
- Two (2) 12V/3.5A power adapters
- Quick start guide
- Mesh WiFi 6 Router (RBR850) : Dimensions: 10 x 2.8 x 7.5in, Weight: 2.86lb
- Mesh WiFi 6 Satellite (RBS850) : Dimensions: 10 x 2.8 x 7.5in, Weight: 2.86lb
- Antennas : Eight (8) high performance internal antennas with high-powered amplifiers each
- WiFi Technology : AX6000 Tri-Band WiFi : 2.4GHz (1200Mbps†) + 5GHz (2400Mbps†) for WiFi devices to connect to the Internet. 2.4 Gbps (1200Mbps†) dedicated WiFi link for faster data connections between Orbi Router and Orbi Satellite
- Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands. MU-MIMO capable for simultaneous data streaming to multiple devices
- Processor : Powerful Quad-Core 2.2GHz processor
- Satellite Ports : 4 LAN Gigabit Ethernet ports each
- This product is backed by a NETGEAR limited 1-year Hardware Warranty
- WARRANTY
- Find troubleshooting tips to diagnose product issues in our knowledge base
- Support
- Extend your warranty & technical support within 90 days of product purchase [US only].
- †Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6,000Mbps wireless speeds achieved when connecting to other 802.11ax 6,000Mbps devices.
- One (1) Orbi Router (RBR850)
- One (1) Orbi Satellite (RBS850)
- One (1) 2m Ethernet cable
- Two (2) 12V/3.5A power adapters
- Quick start guide
Compare Similar Products

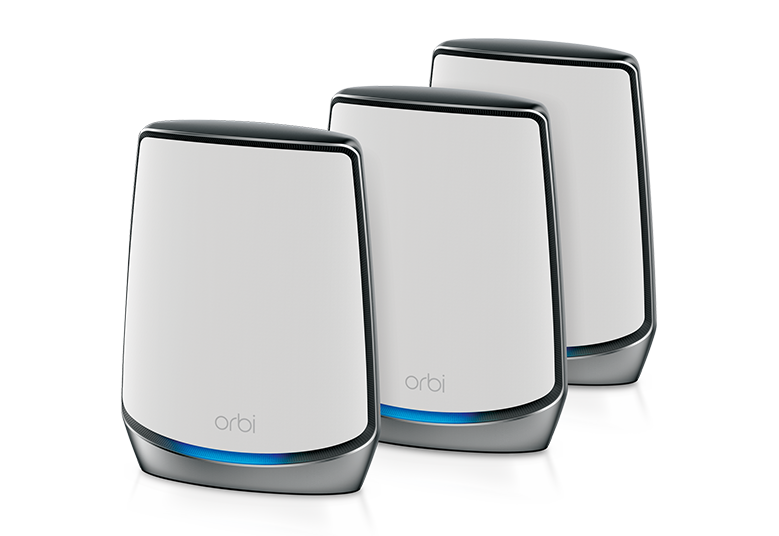

RBK853 |
RBKE963B |
RBK863SB |
|
|---|---|---|---|
|
|
|
|
|
|
WiFi 6 / 6E |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6E |
WiFi 6 / 6E WiFi 6 |
|
WiFi Bands |
WiFi Bands Tri-Band |
WiFi Bands Quad-Band |
WiFi Bands Tri-Band |
|
Max WiFi Speed |
Max WiFi Speed 6 Gbps |
Max WiFi Speed 10.8 Gbps |
Max WiFi Speed 6 Gbps |
|
Coverage |
Coverage 7,500 sq. ft. |
Coverage 9,000 sq ft |
Coverage 8,000 sq. ft. |
|
# of Devices |
# of Devices 100 |
# of Devices 200 |
# of Devices 100 |
|
Internet Port Speed |
Internet Port Speed up to 2 Gig |
Internet Port Speed up to 10 Gig |
Internet Port Speed up to 10 Gig |
|
Dedicated WiFi Backhaul |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
|
Fronthaul WiFi |
Fronthaul WiFi 5GHz: 4x4 (80MHz); 2.4GHz: 4x4 |
Fronthaul WiFi 6GHz: 4x4 (160MHz), 5GHz: 4x4 (80MHz), 2.4GHz: 4x4 |
Fronthaul WiFi 5GHz: 4x4 (80MHz); 2.4GHz: 4x4 |
|
Total Wired Ethernet Ports (Router) |
Total Wired Ethernet Ports (Router) One (1) 2.5Gbps multi-Gigabit Ethernet WAN port, Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports |
|
Total Wired Ethernet Ports (Each Satellite) |
Total Wired Ethernet Ports (Each Satellite) Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) Four (4) 1Gbps Gigabit Ethernet LAN ports |
