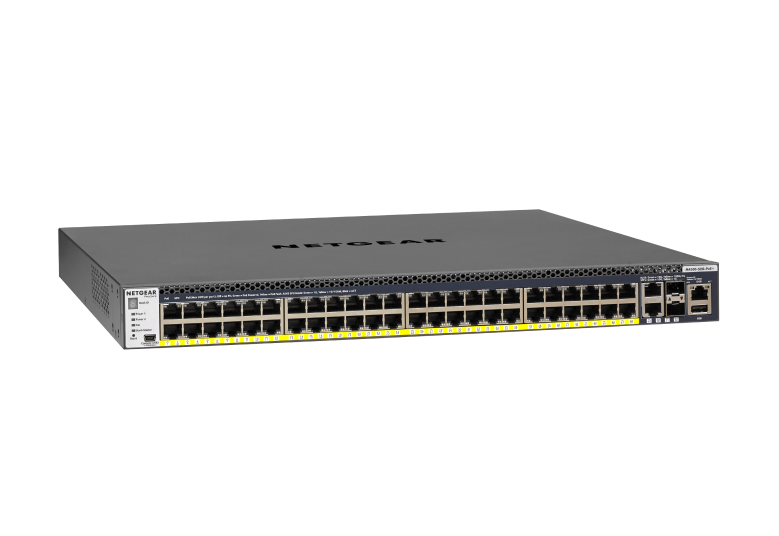

Full-Width 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU) (GSM4352PA) GSM4352PA

M4300-52G-PoE+ (GSM4352PA) armor

48x1G PoE+ 480W, 2x10G, 2xSFP+ Managed Switch armor

M4300-52G-PoE+ (GSM4352PA)

48x1G PoE+ 480W, 2x10G, 2xSFP+ Managed Switch armor

Full-Width 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU) (GSM4352PA)

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Business Continuity Management

Full-width switches offer dual redundant, modular power supplies (select m4300 models)

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Fiber Ports

48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper

Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient

Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks

Mix & Match Stacking

Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow

With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to

Industry Standard

SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)

Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

No Delay

Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

M4300_52G_PoE_plus-550W-PSU_tech_specs_image_1
M4300_52G_PoE_plus-550W-PSU_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

  • Support
  • Hardware Specifications : 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)
  • Ordering Number : GSM4352PA
  • Acoustics : 39.8dB @ 25°C (77°F)
  • Power Consumption (Max) : 865 Watts
  • 1G RJ45 Ports : 48 x 10/100/1000
  • 10G RJ45 Ports : 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
  • 10G Fiber SFP+ Ports : 2 x SFP+ (1G and 10G speeds)
  • Power over Ethernet : 48 x PoE+ 30W
  • PoE Budget (Watts) : 480W PoE Budget with 1 PSU @ 110V / 220V AC input
  • 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input
  • 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input
  • External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode
  • Feature Set : Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
  • Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • RS232 straight-through serial RJ45 for local management console
  • Mini-USB port for local management console
  • USB port for local storage, logs, configuration or image files
  • Form Factor : Full width with dual, redundant modular PSUs for business continuity
M4300_52G_PoE_plus-550W-PSU_tech_specs_image_1
M4300_52G_PoE_plus-550W-PSU_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • Support: ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

  • Support
  • Table Sizes : 128K MAC 8k ARP / NDP
  • Up to 960 Gbps
  • Throughput up to 714 Mpps
  • Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512
  • Latency : 0.9µs 10g
  • 1.25µs 10g
  • IP Multicast : ,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
  • PoE+ Options (30W per port) with hot swap & redundant PSUs options
