NETGEAR Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EPP offers 120W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc. GS305EPP GS305EPP-100PES GS305EPP-100PES

300 Series SOHO Plus (GS305EPP) armor

5-Port High Power PoE+ Gigabit Ethernet Plus Switch (120W)armor

Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EPP offers 120W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.

300 Series SOHO Plus (GS305EPP)

5-Port High Power PoE+ Gigabit Ethernet Plus Switch (120W)armor

Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EPP offers 120W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc.

EASY MANAGEMENT
Plug-and-play Plus switch fundamental network management features. No need for an IT expert or a complicated user manual, just configure your network with the user-friendly NETGEAR Web GUI
CONSUMER AND BUSINESS-FRIENDLY GUI
Easily manage and configure advanced features for your network simply through a responsive consumer and business-friendly web and mobile GUI
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
COMPREHENSIVE QOS
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video
MULTI-LANGUAGE SUPPORT
Context in 3 different languages (English, German, and Japanese)
PoE+ SUPPORT

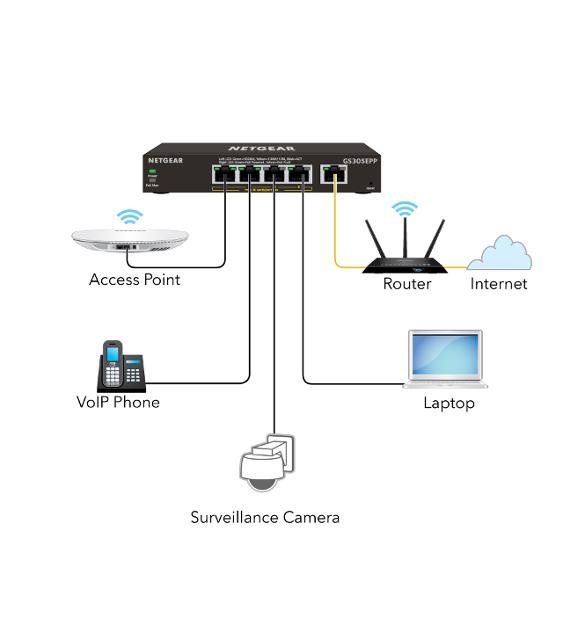

4 ports PoE+ for a total of 120W of power enabling powering of all types of PoE devices with a single wire deployment of power and network connectivity to PoE+ devices such as wireless AP, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices
ADVANCED PoE CONTROLS
Power management of the PoE connected devices by enabling and disabling PoE power per port, PoE prioritization, PoE power limit per port and more. Simplifies management of PoE powered devices
UNINTERRUPTED PoE
Keep PoE power on even when the switch is updating firmware or performing a software reboot
5 GIGABIT PORTS
Gigabit connection delivers up to 1000 Mbps of dedicated, non-blocking bandwidth per port
FANLESS & VERSITILE MOUNTING
Completely silent operation within a desktop small form factor, and also wall-mountable
NON-BLOCKING SWITCHING
10Gbps (10/100/1000 Mbps) line rate fabric for great connectivity to your devices without congestion
COST-EFFECTIVE
Businesses do not necessarily have budget or advanced network training to deal with complex managed switches, the GS305EPP offers affordable management features for a small additional cost above an Unmanaged switch

Technical Specifications

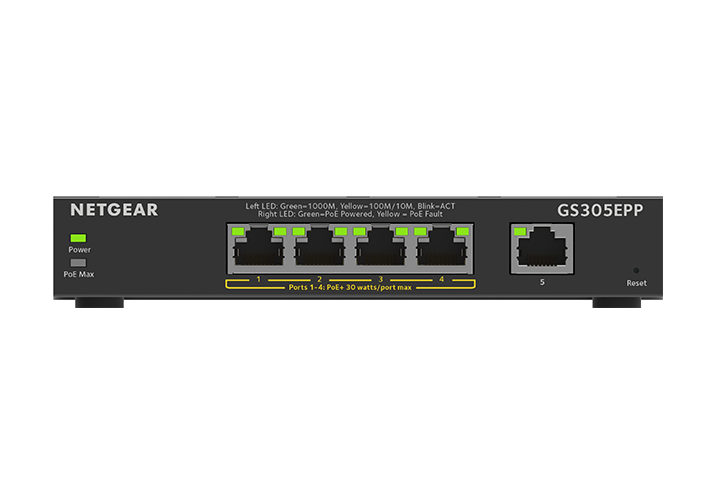

Tech-Specs-Image-1

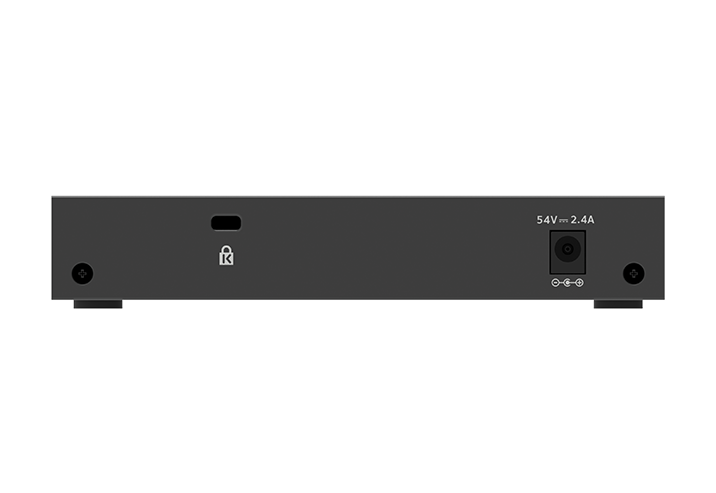

Tech-Specs-Image-2
  • Dimensions (W x D x H) : 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)
  • Weight : 0.40 kg (0.88 lb)
  • Speed : Gigabit
  • Total PoE+ Ports : 4
  • Total PoE+ Budget : 120
  • Uninterrupted PoE : Yes
  • Bandwidth : 10Gbps
  • Max Mac Entries : 4K
  • Buffer Size : 192KB
  • Energy Efficient Ethernet (IEEE 802.3az) : Yes
  • Priority Queuing : WRR
  • Jumbo Frame Support : 9,216 bytes
