NETGEAR Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality! GSM4212PX GSM4212PX GSM4212PX

AV Line M4250-10G2XF-PoE+ (GSM4212PX) armor

8x1G PoE+ 240W 2x1G and 2xSFP+ Managed Switcharmor

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations

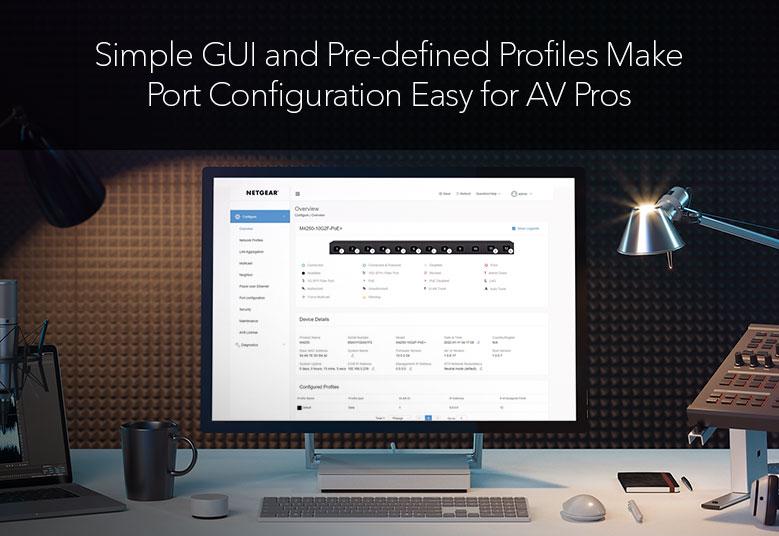

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Rackmount versatility

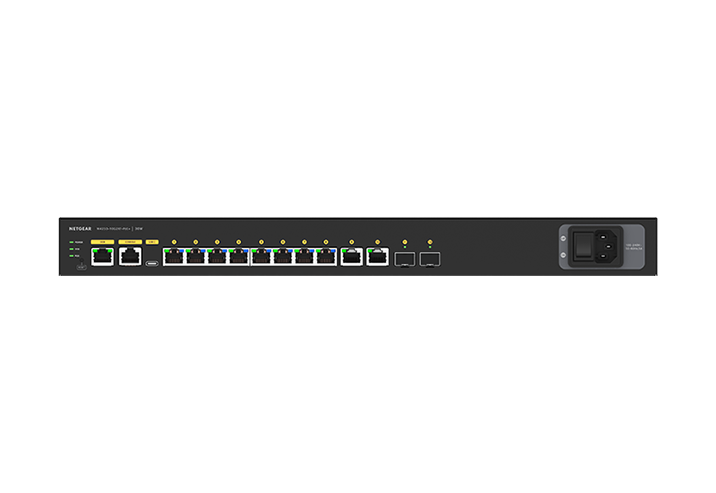

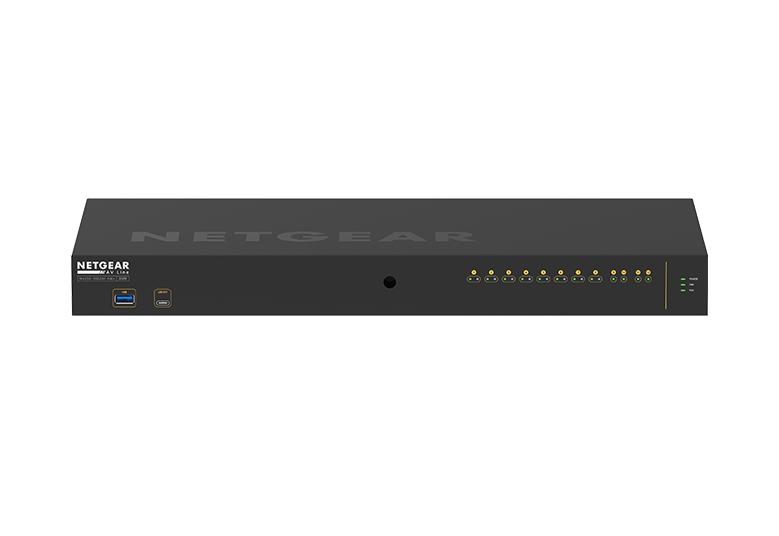

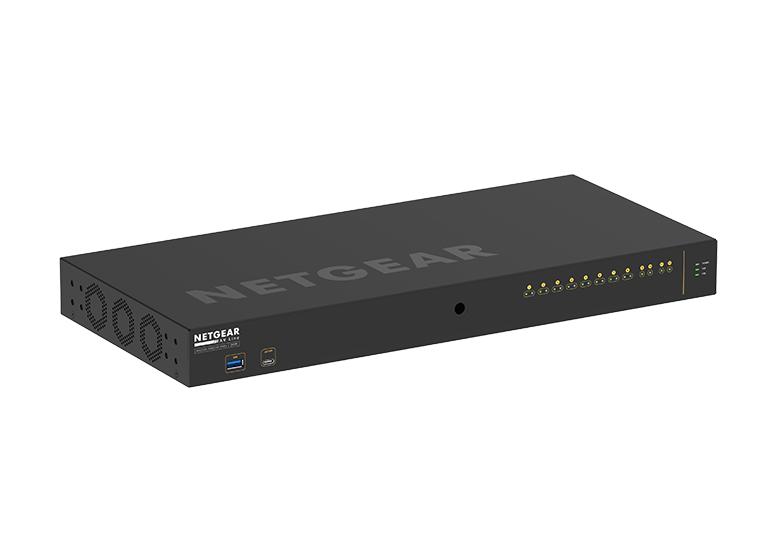

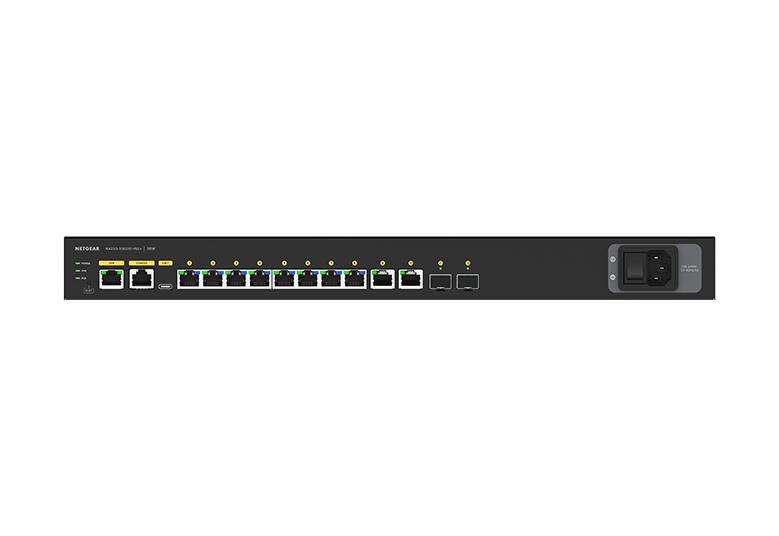

1U, 200mm deep rackmount with all power and Ethernet ports on the back
Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables
Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes
Adjustable fan functionality
Quiet mode with 39.22dB@25ºC (all ports used, 240W PoE), fanless mode with max 25ºC ambient, 35ºC internal sensor
Multi-switch audio or single-switch video deployments

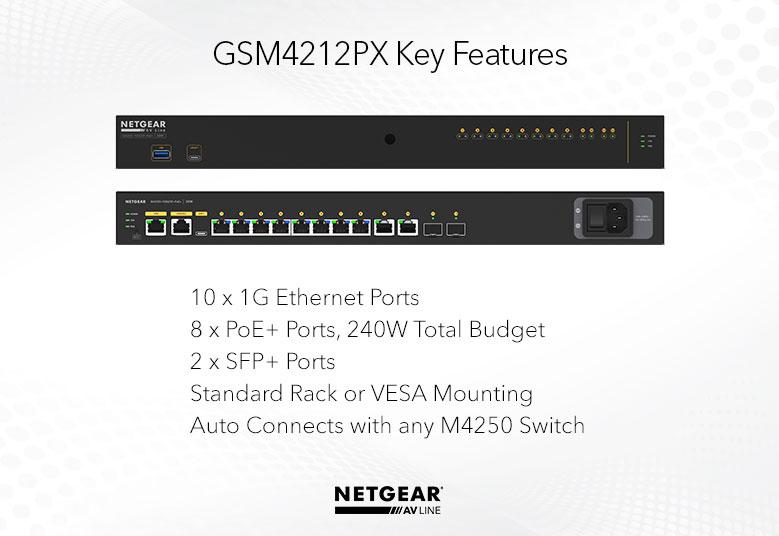

8x1G PoE+ with 240W PoE budget with 2x1G additional ports and 2xSFP+ 1G fiber uplinks
Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

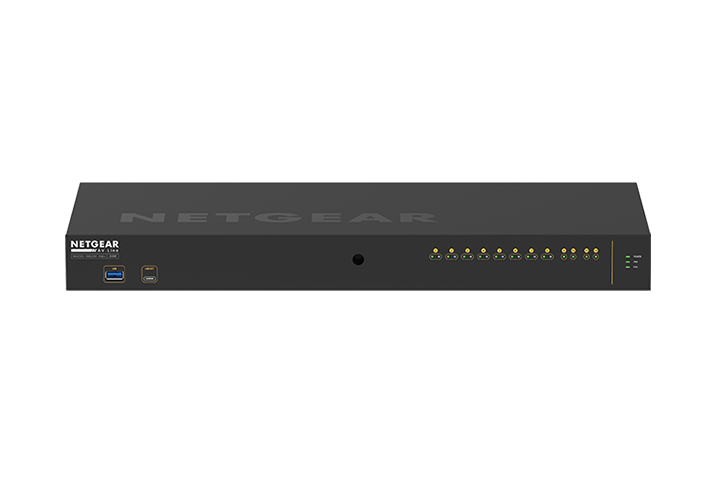

Technical Specifications

  • Dimensions (WxDxH) : 440 x 200 x 43.2mm
  • Weight : 2.9Kg (6.39lb)
  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 12 (10x 1G, 2x SFP+)
  • PoE Ports / Budget : 8 PoE+ (30W/port), 240W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • Acoustics : Fanless or 39.22dB@25ºC
  • Power Consumption : With PoE: 306.4W/1046.050Btu/hr; Without PoE: 25W/85.35Btu/hr; Standby without any port connection: 12.96W/44.245Btu/hr
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212PX-10000S)

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at within 90 days of purchase; see for details. Intended for indoor use only.

  • Support : Phone and chat technical support provided for 90 days from purchase date.
  • What's in the Box : M4250-10G2XF-PoE+ (GSM4212PX)
  • Power cord(s)
  • Console USB Type-C and RJ45-DB9 cables
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting
  • Rubber footpads for tabletop installation
  • Installation guide
