Orbi WiFi System (RBK30) AC2200

Great WiFi for smaller homes

Plug-in Convenience

In a hallway or kitchen, garage or basement, the Wall Plug Satellite only needs an electrical outlet to deliver great WiFi. Without any cords you now have new options for placement and get create WiFi to every room of your house. This Orbi WiFi System (RBK30) comes with an Orbi WiFi Router and Wall Plug Satellite and covers up to 3,500 square feet with high performance AC2200 WiFi.

Plug-in Strong WiFi

The Orbi wall plug satellite provides new flexibility on where you expand WiFi coverage.

Better WiFi. Everywhere.

  • Speed & Coverage

    Get more than 100Mbps Internet speed over 3,500 square feet range*

  • Single SSID

    Enjoy a single WiFi network name for your entire home

  • Easy Set Up

    Use the Orbi app or any web browser to create secure whole home WiFi in minutes.

  • Tri-band WiFi

    Innovative Tri-band WiFi helps maximize the Internet speeds available in your home.

COLOR LEDs

Orbi gently glows the status of your WiFi & automatically turns off when you have a strong connection.

Flip to Back
DEDICATED BACKHAUL
HIGH PERFORMANCE ANTENNAS

A dedicated backhaul connection gives you the best performance achievable with any internet connection.

Front haul Tx/Rx: 2x2 (2.4GHz) + 2x2 (5GHz)

Dedicated Backhaul Tx/Rx: 2x2 (5GHz Tri-band)

Four High-Performance Internal Antennas maximizing WiFi speeds and range to up to 1500 sq. ft.

Flip to Back
POWERFUL PROCESSOR
SLEEK DESIGN

Quad-Core 710MHz Processor

Implicit & Explicit Beamforming for intelligent directional broadcasting to your wireless devices giving you faster speeds and better signal

MU-MIMO capable for simultaneous buffer-free streaming to multiple devices at a time

Fan-less design for quiet yet powerful operation behind the scenes

Wall plug form factor for placement in any room without blocking any additional wall outlets

Tech specs

Combined WiFi speed 2,200 Mbps (400 + 866 + 866Mbps)
Coverage 3,500 sq ft
Dedicated Backhaul 2x2 (866 Mbps)
WiFi Technology Tri-band
Memory 128MB Flash and 256MB RAM
MU-MIMO Capable Yes
Antennas Four (4) high-performance antennas
Dimensions 6.4 x 3.1 x 8.0in (Router), 3.3 x 3.0 x 6.34in (Satellite)
Weight 1.65lb (Router), 0.67lb (Satellite)

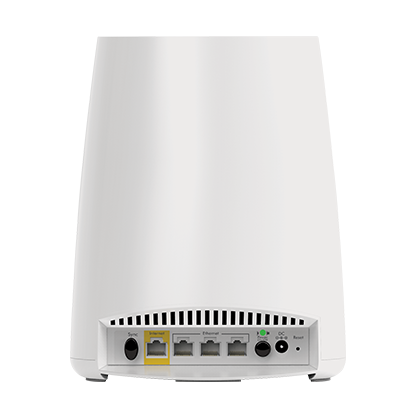

Gigabit Ethernet ports (Router) 1 WAN and 3 LAN
Beamforming Yes
Works with Orbi OS Yes
Orbi App Yes
Guest WiFi network Yes
WPA/PSK2 support Yes
Works with Amazon Alexa & the Google Assistant Yes
Show All Tech Specs Show Less Tech Specs

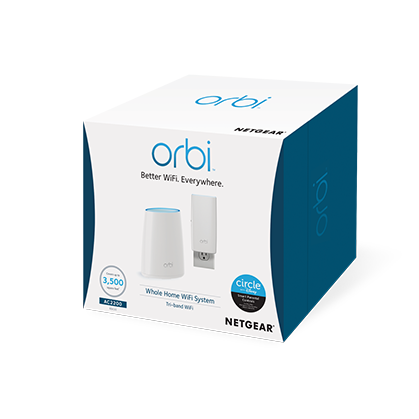

What’s in the box

  • One (1) Orbi Router (RBR40)
  • One (1) Orbi Wall Plug Satellite (RBW30)
  • One (1) 2m Ethernet cable
  • One (1) 12V/2.5A power adapter
  • Quick start guide

Orbi WiFi System (RBK30) AC2200

Cover up to 3,500 square feet with high performance AC2200 WiFi.
