NETGEAR As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit and Multi-Gigabit Plus Switches from NETGEAR present the right solution for this requirement; delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable cost. All of them are perfect for removing the SMB network bottlenecks caused by the proliferation of Gigabit-to-the-desktop and the upcoming 10-Gigabit/Multi-Gigabit high end workstations. XS512EM XS512EM-100EUS XS512EM-100EUS

10-Gigabit/Multi-Gigabit Plus (XS512EM) armor

12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Portsarmor

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit and Multi-Gigabit Plus Switches from NETGEAR present the right solution for this requirement; delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable cost. All of them are perfect for removing the SMB network bottlenecks caused by the proliferation of Gigabit-to-the-desktop and the upcoming 10-Gigabit/Multi-Gigabit high end workstations.

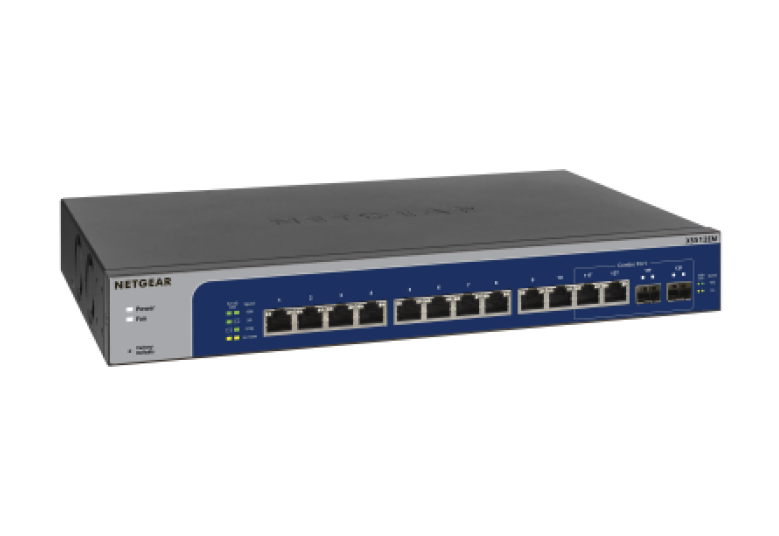

10-Gigabit/Multi-Gigabit Plus (XS512EM)

12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Portsarmor

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit and Multi-Gigabit Plus Switches from NETGEAR present the right solution for this requirement; delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable cost. All of them are perfect for removing the SMB network bottlenecks caused by the proliferation of Gigabit-to-the-desktop and the upcoming 10-Gigabit/Multi-Gigabit high end workstations.

10GBASE-T Connections

Support low-latency, line-rate 10G Copper “BASE-T” technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat 6 RJ45 short connections (up to 45m) and Cat 6a / Cat 7 connections up to 100m.

10GBASE-X SFP+ ports

Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links. Backward compatible to Gigabit fiber. Support copper or fiber modules.

Multi-Gigabit Connections

Support line-rate 2.5G/5G "NBASE-T" technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Upgrade your current network without upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run 5G and 2.5G over connections up to 100m.

Comprehensive QoS Features

Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network.

Port-based or 802.1p-based prioritization

Layer 3-based (DSCP) prioritization

Port-based ingress and egress rate limiting

IGMP Snooping

For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.

Loop Detection / Auto DoS Prevention

Detect accidental network loops and protect against DoS (Denial of Service) attacks.

Port-based & 802.1Q-based VLANs

Segment network into smaller groups for more secure and efficient use of network resources.

Port Trunking / Link Aggregation (LAG)

Build up bigger bandwidth to support aggregated uplink/downlink traffic.

Energy Effiecient Ethernet (IEEE 802.3az)

For maximum power savings and reduced energy costs.

Port Mirroring

For better and quicker network diagnostics and troubleshooting.

Cable Test

Easily identify bad Ethernet cables.

Technical Specifications

XS512EM_tech_specs_image_1
XS512EM_tech_specs_image_2
  • Dimensions (W x D x H) : 328 x 204 x 43 mm (12.9 x 8.0 x 1.7 in)
  • Weight : 2.51kg (5.54 lb)
  • 100M/1G/2.5G/5G/10G RJ-45 copper ports : 12
  • SFP+ Ports : 2 (shared)
  • Form Factor : Rackmount
  • Packet buffer memory : 3MB
  • Bandwidth : 240Gbps
  • MAC Address database size : 32K
  • VLAN (# supported) : 64
  • Number of LAGs & number of members : 8 LAGs with max 8 members in each LAG
  • Supported multicast groups : 128
  • Max number of source ports allowed (many to one port mirroring) : 11
  • Fan(s) : 2 (active fans)
  • IEEE 802.3az (Energy Efficient Ethernet) : Yes
  • Max power consumption (Watts) : 76.56W
  • LEDs : Power, Speed, Fan, Link/Activity
  • Acoustic noise level @ 25° C (dBA) : 29.3dBA
  • Operating temperature : 0° to 50° C
  • Electromagnetic compliance (A or B) : A

    • Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
