NETGEAR On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation / Port Trunking on models with 16 ports or more, rate limiting and traffic monitoring. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide. GS108E GS108E-300UKS GS108E-300UKS

Gigabit Plus Switch Series (GS108E) armor

8-Port Gigabit Plus Switcharmor

On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation / Port Trunking on models with 16 ports or more, rate limiting and traffic monitoring. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

Gigabit Plus Switch Series (GS108E)

8-Port Gigabit Plus Switcharmor

On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation / Port Trunking on models with 16 ports or more, rate limiting and traffic monitoring. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

Traffic Management
Auto Negotiation of speed and duplex modes
802.3x Flow Control
DHCP Client
Dynamic MAC address management
IEEE 802.1Q-based or port-based VLAN
QoS based on WRR, strict priority, or both
Port-based and IEEE 802.1p-based QoS
QoS based on ToS (Type-of-Service)
DSCP Support (GS105E and GS105PE only)
Rate Limiting
Link Aggregation / Port Trunking (Static LAGs on 16 ports and 24 ports, Static LAGs and LACP on 48 ports)
Switch Management
Switch discovery on MAC or PC using the NETGEAR Switch Discovery Tool
Advanced configuration and management using web browser-based GUI
Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
Firmware upgrade thru ProSAFE Plus Utility (TFTP) or web browser-based GUI
Configuration upload (to Server)
System password protection
Multi-language support (varies by model, see datasheet for specifics)
IGMP snooping, v1, v2 and v3
Blocking of unknown multicast traffic
Act as static multicast router port
Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
Power savings with short cable detection and auto power-down when ports are in idle mode

Technical Specifications

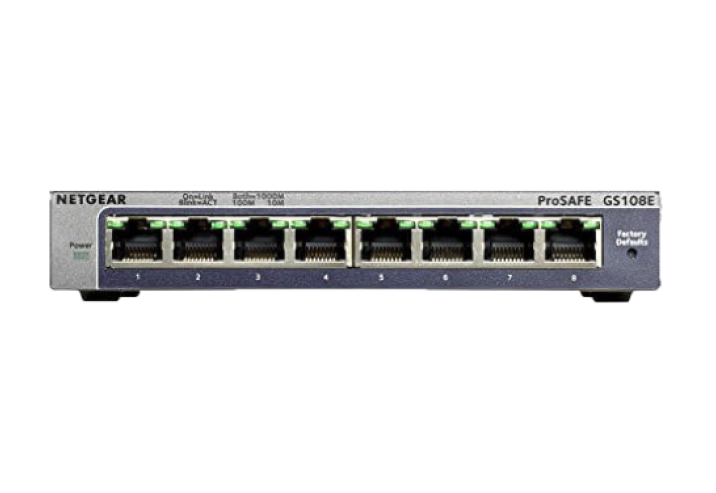

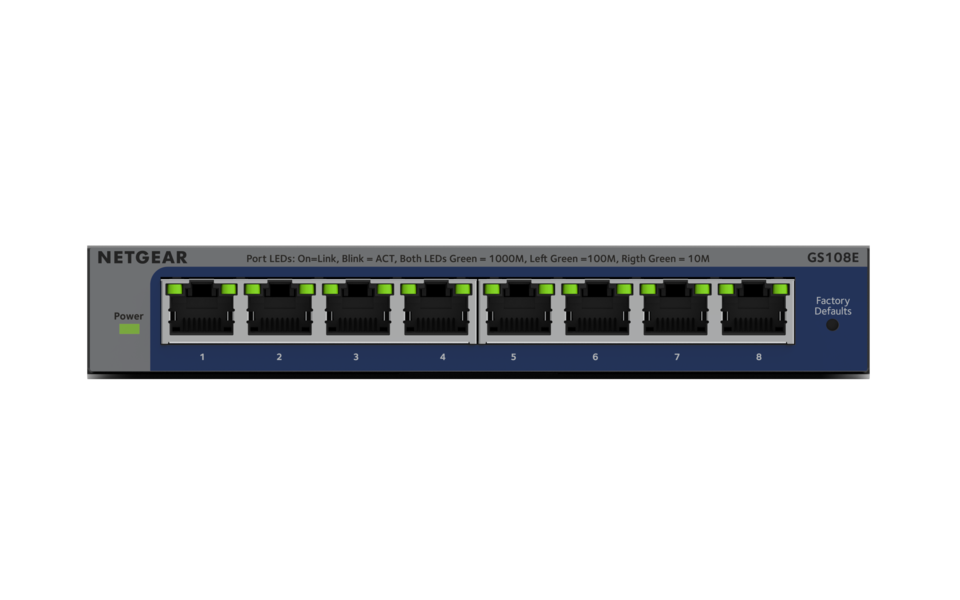

GS108E_tech_specs_image_1

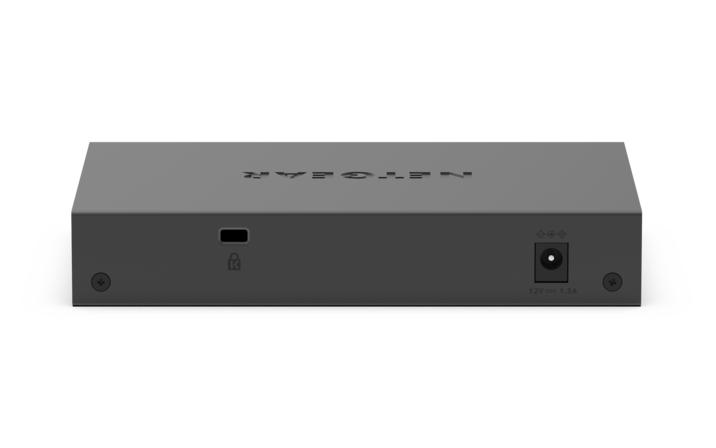

GS108E_tech_specs_image_2
  • Weight (kg) : 0.55
  • Dimensions (WxDxH) mm : 158x105x27
  • Gigabit Ports : 8
  • 10 Gbps Ports : n/a
  • Number of PoE ports : n/a
  • Total PoE Power budget (Watts) : n/a
  • Max MAC entries : 4K
  • Buffer size : 192KB
  • VLAN (Number Supported) : 32
  • Number of LAGs & number of members : n/a
  • Supported Mulitcast groups : 128
  • Max number of source ports allowed (many to 1) : 7
  • Power Supply : External
  • Power Input : 12V/0.5A
  • Power Max consumption (Watts) : 4.45 maximum
  • Fans : 0
  • Acoustic Noise Level @25C (dBA) : 0
  • Operating Temperature : 0° to 40° C
  • MTBF : 2,525,259 hours
  • Electromagnetic Compliance (A or B) : B
  • Support
    • This product is backed by a NETGEAR Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
    • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
