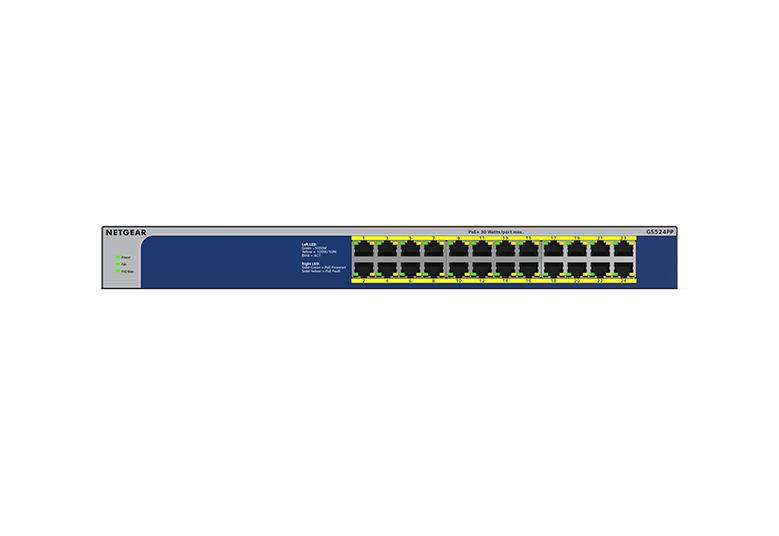

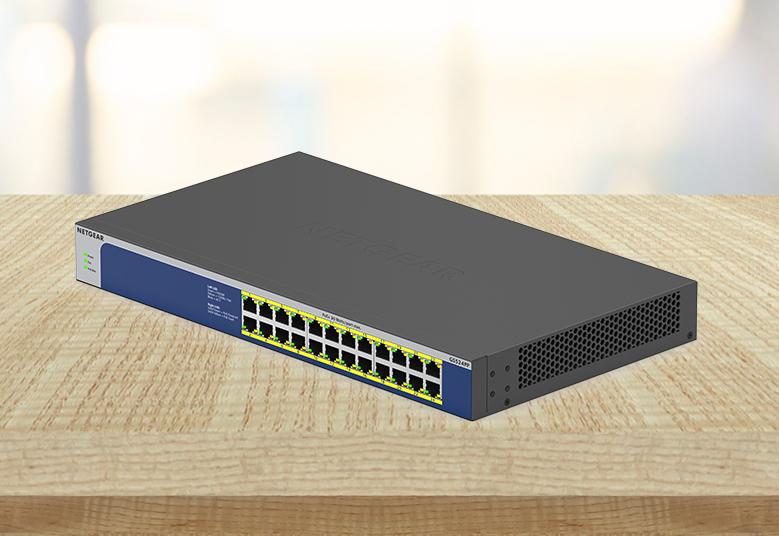

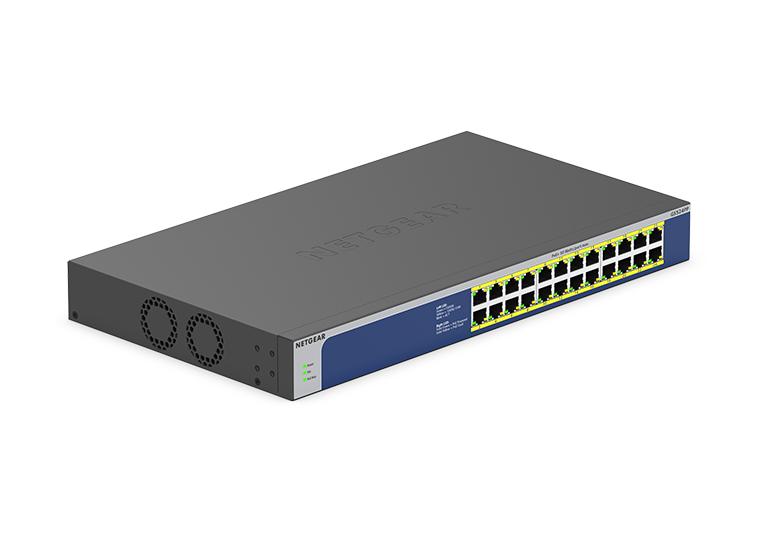

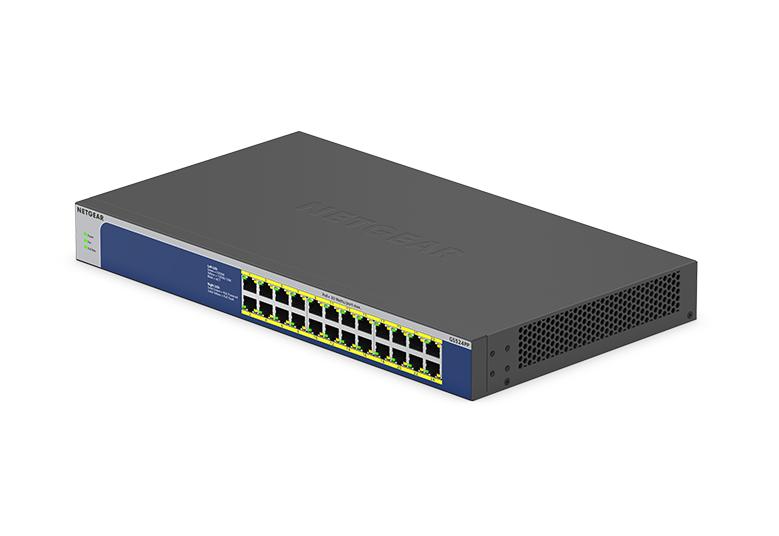

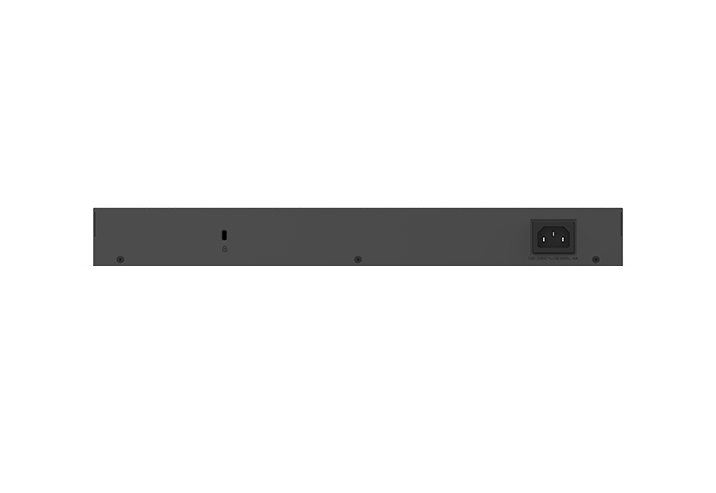

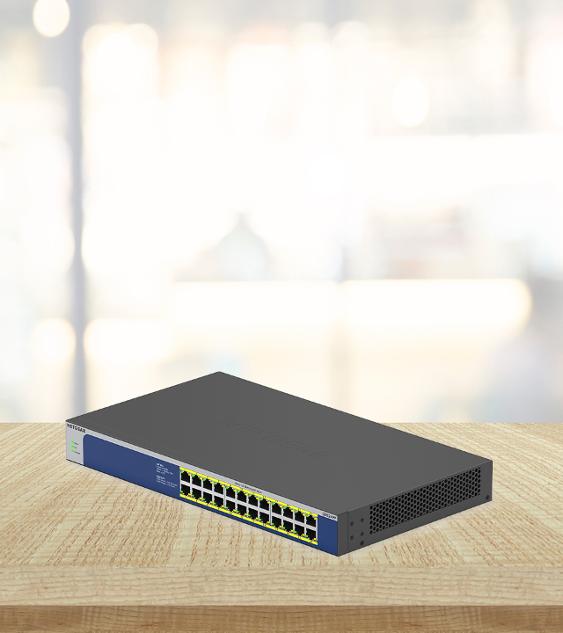

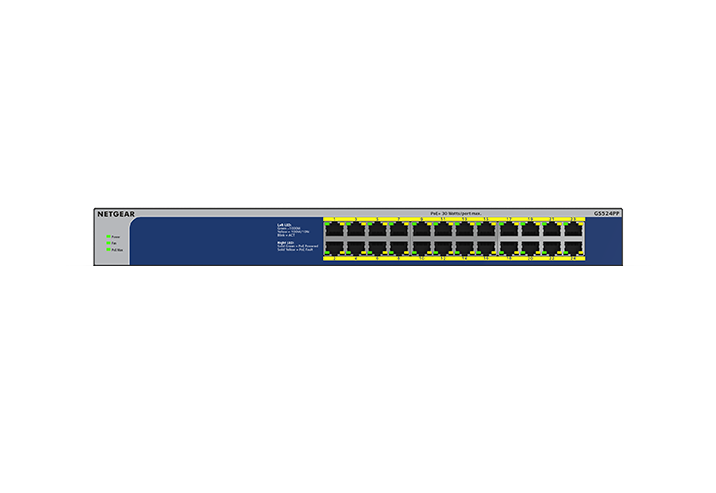

24-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (300W)

​Dimensions

390 x 220 x 43 mm (15.4 in. x 8.7 in. x 1.7 in.)

​Weight

2.89kg (6.37 lb)

Speed:

Gigabit

Number of Ports:

24

Number of PoE+ Ports:

24 PoE+ ports, up to 30W per port

PoE budget:

300W

Energy Efficient Ethernet Support (IEEE 802.3az):

Yes

Jumbo Frame Support:

9,216 bytes

MAC Table Size:

8K

Packet buffer size:

192 KB

IEEE 802.1p QoS:

Yes

Max Power Consumption:

359.5W / 12.9W

Fans:

2

Operating Temperature:

0° to 40°C (32° to 104°F)

MTBF (hours)

1,457,063 hrs

FCC Class:

Class A

Warranty

This product is backed by a NETGEAR Limited Lifetime Hardware Warranty. This product’s warranty is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies—not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details.
