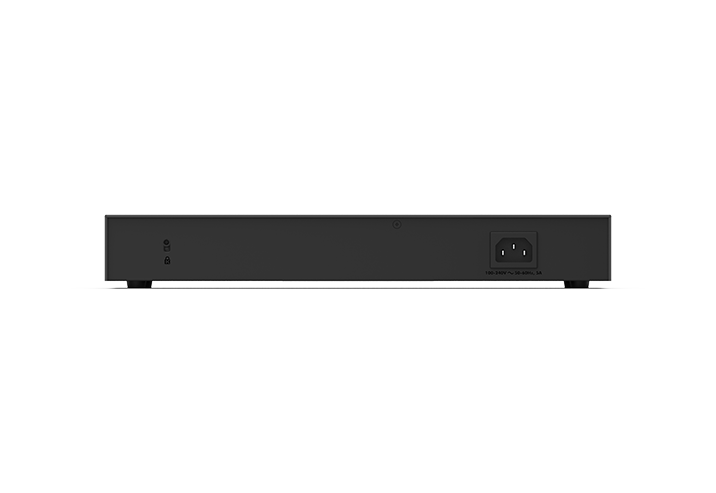

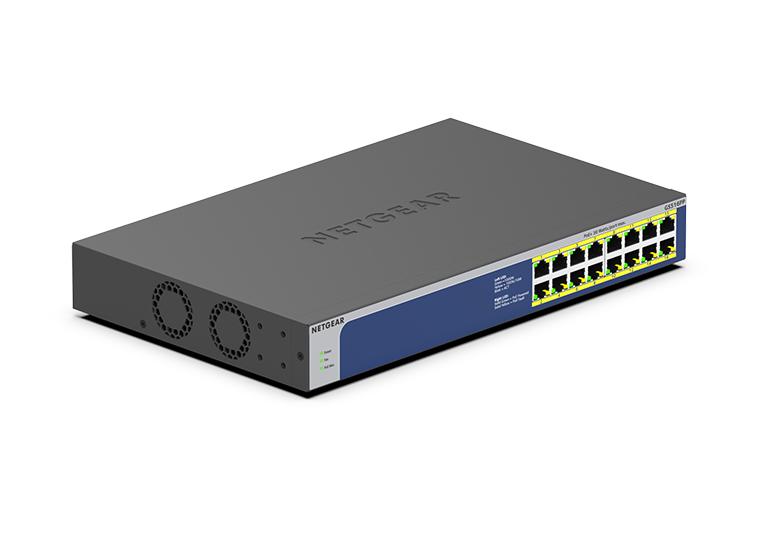

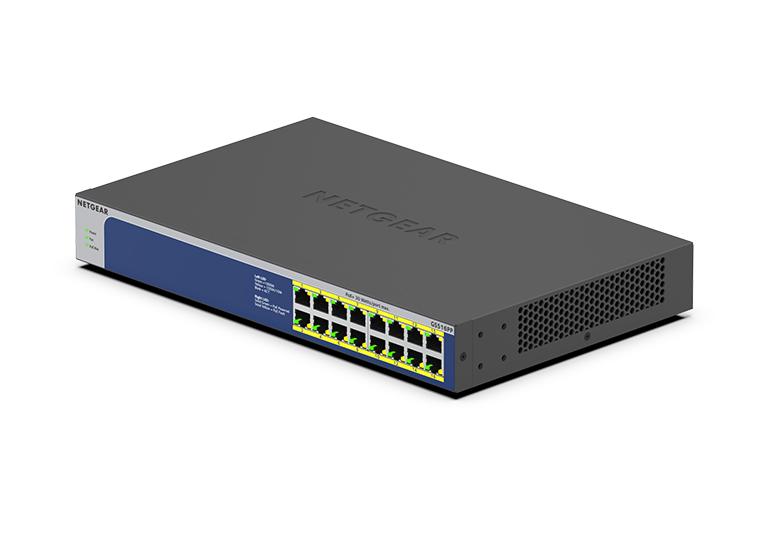

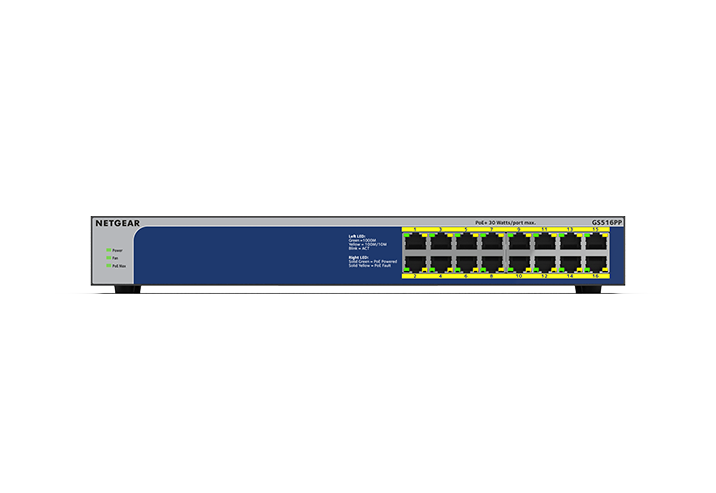

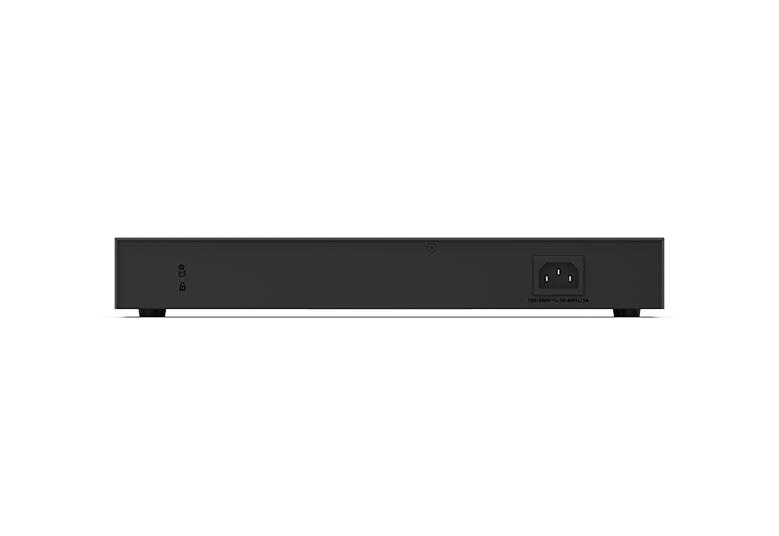

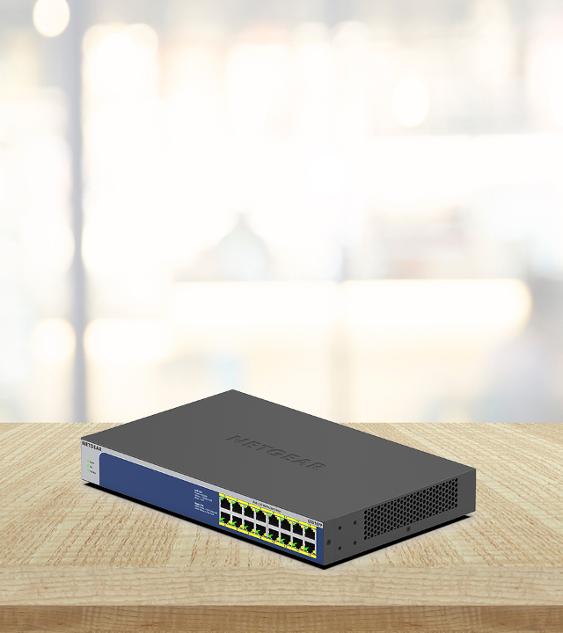

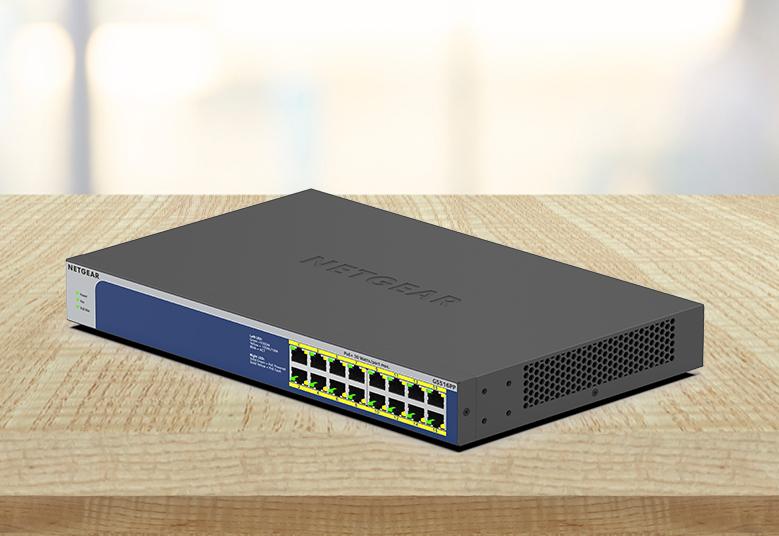

16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (260W)

Dimensions

330 x 207 x 43 mm (12.99 in. x 8.15 in. x 1.7 in.)

Weight

2.30kg (5.07 lb)

Speed:

Gigabit

Number of Ports:

16

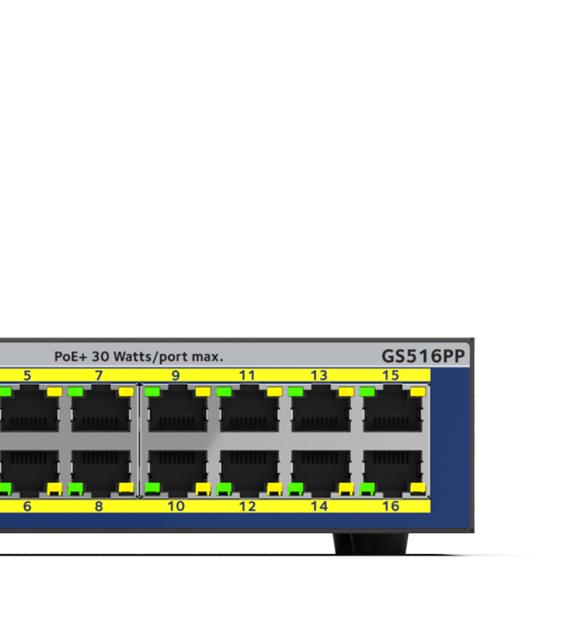

Number of PoE+ Ports:

16 PoE+ ports, up to 30W per port

PoE Budget:

260W

Energy Efficient Ethernet Support (IEEE 802.3az):

Yes

Jumbo Frame Support:

9,216 bytes

MAC Table Size:

8K

Packet buffer size:

192 KB

IEEE 802.1p QoS:

Yes

Max Power Consumption:

316.1W / 9.1W

Fans:

2

Operating Temperature:

0° to 40°C (32° to 104°F)

MTBF (hours):

2,415,333.9 hrs

FCC Class:

Class A

Warranty

This product is backed by a NETGEAR Limited Lifetime Hardware Warranty . This product’s warranty is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies—not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details.
