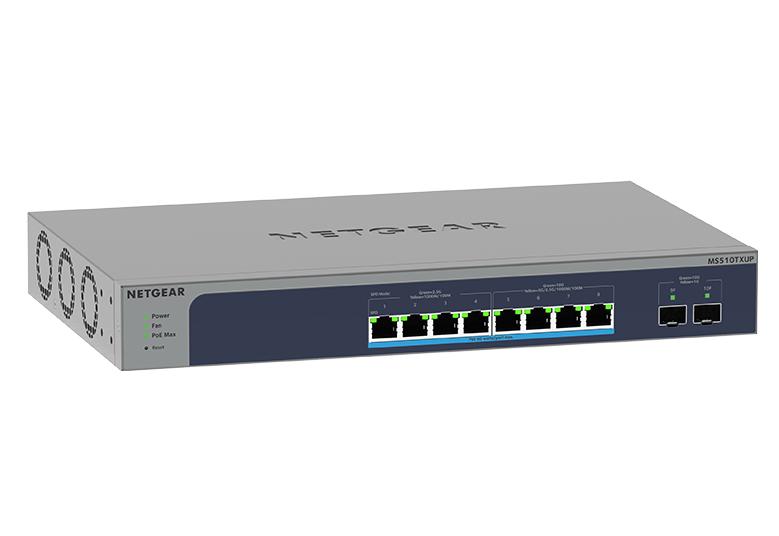

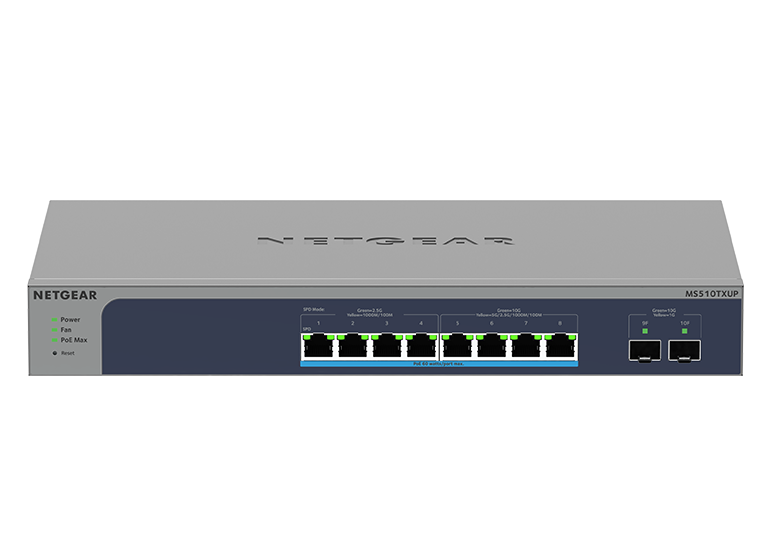

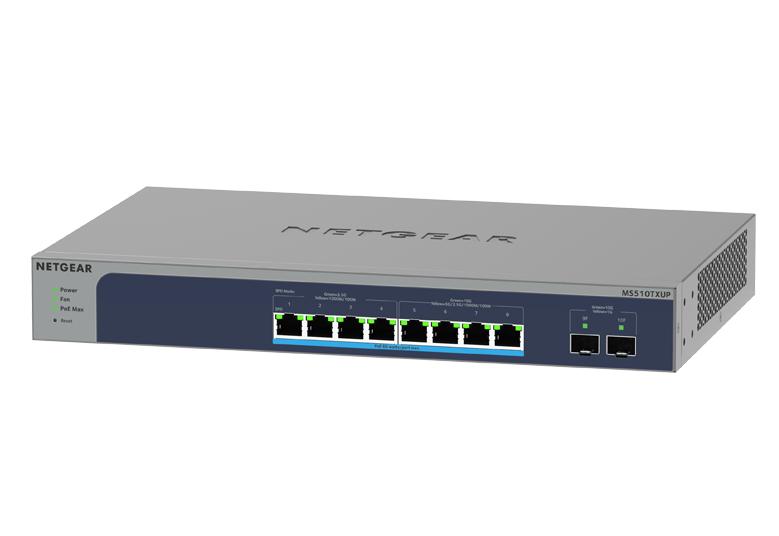

8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
MS510TXUP
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
1 / 9
8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
Ports
- 8 Ports
Port Types
- 4 x 1G/2.5G
- 4 x 10G/Multi-Gigabit
- 2 x 10G SFP+ Uplink
PoE Budget
- 295 Watts
Details
MS510TXUP
Ports
- 8 Ports
Port Types
- 4 x 1G/2.5G
- 4 x 10G/Multi-Gigabit
- 2 x 10G SFP+ Uplink
PoE Budget
- 295 Watts
Details
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Features
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP
Switch Management
Insight mobile app or Insight Cloud Portal
Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection
Security
MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions
TLS session
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)
Multicast Efficiency
IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping
Spanning Tree, Routing and Stacking
IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
NETGEAR IP Camera and WiFi Automation
Simplify the onboarding process of IP cameras and wireless access points to provide better Quality of Service (QoS) and auto-enabling multicast with the Auto-Camera and Auto-WiFi feature Provides classification for digital camera and wireless access point packets Automatically placed in a camera and wireless access point VLAN and then be prioritized above other packets

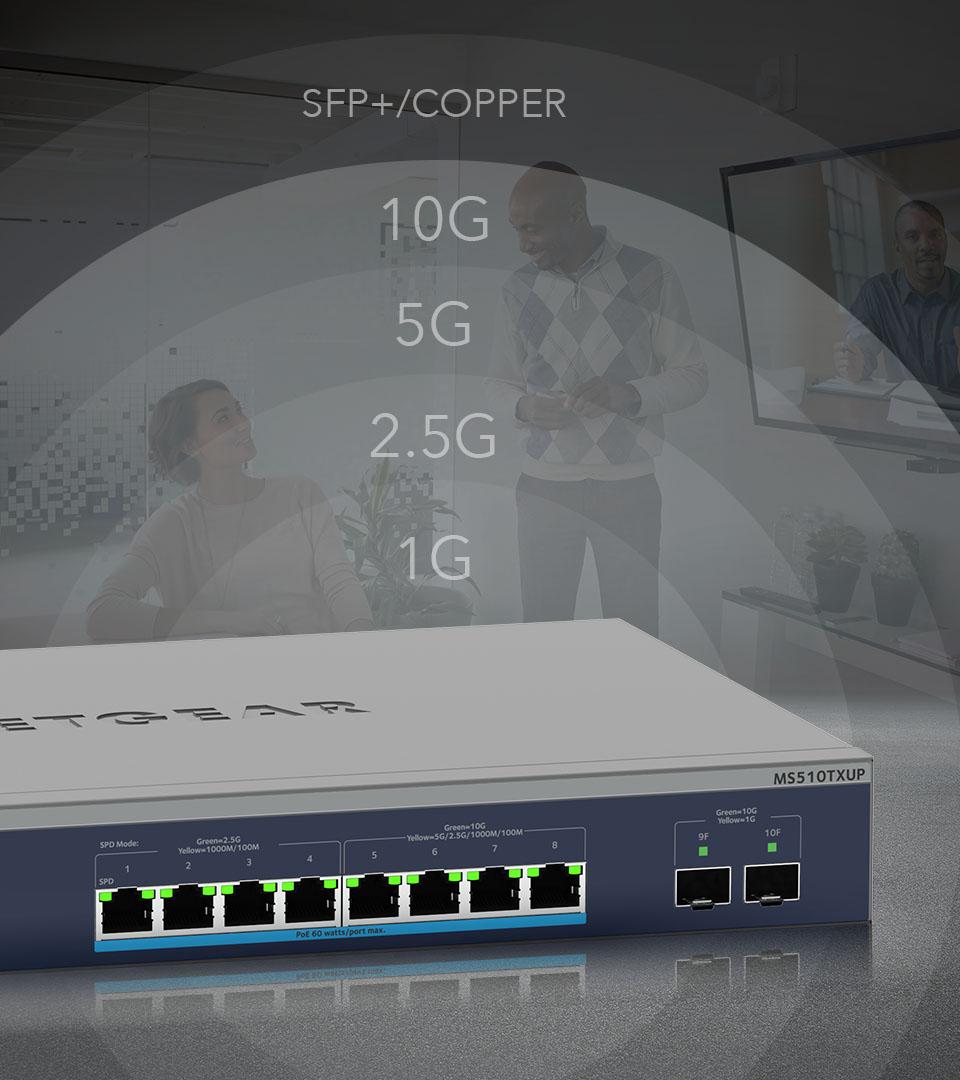

Room to Move
5 different ports available: 1G, 2.5G, 5G, 10G; SFP+ and Copper.

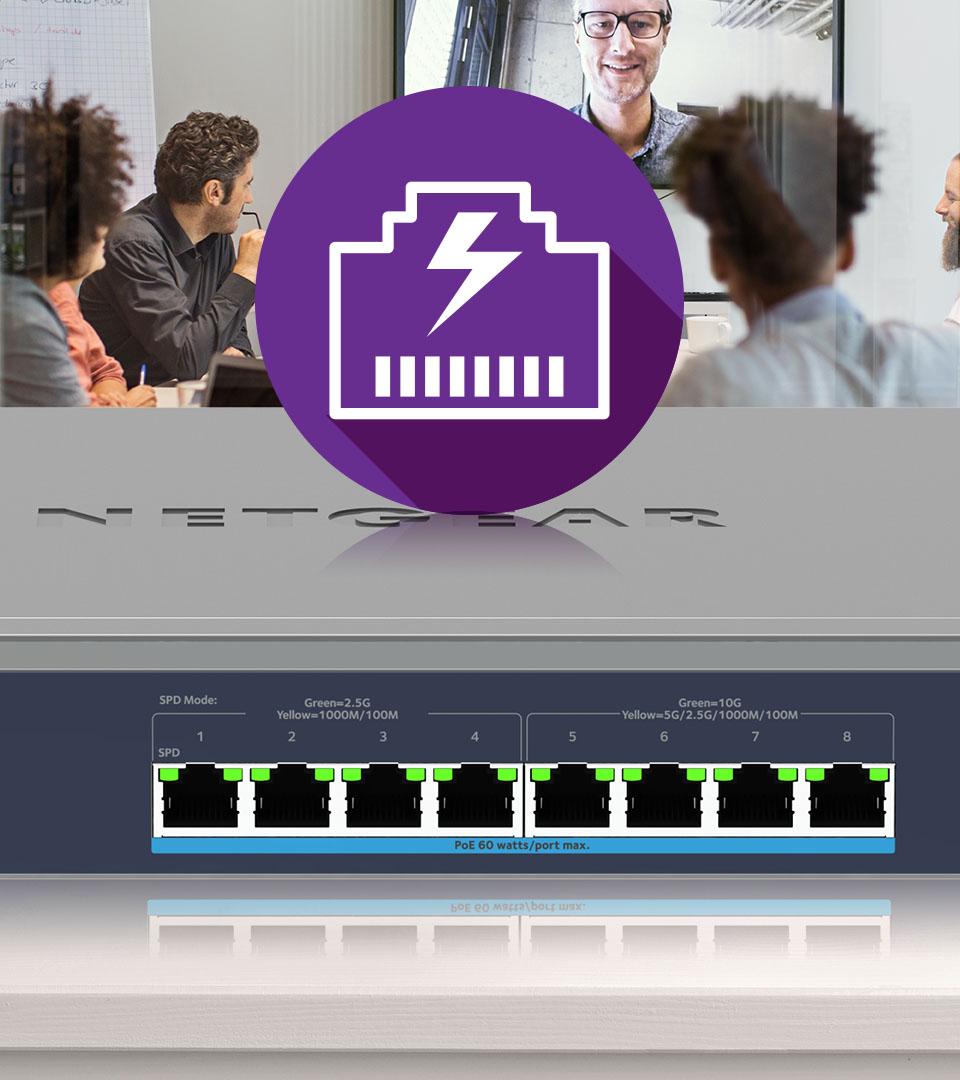

295W PoE Convenience
With 8 uninterrupted PoE ports, deploy PoE-based VoIP phones, IP cameras, AV-over-IP endpoints and wireless access points simply and securely.

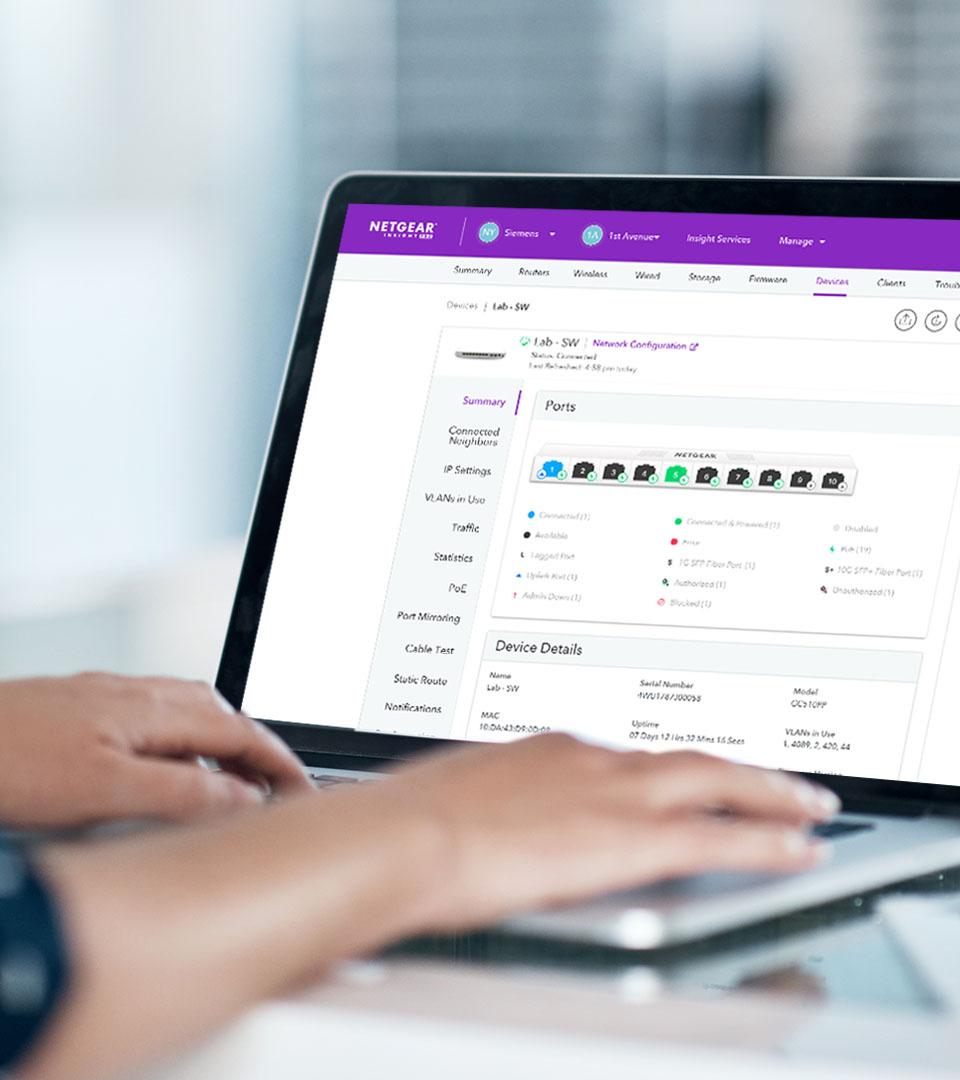

Cloud Management
Optional remote access for configuration, management, and monitoring through the NETGEAR Insight Cloud Portals.
Technical Specifications
