  • 24 Multi-Gigabit 1G/2.5G ports with 4 10G SFP+ ports
  • 24 Ultra60 PoE++ ports with uninterrupted PoE
  • High powered 720W PoE budget
  • Energy Efficient Ethernet for maximum power savings
  • Quiet desktop or rackmount operation
  • Configurable L2/L2+ network features
  • NETGEAR Insight Remote Cloud Management
  • 5-year Hardware Limited Warranty 5-year Next Business Day Hardware Replacement, 90-day phone/chat support
MS324TXUP MS324TXUP-100EUS MS324TXUP-100EUS
1-Year NETGEAR Insight Subscription Included

Multi-Gigabit Ethernet Smart Switches (MS324TXUP) armor

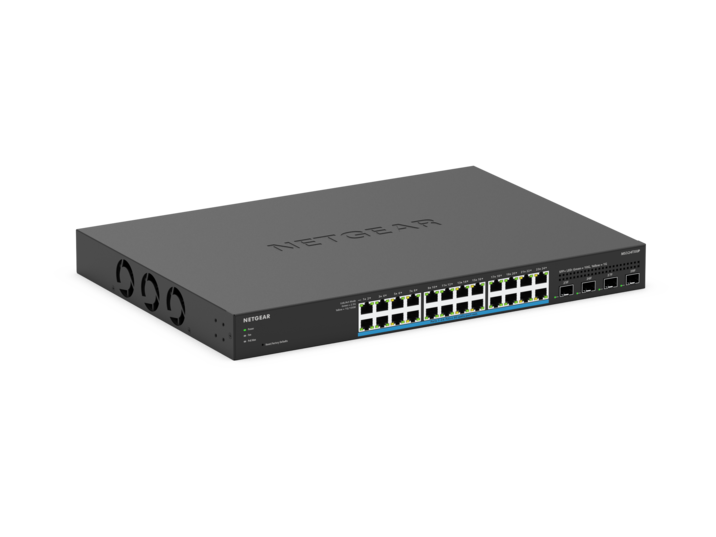

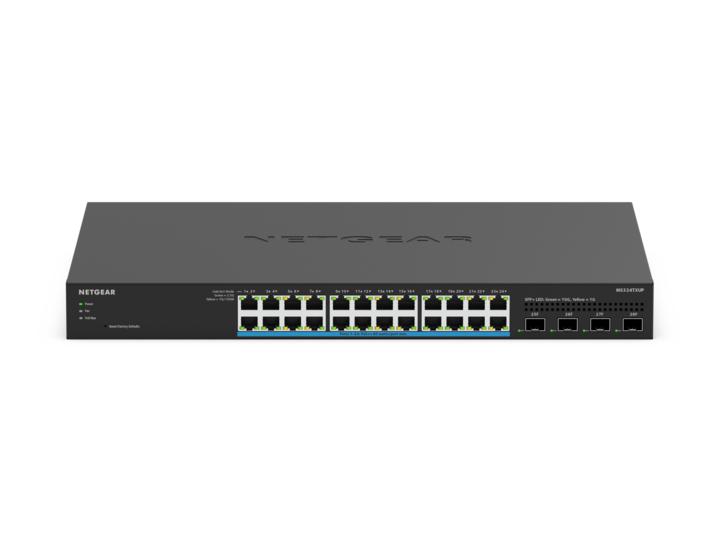

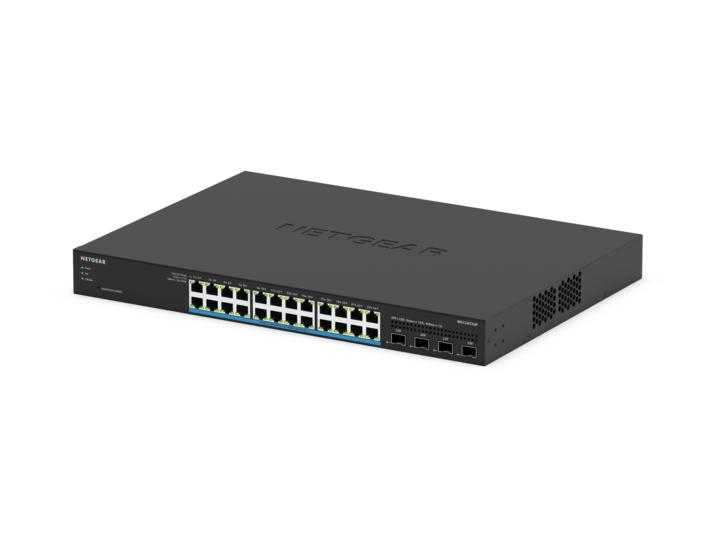

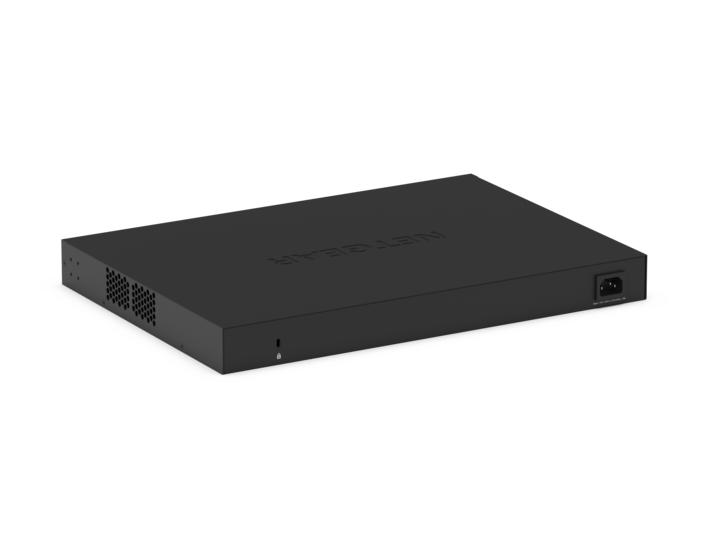

24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports armor

1-Year NETGEAR Insight Subscription Included

Multi-Gigabit Ethernet Smart Switches (MS324TXUP)

24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

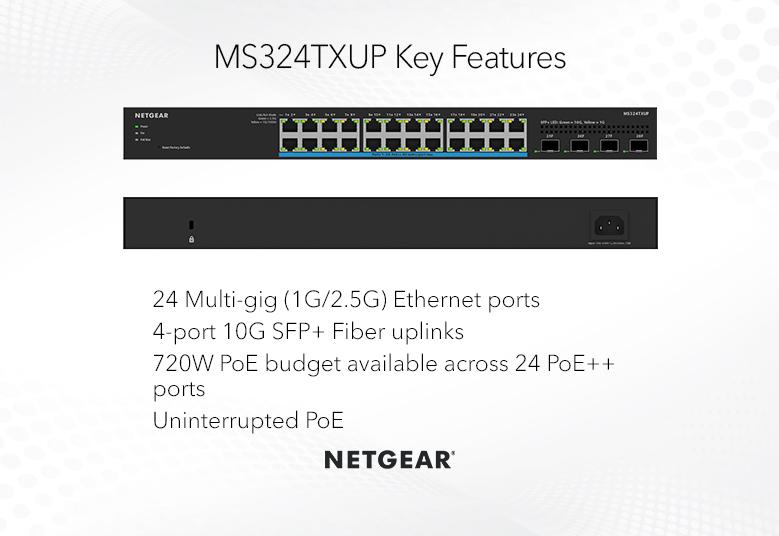

  • 24 Multi-Gigabit 1G/2.5G ports with 4 10G SFP+ ports
  • 24 Ultra60 PoE++ ports with uninterrupted PoE
  • High powered 720W PoE budget
  • Energy Efficient Ethernet for maximum power savings

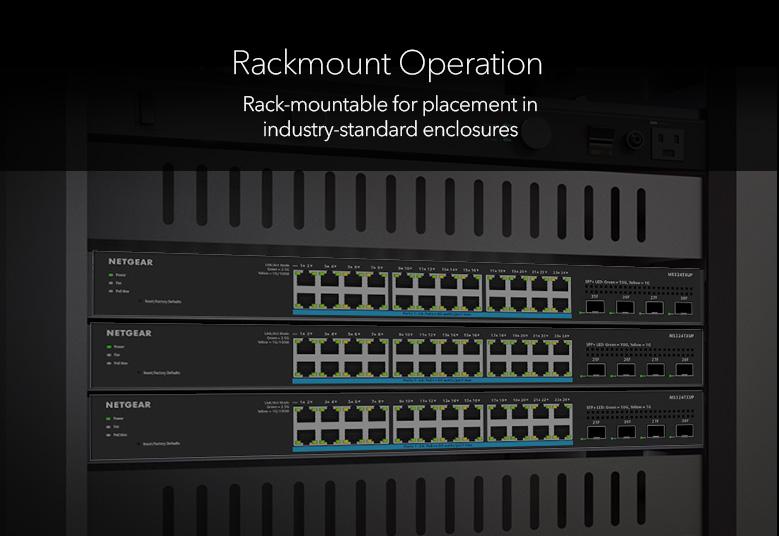

  • Quiet desktop or rackmount operation
  • Configurable L2/L2+ network features
  • NETGEAR Insight Remote Cloud Management
  • 5-year Hardware Limited Warranty 5-year Next Business Day Hardware Replacement, 90-day phone/chat support

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

wax630e_04_mobile wax630e_04_desktop

NETGEAR INSIGHT REMOTE MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.


LEARN MORE

Netgear Insight App Store   Netgear Insight Google Play

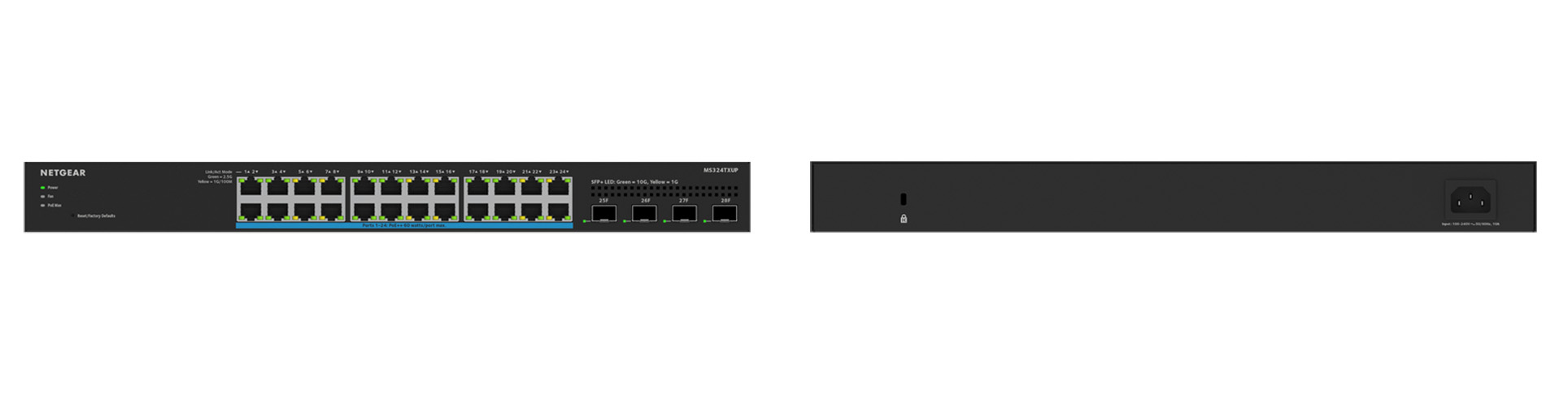

Technical Specifications

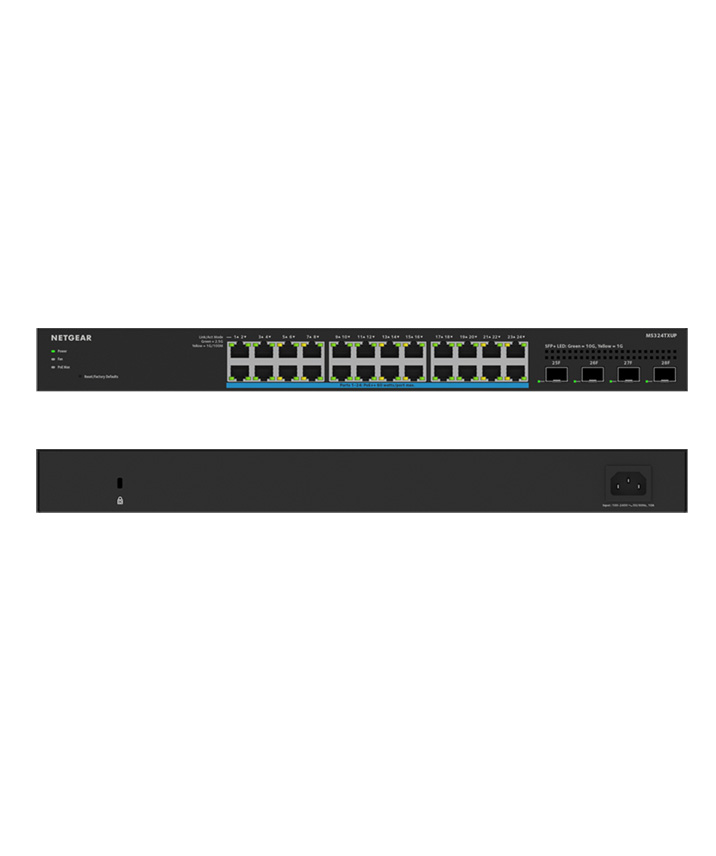

MS324TXUP_TechSpecs-DESKTOP MS324TXUP_TechSpecs-MOBILE

Product Specifications

  • NETGEAR MS324TXUP with Insight Cloud Management
  • DC power cord (varies by region)
  • Rackmount kit
  • Installation guide
  • Width
    440mm
  • Depth
    310mm
  • Height
    43.2mm
  • Weight
    9.78lb (4.435kg)
  • Multi-gigabit copper ports
    24 (1G/2.5G)
  • SFP+ ports
    4
  • Number of PoE++ (802.3bt) ports
    24
  • Total PoE Power budget
    720 Watts
  • Uninterrupted PoE
    Yes
  • Max MAC entries
    32K
  • Buffer size
    2 MB
  • VLAN (Number Supported)
    256
  • VLAN routing
    Yes
  • Dynamic VLAN assignment
    Yes
  • MLD Snooping
    Yes
  • Static route
    Yes (32)
  • Host ARP table
    512 ARP
  • EEE
    Yes
  • DoS Prevention
    Yes
  • Internal/External PSU
    Internal
  • Max power (worst case, all ports used, line-rate traffic)
    765W
  • Fans
    3
  • Acoustic Noise Level @25C
    38.0 dBA
  • Operating Temperature
    0° to 50° C (32° to 122°F)
  • MTBF
    1,017,939 hrs (116.12 yrs)
  • NETGEAR Insight Remote Cloud Management

    NETGEAR Insight is the easy-to-use solution for delivering centralized remote management of networks across multiple locations for small business owners, IT managers, MSPs and VARs all from a single pane-of-glass on any device.
    Learn More

  • This product is backed by a 5-year Hardware Limited  Warranty, 5-year Next Business Day Hardware Replacement. Click  here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.

    ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
