8-Port Gigabit Ethernet Smart Switch with Cloud Management
Ports
- 8 Ports
Port Types
- 24 x 10/100/1000 Base-T RJ-45 copper ports
PoE Budget
- n/a
Details

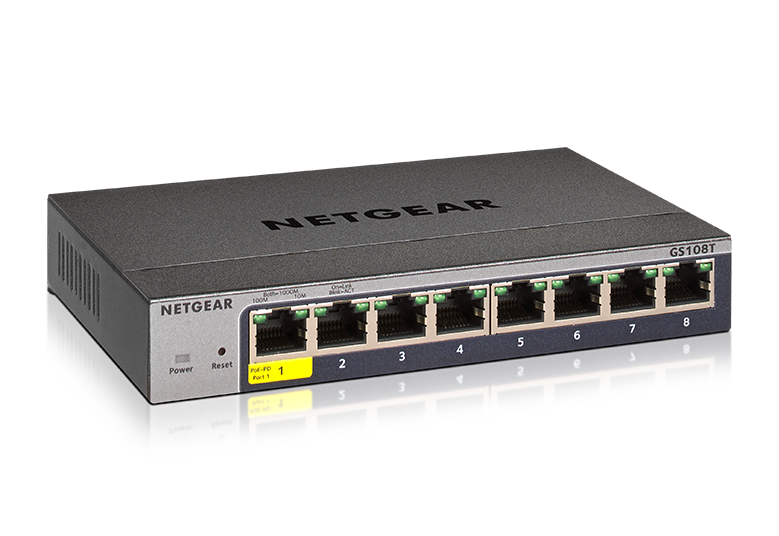

8-Port Gigabit Ethernet Smart Switch with Cloud Management
GS108Tv2
GS108Tv2
Ports
- 8 Ports
Port Types
- 24 x 10/100/1000 Base-T RJ-45 copper ports
PoE Budget
- n/a
Details
Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

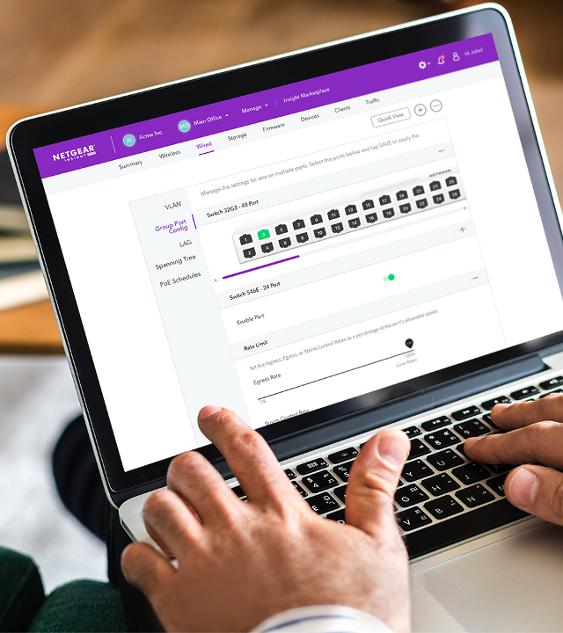

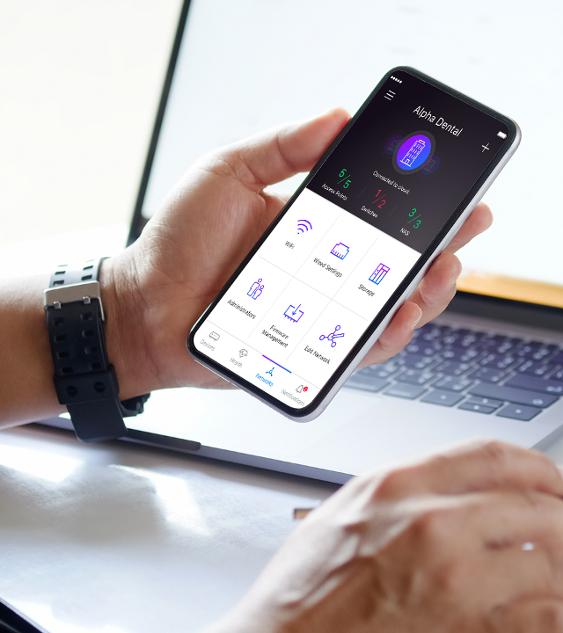

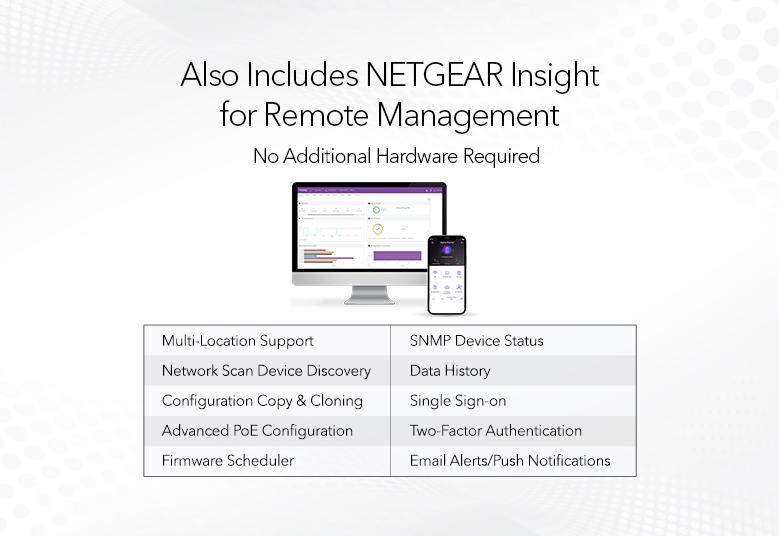

NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
Features
Traffic Management
Auto Negotiation of speed and duplex modes IEEE 802.3x Flow Control Dynamic MAC address management IEEE 802.1Q-based VLAN Auto Voice VLAN Auto Video VLAN (selected models) VLAN routing (selected models) QoS based on WRR, strict priority, or both Port-based and IEEE 801.2p-based QoS TCP/UDP-based QoS DiffServ IPv4 and IPv6-based QoS (selected models) DSCP Support Rate Limiting (ingress, or egress) Link Aggregation and LACP

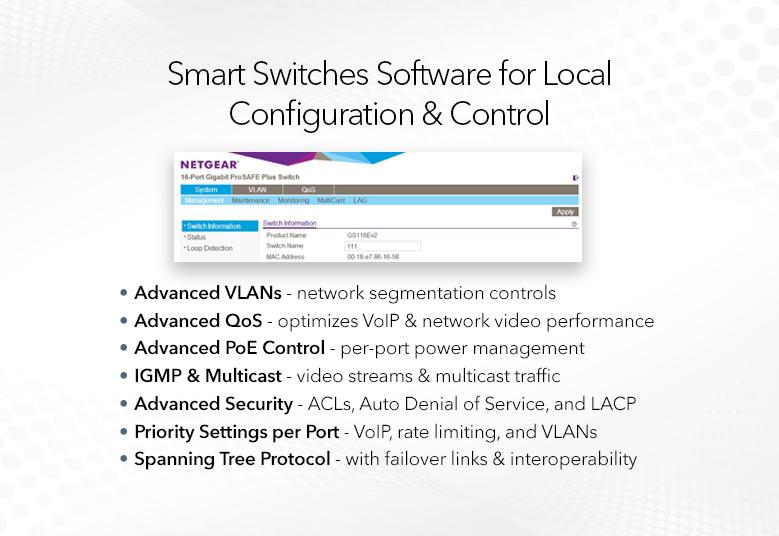

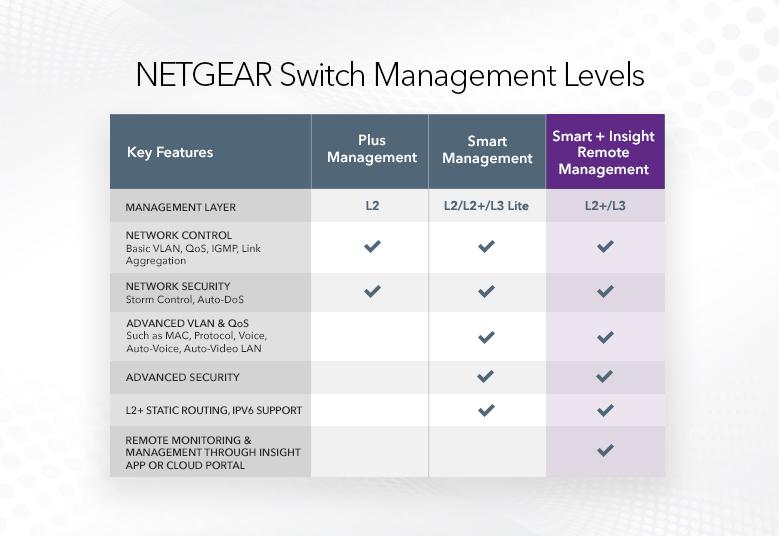

Switch Management
Insight mobile app or Insight Cloud Portal Web browser-based management GUI Smart Control Center Software for multi-switch management IP Access List IPv6 Management Configurable Management VLAN SNMP v1/v2c and v3 Standard MIBs (RFC1213, RFC1643, and RFC1493) RMON group 1, 2, 3, 9 Firmware Upgrade through Smart Control Center (TFTP) Firmware download (to switch) and upload (to server) through TFTP/HTTP Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server) Memory & FLASH log Syslog (server) System password protection
Security
MAC lockdown MAC lockdown by number of MACs IEEE 802.1x port authentication Dynamic VLAN Assignment Guest VLAN TACACS+ 3 HTTPS /SSL versions TLS session Trusted MAC IPv4, L4-based Access Control List (ACL) IPv6-based ACL (selected models)
Multicast Efficiency
IGMP snooping, v1, v2 and v3 IGMP snooping querier Blocking of unknown multicast traffic MLD snooping
Spanning Tree, Routing and Stacking
IEEE 802.1D, IEEE 802.1w RSTP and MSTP Option to enable/disable BPDU flooding when STP is disabled Static routing with 32 static routes (Selected models) Hosted ARP table size of 512 (Selected models)
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic Jumbo frame support Broadcast Storm control Cable diagnostics Loop Detection DoS Prevention IEEE 802.1ab LLDP LLDP-MED
Dual Image SNTP Option to enable/disable the flooding of EAPOL when 802.1x is disabled Protected ports DNS client DHCP clients DHCP snooping Ping and traceroute client Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
