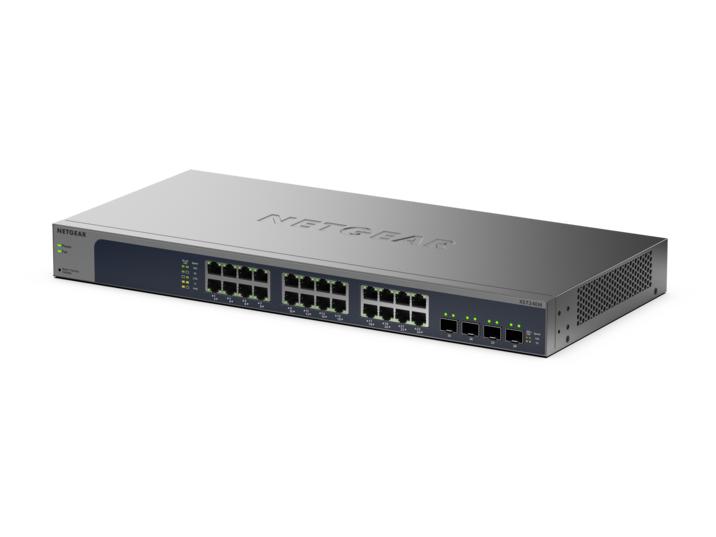

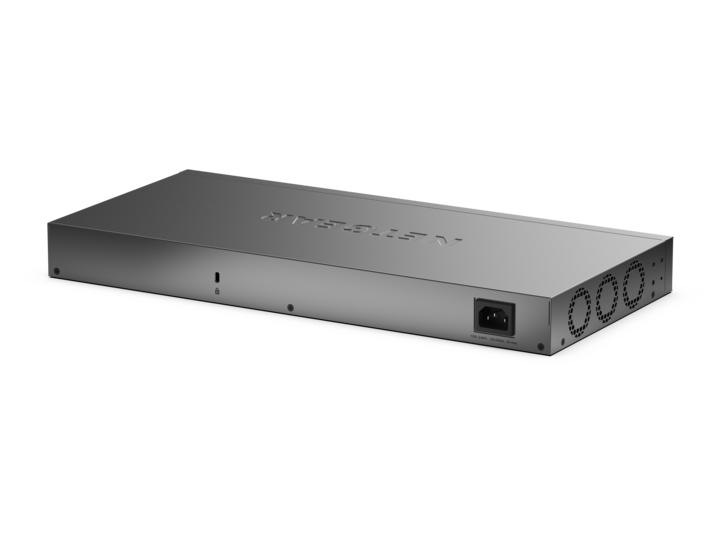

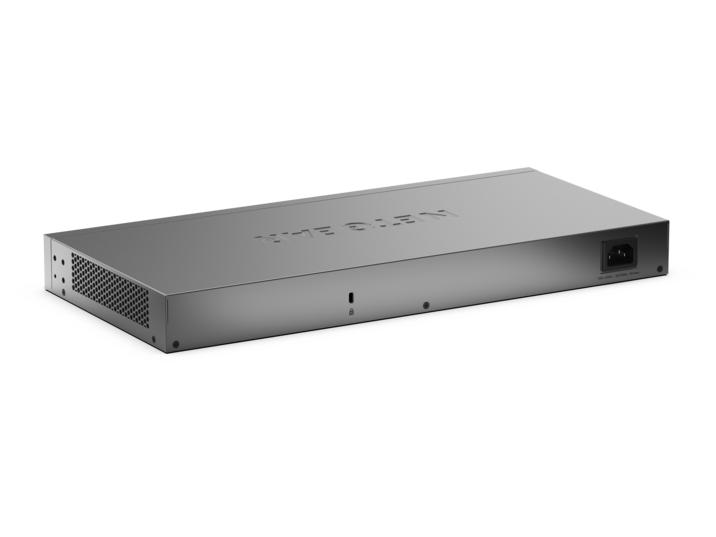

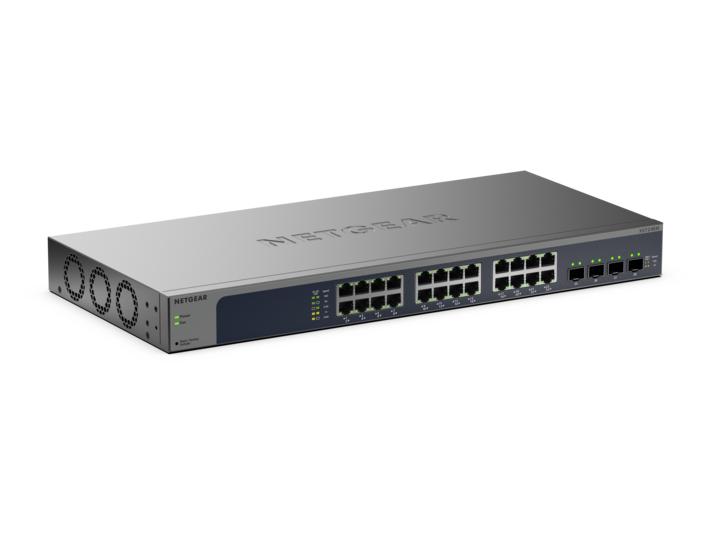

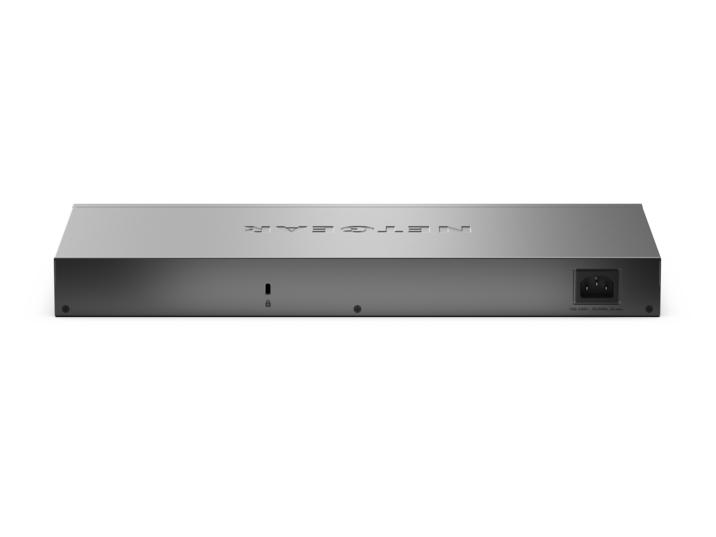

24-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 4 Dedicated 10G SFP+ Ports
24-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 4 Dedicated 10G SFP+ Ports
XS724EM
1 / 6
Ports
- 24 Ports
Port Types
- 24 x 10G/Multi-Gig Copper Ports
- 4 x SFP+ Ports
Details
- Easy management with an intuitive web-based interface
- Versatile placement options: desktop or rack-mount
- Optimised for low-noise operation
XS724EM
Ports
- 24 Ports
Port Types
- 24 x 10G/Multi-Gig Copper Ports
- 4 x SFP+ Ports
Details
- Easy management with an intuitive web-based interface
- Versatile placement options: desktop or rack-mount
- Optimised for low-noise operation
Why Multi-Gigabit?
Maximize network performance by giving your devices the speed they need automatically: 100M /1G / 2.5G / 5G or 10G.
Features
Multi-gigabit Connections
Each port automatically detects and provides the exact speed needed (1G/2.5G/5G/10G). Upgrade your current network without upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run 5G and 2.5G over connections up to 100m.
SFP+ Fiber Uplinks
10G SFP+ ports provide flexible fiber connectivity options for core switch uplinks with backward compatibility to Gigabit fiber networks.
Whisper-quiet Active Cooling & Flexible Form Factor
Active fan design operates below office ambient noise levels while maintaining optimal performance at temperatures up to 50°C, with Rack-mount or Desktop deployment options for versatile placement in any network environment.
Auto-VLAN
Automatic VLAN assignment for voice, video, WiFi, and camera traffic providing instant network segmentation and optimization for critical business applications.
Comprehensive QOS Controls
Port-based, IEEE 802.1p, and DSCP-based traffic prioritization with rate limiting ensures optimal performance for mission-critical applications like voice and video.
Link Aggregation & Redundancy
Static LAG and LACP support enables bandwidth aggregation and failover protection with up to 8 members per LAG for enhanced network reliability.
Product Specifications
Dimensions (W x D x H) | 440 x 204 x 43 mm (17.3 x 8 x 1.7 in) |
Weight | 3.9kg (8.6lb) |
Speed | 1G/2.5G/5G/10G |
Number of Ports | 100M/1G/2.5G/5G/10G RJ-45 copper ports: 24 |
Form Factor | Desktop/Rackmount |
Bandwidth | 560 Gbps |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo Frame Support | 12,288 bytes |
MAC Table Size | 32K |
Packet buffer size | 8MB |
IEEE 802.1p QoS | Yes |
VLAN (# supported) | 64 |
Number of LAGs & number of members | 12 LAG with max 8 members in each LAG |
Supported multicast groups | 256 |
Max Power Consumption | 139W |
Fans | 3 |
Acoustic noise level @ 25° C (dBA) | 35.3 dBA |
LEDs | Power, Speed, Fan, Link/Activity |
Operating Temperature | 0-50°C (32°F - 122°F) |
MTBF (hours) | 161,283 hrs (18.4 years) |
FCC Class | Class A |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
| | Click here for coverage, availability and terms and conditions. |
Support | NETGEAR Support offers a customizable support experience based on your operational needs : |
|
|
|
|
| | Support coverage in one, three, or five year contracts |
| |
