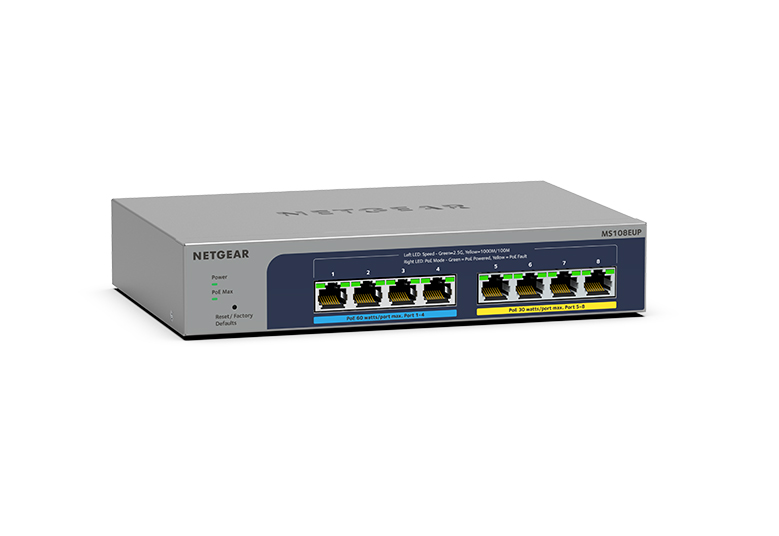

8-port Multi-Gigabit (2.5G) Ethernet Ultra 60 PoE++ Easy Smart Managed Switch
8-port Multi-Gigabit (2.5G) Ethernet Ultra 60 PoE++ Easy Smart Managed Switch
MS108EUP
1 / 4
Ports
- 8 Ports
Port Types
- 8 x 1G/2,5G Ethernet RJ-45 copper ports (100M/1G/2,5G) - 1000 Base-T, 4 x PoE+, 4 x PoE++
PoE Budget
- 230 Watts
Details
MS108EUP
Ports
- 8 Ports
Port Types
- 8 x 1G/2,5G Ethernet RJ-45 copper ports (100M/1G/2,5G) - 1000 Base-T, 4 x PoE+, 4 x PoE++
PoE Budget
- 230 Watts
Details
Simply Better Together
Combine your Multi-Gig Switch with WiFi 6 Access Points to optimize your network for power and speed.
Features
Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.
PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.
Advanced PoE Controls
Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.
Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.
Technical Specifications
Dimensions (W x D x H) : | 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in) |
Weight : | 0.9 kg (1.984 lb) |
Multi-gigabit copper ports : | 8 (1G/2.5G) |
Number of PoE+ (802.3at) ports : | 4 |
Number of PoE++ (802.3bt) ports : | 4 |
Total PoE Power budget : | 230 Watts |
Uninterrupted PoE : | Yes |
Max MAC entries : | 16K |
Buffer size : | 1.5MB |
VLAN (Number Supported) : | 64 |
EEE : | Yes |
DoS Prevention : | Yes |
Internal/External PSU : | External |
Max power (worst case, all ports used, line-rate traffic) : | 230W |
Fans : | 0 |
Acoustic Noise Level @25C : | Fanless |
Operating Temperature : | 0° to 40° C (32 to 104F) |
MTBF : | 373,643.7 hrs (42.6 yrs) |
Warranty | This product is backed by NETGEAR limited lifetime hardware warranty. |
| Click here for coverage, availability and terms and conditions. |
Support | NETGEAR Support offers a customizable support experience based on your operational needs: |
| |
|
|
|
| Support coverage in one, three, or five year contracts |
